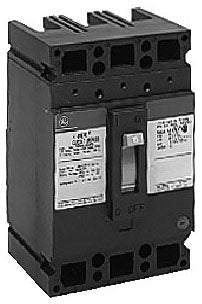

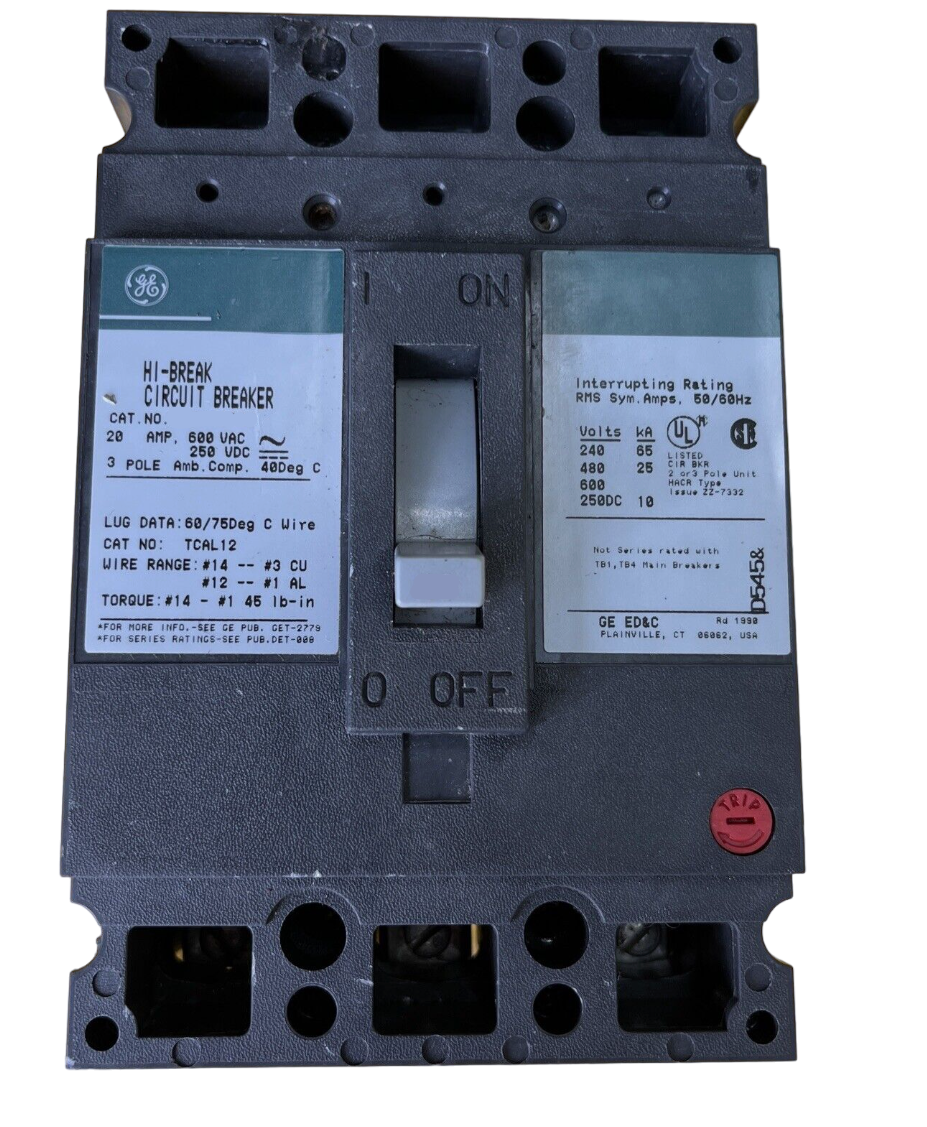

General Electric THED136020WL Circuit Breaker | 600V 20A 3P 25kA@480V Plug In Panelboard E150 Line
General Electric THED136020WL Circuit Breaker | 600V 20A 3P 25kA@480V Plug In Panelboard E150 Line
54 in stock
Couldn't load pickup availability
ABB / GE Branding Notice
On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions. Because of this transition, some products may be labeled as either ABB or GE depending on the manufacturing date and production batch.
Customers may receive products with:
- ABB branding
- GE branding
- Packaging reflecting either brand
Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.
Please contact our support team before ordering if you have questions about labeling, compatibility, or product identification.
The General Electric THED136020WL is a 3-pole Molded Case Circuit Breaker from the E150 Line family. It features a 600V, 20A rating with a 25kA@480V AIC rating and Thermal Magnetic protection. Designed for Plug In Panelboard connections, it is suitable for industrial and commercial applications. This breaker meets CSA and UL standards for safety and performance.
Key Features:
✔ Part Number: THED136020WL
✔ Manufacturer: General Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: E150 Line
✔ Type: THED
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 25kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 150A/THED
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783164062762
✔ GTIN: 00783164062762
✔ Country of Origin: United States
✔ Dimensions: 4-1/8 in x 6-5/16 in
✔ Weight: 3 lb
✔ Panel Type: GE Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: CSA Certified, UL Listed
