Product Description:

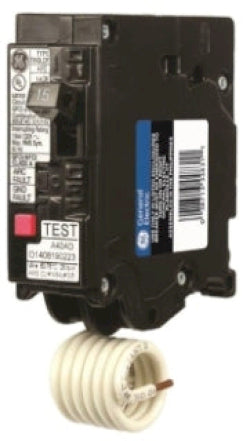

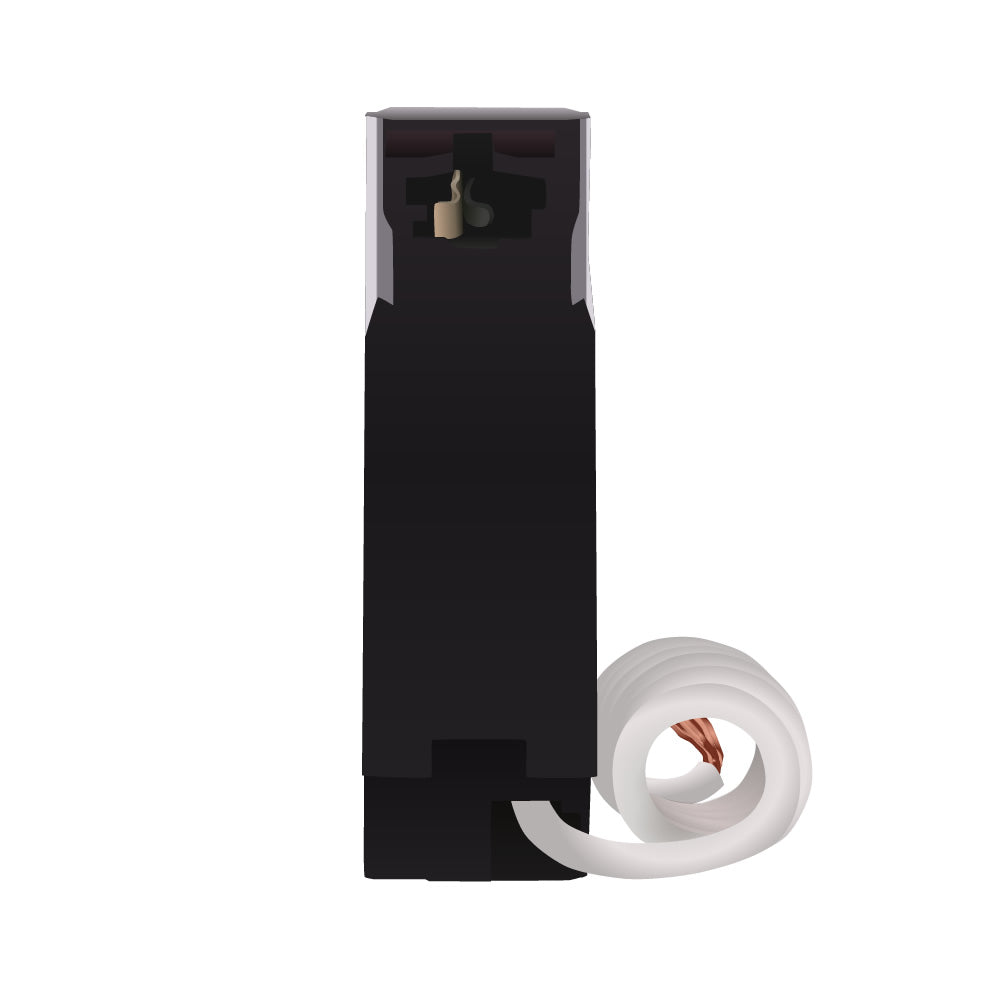

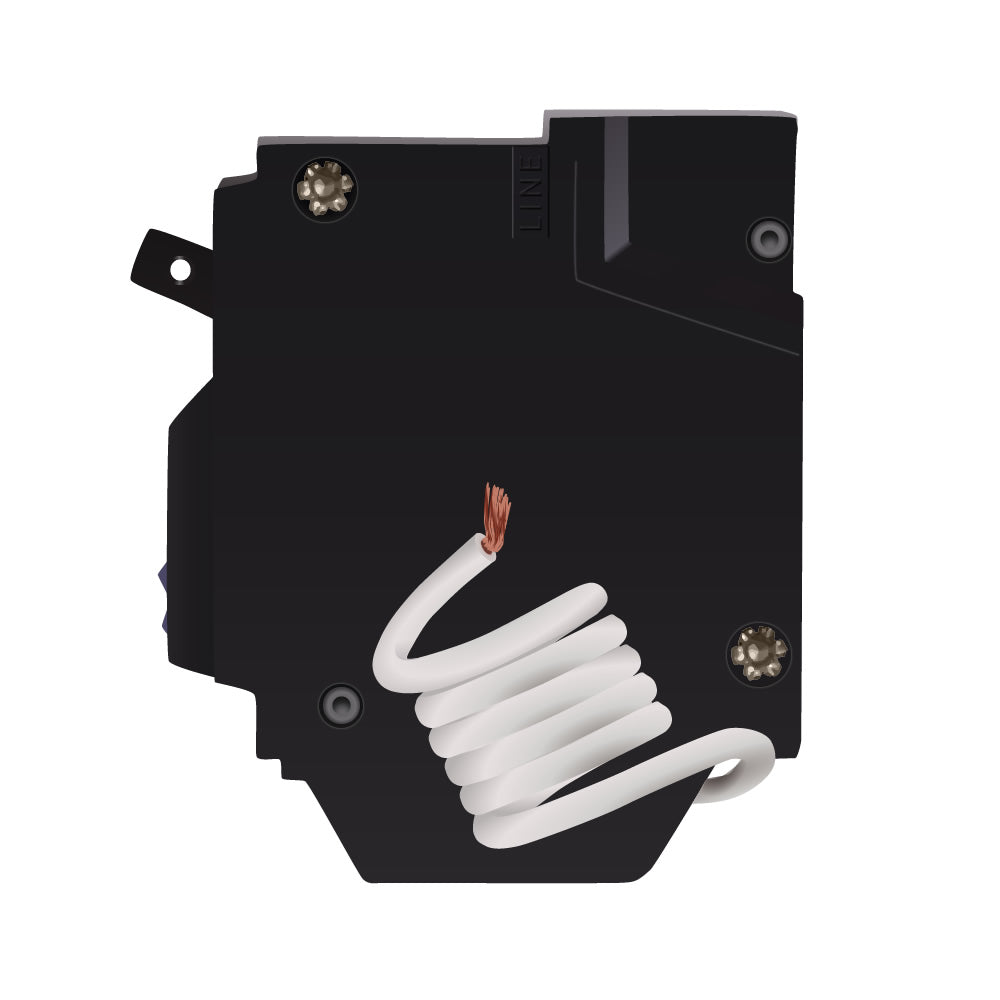

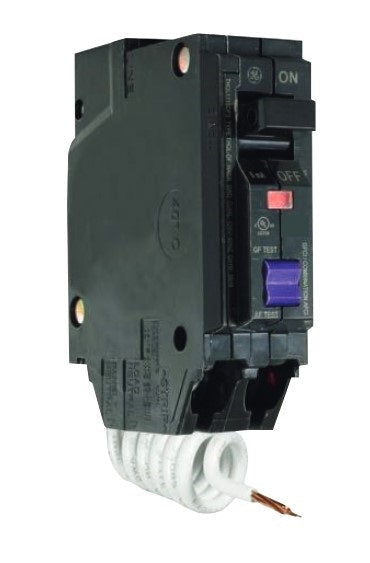

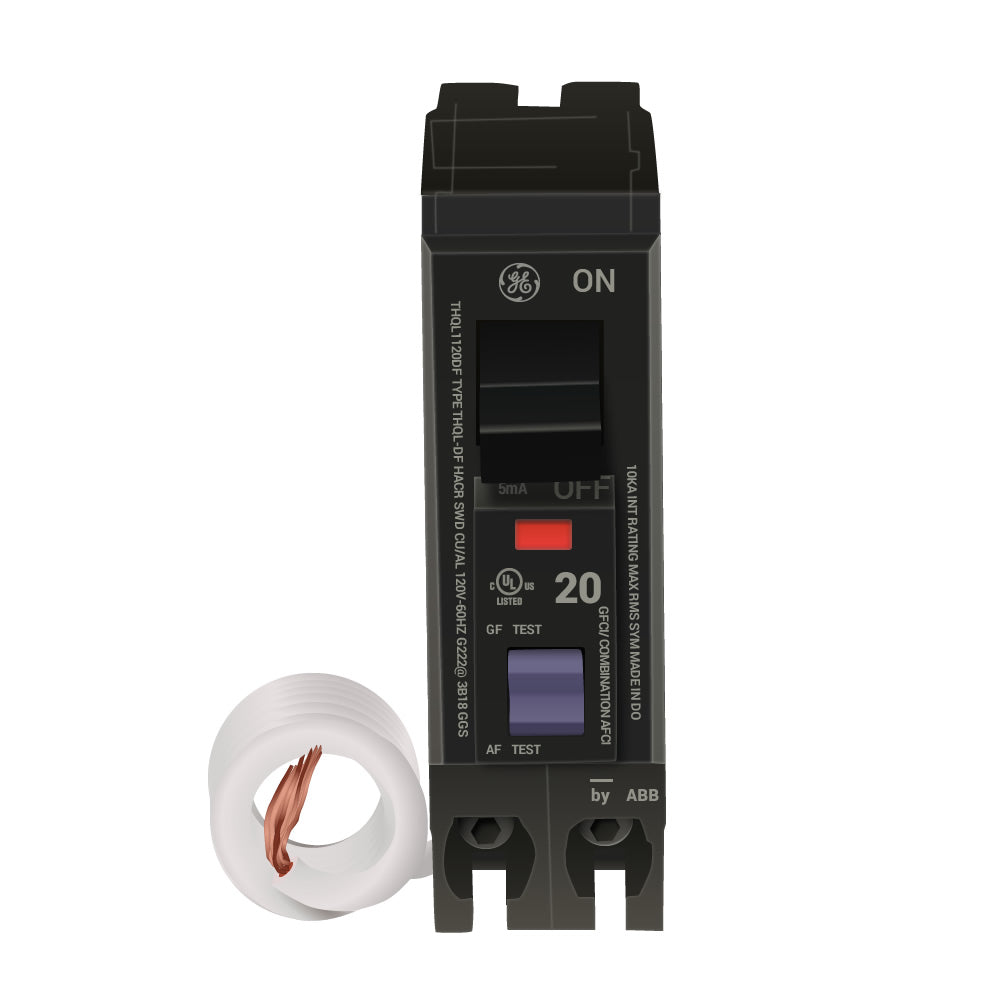

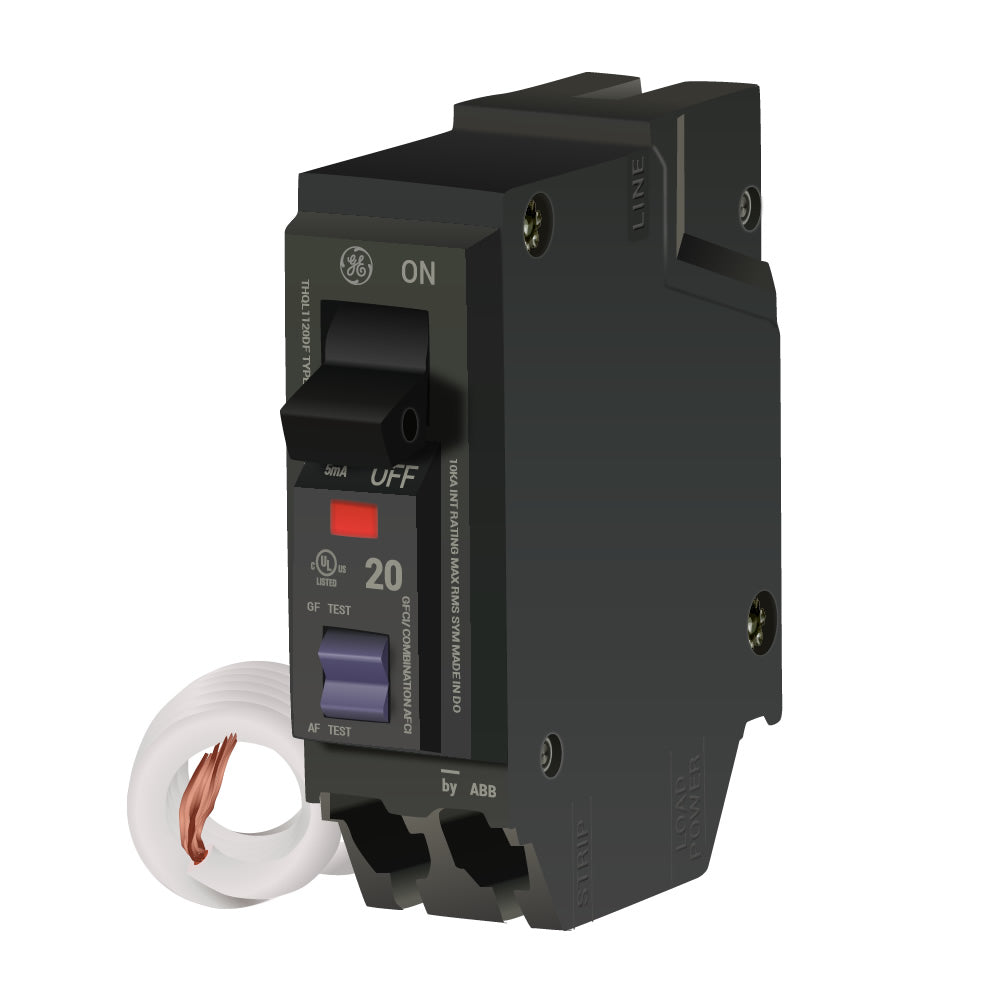

The General Electric THQL1120DF is a Molded Case Circuit Breaker from the Q-Line family. It is a 1 pole, 120 Volt, 20 amp rated breaker with a 10kA@120V AIC rating. This model uses a Plug-In connection and provides Thermal Magnetic protection for reliable circuit safety.
Key Features:
✔ Part Number: THQL1120DF
✔ Manufacturer: General Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q-Line
✔ Type: THQL
✔ Voltage: 120
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 78316453209
✔ GTIN: 40783164532096
✔ Dimensions: 3- 9/32" inches high X 1" inch wide X 2- 3/8" inches deep
✔ Certification: UL
✔ Wire Size: #14 to 8 AWG
