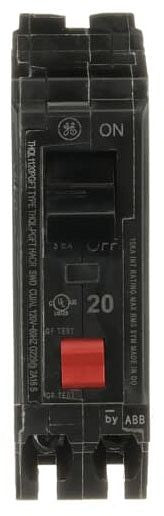

THQL1120PGFT GE 20A 1-Pole GFCI Plug-On Neutral Breaker for PowerMark Gold Panels
THQL1120PGFT GE 20A 1-Pole GFCI Plug-On Neutral Breaker for PowerMark Gold Panels
Couldn't load pickup availability
ABB / GE Branding Notice
On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions. Because of this transition, some products may be labeled as either ABB or GE depending on the manufacturing date and production batch.
Customers may receive products with:
- ABB branding
- GE branding
- Packaging reflecting either brand
Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.
Please contact our support team before ordering if you have questions about labeling, compatibility, or product identification.
THQL1120PGFT GE 20A 1-Pole GFCI Plug-On Neutral Breaker for PowerMark Gold Panels
Pulling a GFCI breaker for a PowerMark Gold panel or an AQ lighting panel? The THQL1120PGFT is the GE THQL Q-Line breaker you need: 20 amp, single pole, 120/240V, plug-on neutral so there is no pigtail to land. It seats straight into the bus, trips at 5 mA for Class A personnel protection under UL943 fifth edition, and carries a 10 kAIC interrupting rating. Thermal magnetic trip, fixed Long Time and Instantaneous, UL Listed and CSA certified.
Common Applications
- Kitchen, bathroom, and laundry circuits that call for GFCI protection under NEC 210.8
- Garage, basement, crawl space, and outdoor receptacle runs
- Direct swap when a GFCI breaker trips out or fails self-test in a PowerMark Gold panel
- New panel builds where the schedule calls for a 20A single-pole GFCI
Key Features
- Plug-on neutral: No pigtail, no extra splice, just seat it on the bus and go
- Self-test GFCI: Monitors itself and flags a fault so you are not chasing nuisance trips blind
- 5 mA sensitivity: Class A personnel protection, meets UL943 fifth edition
- Quick-make/quick-break: Standard Q-Line action with a visible trip flag so you can spot a tripped breaker at a glance
- Fixed thermal magnetic trip: Long Time and Instantaneous functions handle overload and short circuit protection in one unit
Specifications
- Catalog Number: THQL1120PGFT
- Manufacturer: General Electric (GE), manufactured under ABB Electrification
- Type: THQL Q-Line
- Poles: 1
- Voltage Rating: 120/240 VAC
- Amperage Rating: 20 A
- Interrupting Rating: 10,000 AIC (10 kAIC) at 120/240V
- Trip Unit: Thermal magnetic, fixed Long Time and Instantaneous, non-interchangeable
- Ground Fault Sensitivity: 5 mA, Class A personnel protection
- Termination: Plug-on neutral (PON), plug-in mounting
- Wire Range: 14 AWG minimum to 8 AWG maximum copper; 12 AWG to 8 AWG aluminum
- Certifications: UL Listed, CSA certified, HACR rated, UL943 fifth edition
- Compatibility: GE PowerMark Gold load centers and AQ lighting panels
Product Identification
- UPC: 783164639872
FAQ
Will the THQL1120PGFT fit my PowerMark Gold panel?
Yes, it is built for GE PowerMark Gold load centers and AQ lighting panels that take the Q-Line plug-on neutral frame.
Do I still need a pigtail with this breaker?
No. The P in THQL1120PGFT means plug-on neutral, so it lands straight on the bus with no pigtail to splice.
What trips this breaker on a ground fault?
It trips at 5 mA, which is Class A personnel protection under UL943 fifth edition, on top of its standard thermal magnetic overload and short circuit protection.
What is the interrupting rating I am working with?
10,000 AIC (10 kAIC) at 120/240V.
What wire can I land on this breaker?
14 AWG minimum up to 8 AWG maximum on copper, or 12 AWG to 8 AWG on aluminum.
Is it listed for the inspection to sign off?
Yes, it is UL Listed, CSA certified, and HACR rated.
