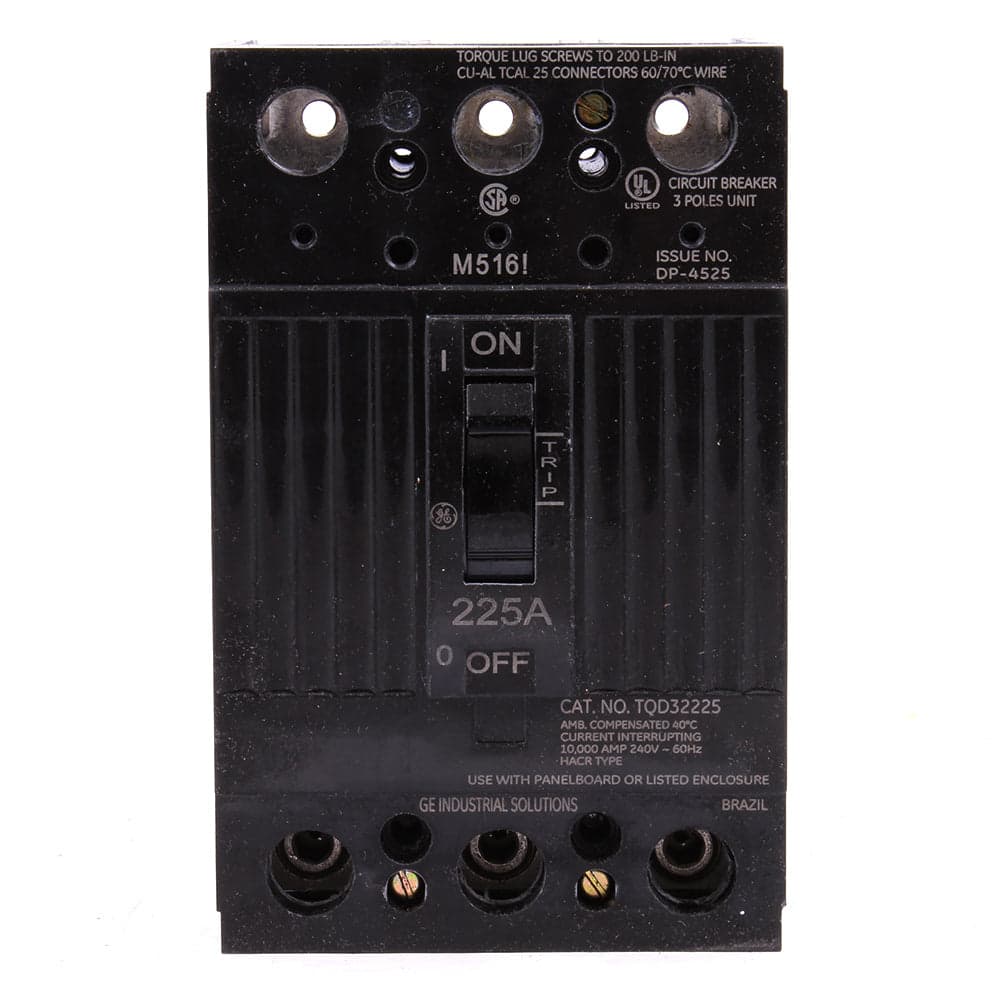

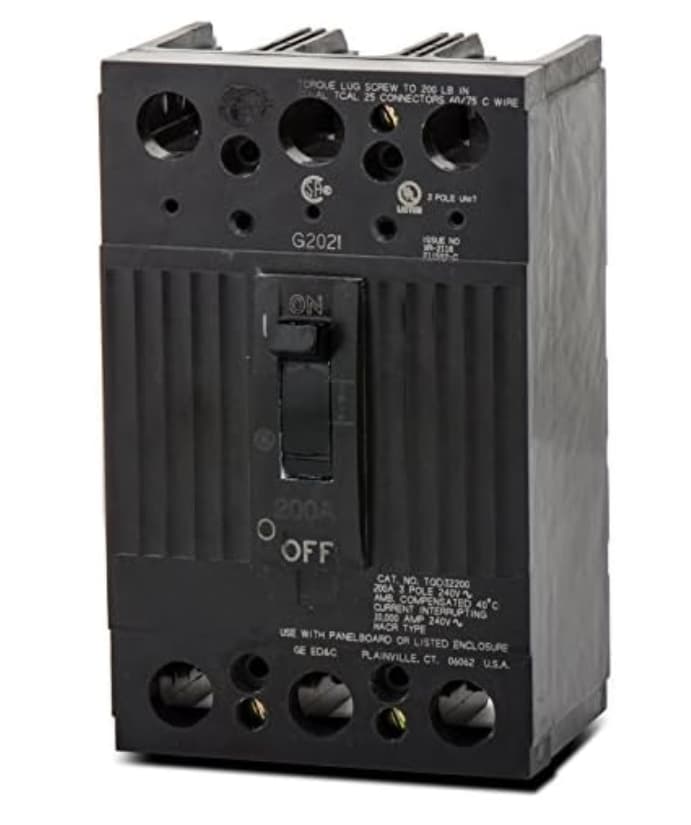

TQD32225 GE Q-Line 225A 3-Pole Bolt-On Replacement Circuit Breaker
TQD32225 GE Q-Line 225A 3-Pole Bolt-On Replacement Circuit Breaker
12 in stock
Couldn't load pickup availability
ABB / GE Branding Notice
On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions. Because of this transition, some products may be labeled as either ABB or GE depending on the manufacturing date and production batch.
Customers may receive products with:
- ABB branding
- GE branding
- Packaging reflecting either brand
Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.
Please contact our support team before ordering if you have questions about labeling, compatibility, or product identification.
TQD32225 GE Q-Line 225A 3-Pole Bolt-On Replacement Circuit Breaker
Need a direct replacement for a GE Q-Line breaker in an A-Series or Spectra panel? The TQD32225 bolts straight into the bus, handles a 225A load at 240 VAC across 3 poles, and carries a 10kA AIC interrupting rating so you are not guessing on fit or capacity. Load side lugs come factory installed, and the fixed thermal magnetic trip covers both overload and short circuit protection out of the box.
This is a bolt-on unit, not a plug-on breaker, so confirm your panel's bus style before you order. If you pulled a TQD32225 out of an existing panel, this is the same catalog number going back in.
Common Applications
- Bolt-on replacement in GE A-Series and Spectra Series panelboards
- 225A service, feeder, or branch circuit runs
- Panel upgrades and breaker swaps on commercial and industrial jobs
- Load center repairs where the original TQD breaker has failed or tripped out
Key Features
- Bolt-On Fit: Mounts directly to the panel bus, no adapter kit needed on compatible GE panels
- 225A at 240V: Handles a full 225A load across 3 poles on a 240 VAC system
- 10kA AIC: UL listed interrupting rating of 10,000A at 240V
- Fixed Thermal Magnetic Trip: Long-time and instantaneous protection, calibrated at the factory
- Load Side Lugs Included: No separate lug kit to source or install
- UL 489 Listed: Certified under UL File E-11592 for feeder and branch use
Specifications
- Manufacturer: General Electric (GE Industrial Solutions)
- Series: Q-Line
- Type: TQD
- Amperage: 225A
- Voltage Rating: 240 VAC
- Poles: 3
- Phase: 3
- Interrupting Rating: 10kA AIC at 240V
- Trip Unit: Thermal Magnetic, Fixed LI (Long-Time, Instantaneous)
- Mounting: Bolt-On
- Terminal Connection: Load Side Lugs
- Temperature Rating: 40 deg C
- Certification: UL Listed, UL File E-11592, UL 489
- Lifecycle Status: Discontinued by manufacturer, available while supplies last
Product Identification
- Dimensions: 6.56 in H x 4.13 in W x 2.63 in D (6-9/16 x 4-1/8 x 2-5/8 in)
- Weight: 3.00 lb
- UPC/GTIN: 783164021363
FAQ
- Will the TQD32225 bolt straight into my GE panel? Yes, if your panel is a GE A-Series or Spectra Series bus built for the Q-Line TQD footprint, it bolts on directly.
- What is the trip rating on this breaker? It is a 225A frame with a fixed thermal magnetic trip, long-time and instantaneous functions, not field adjustable.
- Do I need to buy lugs separately? No, load side lugs ship installed on the breaker.
- Can you still get this part new? The TQD32225 is discontinued by GE, so what you see in stock is what is available.
- What AIC rating do I check against my fault current? 10kA at 240V, UL listed.
- Is this a plug-on or bolt-on breaker? Bolt-on. Confirm your panel bus style before ordering.
