Mersen

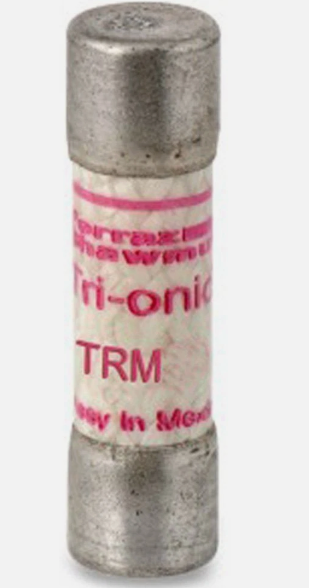

MER TRM4.5 Time Delay Fuse | 250VAC 4-1/2A 10x38mm TRI-ONIC
MER TRM4.5 Time Delay Fuse | 250VAC 4-1/2A 10x38mm TRI-ONIC
Price:
Sale
Sold out
Regular price
$11.04 USD
Regular price
Sale price
$11.04 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 9 left
Couldn't load pickup availability
Product Description:
This UL 248-14 and CSA C22.2 approved midget fuse is rated for 250 VAC with a 10kA interrupting capacity. The 4.5 amp time-delay fuse measures 10x38mm (1-1/2x13/32IN) and features a 12-second delay at 200% load. Ideal for transformer and circuit protection applications.
Key Features:
✔ Part Number: TRM4.5
✔ Voltage: 250 VAC
✔ Amperage: 4.5 AMP
✔ Interrupting Rating: 10KA
✔ Size: 10x38mm (1-1/2x13/32IN)
✔ Certification: UL 248-14, CSA C22.2
✔ Type: Time Delay (12 sec at 200% load)
This UL 248-14 and CSA C22.2 approved midget fuse is rated for 250 VAC with a 10kA interrupting capacity. The 4.5 amp time-delay fuse measures 10x38mm (1-1/2x13/32IN) and features a 12-second delay at 200% load. Ideal for transformer and circuit protection applications.
Key Features:
✔ Part Number: TRM4.5
✔ Voltage: 250 VAC
✔ Amperage: 4.5 AMP
✔ Interrupting Rating: 10KA
✔ Size: 10x38mm (1-1/2x13/32IN)
✔ Certification: UL 248-14, CSA C22.2
✔ Type: Time Delay (12 sec at 200% load)
