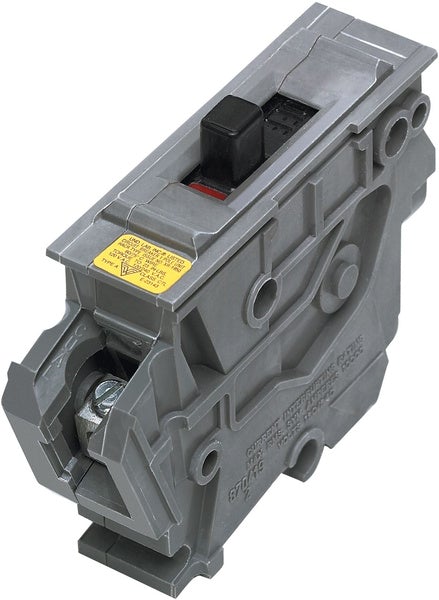

Connecticut Electric UBIA15NI Circuit Breaker | 120/240V 15A 1P 10kA@120V Plug-In A Series

Product Description:
The UBIA15NI is a molded case circuit breaker from the A Series family. It is a 1-pole unit rated for 15 amps and 120/240 volts, with a 10kA interrupting capacity at 120V. This breaker uses a plug-in connection and provides thermal magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: UBIA15NI
✔ Manufacturer: Connecticut Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: A Series
✔ Type: UBIA
✔ Voltage: 120/240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/A
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 094925008111
✔ GTIN: 00094925008104
✔ Country of Origin: China
✔ Dimensions: 1 in x 3.76 in x 3.76 in
✔ Weight: 0.34 lb
✔ Panel Type: Wadsworth Load Centers
✔ Standards: ETL Listed, UL Listed
✔ Certification: ETL Listed, UL Listed
