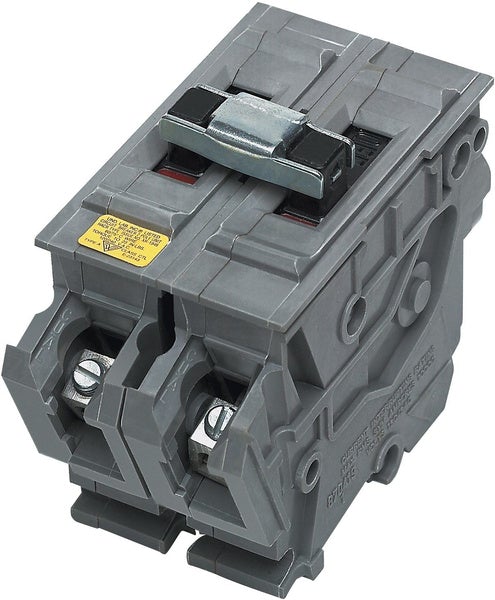

Connecticut Electric UBIA2100NI Circuit Breaker 2P 100A 240V 10kA A Series

Product Description:
The UBIA2100NI is a molded case circuit breaker from the A Series family, designed for reliable electrical protection. It is a 2-pole, 100 amp breaker rated for 120/240V systems with a 10kA interrupting capacity. This model features thermal magnetic protection and a plug-in connection for easy installation.

Key Features:
✔ Part Number: UBIA2100NI
✔ Manufacturer: Buy Supply Corp
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: A Series
✔ Type: UBIA
✔ Voltage: 120/240
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/A
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 094925008173
✔ GTIN: 00094925008234
✔ Country of Origin: China
✔ Dimensions: 2 in x 3.76 in x 3.76 in
✔ Weight: 0.8 lb
✔ Panel Type: Wadsworth Load Centers
✔ Standards: ETL Listed, UL Listed
✔ Certification: ETL Listed, UL Listed
