Connecticut Electric UBIA230NI Circuit Breaker | A Series UBIA 120/240VACV 30A

Product Description:

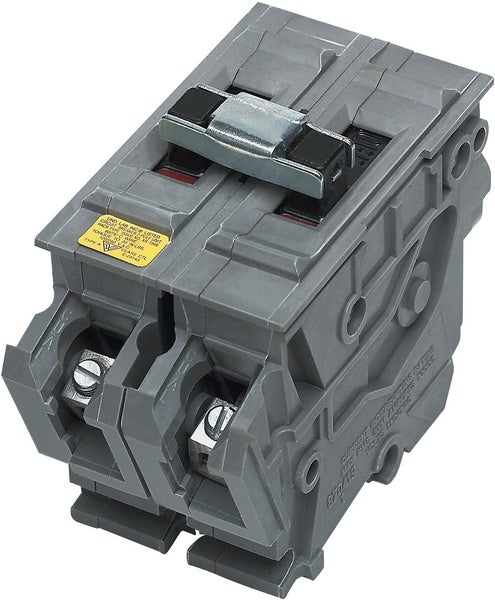

The Connecticut Electric UBIA230NI is a 2-pole molded case circuit breaker from the A Series family. It operates at 120/240VAC with a 30A rating and a 10kA@240V AIC rating. This breaker features plug-in connections and thermal magnetic protection for reliable performance. It is compatible with Wadsworth load centers and meets ETL and UL standards.

Key Features:
✔ Part Number: UBIA230NI
✔ Manufacturer: Connecticut Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: A Series
✔ Type: UBIA
✔ Voltage: 120/240VAC
✔ Amperage: 30A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/A
✔ MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Temp Rating: Min. 0°F, Max. 250°F
✔ Certification: ETL Listed, UL Listed
✔ UPC: 094925008173
✔ GTIN: 00094925008173
✔ Country of Origin: China
✔ Dimensions: 2 in x 3.76 in x 3.76 in
✔ Weight: 0.7 lbs
✔ Panel Type: Wadsworth Load Centers
