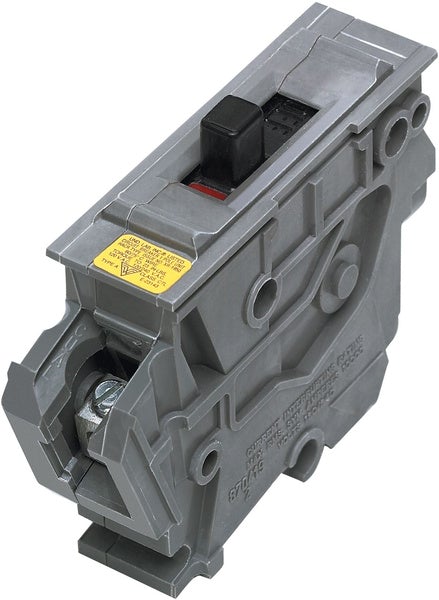

Connecticut Electric UBIA30NI Circuit Breaker | A Series UBIA 120V 30A

Product Description:
The Connecticut Electric UBIA30NI is a Molded Case Circuit Breaker from the A Series family. It is a 1-pole, 30 amp breaker with a 120V rating and a 10kA@120V AIC rating. This breaker features Plug-In connections and Thermal Magnetic protection for reliable performance. It is compatible with Wadsworth load centers and meets ETL and UL standards.

Key Features:
✔ Part Number: UBIA30NI
✔ Manufacturer: Connecticut Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: A Series
✔ Type: UBIA
✔ Voltage: 120V
✔ Amperage: 30A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/A
✔ MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Temp Rating: Min. 0°F, Max. 250°F
✔ Certification: ETL Listed, UL Listed
✔ UPC: 094925008111
✔ GTIN: 00094925008128
✔ Country of Origin: China
✔ Dimensions: 1 in x 2.73 in
✔ Weight: 0.45 lb
✔ Panel Type: Wadsworth Load Centers
