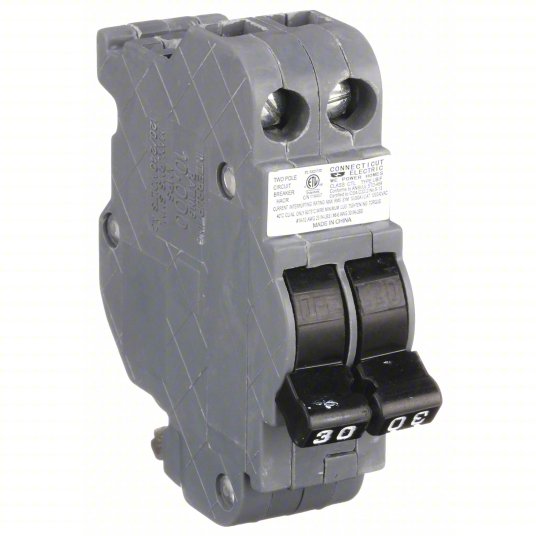

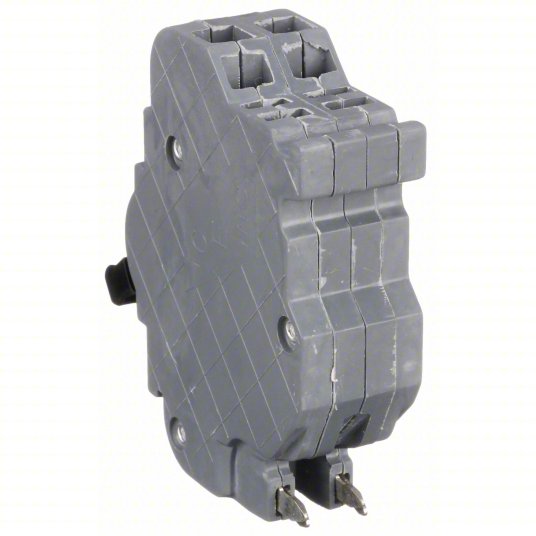

Federal Pacific UBIF0230N Circuit Breaker 120/240V 30A 2P 10kA@240V Plug-In Thin Series

Product Description:

The Federal Pacific UBIF0230N is a Molded Case Circuit Breaker from the Thin Series family. It is a 2-pole, 30 amp breaker rated for 120/240 volts with a 10kA AIC rating at 240V. This plug-in model provides thermal magnetic protection and is compatible with Federal Pacific load centers. It is ETL and UL listed for safety and reliability.

Key Features:
✔ Part Number: UBIF0230N
✔ Manufacturer: American, Federal Pacific
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Thin Series
✔ Type: UBIFN
✔ Voltage: 120/240
✔ Amperage: 30
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 70A/HACR
✔ Wire Size: Min. 14 AWG Max. 10 AWG
✔ Certification: ETL Listed, UL Listed
✔ UPC: 094925019346
✔ GTIN: 00094925019346
✔ Country of Origin: China
✔ Dimensions: 1 in x 3.36 in x 3.36 in
✔ Weight: 1
✔ Panel Type: Federal Pacific Load Centers
