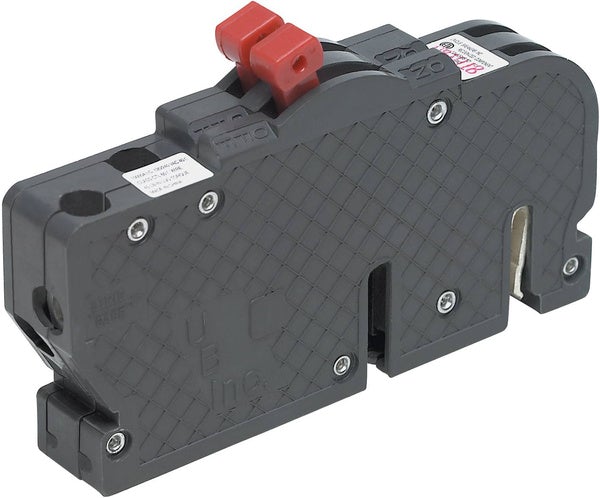

Connecticut Electric UBIZ2020 Circuit Breaker | 20A 2P 240V 10kA Thin Series

Product Description:
The UBIZ2020 is a Molded Case Circuit Breaker from the Thin Series family. This 2-pole breaker is rated for 20 amps at 120/240 volts and features a 10kA@240V AIC rating. It uses a plug-in connection and provides thermal magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: UBIZ2020
✔ Manufacturer: CONNECTICUT-ELECTRIC, INC.
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Thin Series
✔ Type: UBIZ
✔ Voltage: 120/240
✔ Amperage: 20
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 50A/SWD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Tandem
✔ Protection: Thermal Magnetic
✔ UPC: 094925030310
✔ GTIN: 00094925030310
✔ Country of Origin: China
✔ Dimensions: 0.75 in x 4.81 in x 4.81 in
✔ Weight: 2 lb
✔ Panel Type: Zinsco Load Centers
✔ Standards: ETL Listed, UL Listed
✔ Certification: ETL Listed, UL Listed
