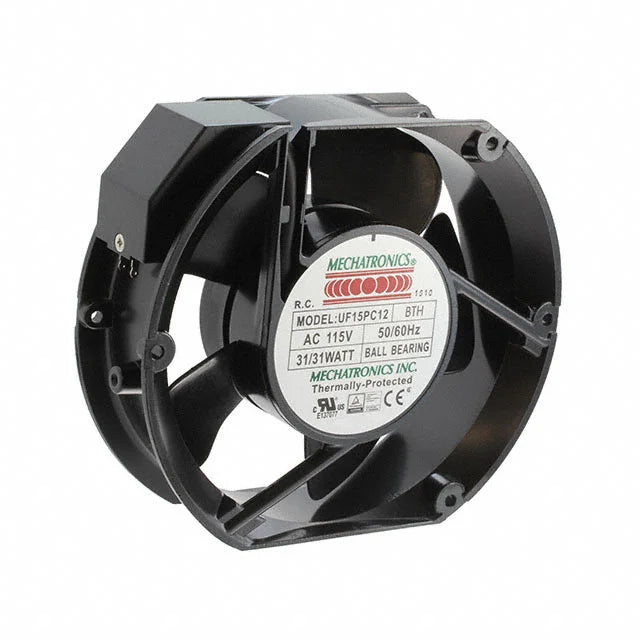

Mechatronics UF15PC12-BTH AC Axial Fan 172x150x51mm 120VAC 226 CFM | CircuitBreakerGuys.com

The Mechatronics UF15PC12-BTH is a heavy-duty AC tubeaxial cooling fan built for the thermal demands of industrial control panels and electrical enclosures. With 226 CFM of airflow and a 50,000-hour ball bearing rating, this is the fan you spec when the application can't afford to run hot.

Specifications

• Part Number: UF15PC12-BTH
• Manufacturer: Mechatronics Fan Group
• Fan Type: AC Axial / Tubeaxial
• Frame Size: 172mm x 150mm x 51mm (6.77" x 5.91" x 2.00")
• Voltage: 120VAC, 50/60 Hz
• Input Power: 30W
• Current: 0.25A rated / 0.41A locked
• Fan Speed: 3,400 RPM
• Airflow: 226 CFM (6.33 m³/min)
• Sound Level: 58 dBA
• Static Pressure: 0.79" H₂O (20mm)
• Bearing Type: Ball bearing
• Motor Type: Permanent split capacitor
• Frame Material: Aluminum die-cast
• Connection: Terminal
• Operating Temp: -40°C to +70°C (-40°F to 158°F)
• Service Life: 50,000 hours (ball bearing at 25°C)

Certifications

• UL Recognized
• CE Listed
• TUV Listed
• RoHS Compliant

Applications

Purpose-built for industrial control panels, switchgear enclosures, and electrical cabinets where continuous high-volume airflow is non-negotiable. If you're replacing a failed panel fan or upgrading a thermally marginal enclosure, the UF15PC12-BTH is a proven choice.

Note: AC power cord not included.
