UVH2LP15K Cutler-Hammer J-Frame Undervoltage Release Kit, 380-480VAC, Left Pole, Pigtail

UVH2LP15K Cutler-Hammer J-Frame Undervoltage Release Kit, 380-480VAC, Left Pole, Pigtail

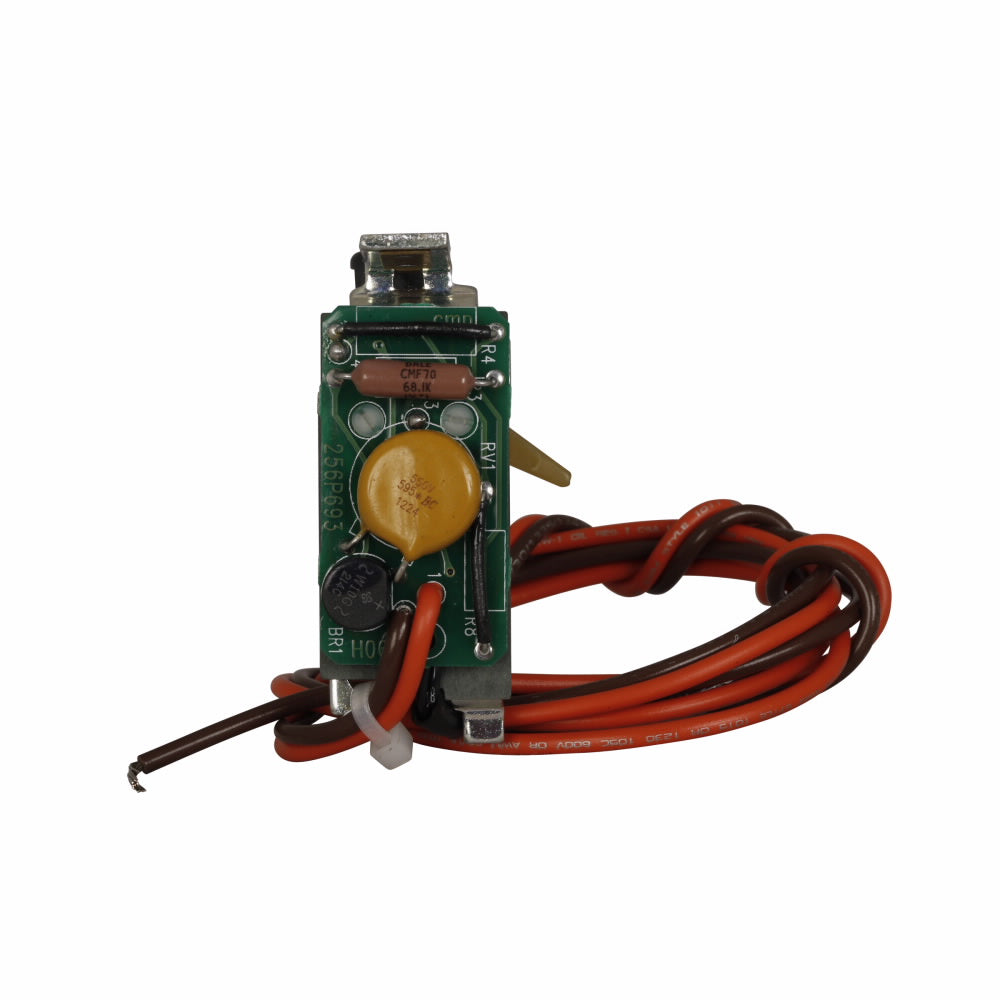

Need to add undervoltage tripping to a J-Frame breaker on site? The Cutler-Hammer UVH2LP15K by Eaton is the left pole field kit for Series C J-Frame breakers and HMCP (J) motor circuit protectors, wired with pigtail leads and rated 380-480VAC, 50/60 Hz.

When the voltage it watches drops below its operating level, the UVR trips the breaker. Before you order, confirm two things on the job: which pole the UVR goes in and how you plan to land the leads. This one is left pole with pigtails. Eaton catalogs the right pole kit as UVH2RP15K and the terminal block kit as UVH2LT15K.

Common Applications

• Adding a UVR to a Series C J-Frame breaker in the field
• Motor circuits protected by a J-Frame HMCP
• Gear where the UVR monitors a 380-480VAC, 50/60 Hz source
• Left pole installs where you want pigtails instead of a terminal block

Key Features

• Field kit: Cataloged as a field installation kit, an alternative to ordering a breaker with a factory-mounted UVR suffix.
• Left pole: Goes in the left pole of the breaker. Right pole calls for UVH2RP15K.
• Pigtail leads: Comes with pigtail leads for connecting your control wiring.
• 380-480VAC supply: Rated 380-480VAC at 50/60 Hz, so check your source voltage before you order.
• UL Listed: UL Listed per Eaton.

Specifications

• Manufacturer: Eaton (Cutler-Hammer)
• Catalog Number: UVH2LP15K
• Product Type: Molded case circuit breaker accessory, undervoltage release mechanism
• Series: Series C
• Applicable Breakers: J-Frame circuit breakers and HMCP (J) motor circuit protectors
• J-Frame Breaker Types: JDB, JD, HJD, JDC
• Voltage Rating: 380-480VAC, 50/60 Hz
• Mounting Location: Left pole
• Installation: Field mounted (field installation kit)
• Connection: Pigtail leads
• Certification: UL Listed

Product Identification

• UPC: 786679803578
• Country of Origin: Dominican Republic
• Dimensions: 4 in x 2 in x 2 in (Length/Depth x Height x Width)
• Weight: 4 lb

FAQ

What does the UVH2LP15K do?
It is a Cutler-Hammer undervoltage release for J-Frame breakers and HMCP (J) units. If the monitored 380-480VAC supply drops below its operating level, it trips the breaker.

Can I install the UVH2LP15K myself in the field?
Yes. Eaton catalogs it as a field installation kit rather than a factory-mounted breaker option.

Which pole does it go on?
The left pole. For the right pole, order UVH2RP15K.

Pigtails or terminal block?
UVH2LP15K comes with pigtail leads. If you want a terminal block, the left pole version is UVH2LT15K.

Is this a K-Frame UVR?
Eaton catalogs UVH2LP15K in its J-Frame and HMCP (J) table only. Match the catalog number to your breaker frame before ordering.
