Product Description:

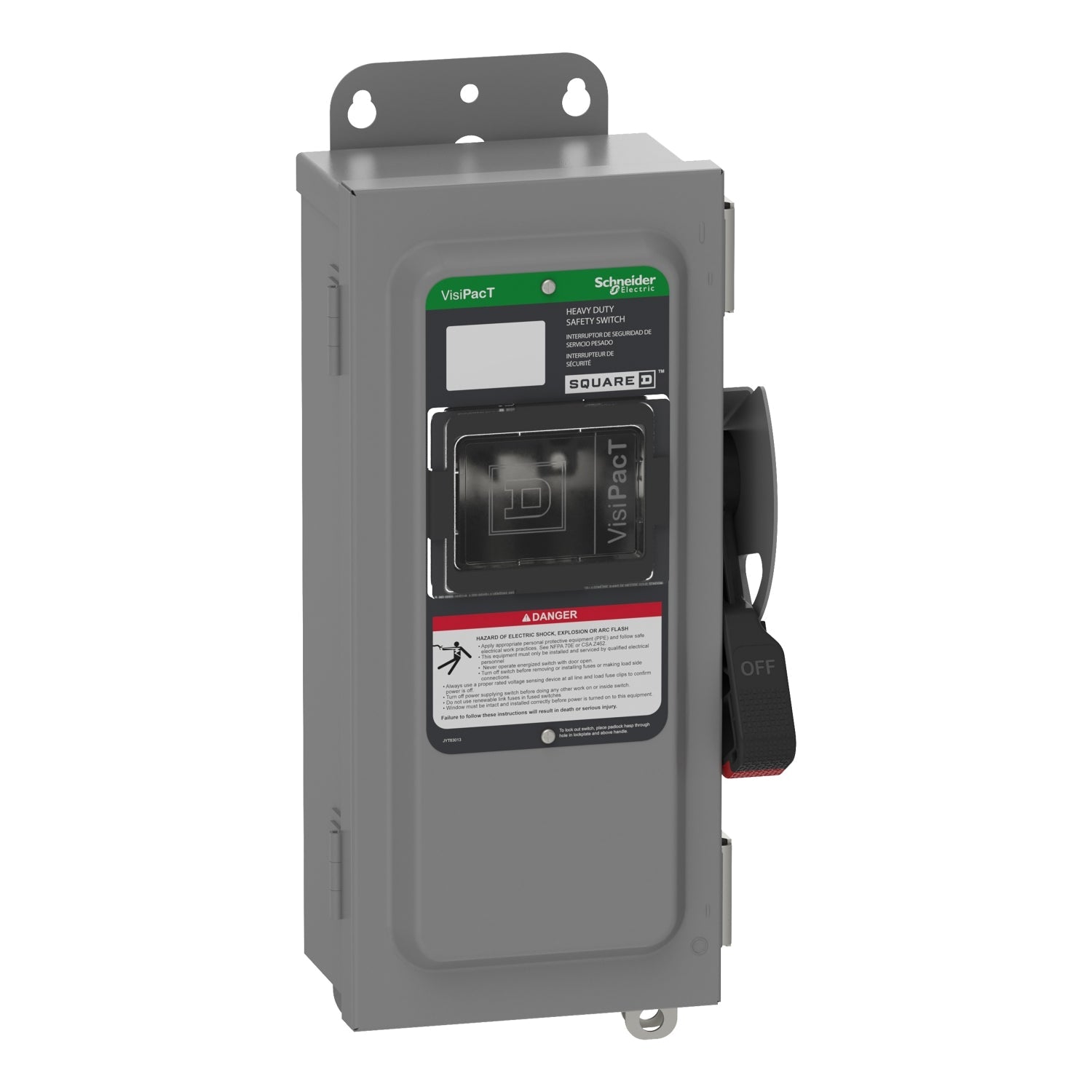

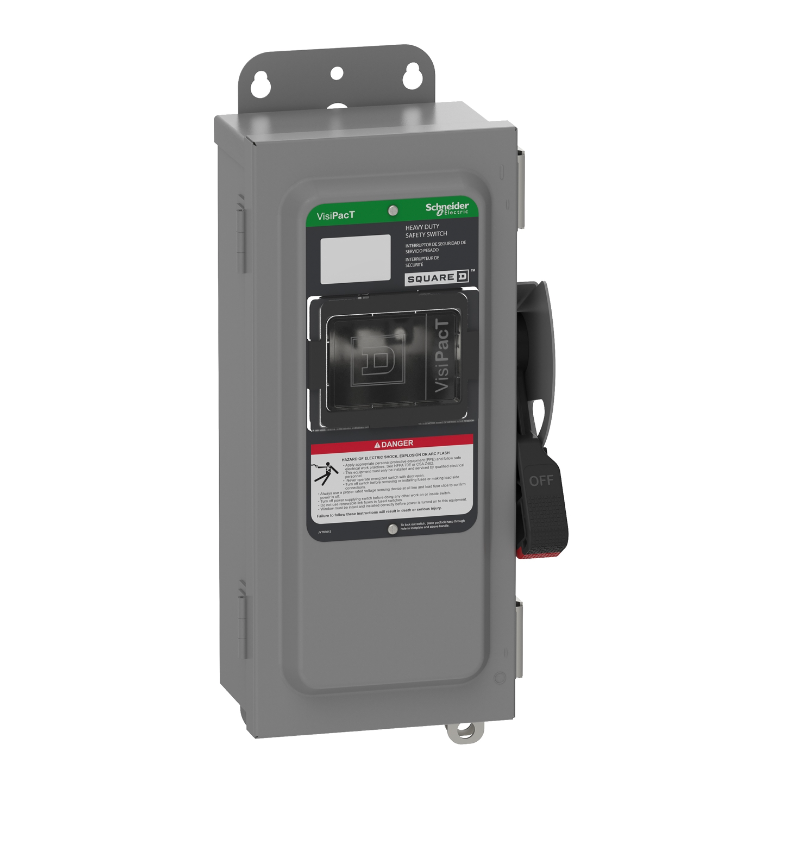

The VH221AWKGL is a Square D disconnect switch with a 30A 240V fusible design, featuring a viewing window for easy inspection. It is suitable for service entrance applications in both the USA and Mexico. This switch is built for reliability and meets industry standards for safety and performance.
Key Features:
✔ Part Number: VH221AWKGL
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: VH
✔ Voltage: 240V
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ Fuse Class: H, K, R, J
✔ Wire: 3
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 12
✔ Amperage Maximum: 30
✔ Amperage Minimum: 115
✔ Switch Type: Fusible
✔ UPC: 060648589304
✔ GTIN: 03606485893044
✔ Country of Origin: United States
✔ Dimensions: Height 14.57 in (370.08 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 11.02 lb
✔ Certification: UL listed file E2875
