Product Description:

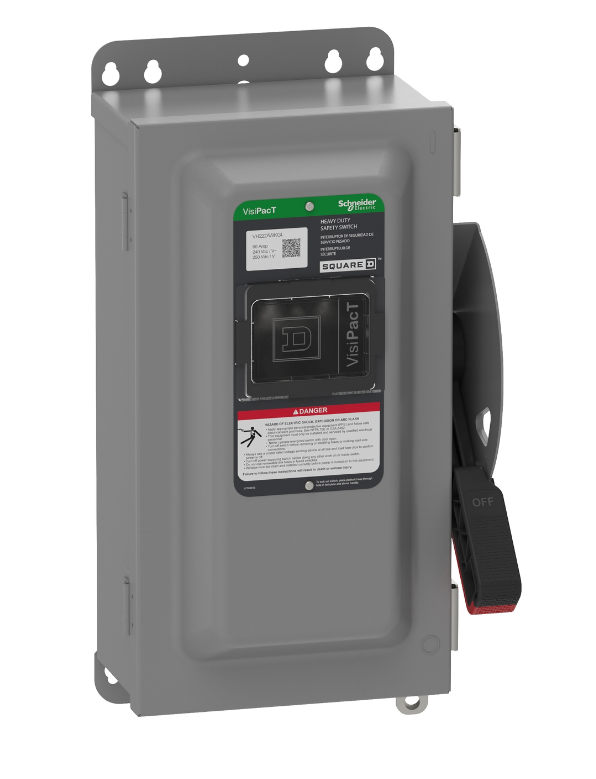

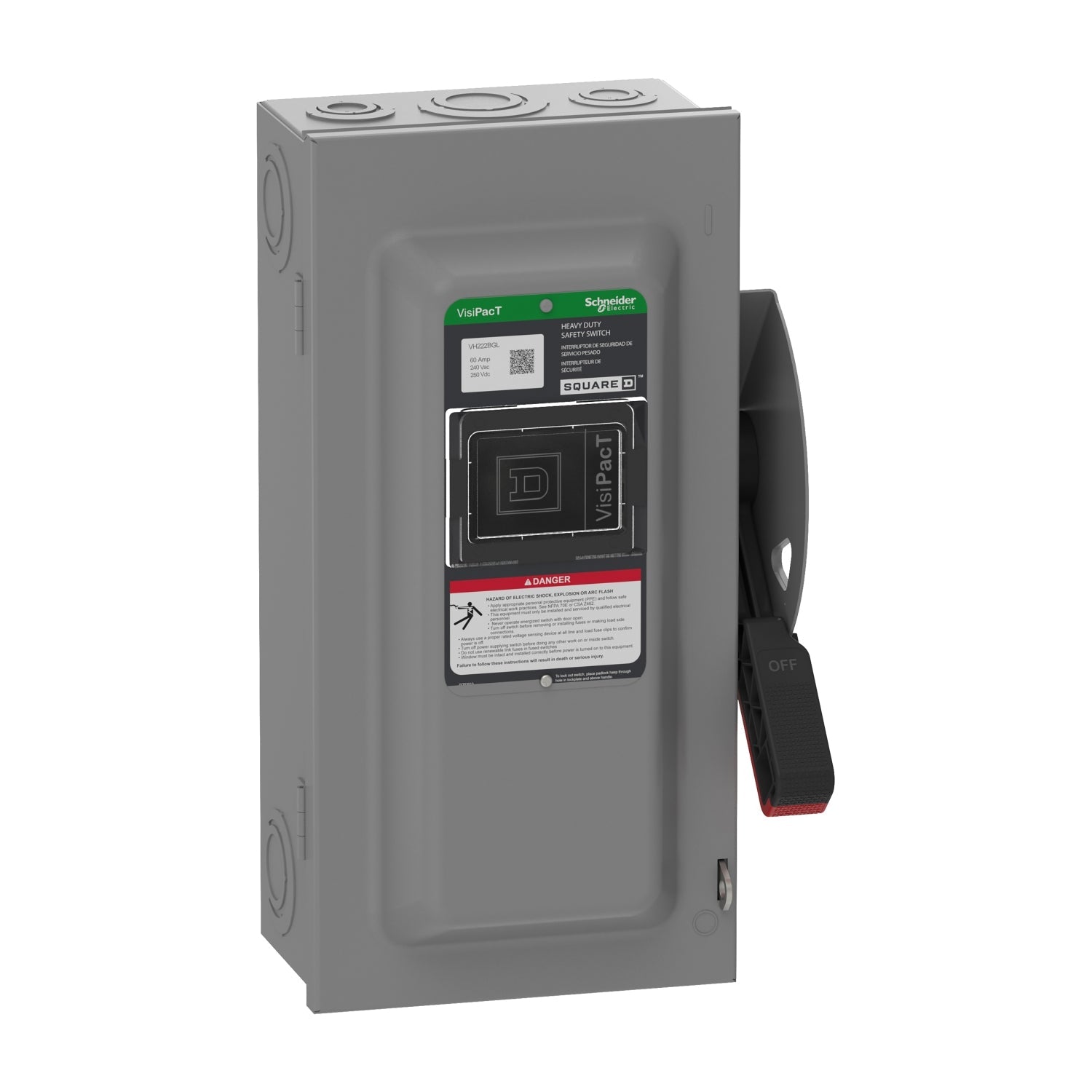

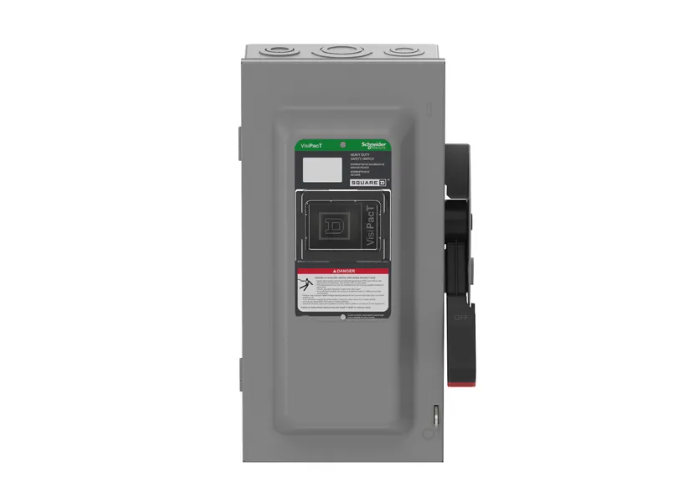

The VH222BGL is a 2-pole 60A safety switch designed for reliable electrical disconnection. It features a fusible switch style with NEMA 1 rating, suitable for 240V single-phase applications. This Square D product ensures safe operation with UL certification for industrial and commercial use.
Key Features:
✔ Part Number: VH222BGL
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: VH
✔ Voltage: 240V
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ Fuse Class: J
✔ Wire: 3
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 1
✔ UPC: 060648589310
✔ GTIN: 03606485893105
✔ Country of Origin: United States
✔ Dimensions: Height 14.843 in (377.01 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.97 lb
✔ Certification: UL listed file E2888
