Product Description:

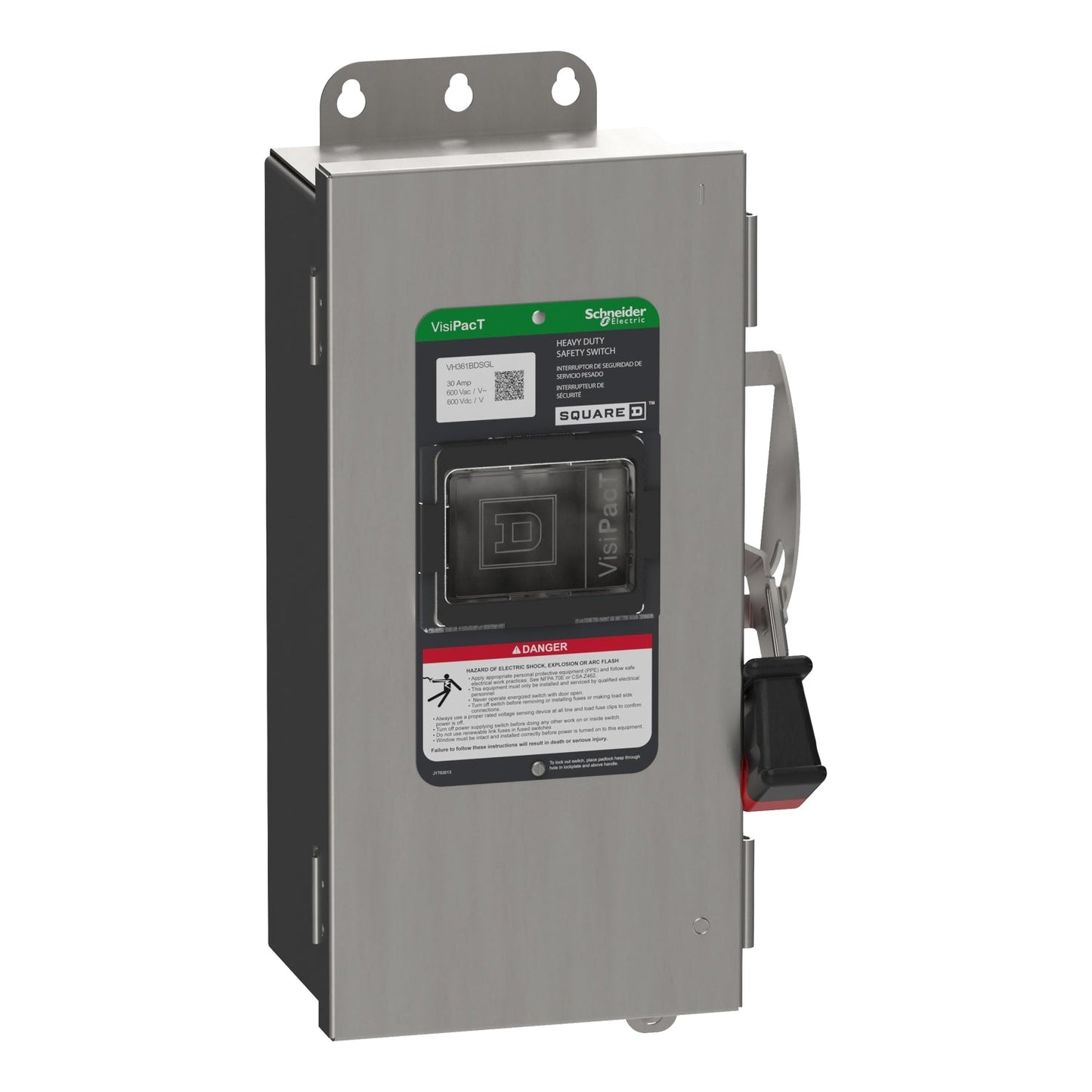

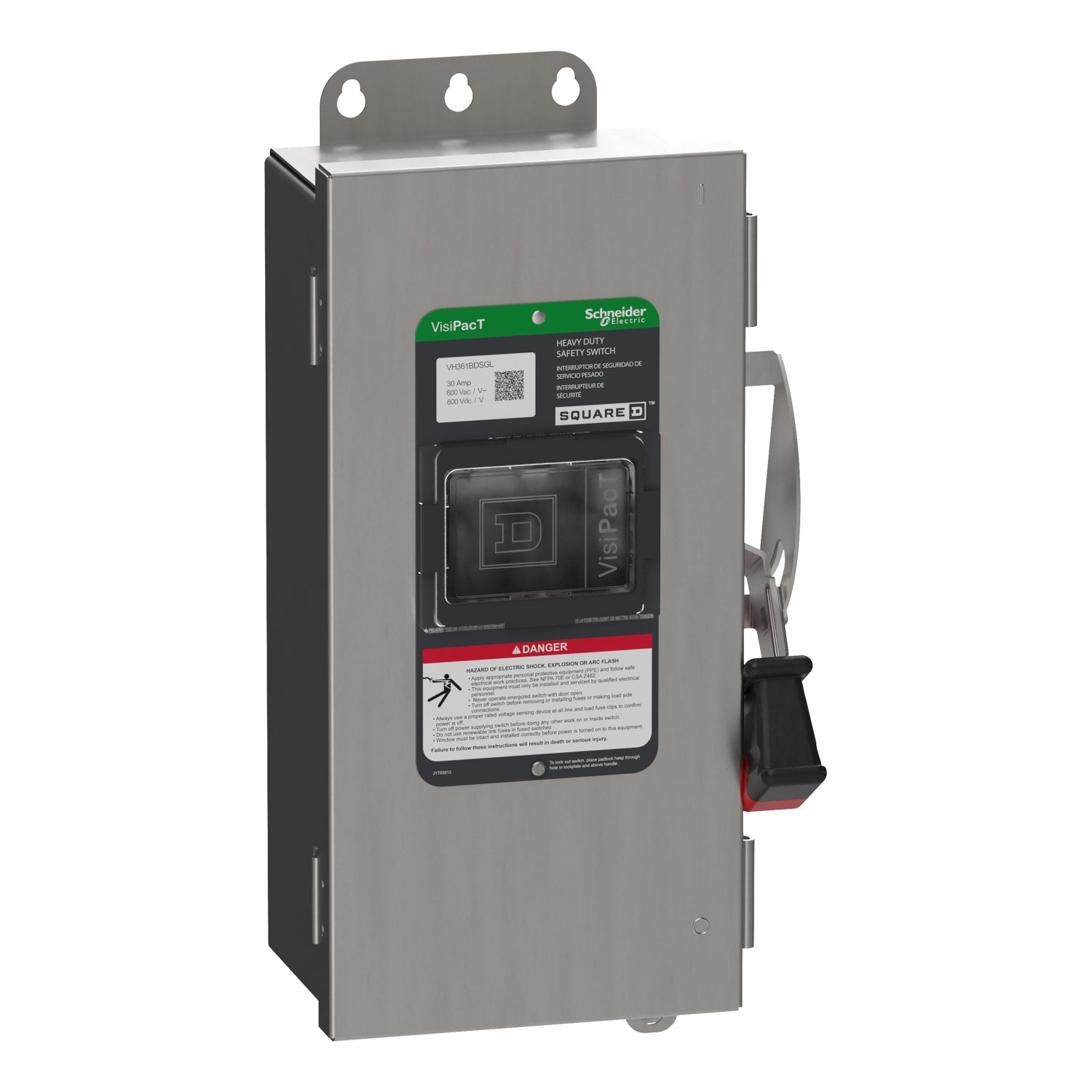

The VH361BDSGL is a 3-pole 30A safety switch designed for industrial and commercial applications. It features a fusible design with a NEMA 4X rating for durability in harsh environments. This Square D switch is UL listed and suitable for 600V electrical systems.
Key Features:
✔ Part Number: VH361BDSGL
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: VH
✔ Voltage: 600V
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ Fuse Class: J
✔ Wire: 3
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 4X
✔ UPC: 060648589384
✔ GTIN: 03606485893846
✔ Country of Origin: United States
✔ Dimensions: Height 14.57 in (370.08 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 13.23 lb
✔ Certification: UL listed file E2958
