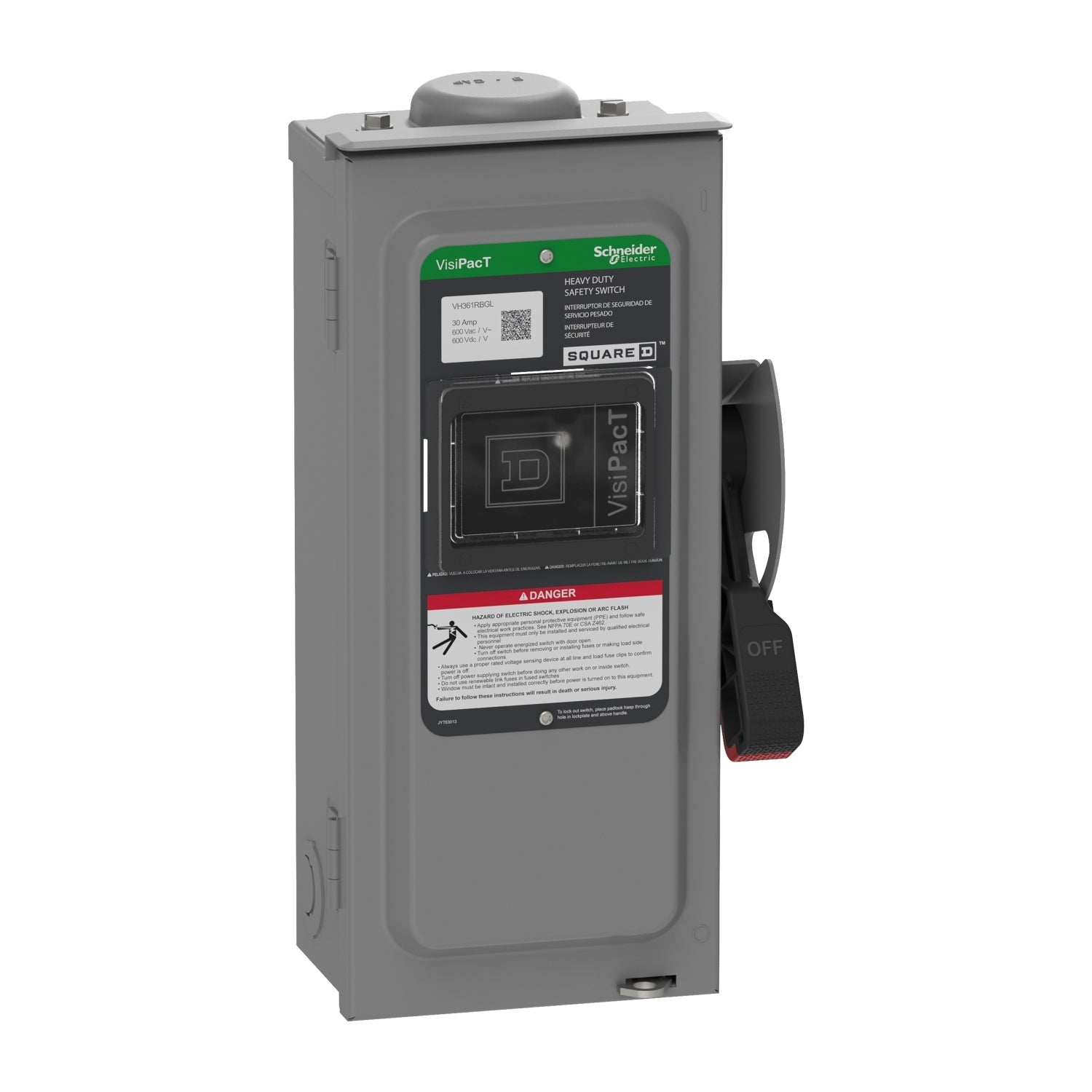

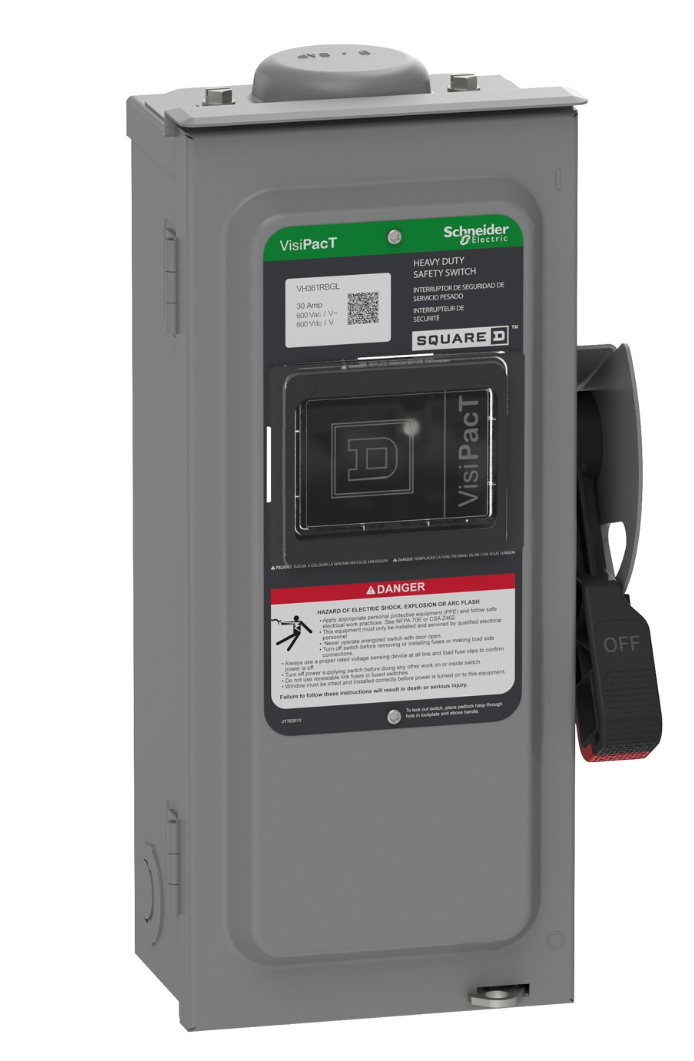

Square D VH361RBGL Disconnect Switch | 600V 30A 3P Fusible VH

Product Description:
This Square D VH361RBGL is a 3-pole 30A safety switch designed for industrial and commercial electrical systems.
It features a fusible switch style and is rated for 600V applications with a NEMA 3R enclosure for outdoor use.
Built to handle three-phase power, it ensures reliable disconnection and protection for electrical circuits.
Its robust construction meets UL standards for safety and performance in demanding environments.

Key Features:
✔ Part Number: VH361RBGL
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: VH
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ Fuse Class: H, K, R, J
✔ Wire: 3
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 3R
✔ UPC: 060648589388
✔ GTIN: 03606485893884
✔ Country of Origin: United States
✔ Dimensions: Height 14.93 in (379.22 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 8.82 lb
✔ Certification: UL listed file E2969
