Product Description:

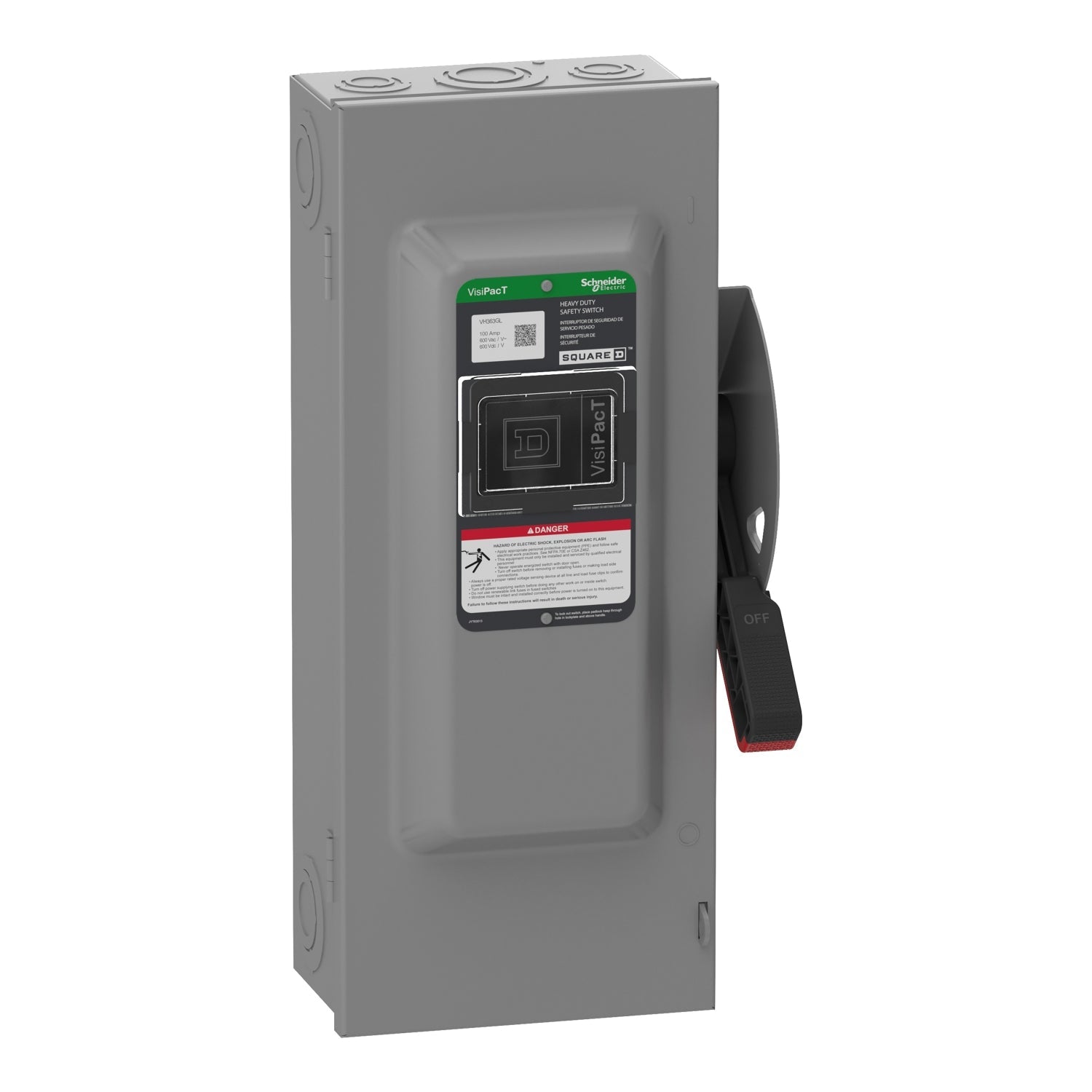

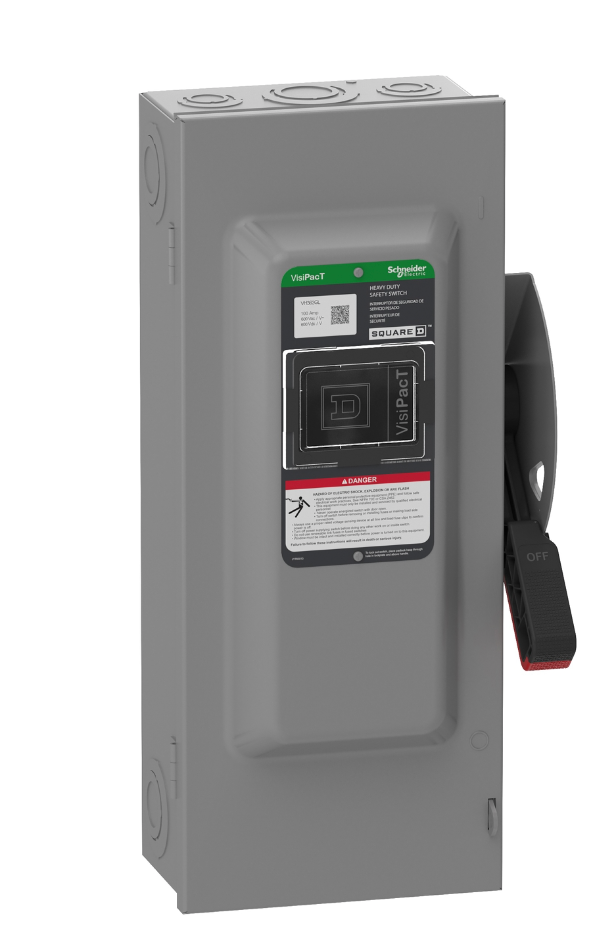

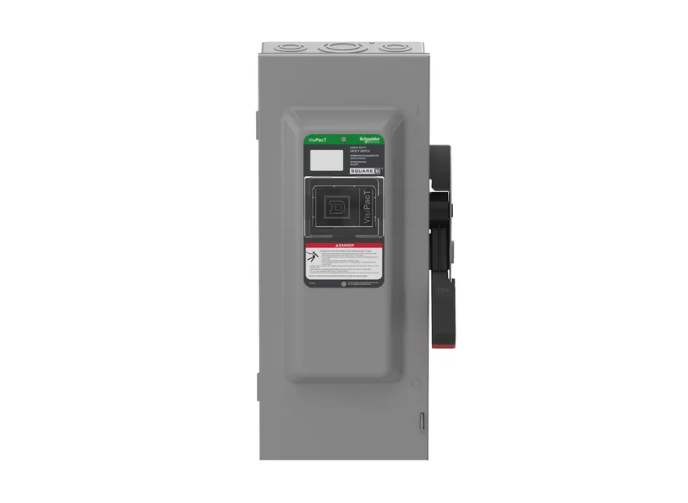

The VH363GL is a 3-phase 100A safety switch designed for industrial and commercial applications. It features a fusible switch style with a NEMA 1 rating for reliable performance. This Square D product supports multiple fuse classes and is built to handle 600V electrical systems.
Key Features:
✔ Part Number: VH363GL
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: VH
✔ Voltage: 600V
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ Fuse Class: H, K, R, J
✔ Wire: 3
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 1
✔ UPC: 060648589420
✔ GTIN: 03606485894201
✔ Country of Origin: United States
✔ Dimensions: Height 22.103 in (561.42 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 19.84 lb
✔ Certification: UL listed file E2994
