Product Description:

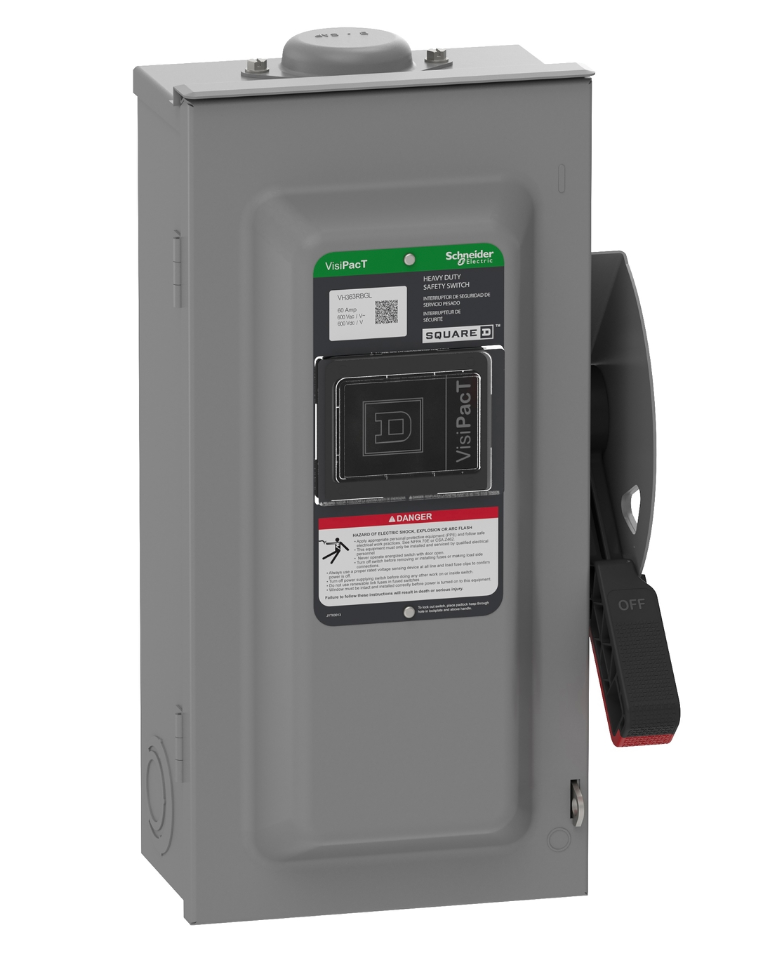

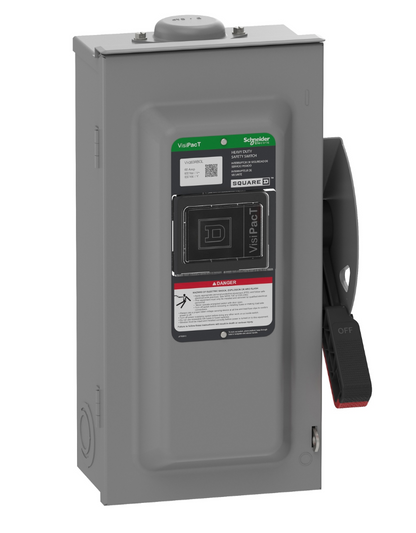

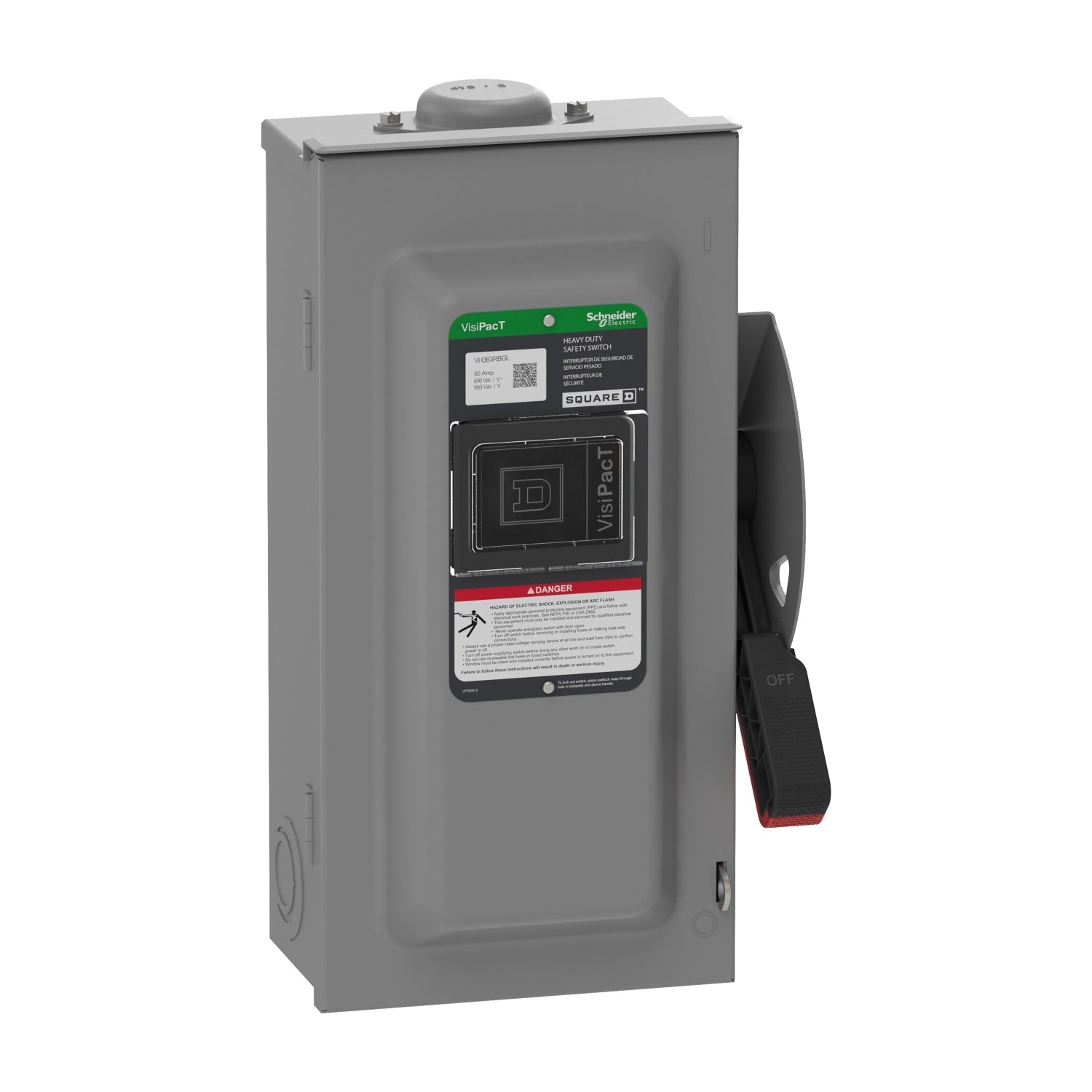

The VH363RBGL is a 3-phase 100A safety switch designed for industrial and commercial applications. It features a fusible design with a NEMA 3R rating for reliable performance in harsh environments. This Square D switch supports multiple fuse classes and is built to handle 600V electrical systems.
Key Features:
✔ Part Number: VH363RBGL
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: VH
✔ Voltage: 600V
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ Fuse Class: H, K, R, J
✔ Wire: 3
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: NEMA 3R
✔ UPC: 060648589421
✔ GTIN: 03606485894218
✔ Country of Origin: United States
✔ Dimensions: Height 20.73 in (526.54 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 19.84 lb
✔ Certification: UL listed file E3001
