Square D VH363SSGL Disconnect | 600V 100A 3P Fusible NEMA 4X VH

Product Description:

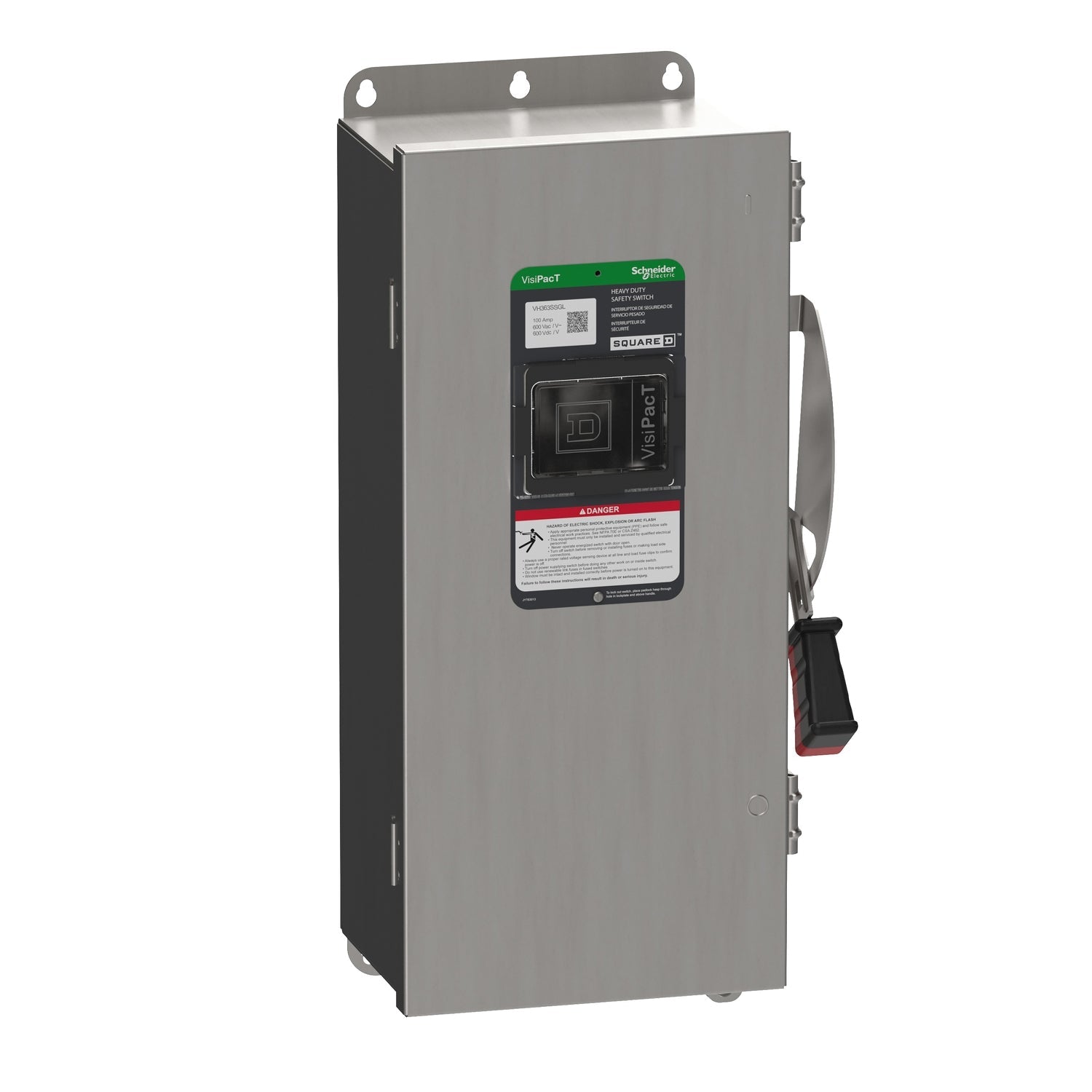

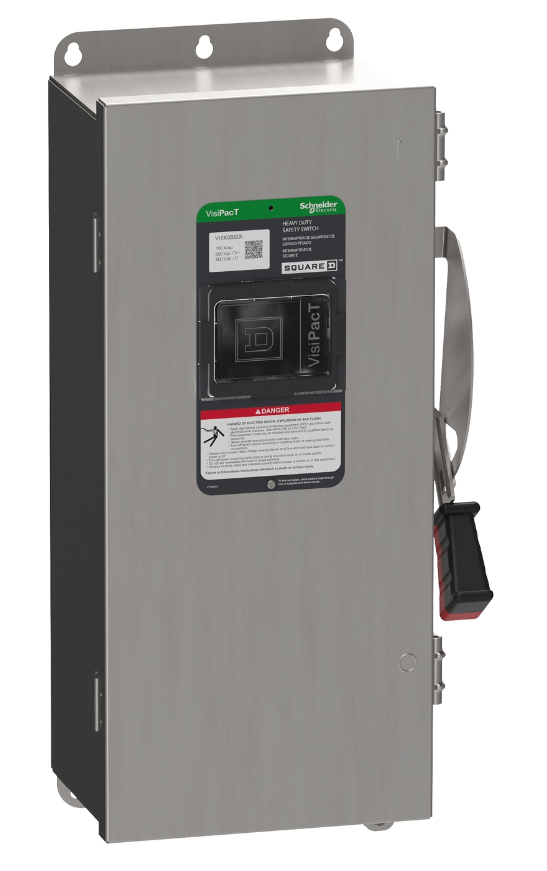

The Square D VH363SSGL is a heavy-duty 3-pole fused safety switch rated for 100 amps and 600 volts AC/DC. It features a stainless steel NEMA 4X enclosure with a factory-installed viewing window for visual verification of the switch position. This disconnect supports H, K, J, and R fuse types and offers high short-circuit ratings, making it ideal for industrial power distribution, motor circuits, and control systems.

Key Features:
✔ Part Number: VH363SSGL
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: VH
✔ Type: Fused Safety Switch / Disconnect
✔ Voltage: 600 V AC/DC
✔ Amperage: 100 A
✔ Poles: 3-Pole
✔ Fuse Class: H, K, R, J
✔ NEMA Rating: NEMA 4X
✔ Enclosure: 316 Stainless Steel
✔ Short-Circuit Rating: 10 kA (standard); up to 200 kA with rejection clips
✔ UPC: 060648589424
✔ GTIN: 03606485894249
✔ Country of Origin: United States
✔ Dimensions: Height 28.93 in (734.82 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 24.03 lb
✔ Certification: UL listed file E3002
