Product Description:

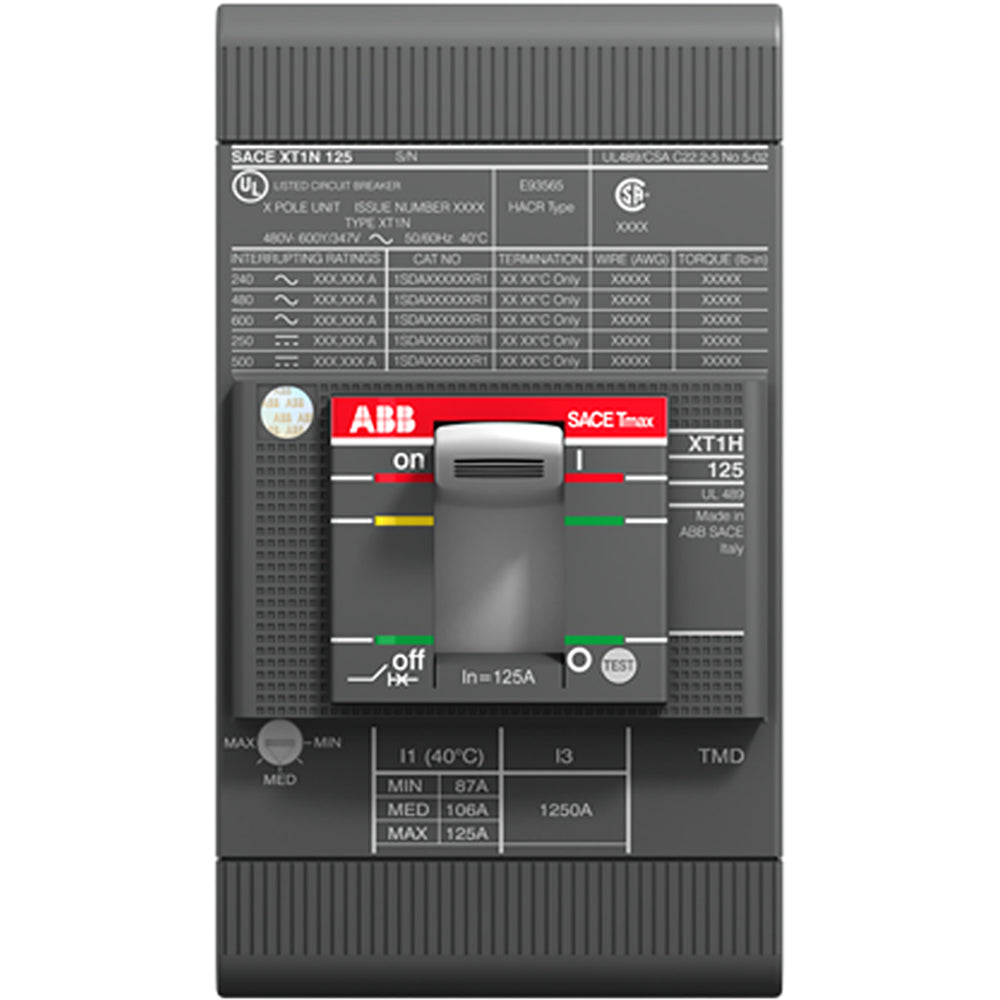

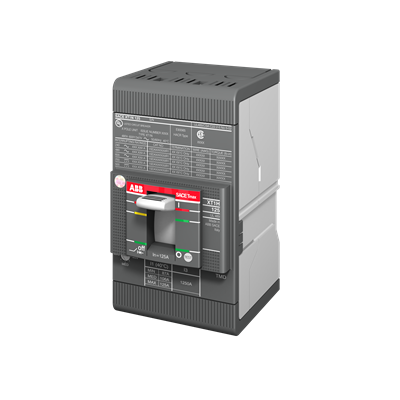

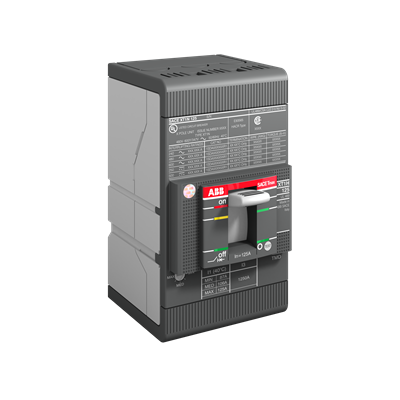

The ABB XT1HU3060AFF000XXX is a Molded Case Circuit Breaker from the SACE Tmax XT family. It features 3 poles, 600V voltage, and a 60 amp rating with a 65kA@480V AIC rating. This thermal magnetic breaker uses a bolt-on connection for secure installation. It is UL 80% rated and IEC dual certified for compliance with industry standards.
Key Features:
✔ Part Number: XT1HU3060AFF000XXX
✔ Manufacturer: ABB
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: SACE Tmax XT
✔ Type: XT1H
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: 125A/XT1
✔ Protection: Thermal Magnetic
✔ UPC: 01564478679
✔ GTIN: 08015644786793
✔ Country of Origin: United States
✔ Dimensions: 76.2 mm x 130 mm
✔ Standards: UL 80% rated, IEC dual rated
✔ Certification: UL 80% rated, IEC dual rated
