Product Description:

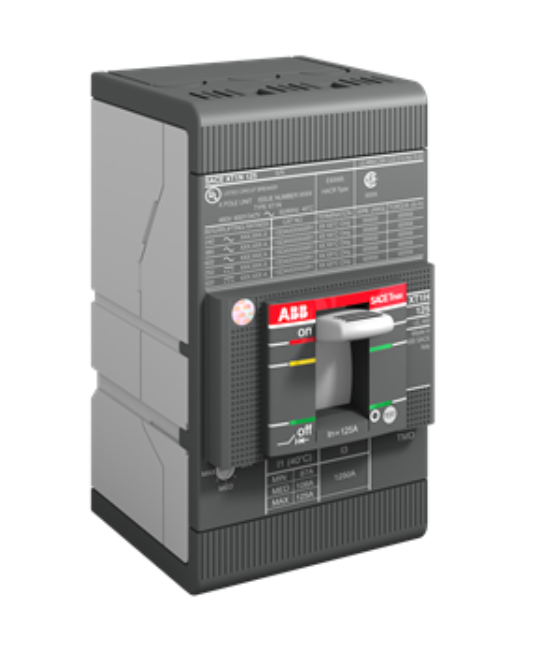

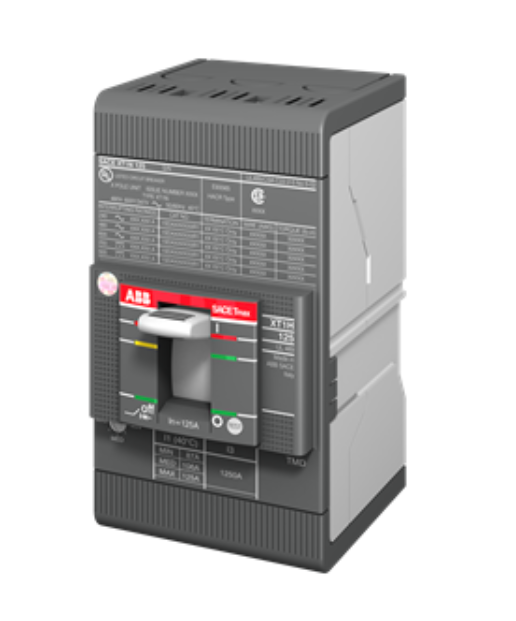

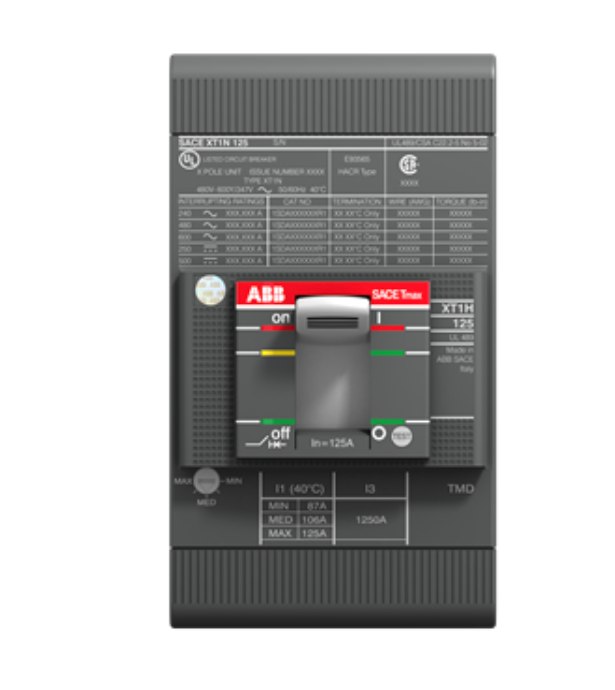

The ABB XT1NU3025AFF000XXX is a Molded Case Circuit Breaker from the SACE Tmax XT family. It features 3 poles, 600V voltage, and a 25 amp rating with a 25kA@480V AIC rating. This circuit breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: XT1NU3025AFF000XXX
✔ Manufacturer: ABB
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: SACE Tmax XT
✔ Type: XT1N
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 25kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: 125A/XT1
✔ Protection: Thermal Magnetic
✔ UPC: 01564478503
✔ GTIN: 08015644785031
✔ Country of Origin: United States
✔ Dimensions: 76.2 mm x 130 mm
✔ Standards: UL 80% rated, IEC dual rated
✔ Certification: UL 80% rated, IEC dual rated
