Product Description:

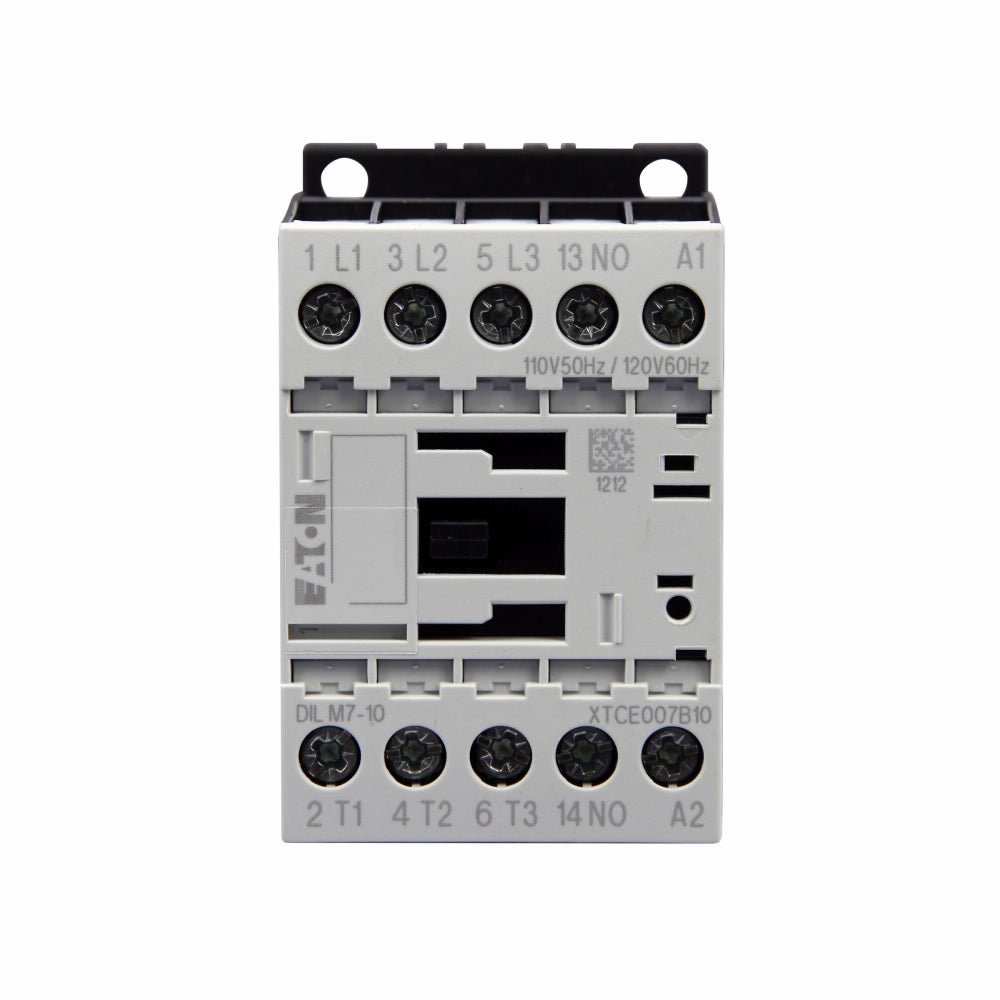

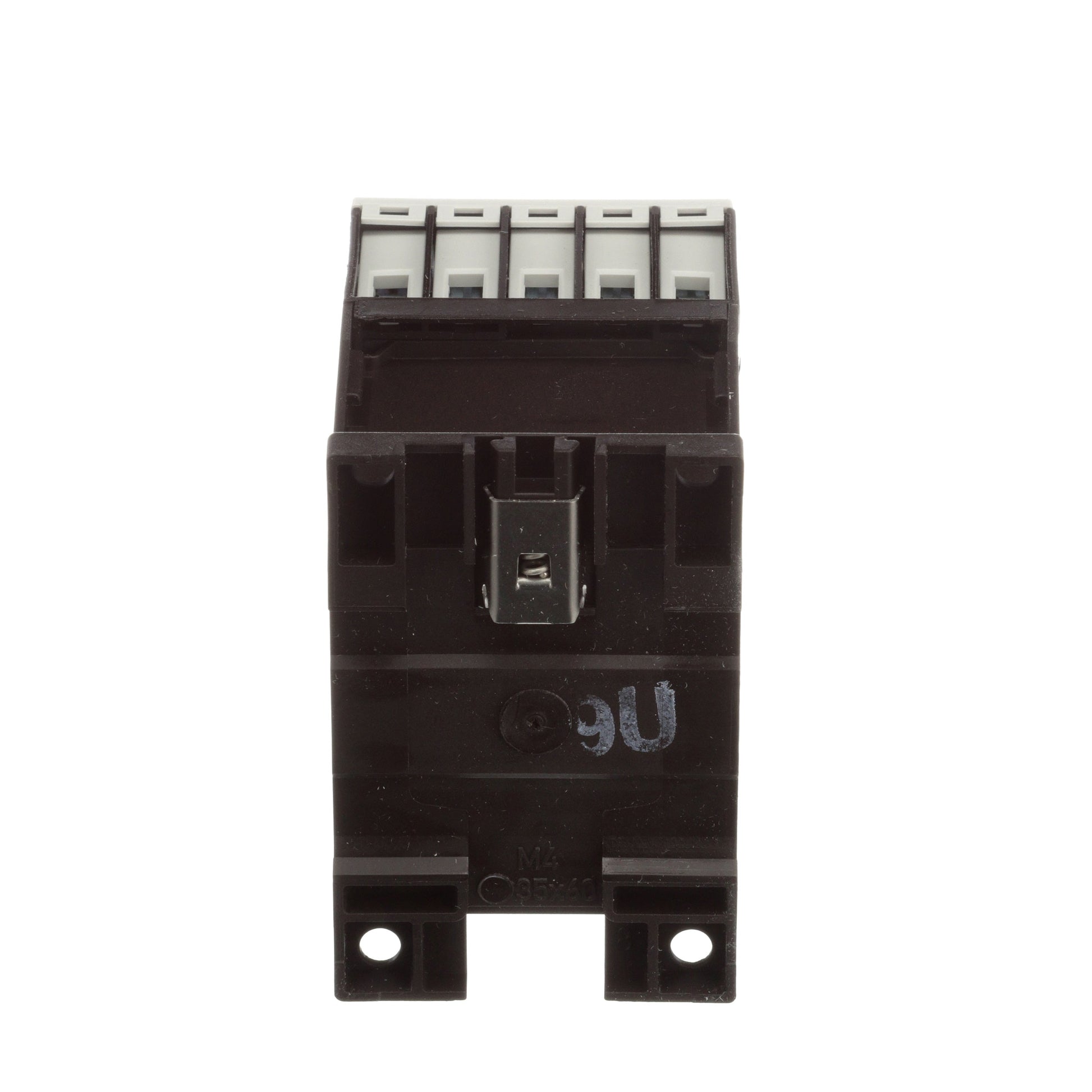

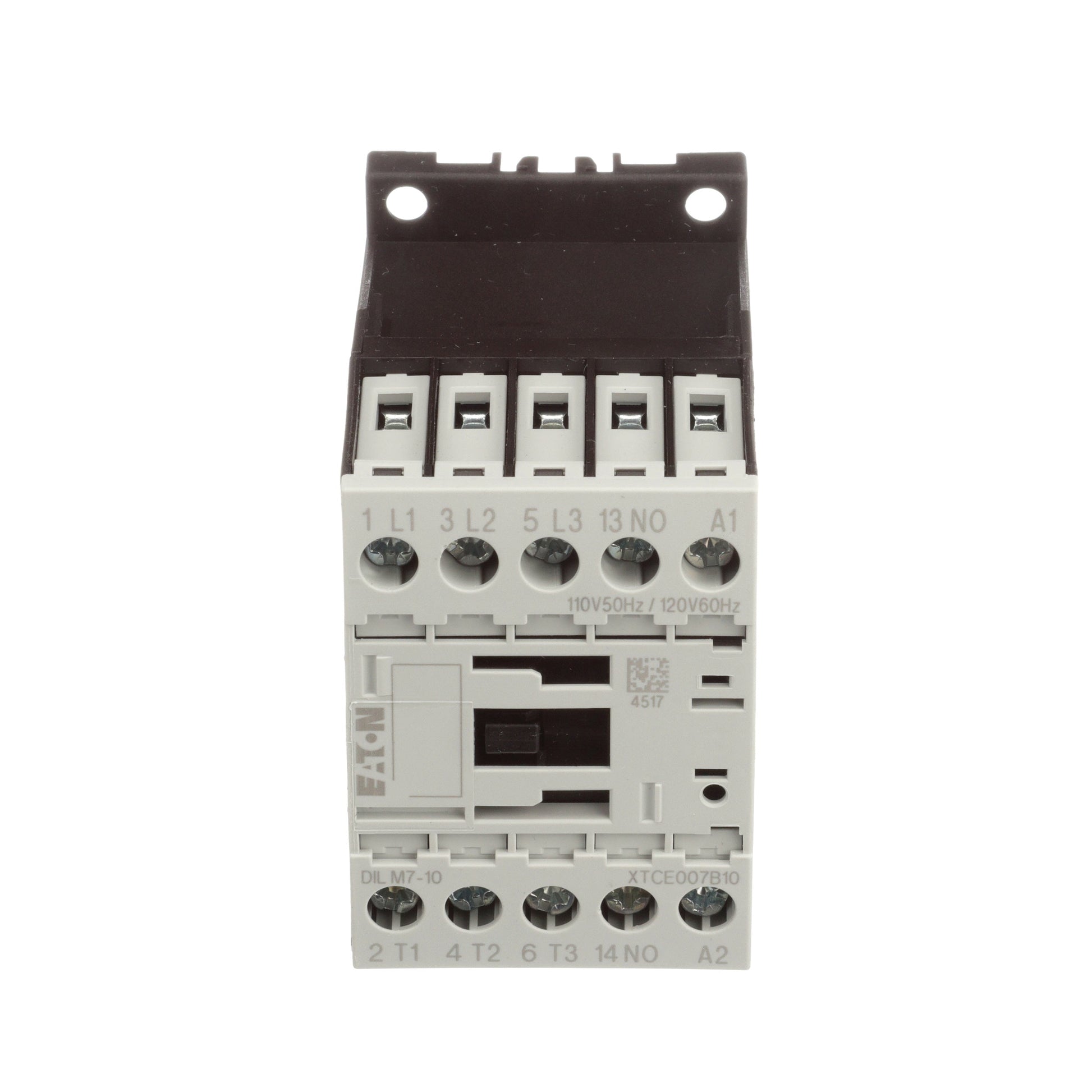

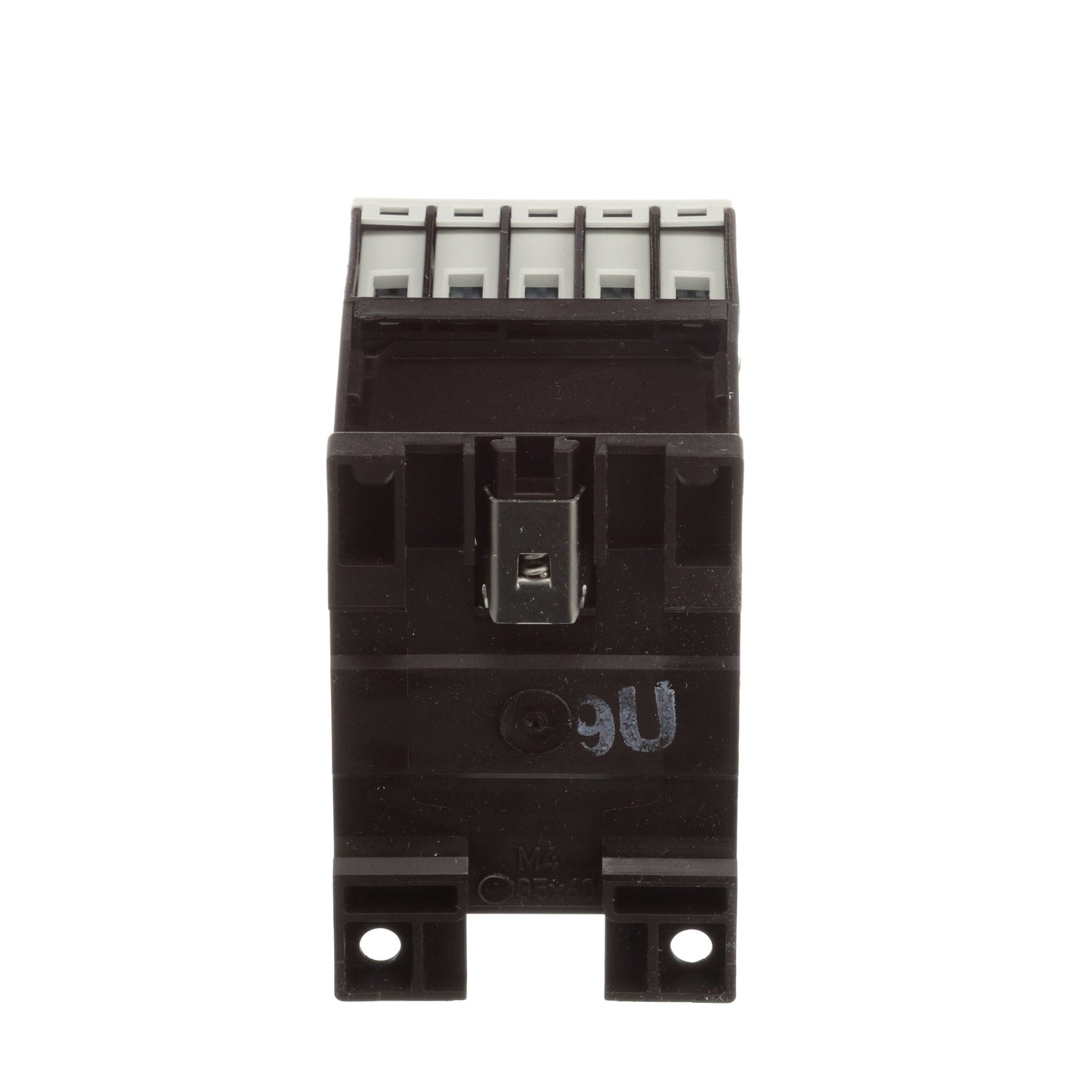

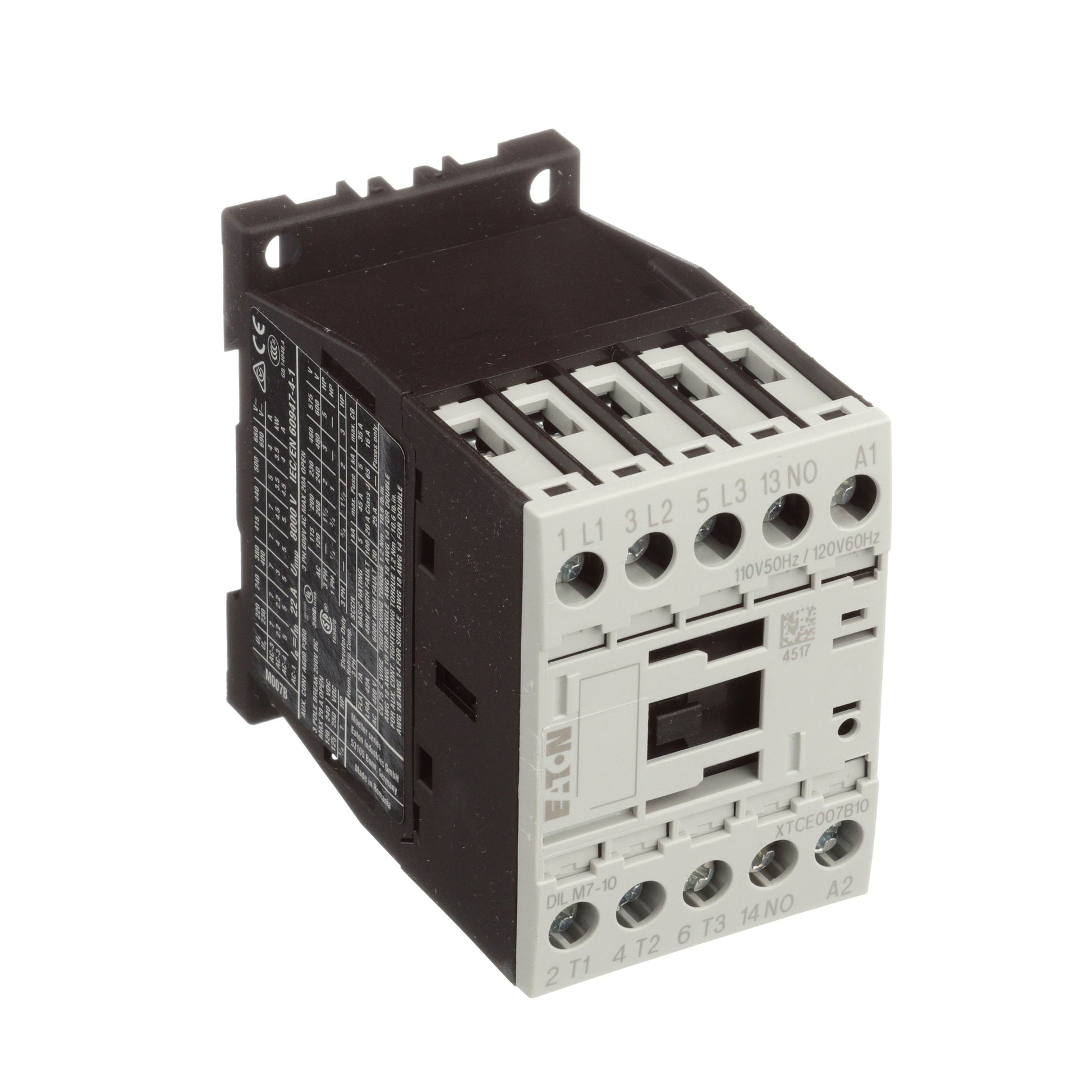

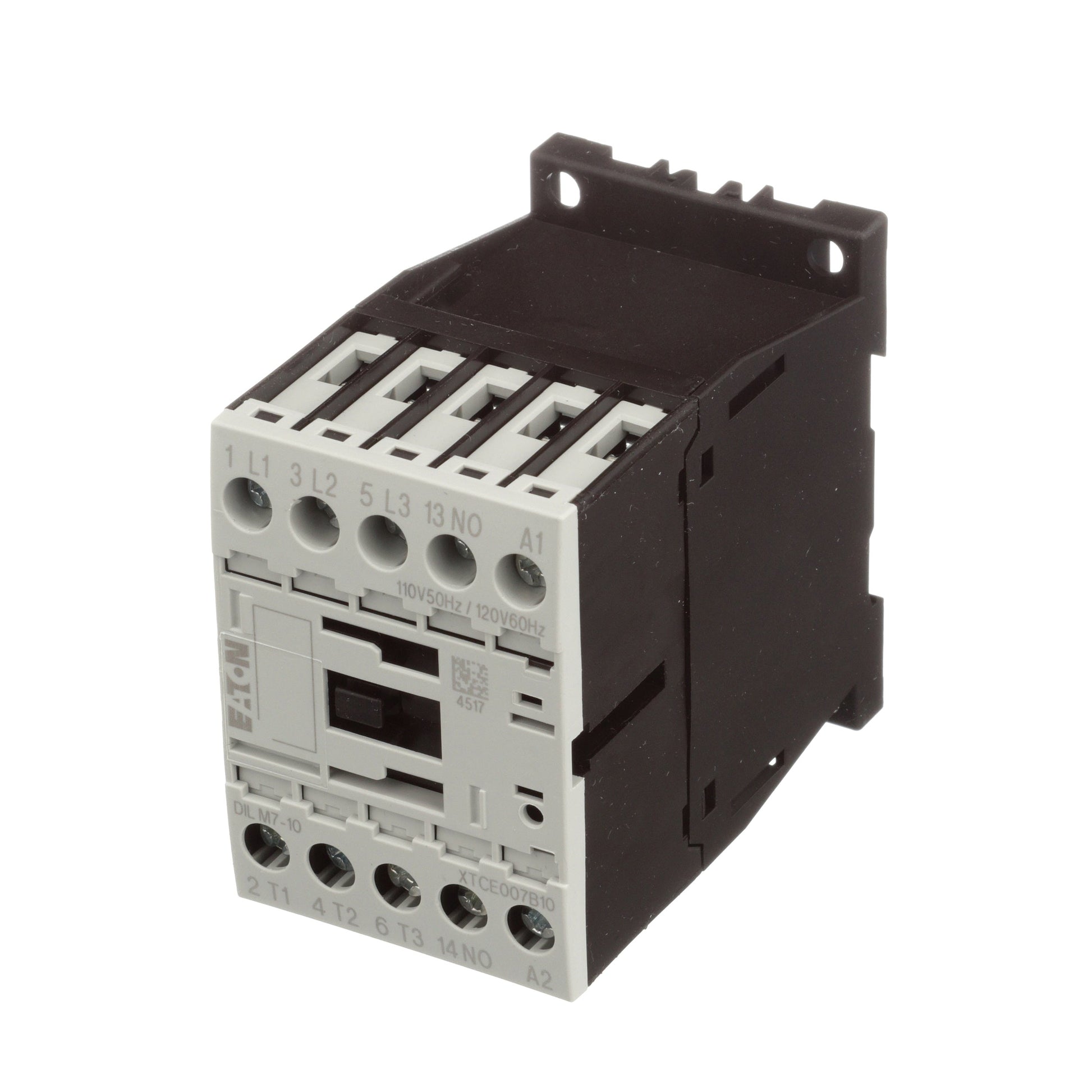

The Cutler Hammer XTCE007B10A XT Series Contactor is a 600V 3-phase 7A 3-pole starter with a 120V coil. It supports various horsepower ratings, including 1 1/2 hp at 208V, 2 hp at 240V, and 3 hp at 480V. This IEC non-reversing contactor is designed for motor control applications.
Key Features:
✔ Part Number: XTCE007B10A
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: XT Series
✔ Type: XTCE007B
✔ Voltage: 600
✔ Amperage: 7
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 2 hp HP @ 3 Phase - 480V 3 hp
✔ Configuration: Non-Reversing
✔ Aux Contacts: 1 NO
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 7A Full Load Amps-Resistive 22A
✔ Coil Voltage Minimum: 120
✔ Frequency: 50 Hz
✔ UPC: 01508276547
✔ GTIN: 04015082765477
✔ Country of Origin: Romania
✔ Dimensions: 1.77 in x 1.77 in
✔ Weight: 1 lb
✔ Certification: CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
