Product Description:

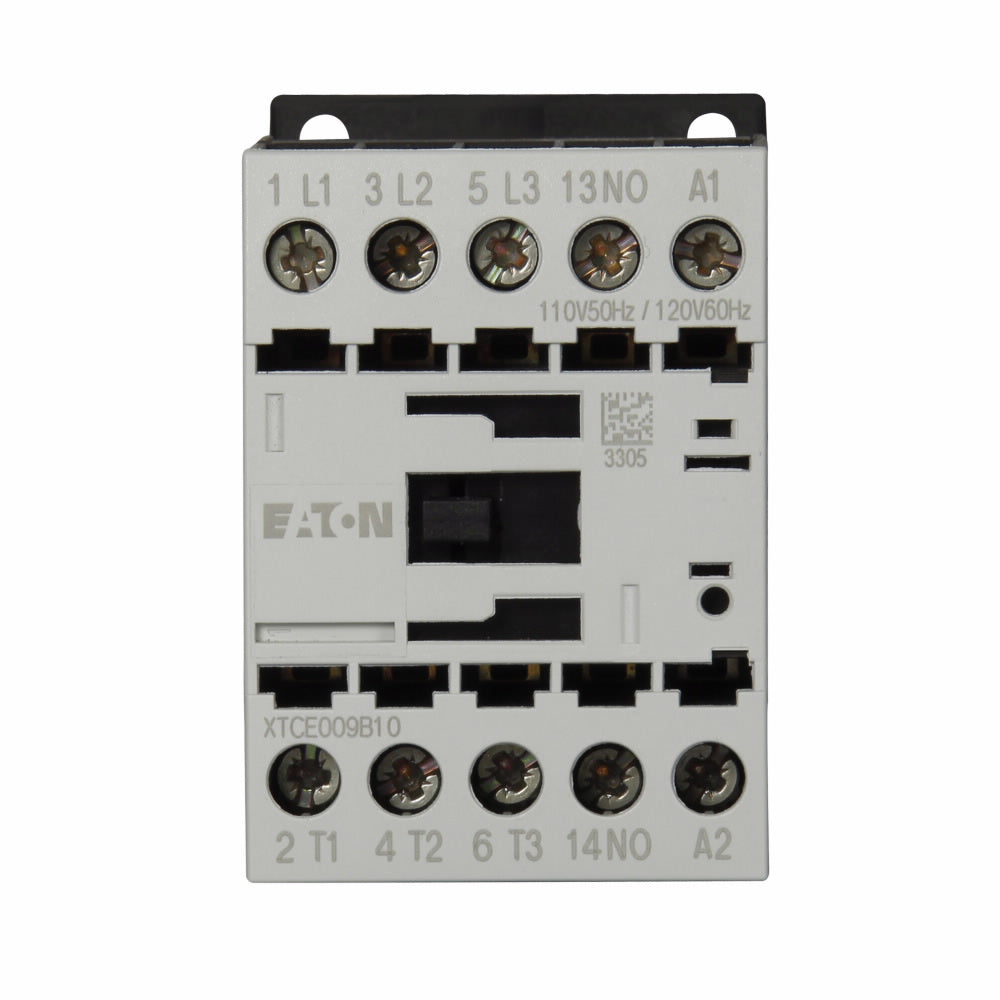

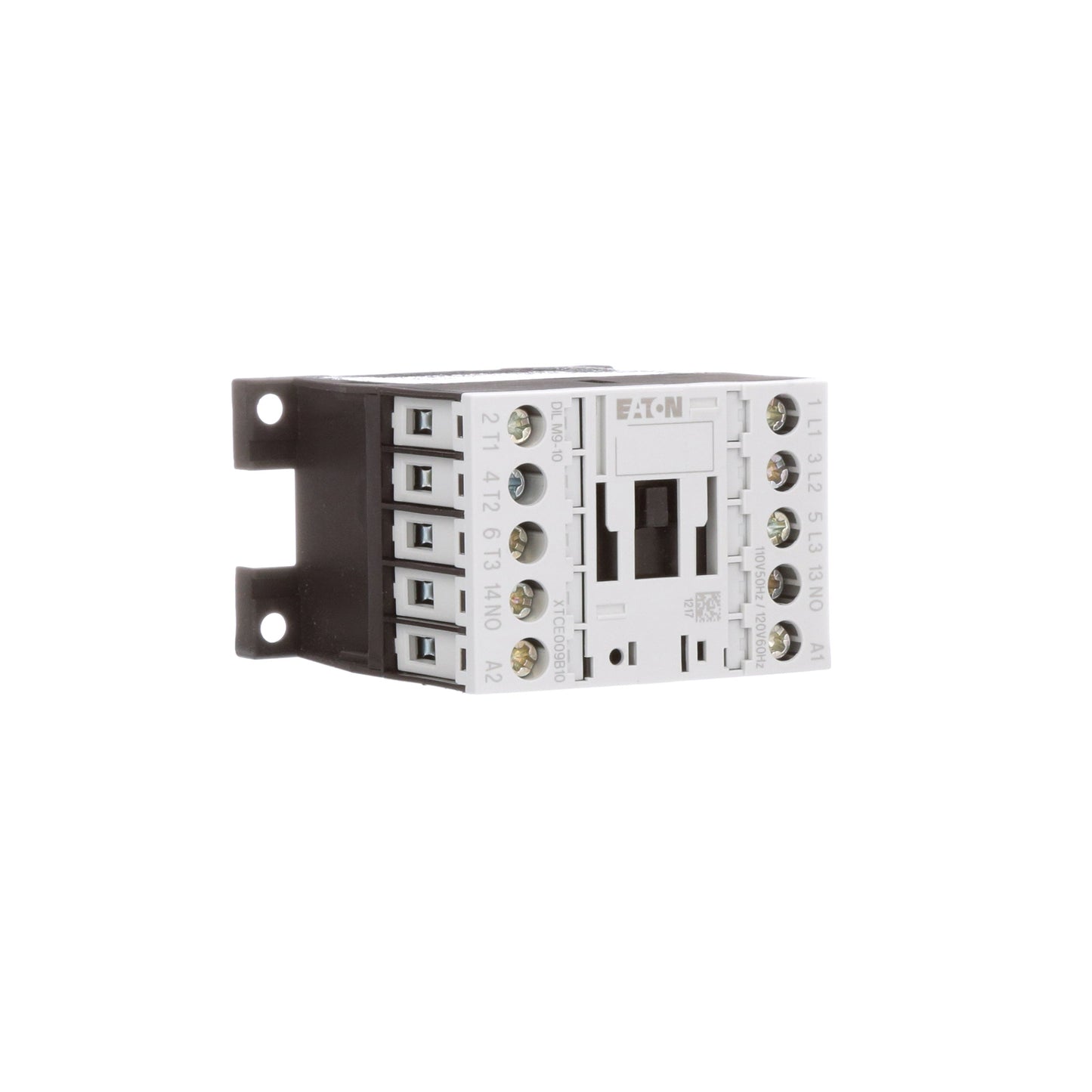

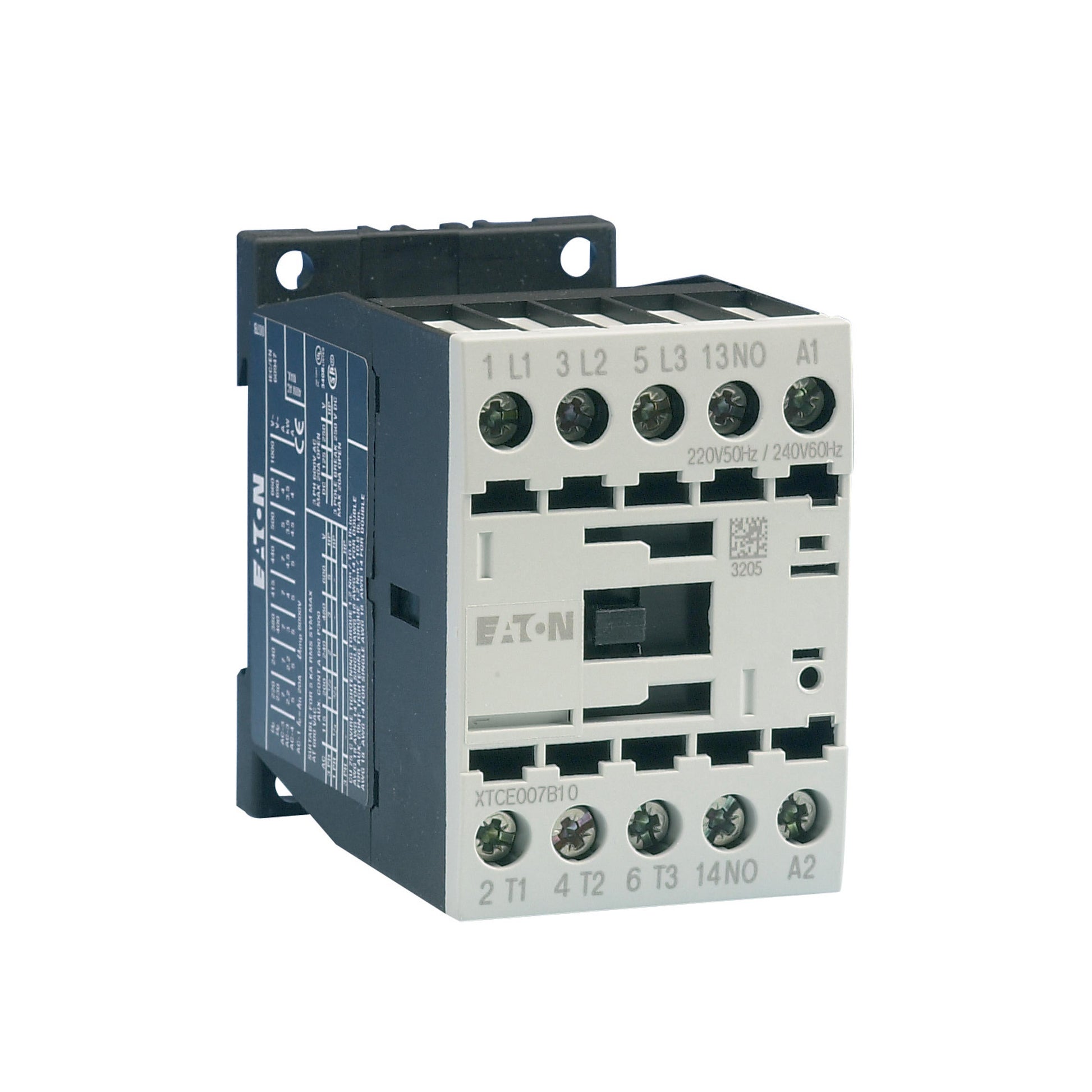

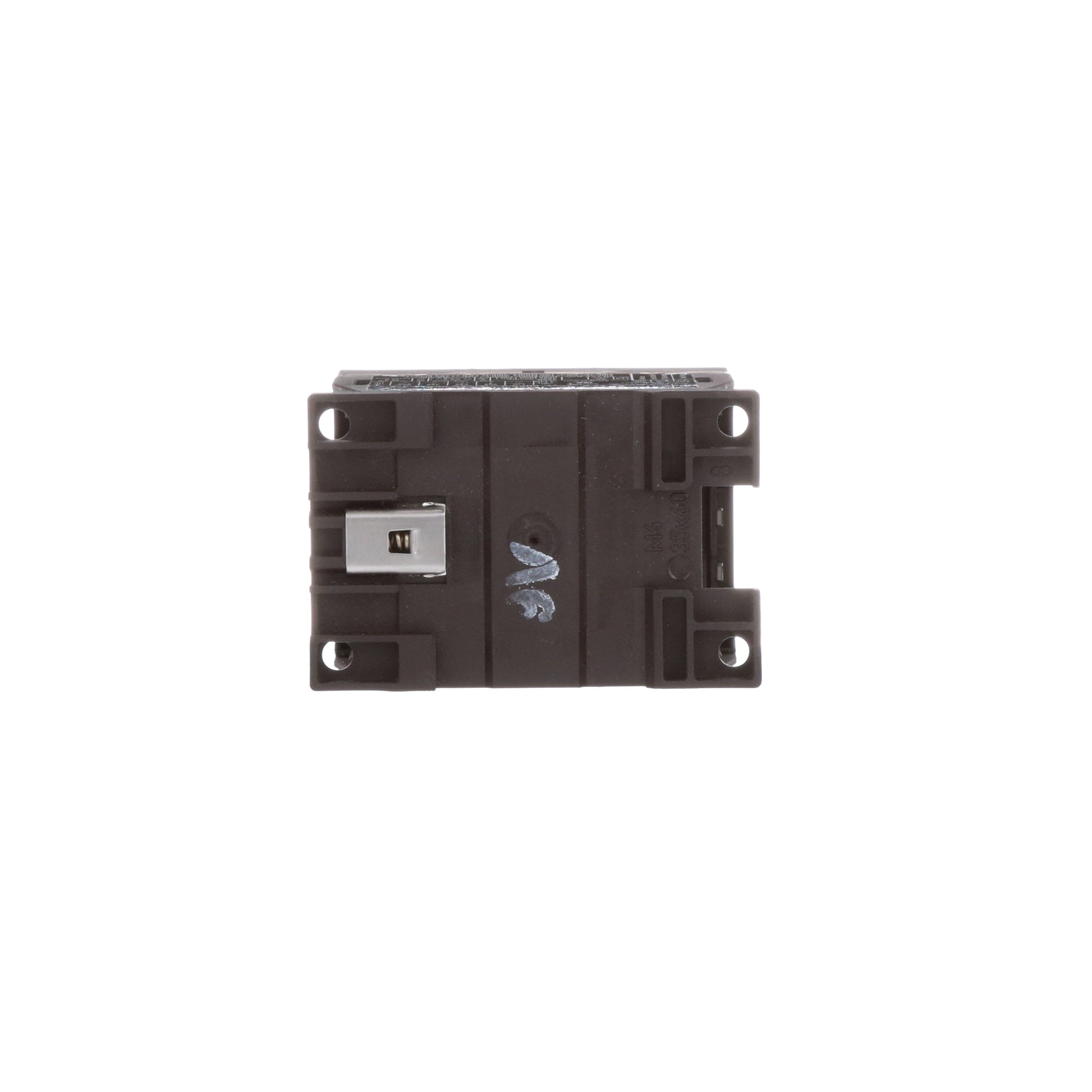

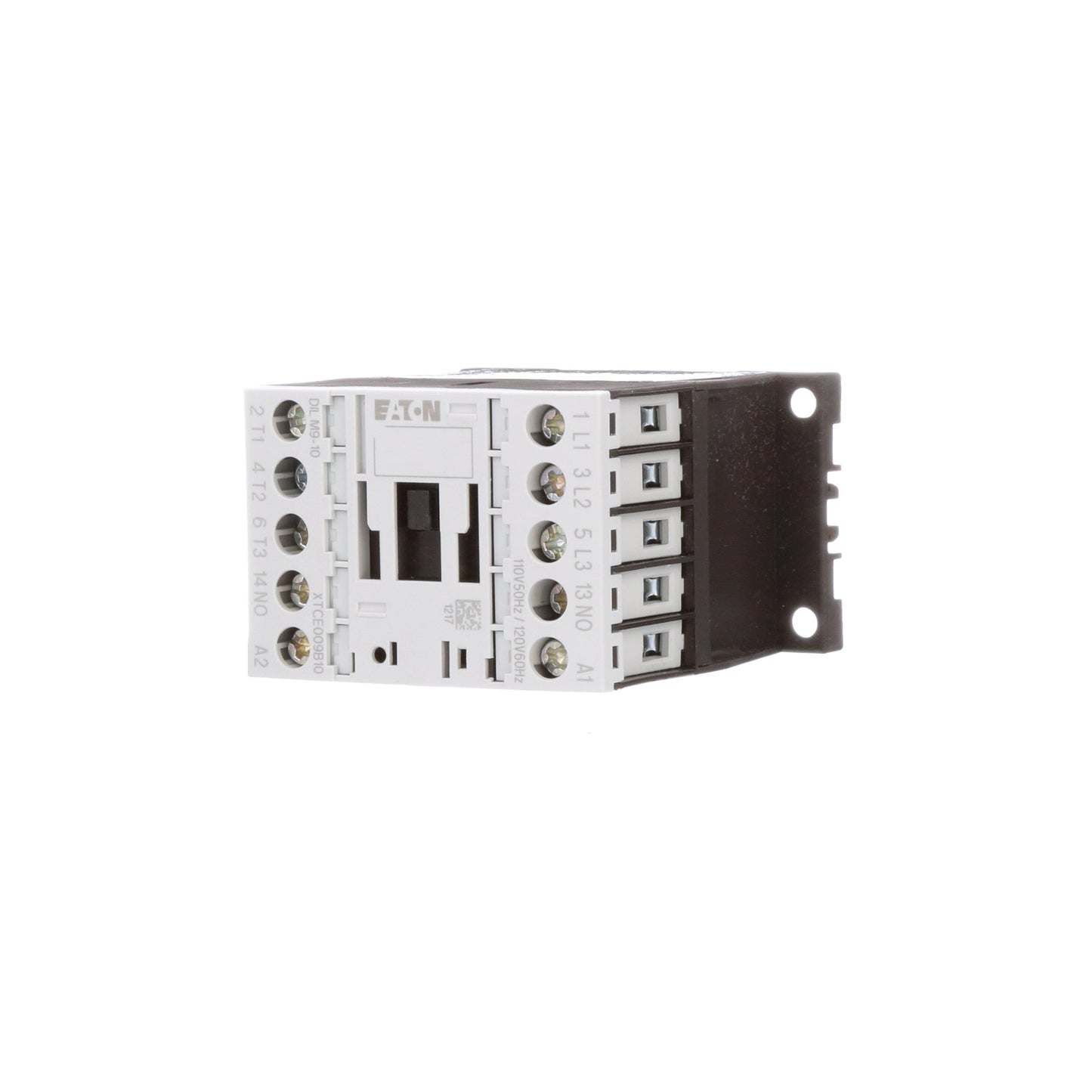

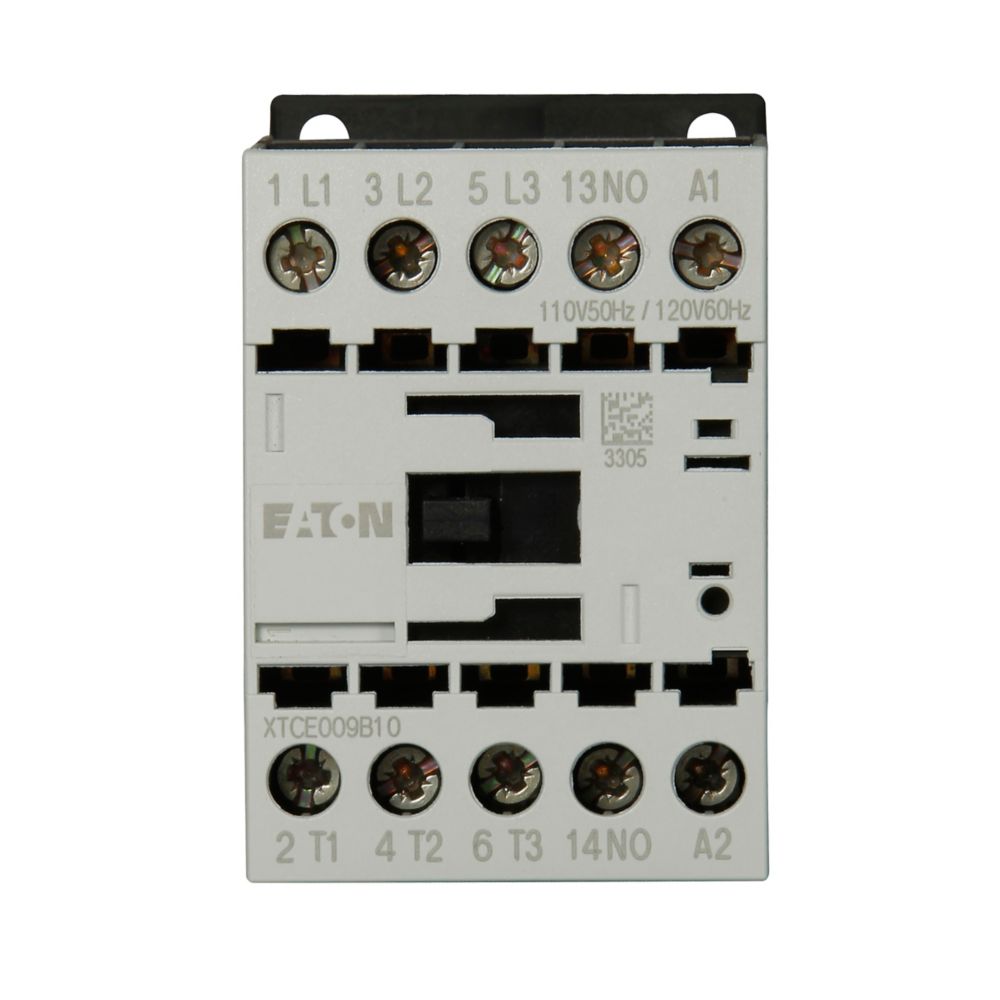

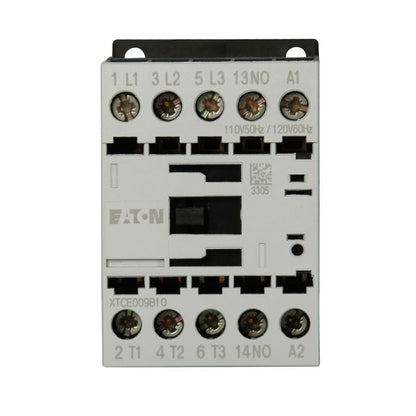

The Cutler Hammer XTCE009B10A XT Series Contactor is a 600V 3-phase starter with a 9A rating and 3 poles. It features a 120V coil and is suitable for various horsepower ratings, including 3 hp at 208V/240V and 5 hp at 480V. This IEC non-reversing contactor includes one normally open auxiliary contact.
Key Features:
✔ Part Number: XTCE009B10A
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: XT Series
✔ Type: XTCE009B
✔ Voltage: 600
✔ Amperage: 9
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
✔ Configuration: Non-Reversing
✔ Aux Contacts: 1 NO
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 9A Full Load Amps-Resistive 22A
✔ Coil Voltage Minimum: 120
✔ Frequency: 50 Hz
✔ UPC: 786689005269
✔ GTIN: 04015082766870
✔ Country of Origin: Romania
✔ Dimensions: 1.77 in x 1.77 in
✔ Weight: 1 lb
✔ Certification: CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
