Product Description:

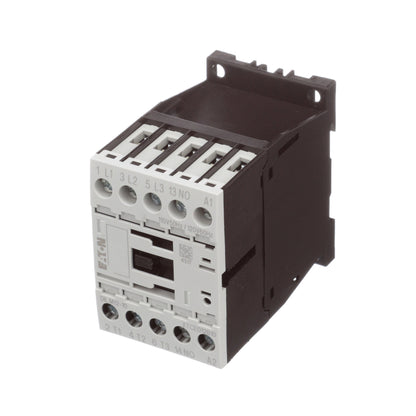

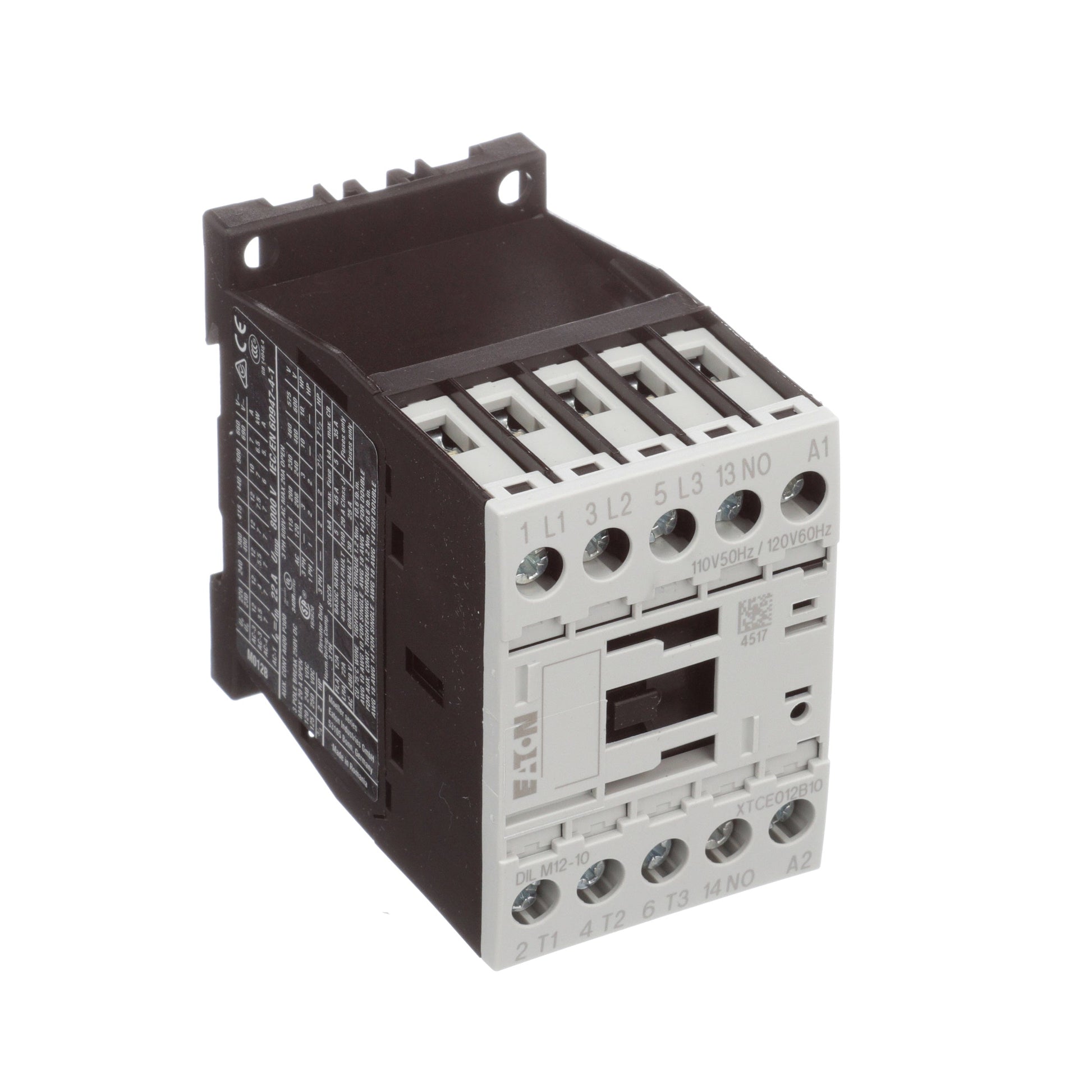

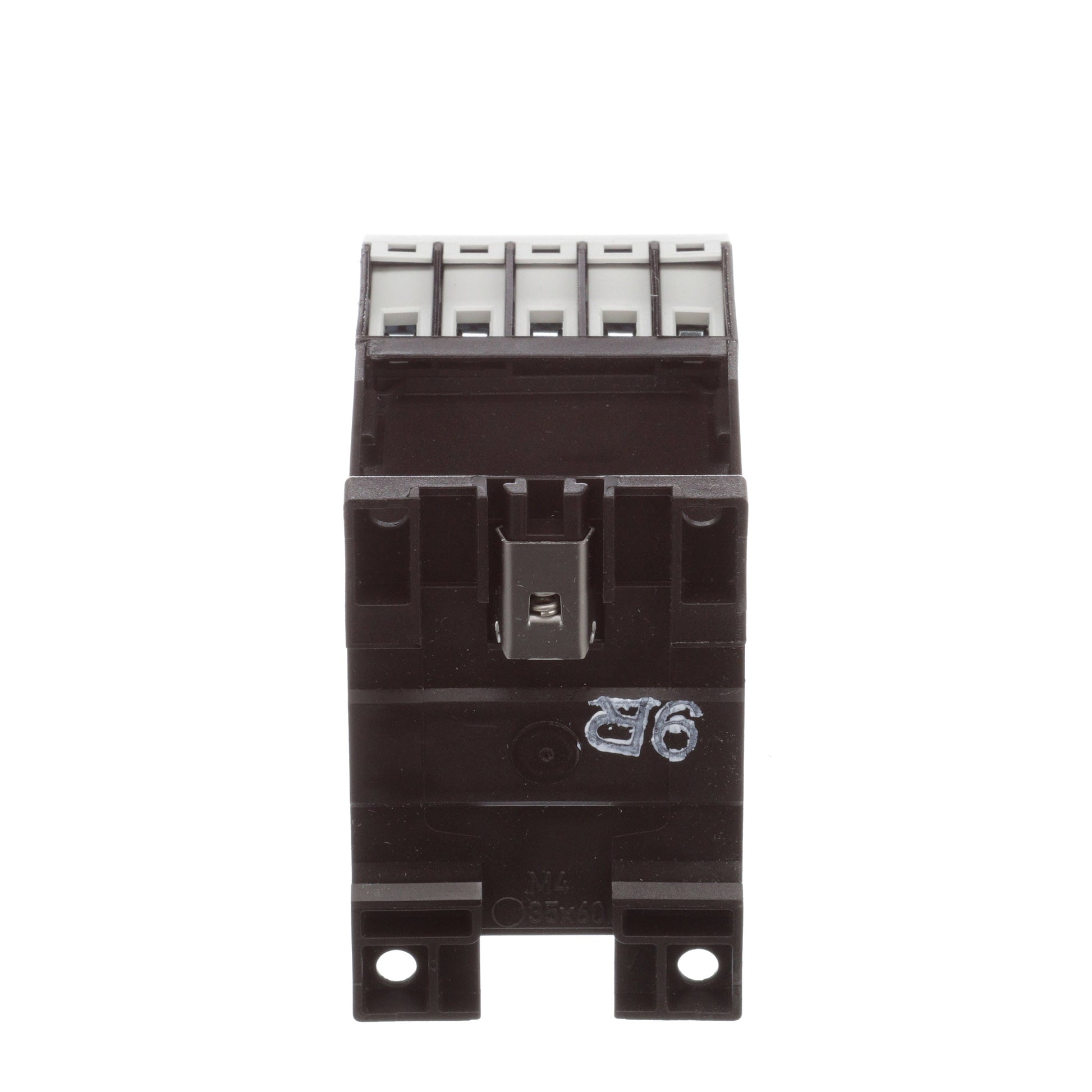

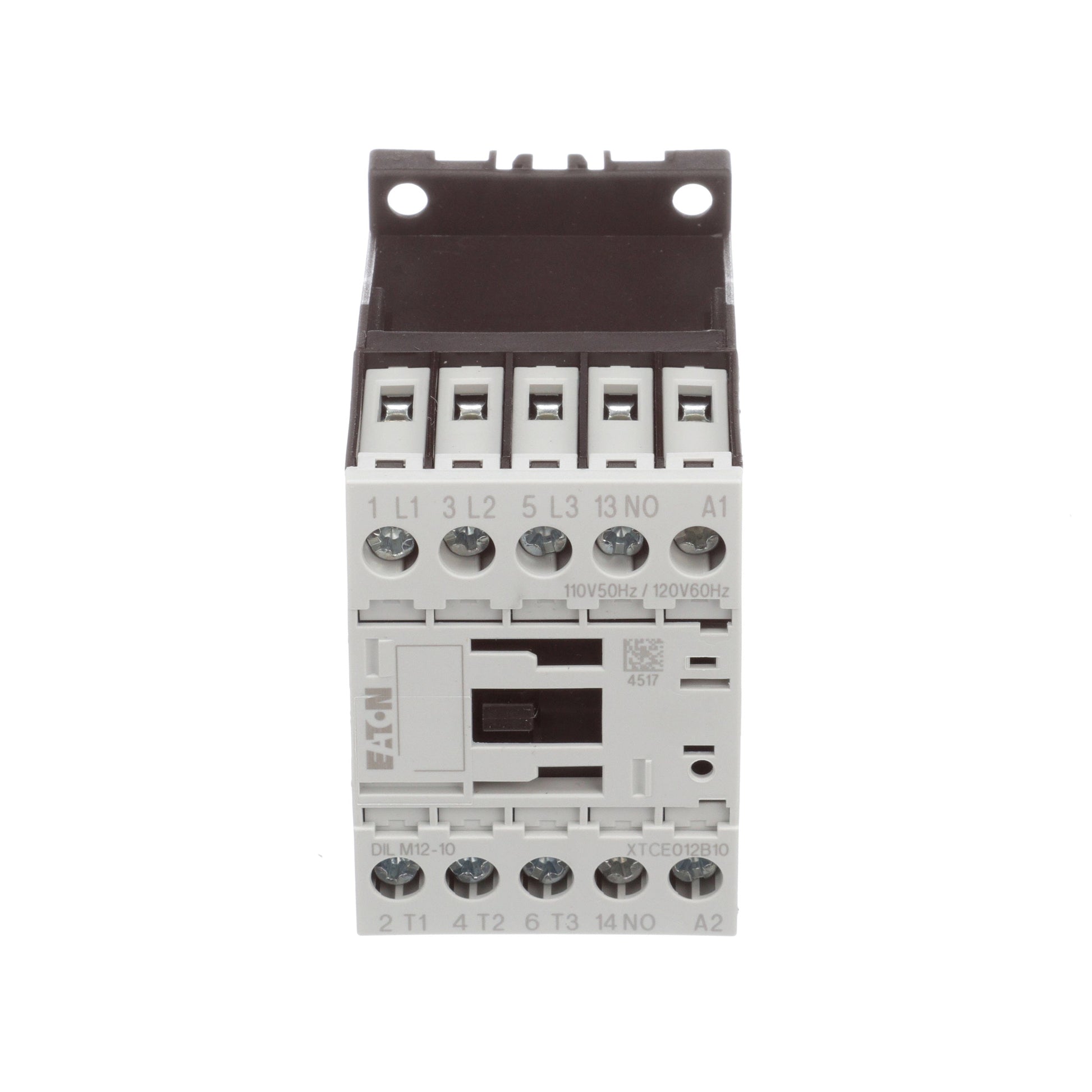

The Cutler Hammer XTCE012B10A XT Series Contactor is a 600V 3-phase 12A 3-pole starter with a 120V coil. It offers horsepower ratings of 3 hp at 208V/240V and 10 hp at 480V. This IEC non-reversing contactor is designed for motor control applications and includes one normally open auxiliary contact.
Key Features:
✔ Part Number: XTCE012B10A
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: XT Series
✔ Type: XTCE012B
✔ Voltage: 600
✔ Amperage: 12
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 10 hp
✔ Configuration: Non-Reversing
✔ Aux Contacts: 1 NO
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 12A Full Load Amps-Resistive 22A
✔ Coil Voltage Minimum: 120
✔ Frequency: 50 Hz
✔ UPC: 015082768274
✔ GTIN: 04015082768270
✔ Country of Origin: Romania
✔ Dimensions: 1.77 in x 1.77 in
✔ Weight: 1 lb
✔ Certification: CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
