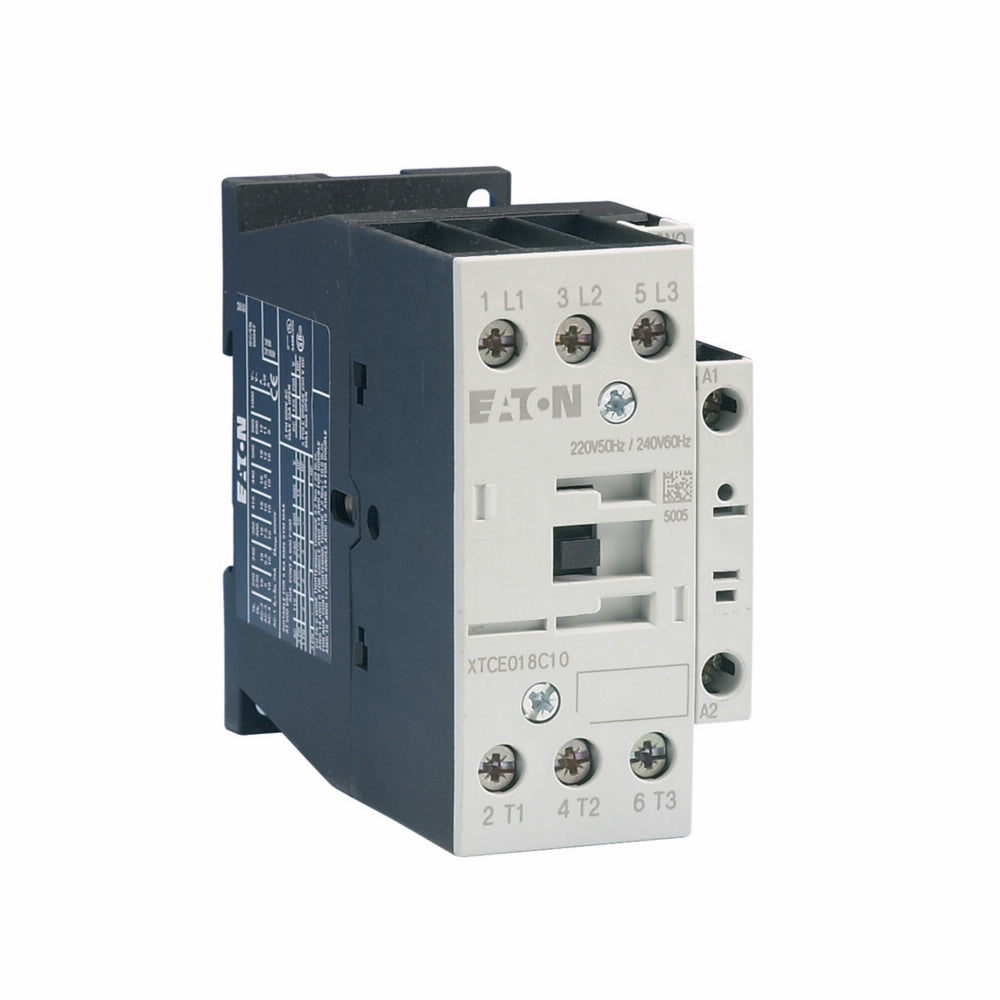

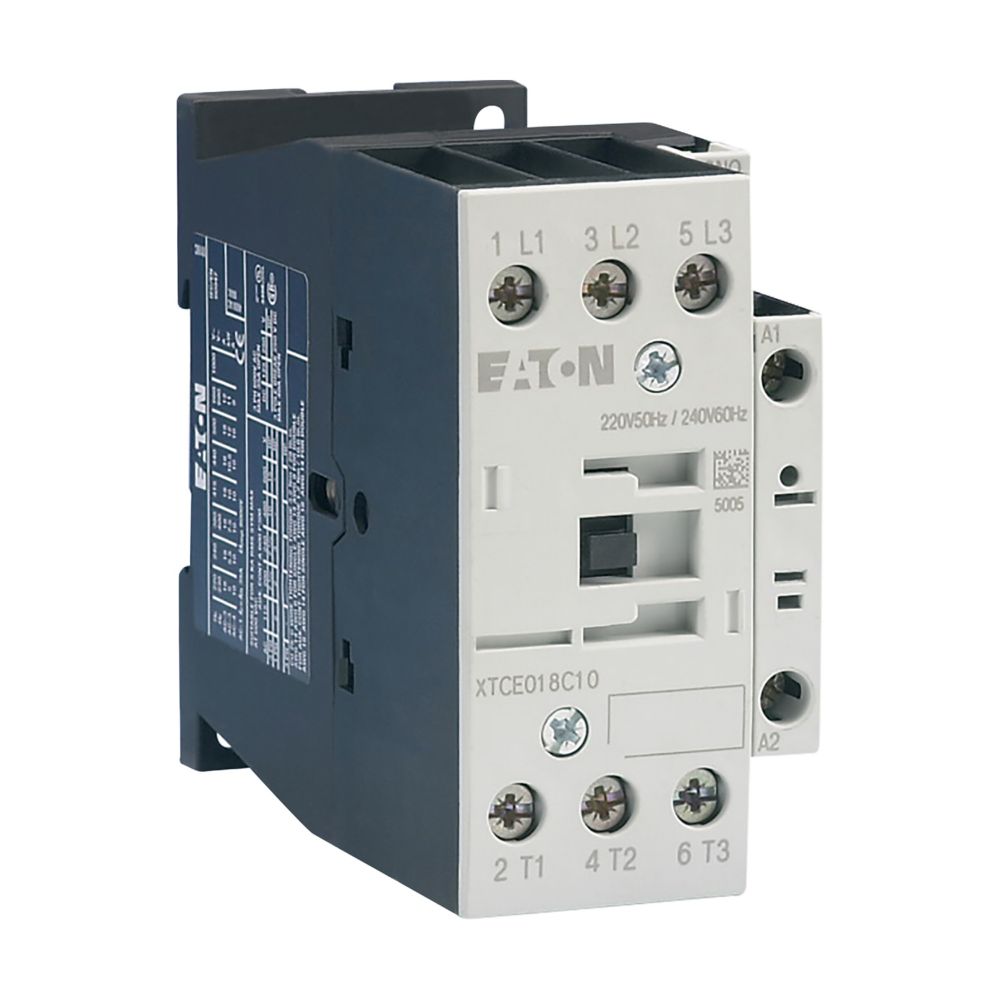

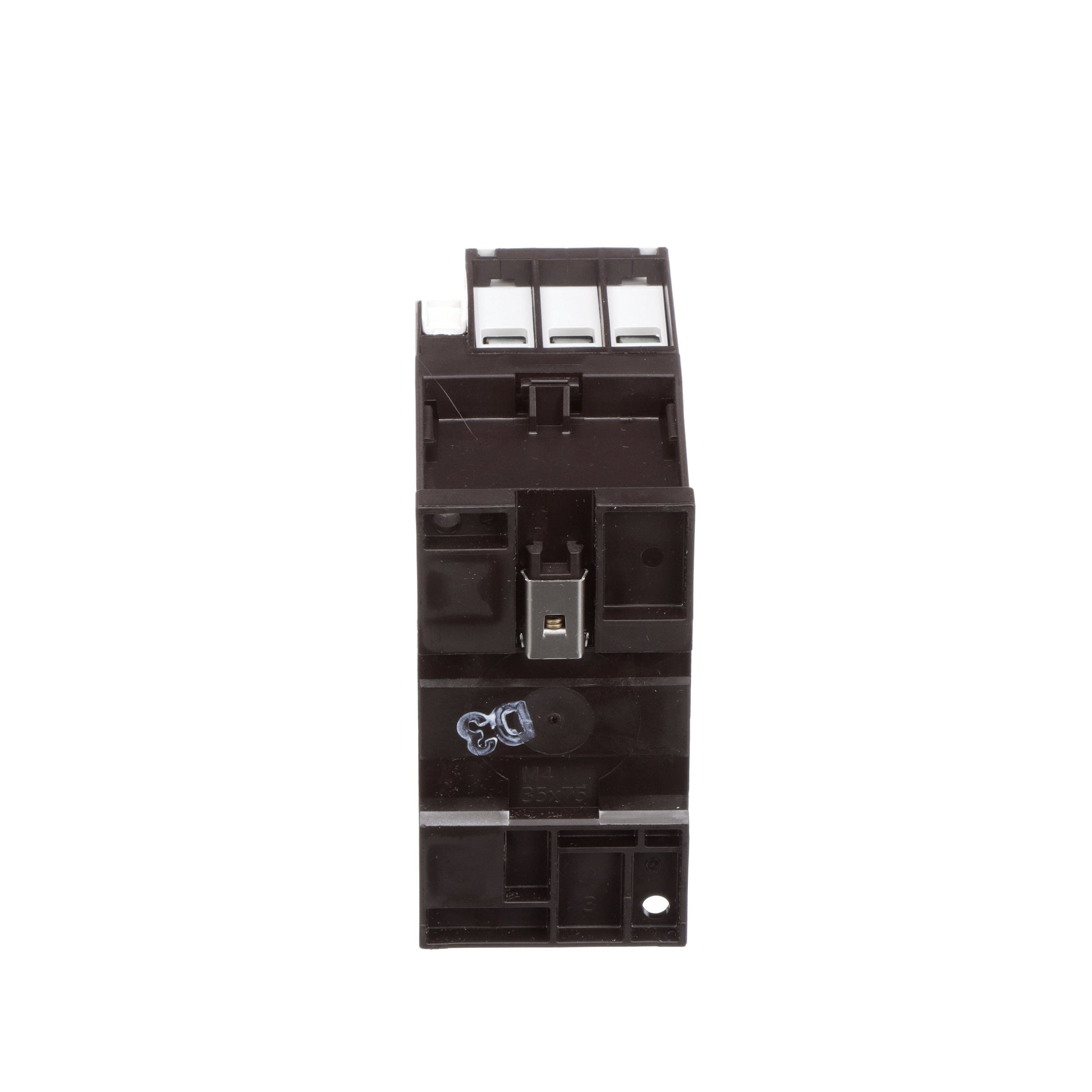

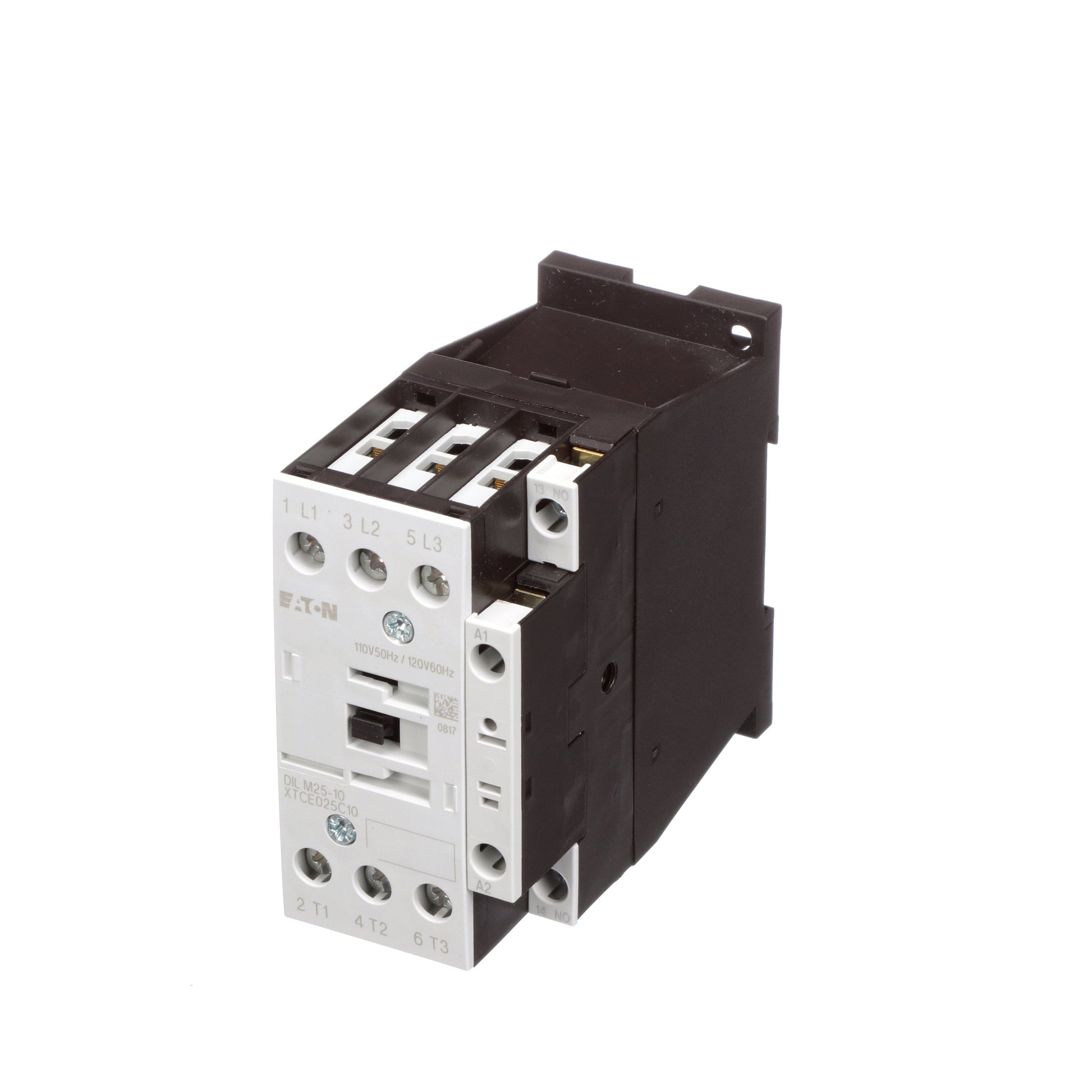

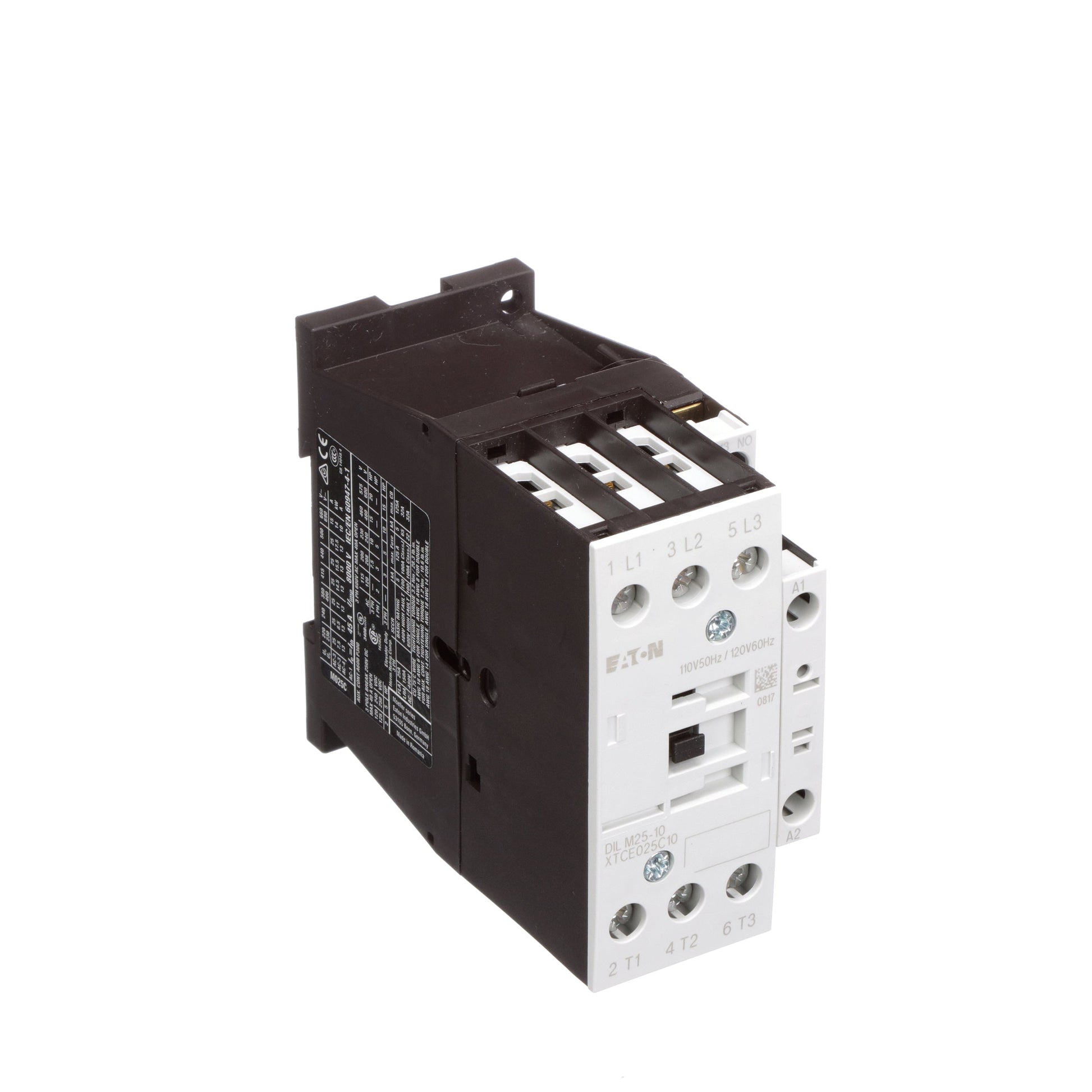

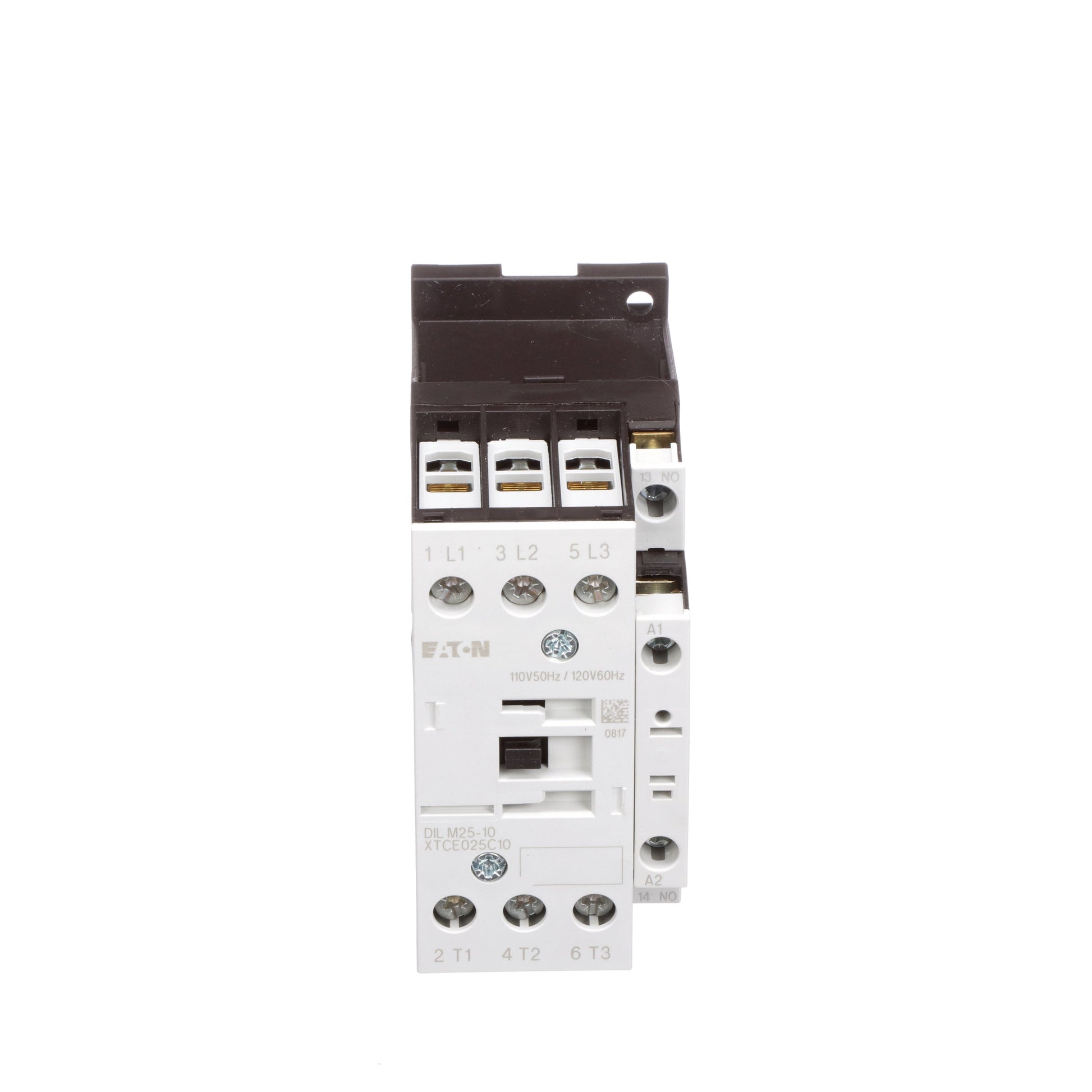

Cutler Hammer XTCE025C10A Contactor | 3P 3PH 600V 25A 120V Coil XT Series

Product Description:
The Cutler Hammer XTCE025C10A XT Series Contactor is a 600V 3-phase 25A 3-pole starter with a 120V coil. It offers horsepower ratings of 7.5 hp at 208V, 10 hp at 240V, and 15 hp at 480V. This IEC non-reversing contactor includes one normally open auxiliary contact and is suitable for motor control applications.

Key Features:
✔ Part Number: XTCE025C10A
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: XT Series
✔ Type: XTCE025C
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 10 hp HP @ 3 Phase - 480V 15 hp
✔ Configuration: Non-Reversing
✔ Aux Contacts: 1 NO
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 25A Full Load Amps-Resistive 45A
✔ Coil Voltage Minimum: 120
✔ Frequency: 50 Hz
✔ UPC: 015082771298
✔ GTIN: 04015082771294
✔ Country of Origin: Romania
✔ Dimensions: 1.77 in x 1.77 in
✔ Weight: 1 lb
✔ Certification: CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
