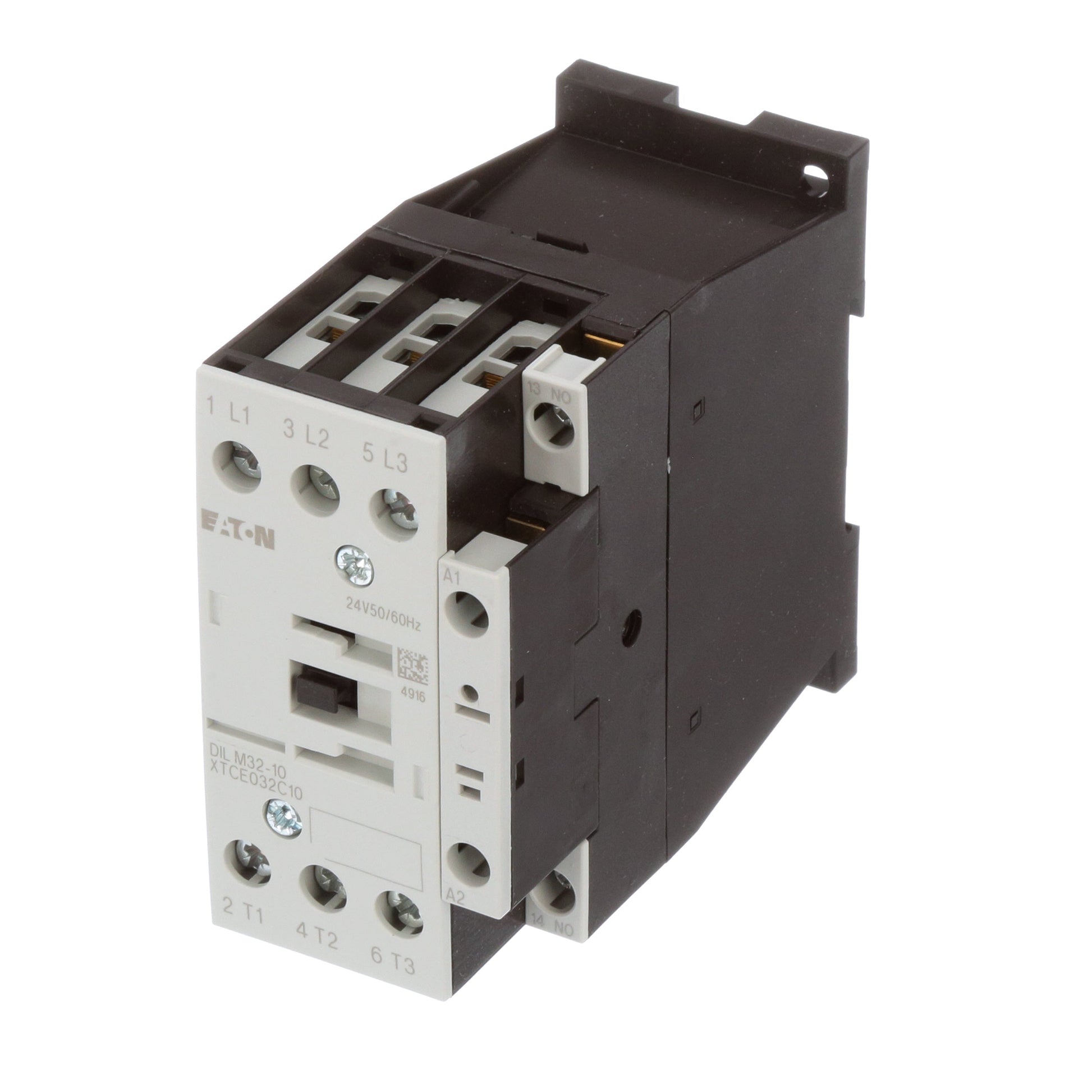

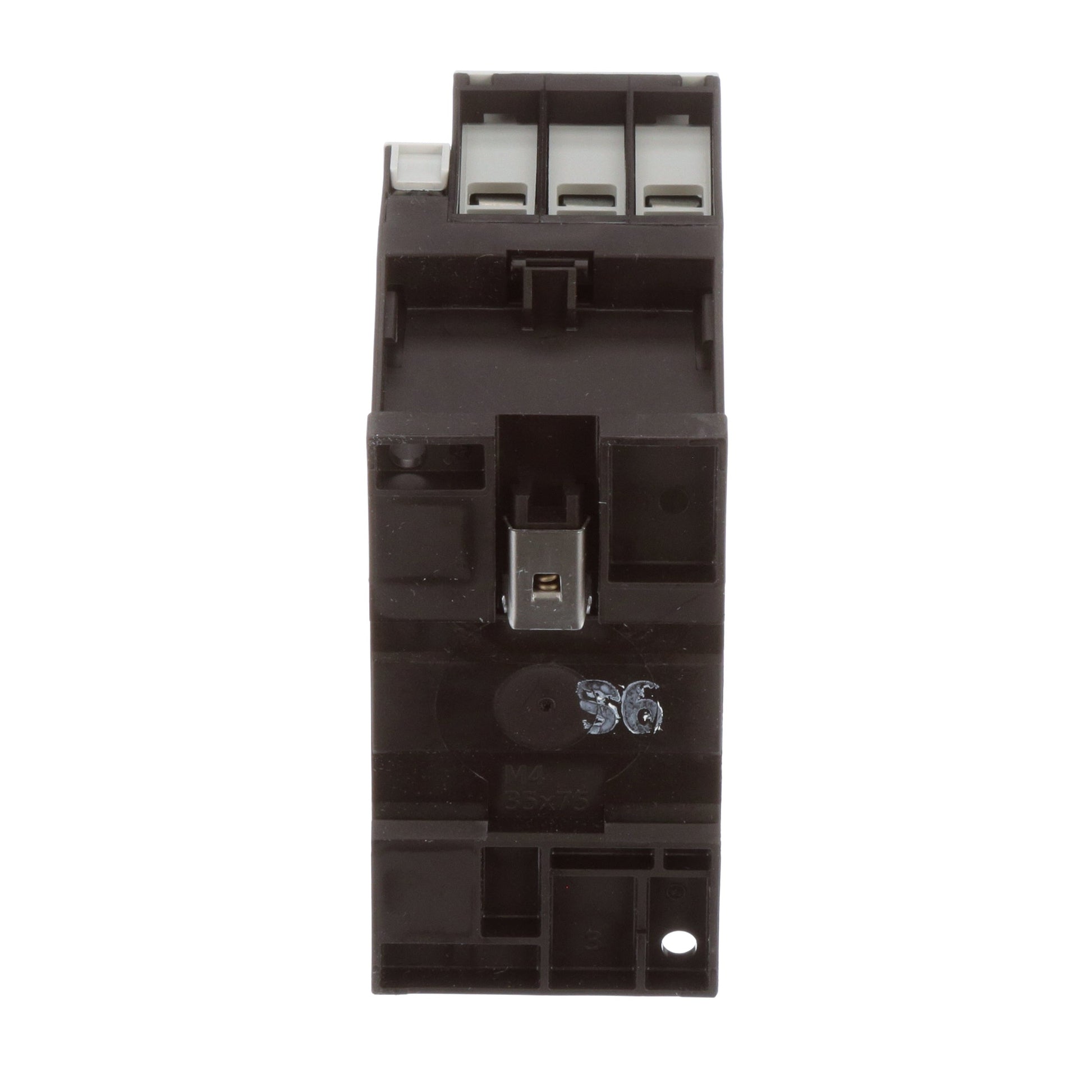

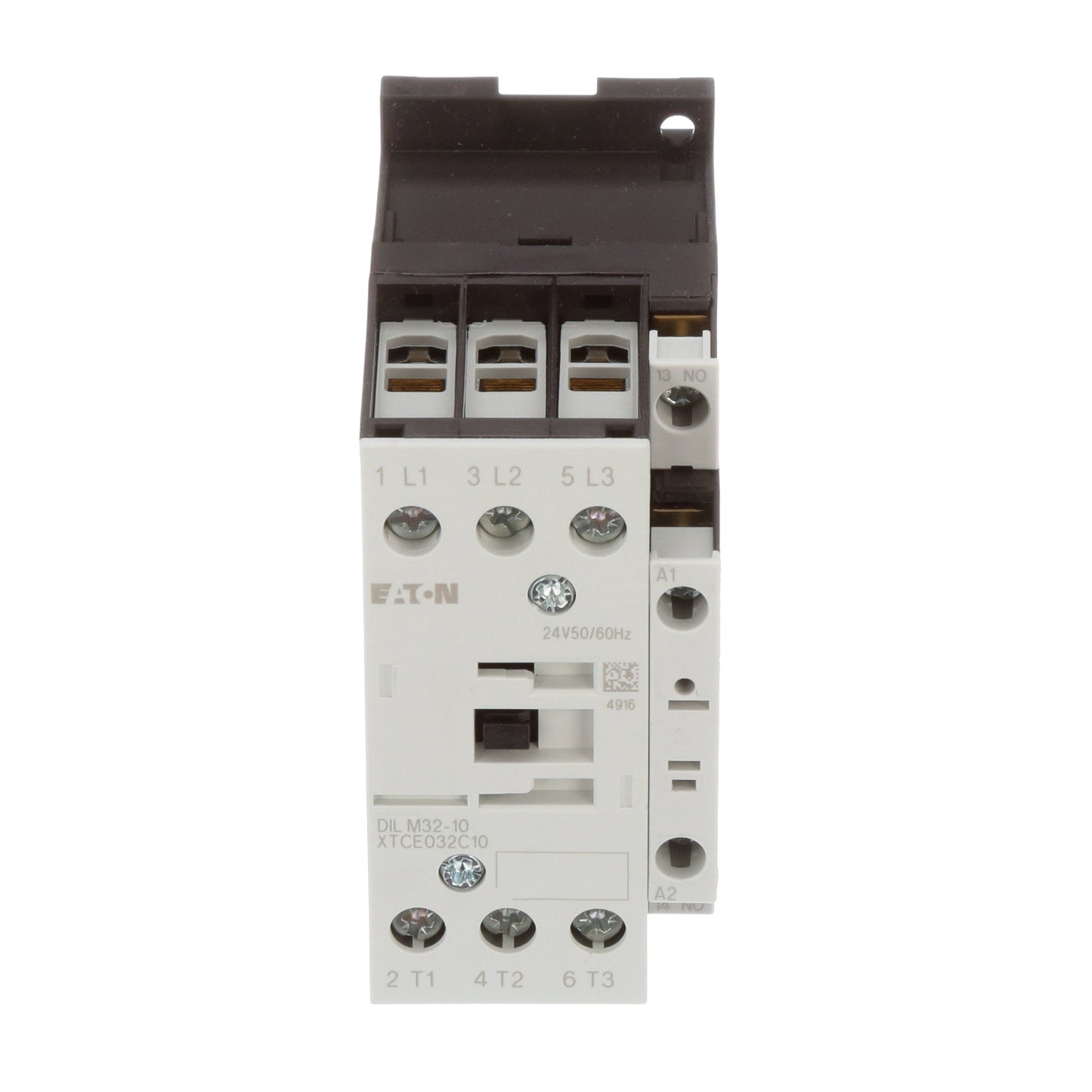

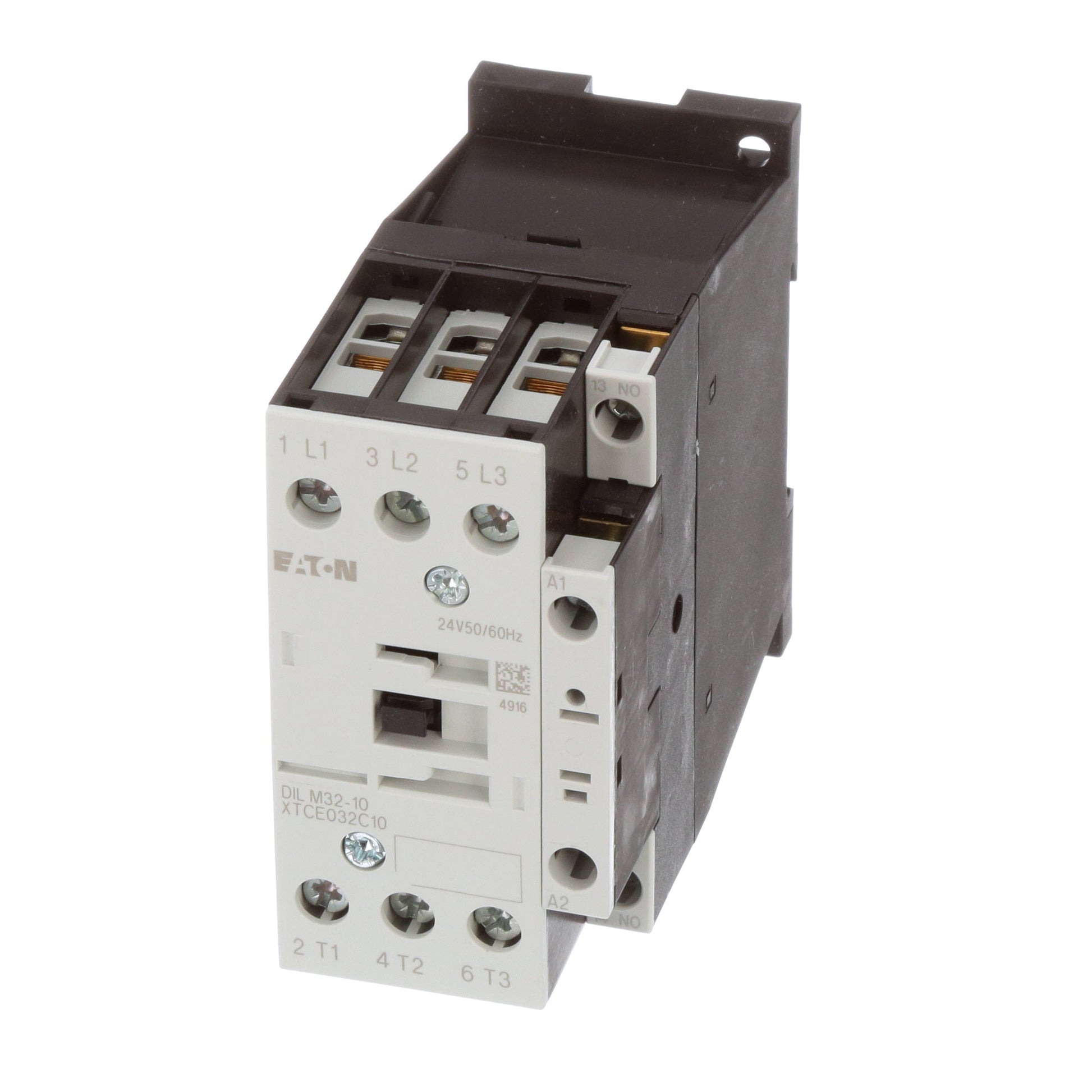

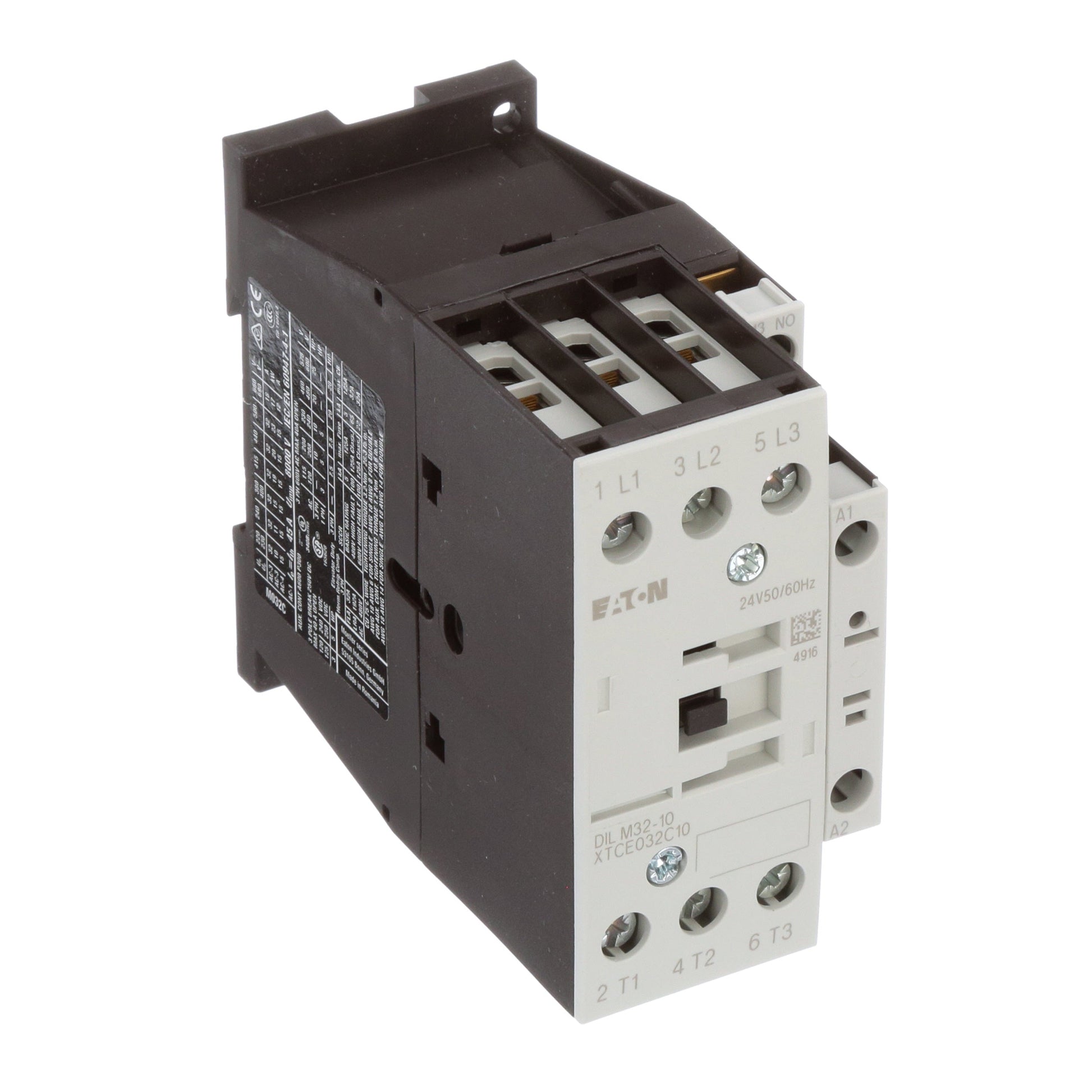

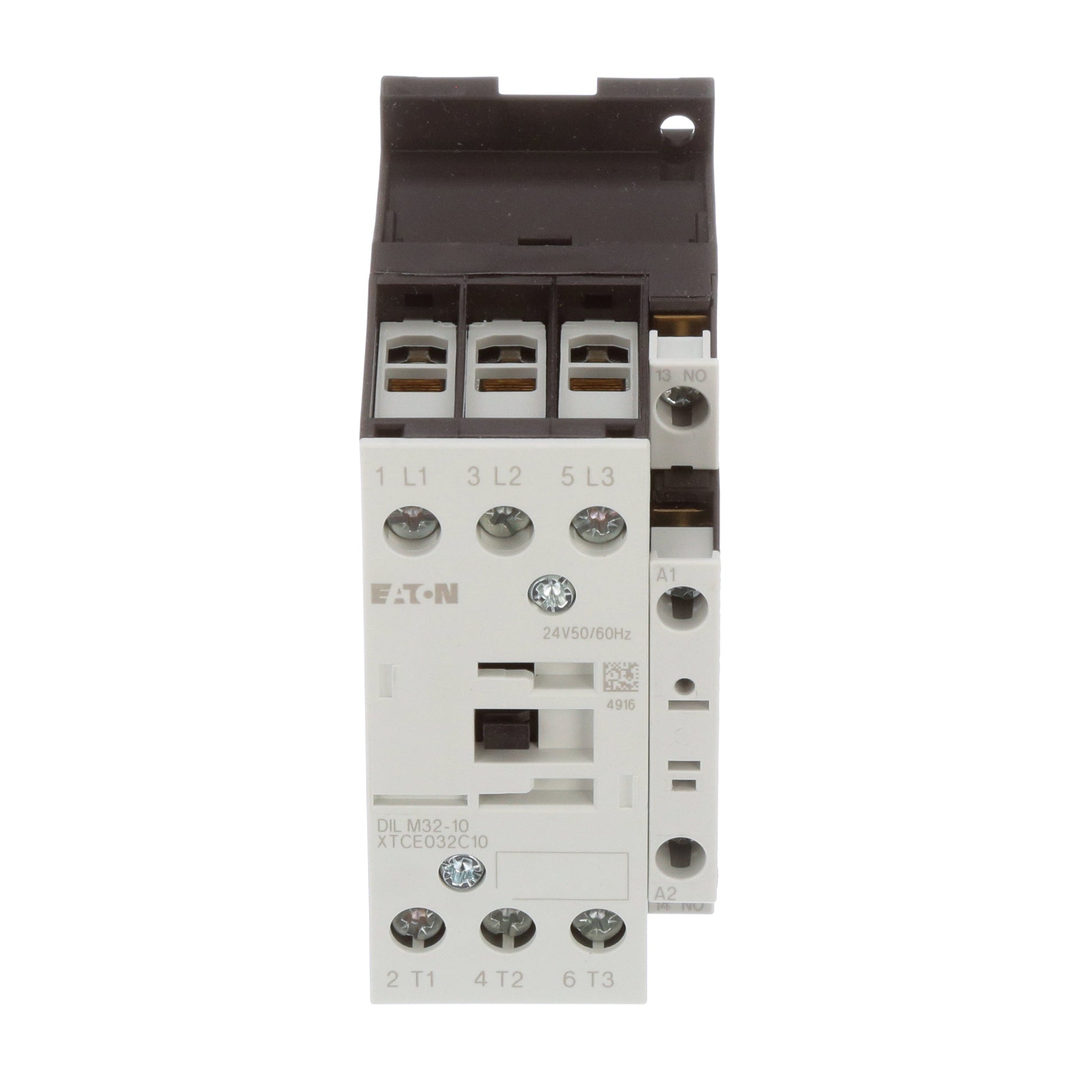

Eaton XTCE032C10T Contactor 3 pole 3 phase 32A 24V coil XT Series

Product Description:
The Eaton XTCE032C10T XT Series Contactor is a 3-phase 32A 3-pole starter with a 24V coil. It offers horsepower ratings of 10 hp at 208V and 240V, and 20 hp at 480V. This non-reversing contactor includes one normally open auxiliary contact and is designed for motor control applications.
Key Features:
✔ Part Number: XTCE032C10T
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: XT Series
✔ Type: XTCE032C
✔ Voltage: 4
✔ Amperage: 32
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 10 hp HP @ 3 Phase - 480V 20 hp
✔ Configuration: Non-Reversing
✔ Aux Contacts: 1 NO
✔ Coil Voltage Maximum: 24
✔ Full Load Amps: Full Load Amps-Inductive 32A Full Load Amps-Resistive 45A
✔ Coil Voltage Minimum: 24
✔ Frequency: 50 Hz
✔ UPC: 015082772646
✔ GTIN: 04015080000000
✔ Country of Origin: Romania
✔ Dimensions: 1.77 in x 2.95 in
✔ Weight: 1
✔ Certification: CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
