Product Description:

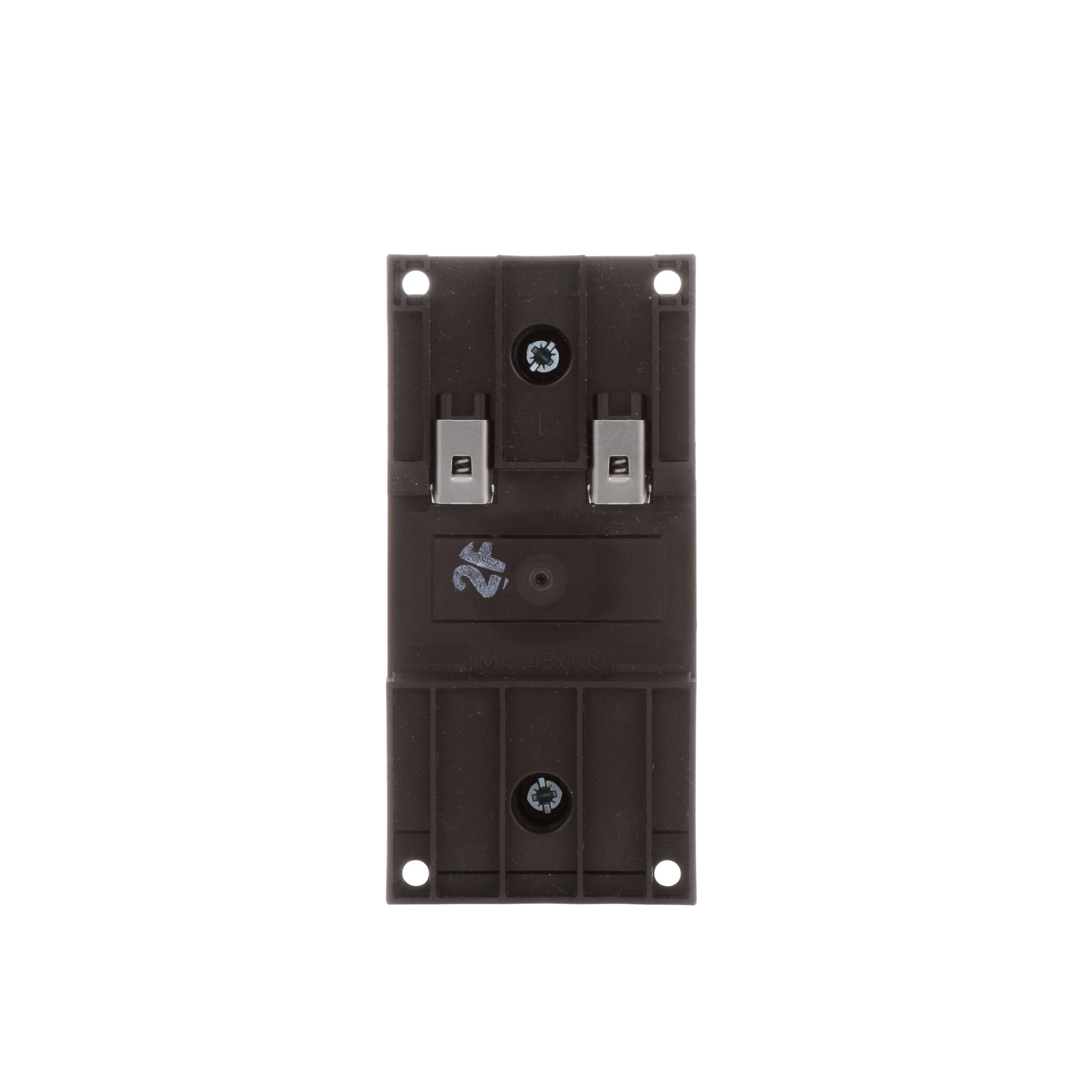

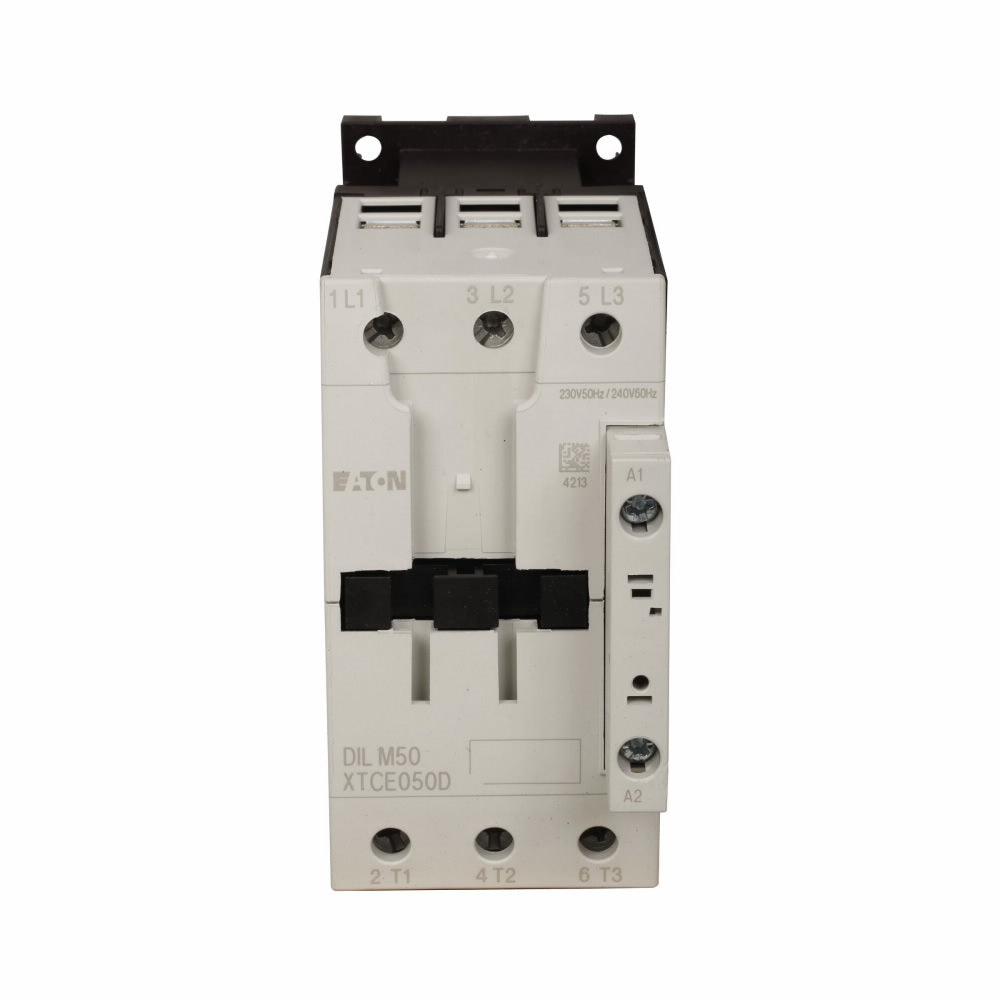

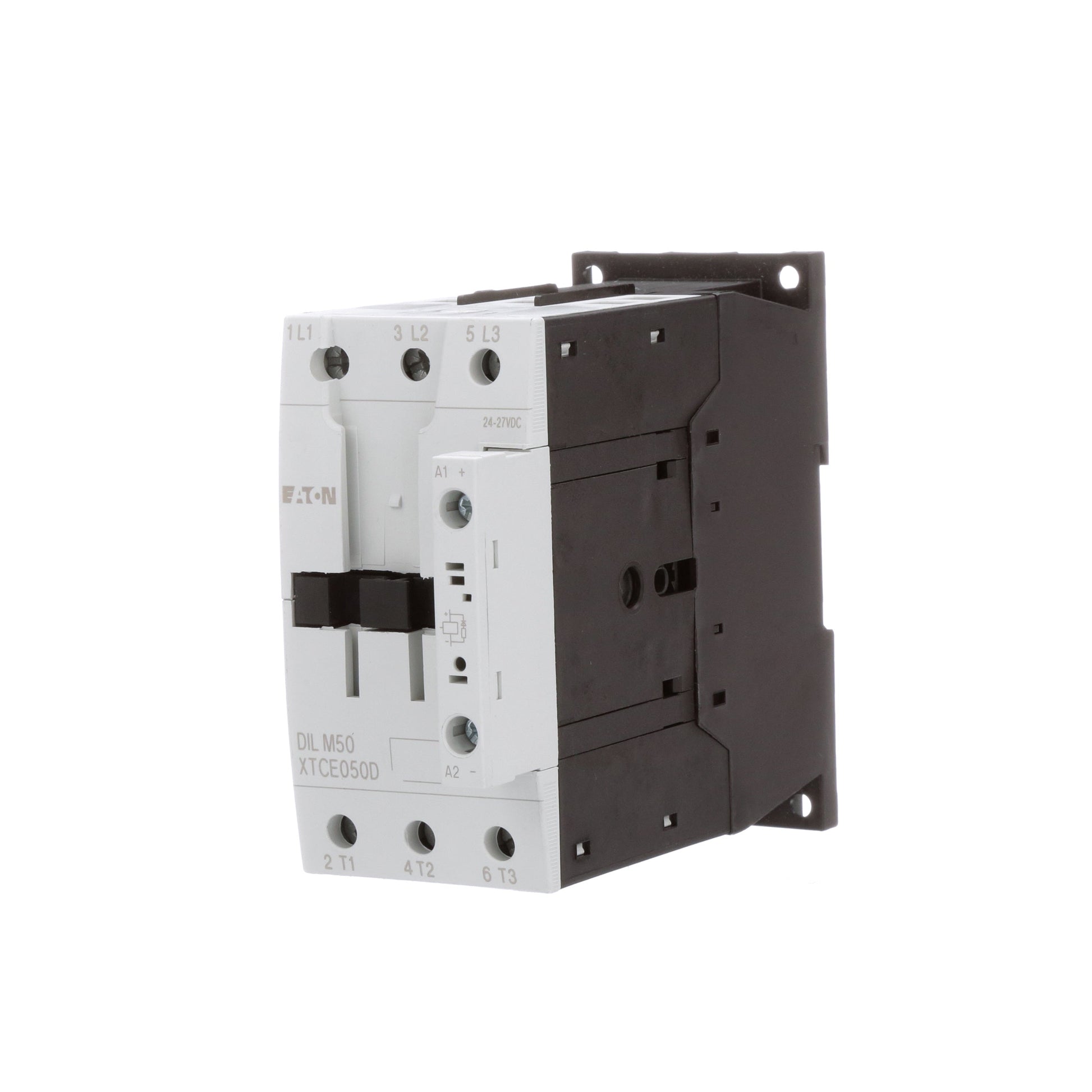

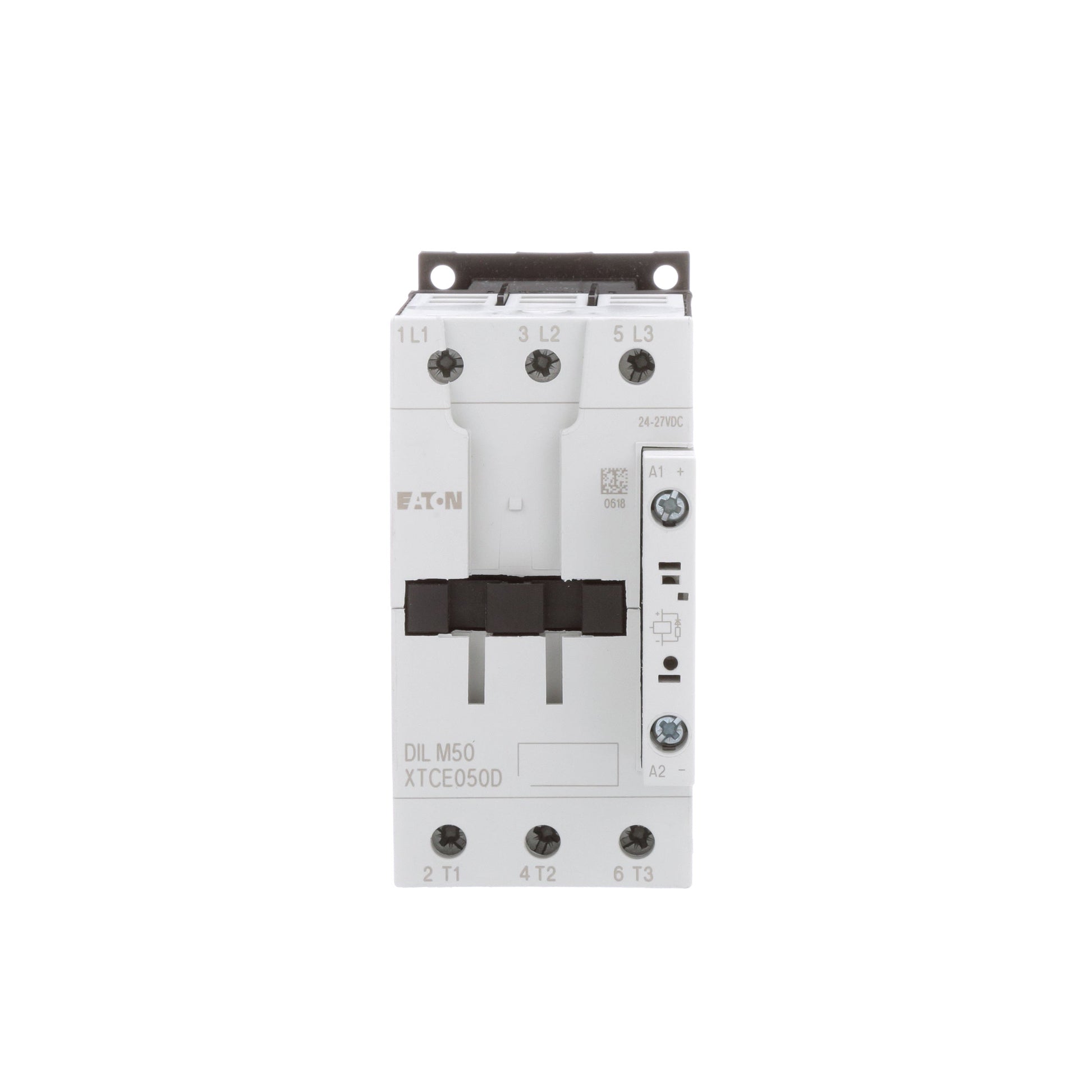

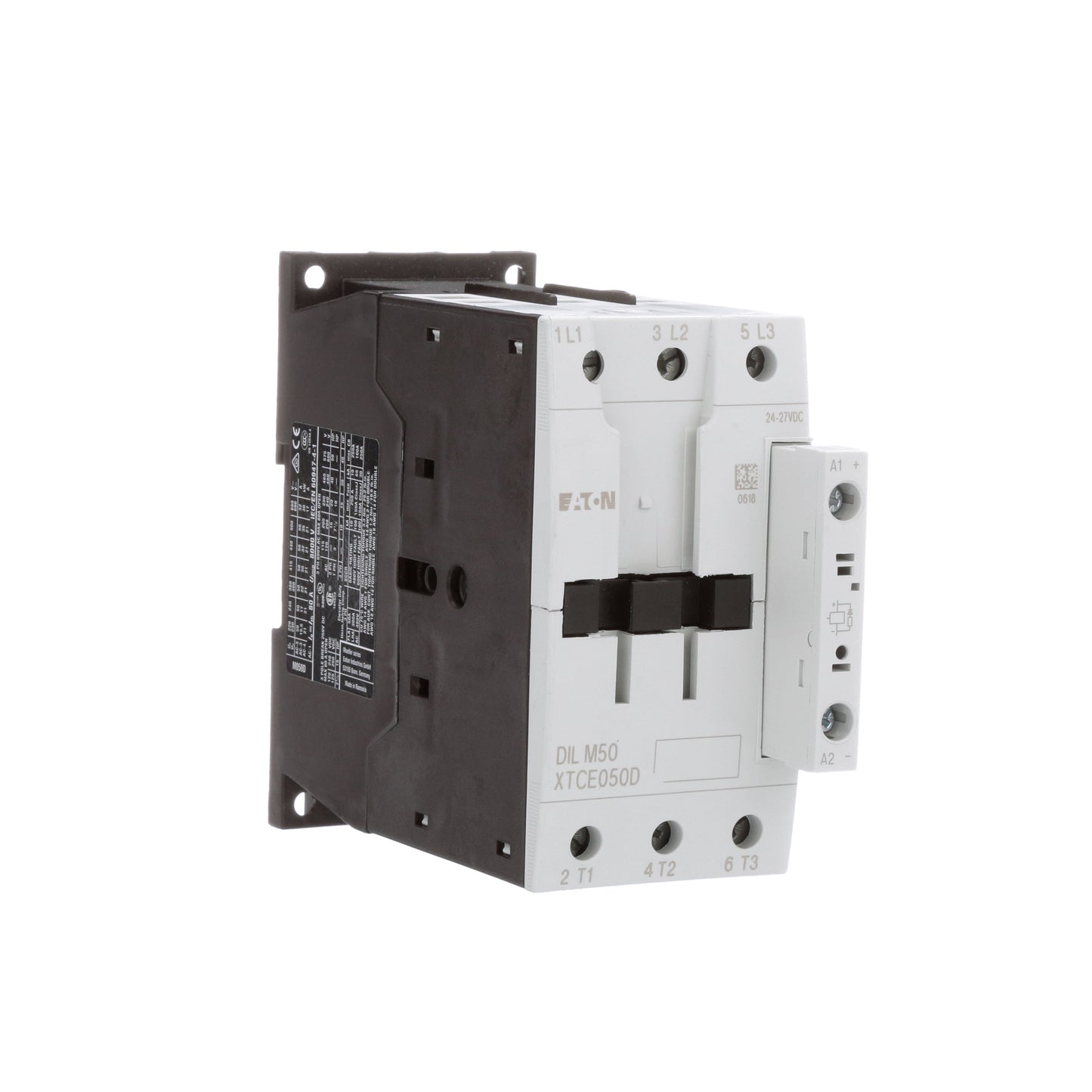

The Cutler Hammer XTCE050D00TD XT Series Contactor is a 600V 3-phase 50A 3-pole starter with a 24V coil. It supports horsepower ratings of 15 hp at 208V, 20 hp at 240V, and 40 hp at 480V. This IEC non-reversing contactor is designed for motor control applications and includes a 27 VDC coil.
Key Features:
✔ Part Number: XTCE050D00TD
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: XT Series
✔ Type: XTCE050D
✔ Voltage: 600
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 15 hp HP @ 3 Phase - 240V 20 hp HP @ 3 Phase - 480V 40 hp
✔ Configuration: Non-Reversing
✔ Aux Contacts: 0 NO + 0 NC
✔ Coil Voltage Maximum: 27
✔ Full Load Amps: Full Load Amps-Inductive 50A Full Load Amps-Resistive 80A
✔ Coil Voltage Minimum: 24
✔ Frequency: 50 Hz
✔ UPC: 786685363257
✔ GTIN: 04015082778446
✔ Country of Origin: Romania
✔ Dimensions: 2.17 in x 2.17 in
✔ Weight: 1 lb
✔ Certification: CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
