Product Description:

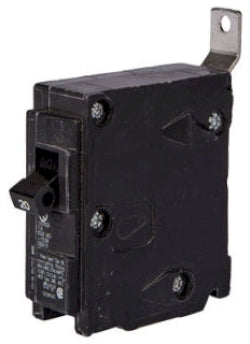

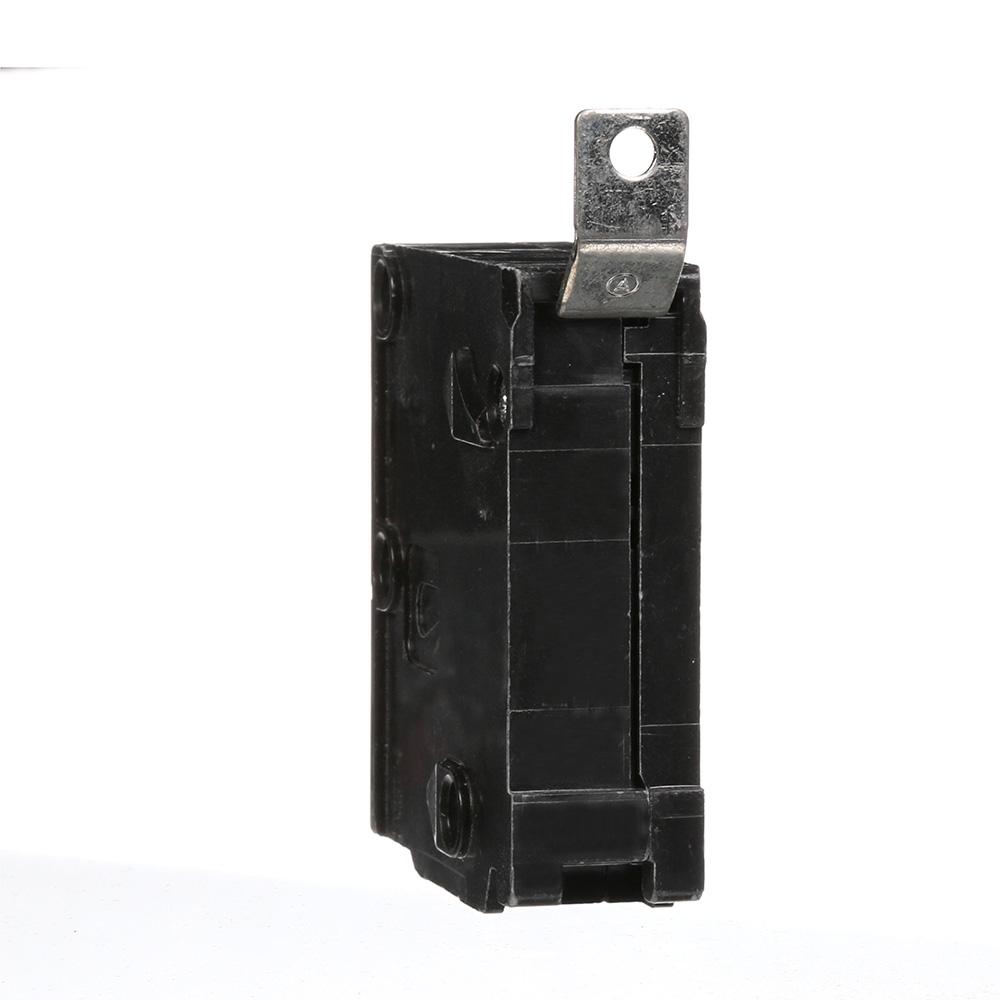

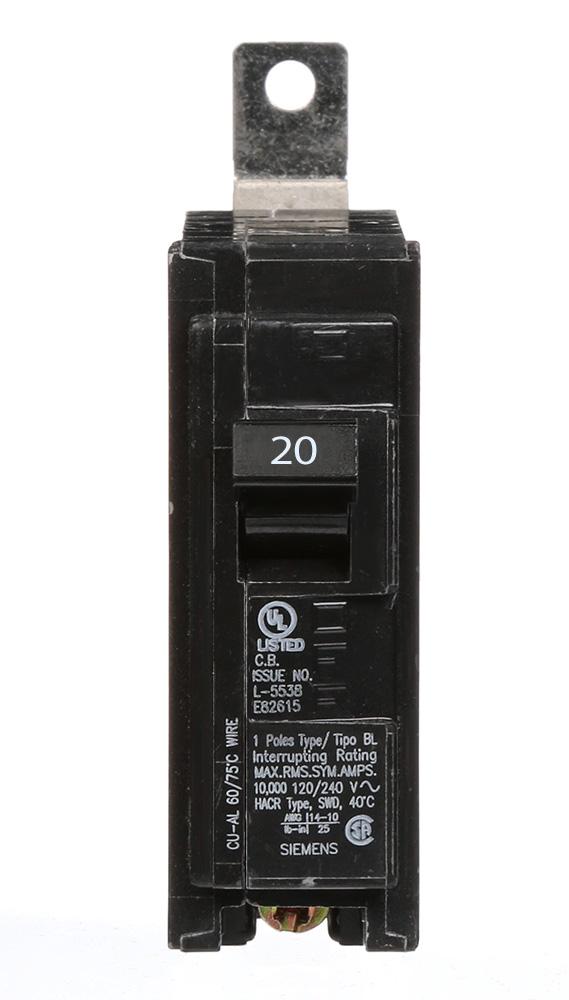

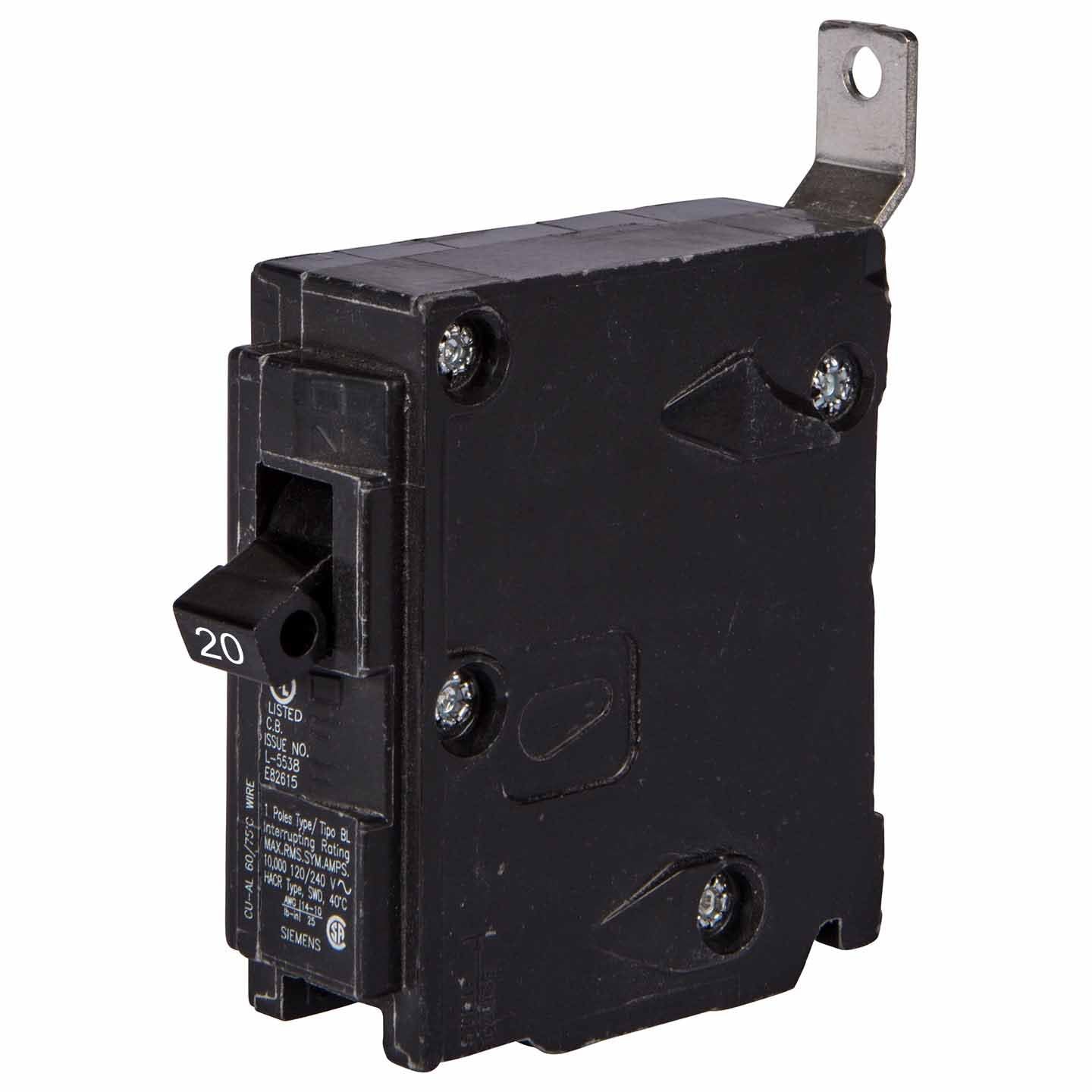

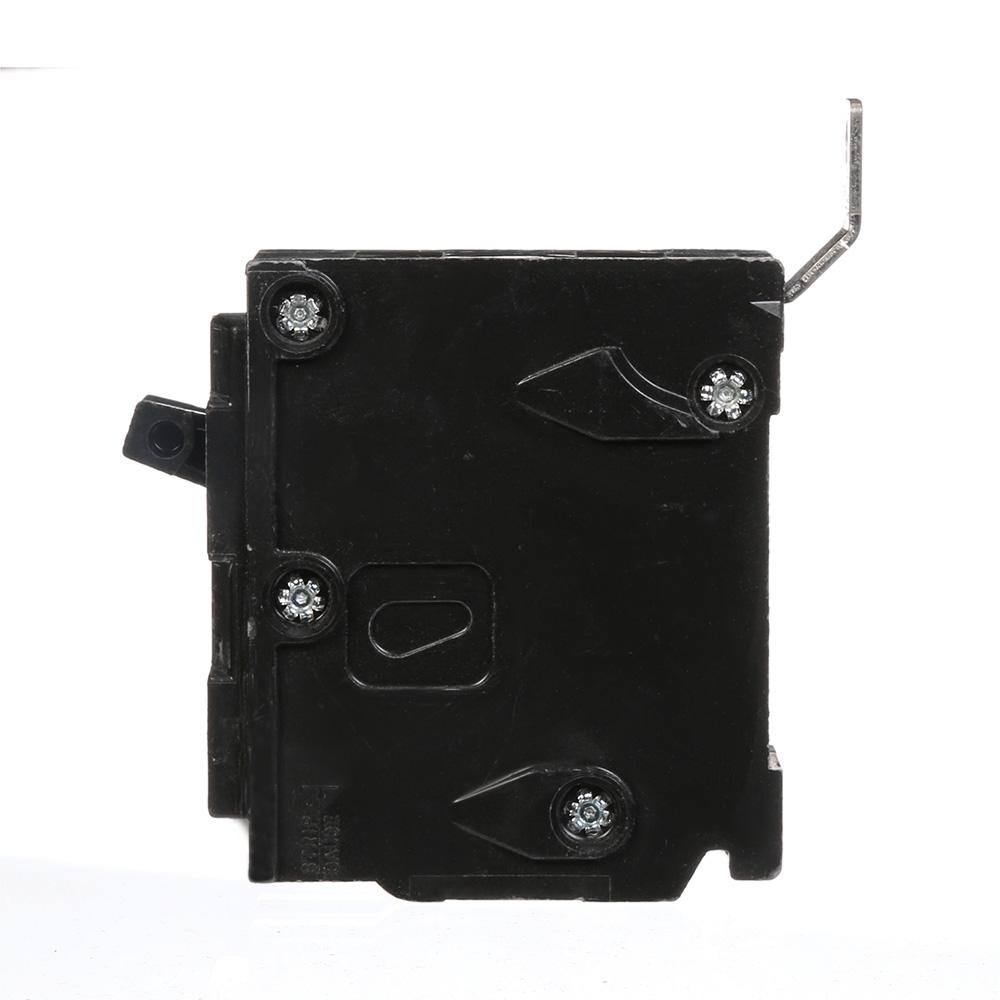

The Siemens B120 is a Molded Case Circuit Breaker from the BL Series family. It features a 1 pole, 120VAC, 20 amp rating with a 10kA@120V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. It is compatible with Siemens P1 Panelboards.
Key Features:
✔ Part Number: B120
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 120VAC
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263420
✔ GTIN: 00783643263420
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 3.57 in x 1 in
✔ Weight: 0.67 lb
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
