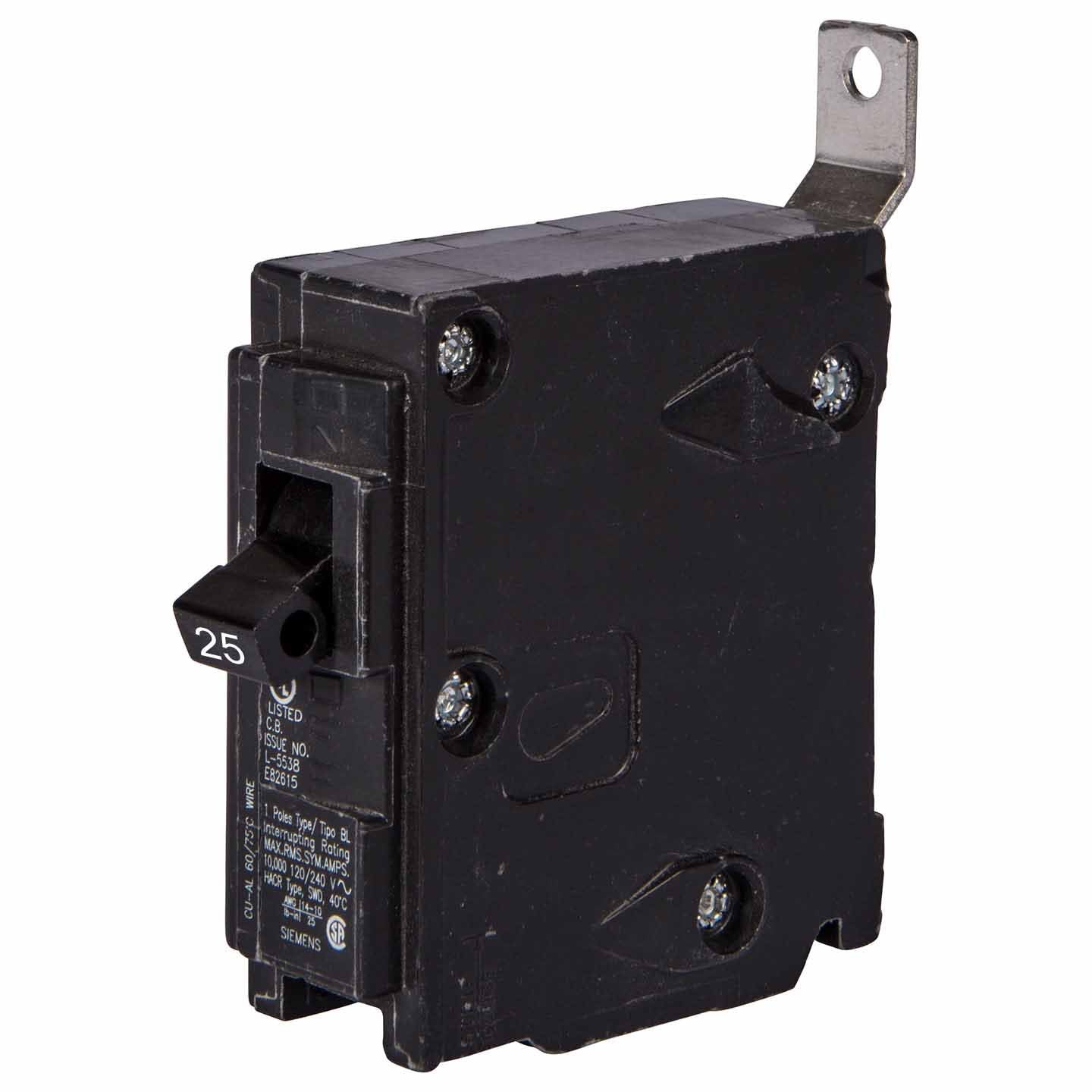

Siemens B125 Circuit Breaker | 240V 25A 1P 10kA@240V BL Series

Product Description:
The Siemens B125 is a Molded Case Circuit Breaker from the BL Series family. It is a 1-pole, 25 amp breaker rated for 240 volts with a 10kA interrupting capacity. This thermal magnetic circuit breaker uses a bolt-on connection and is designed for use in Siemens P1 panelboards.

Key Features:
✔ Part Number: B125
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 25
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901459446
✔ GTIN: 00783643263437
✔ Country of Origin: Mexico
✔ Dimensions: 4.9 in W x 13.5 in D x 8.4 in H
✔ Weight: 1
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL Listed
✔ Certification: UL Listed
