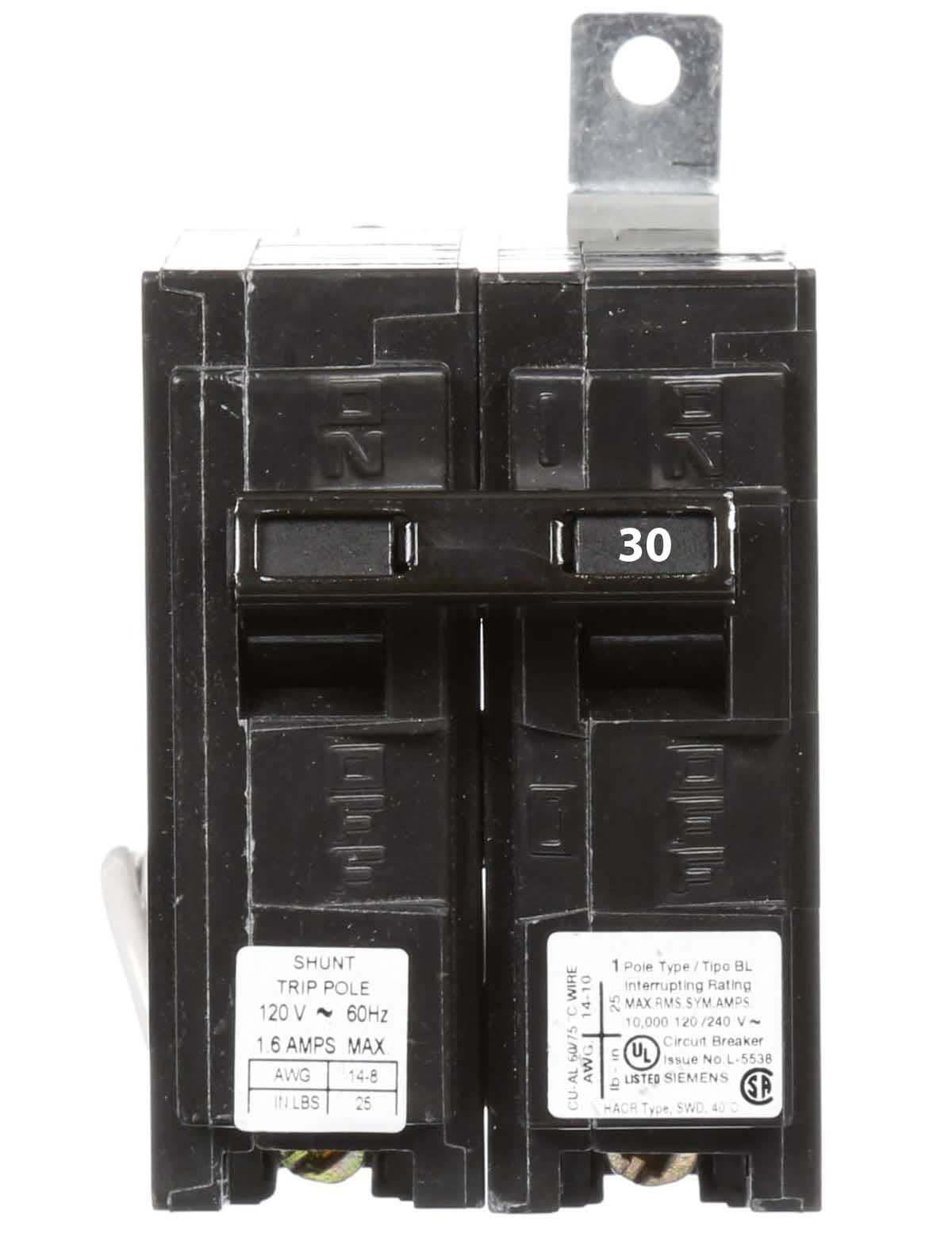

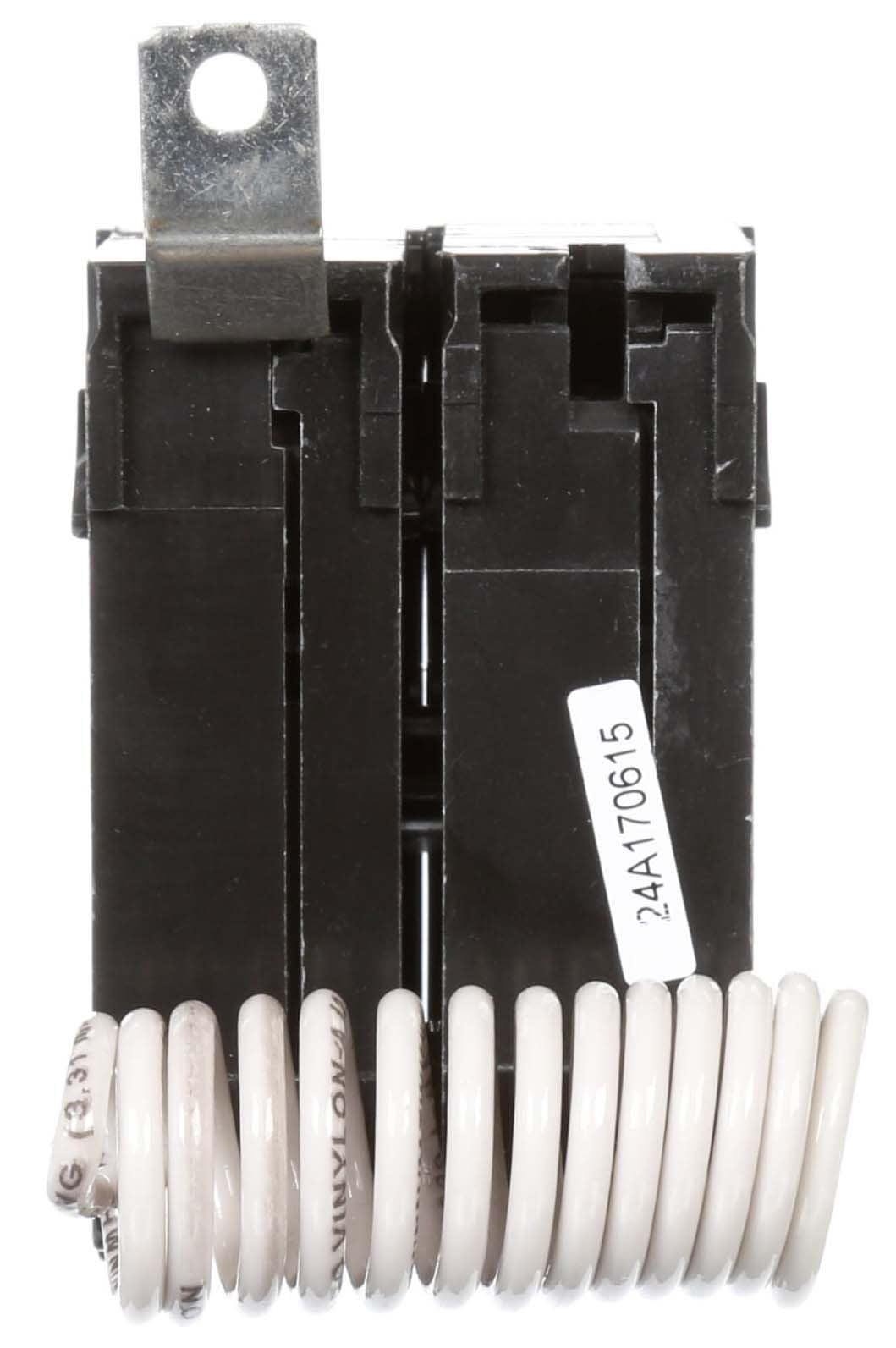

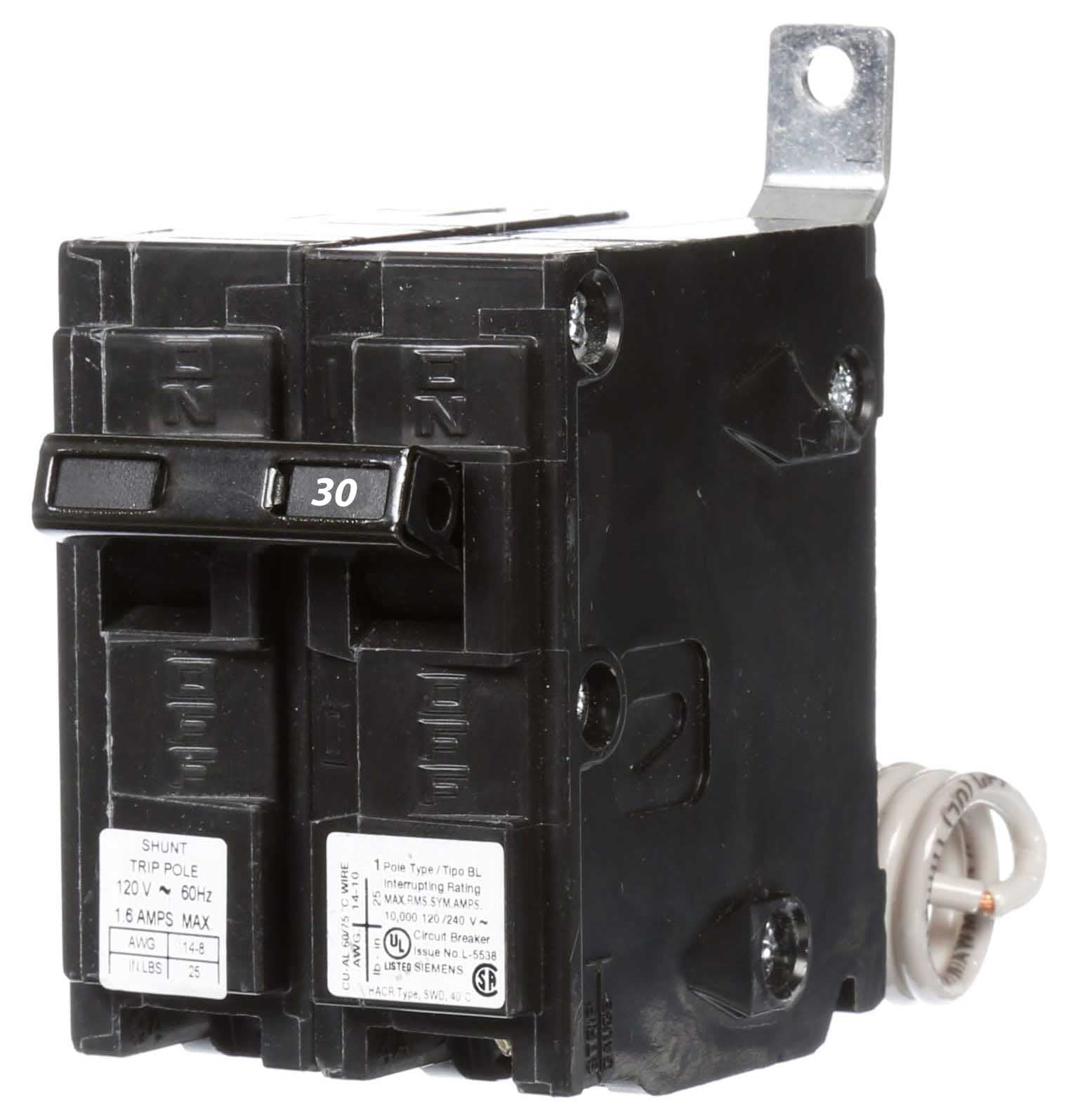

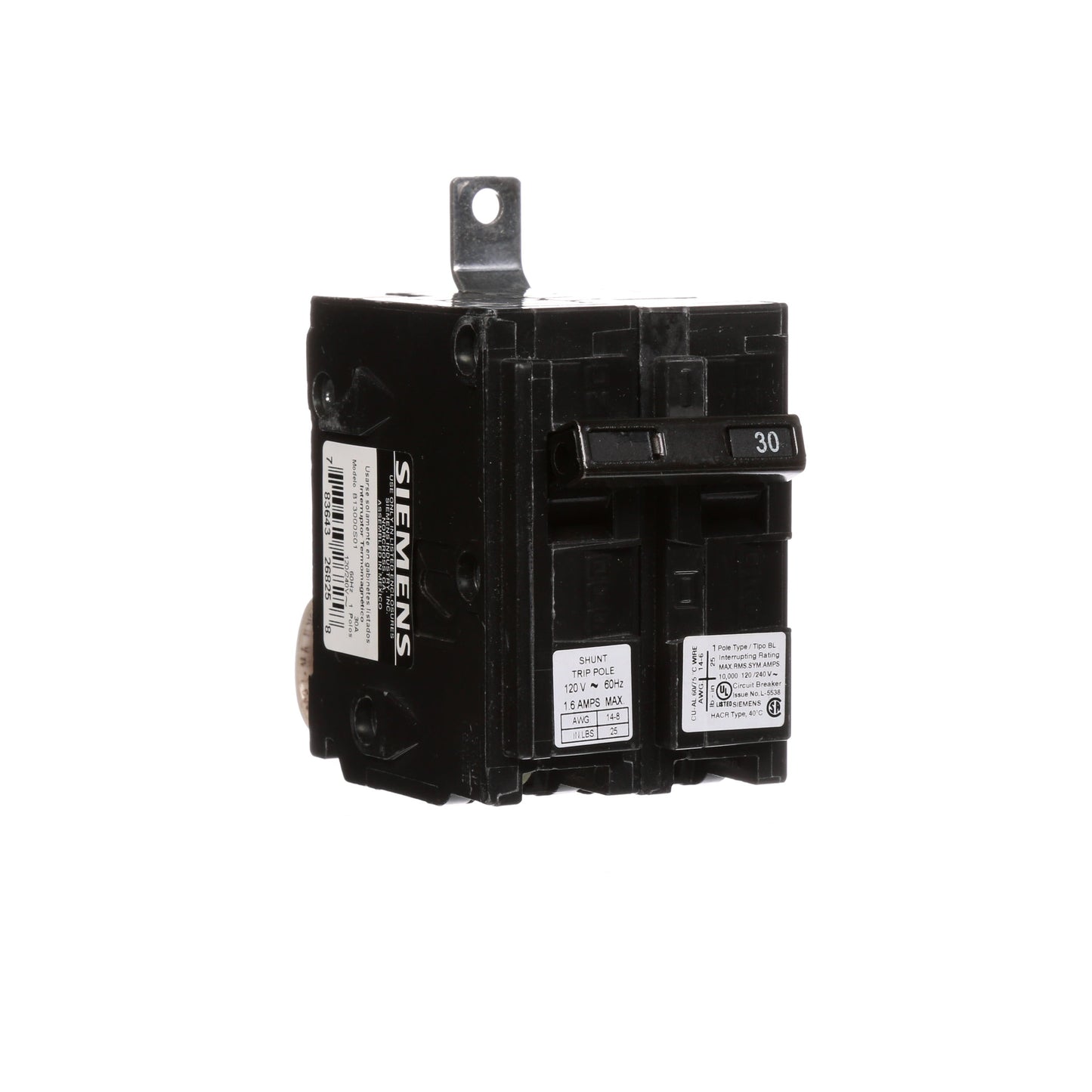

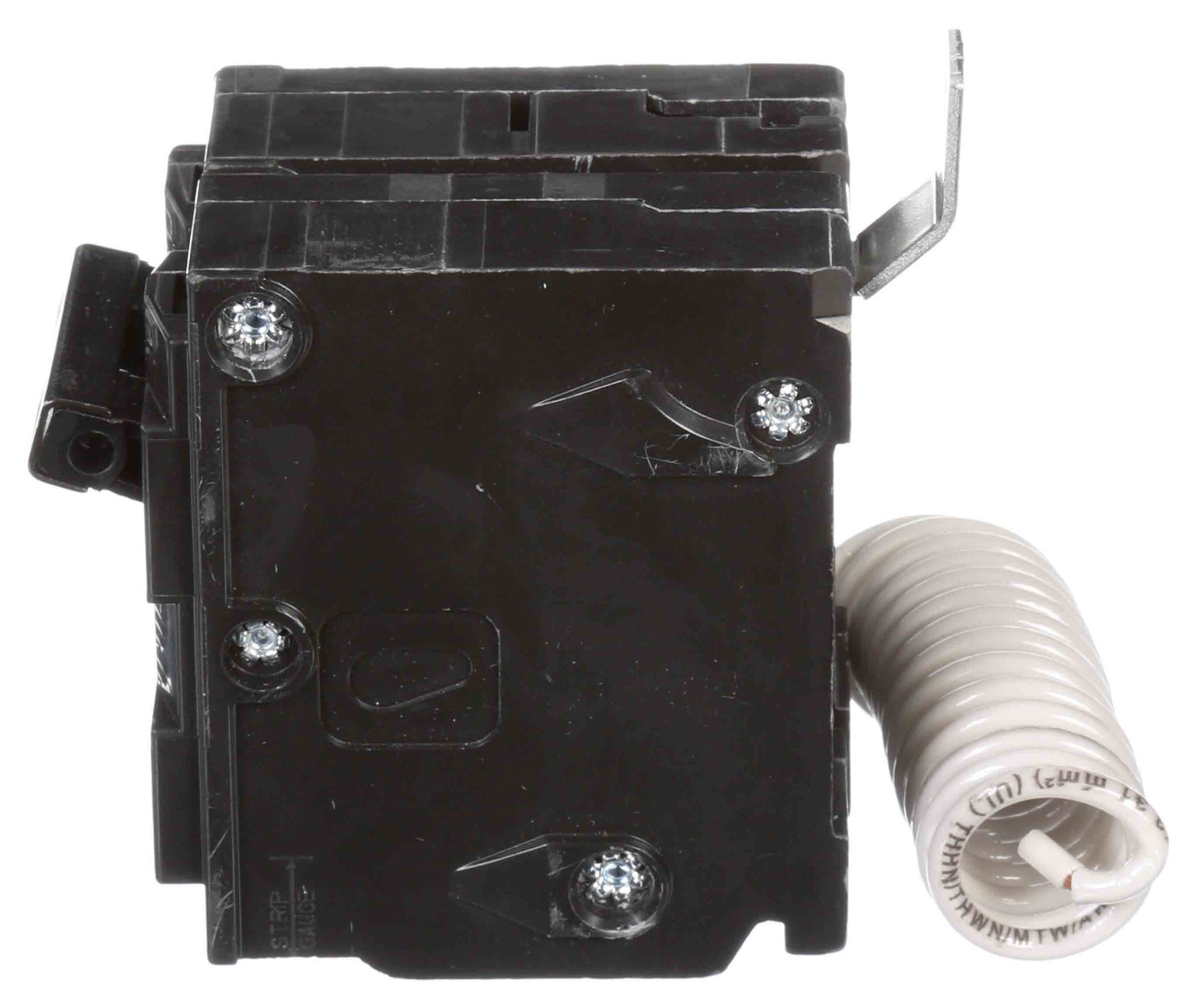

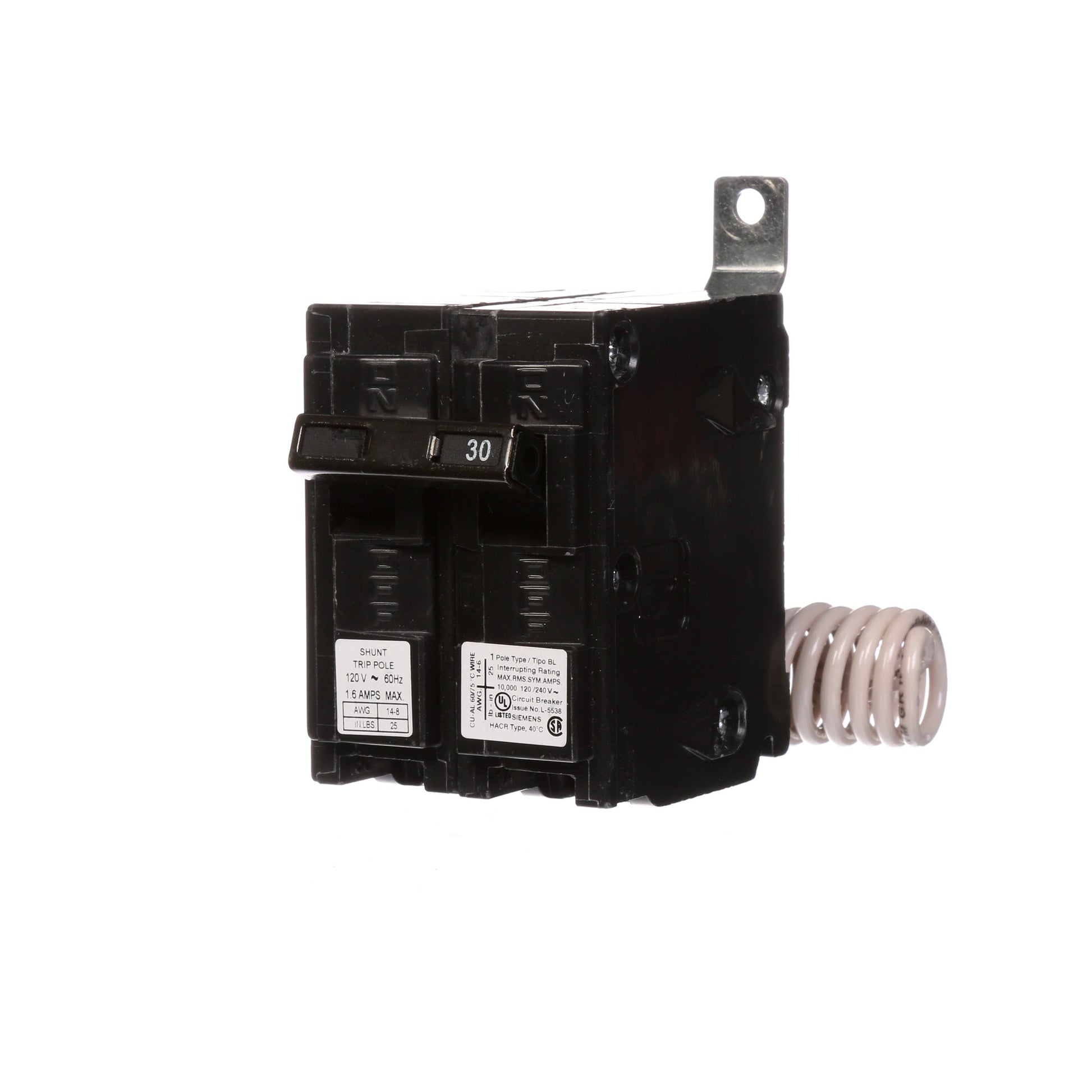

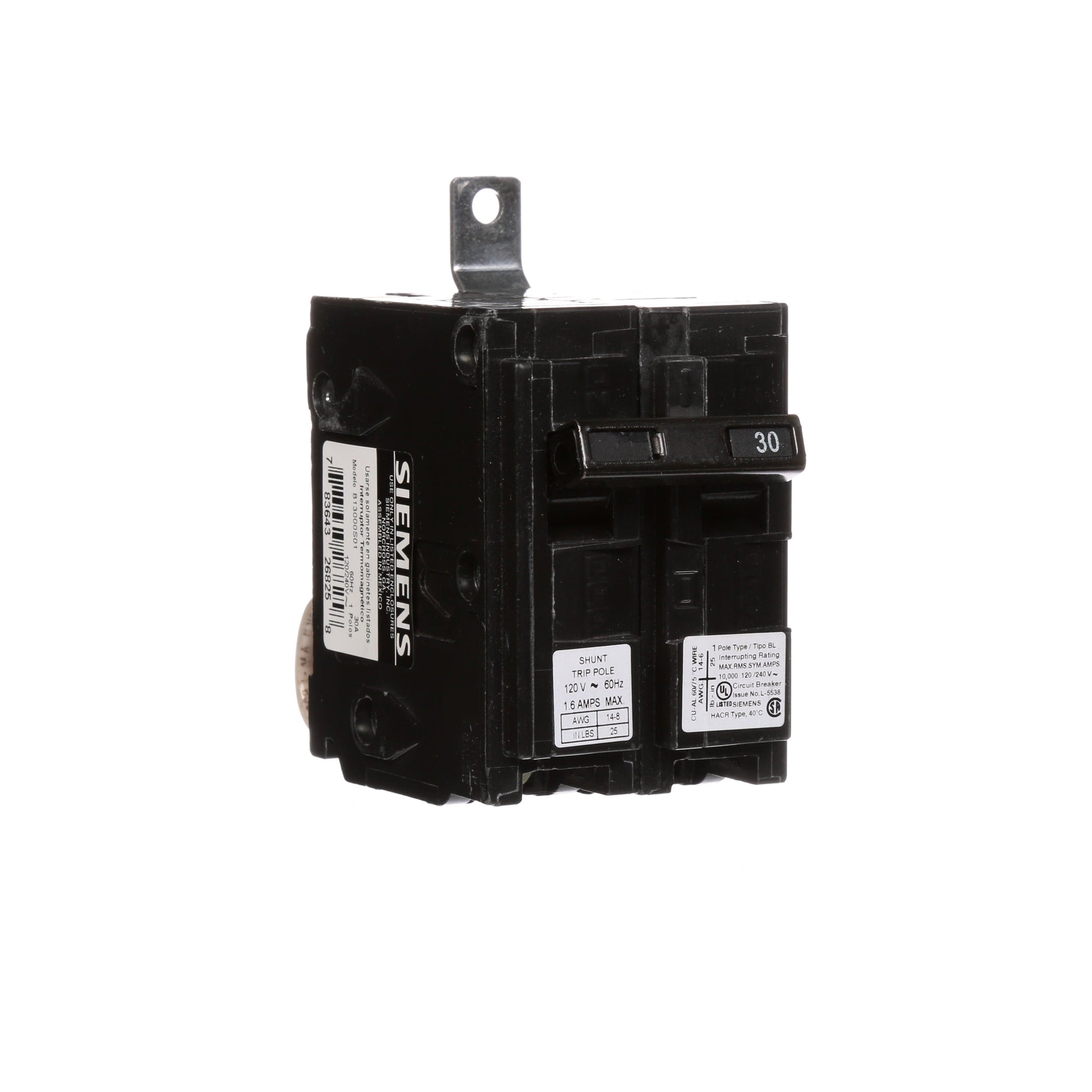

Siemens B13000S01 Circuit Breaker | 120V 30A 1P 10kA@240V Bolt-on BL Series

Product Description:
The Siemens B13000S01 is a Molded Case Circuit Breaker from the BL Series family. It is a 1-pole, 30 amp breaker rated for 120 volts with an AIC rating of 10kA@240V. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: B13000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 120
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268258
✔ GTIN: 00783643268258
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 3.56 in x 4 in
✔ Weight: 0.88
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL Listed
✔ Certification: UL Listed
