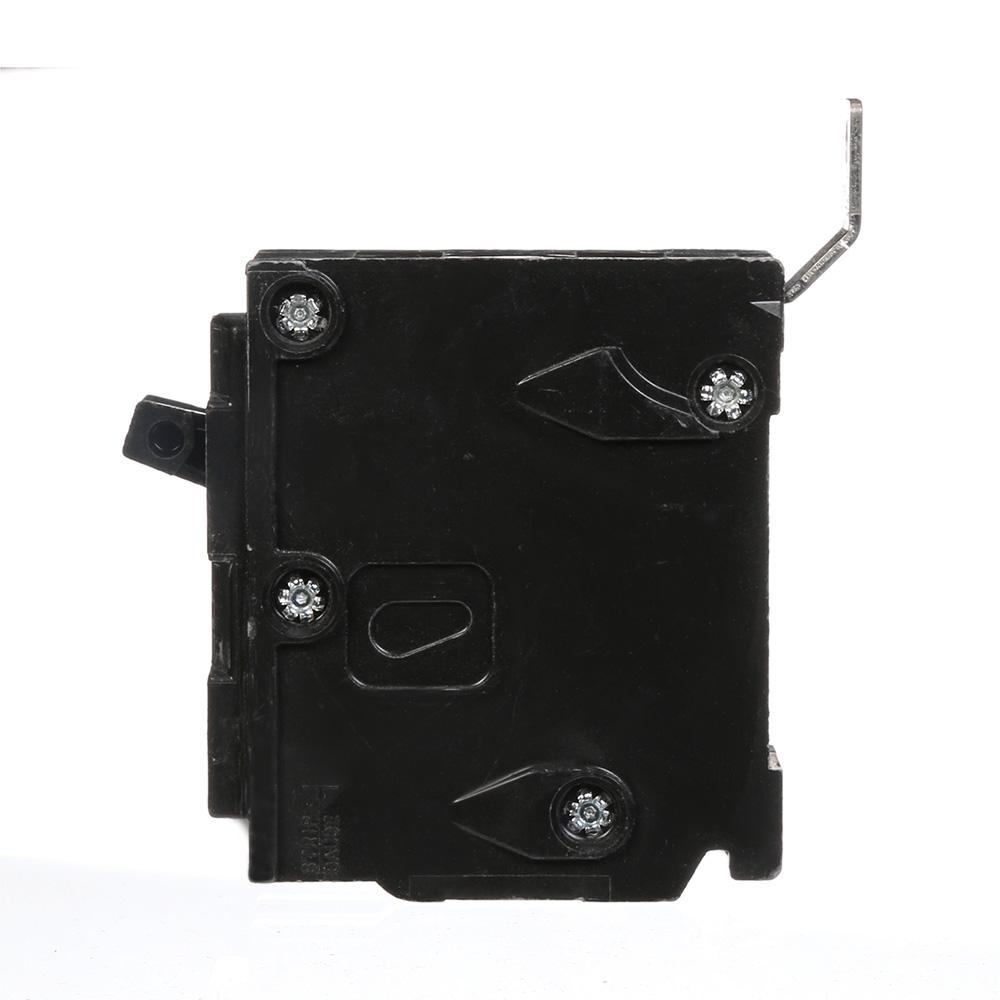

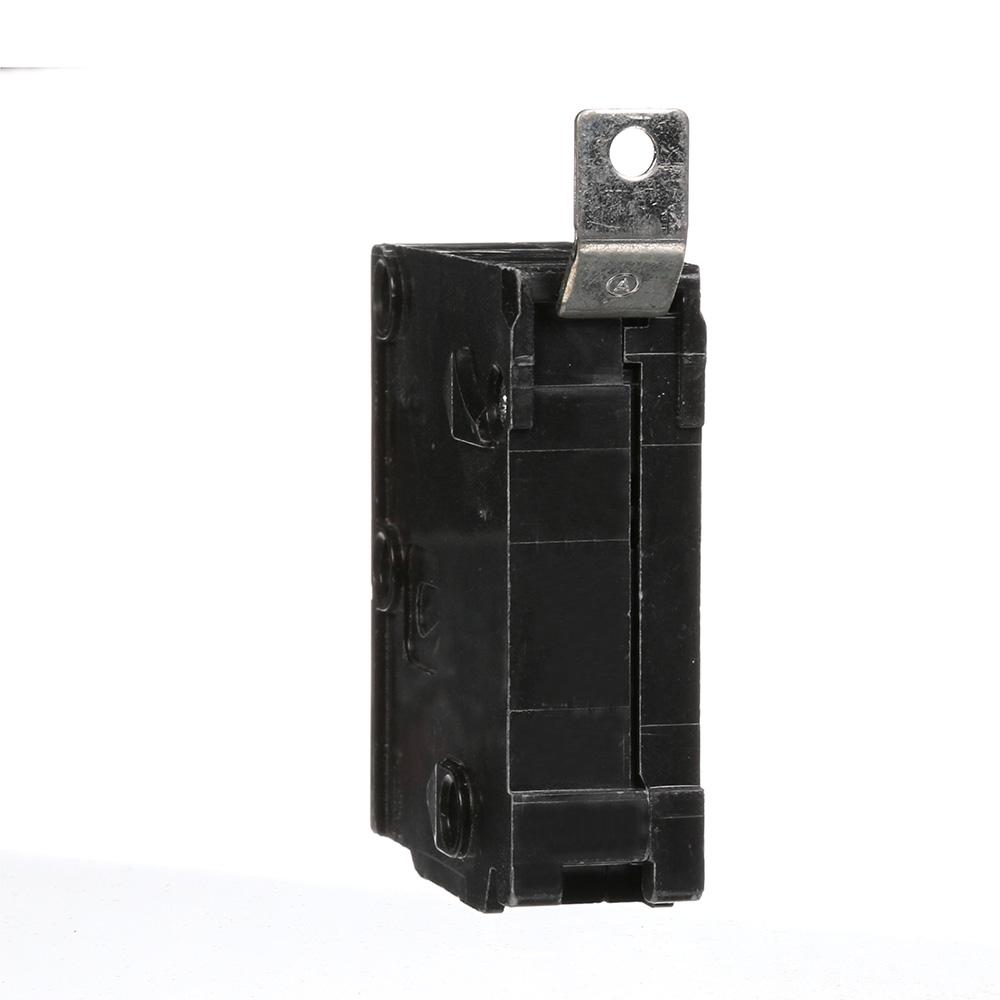

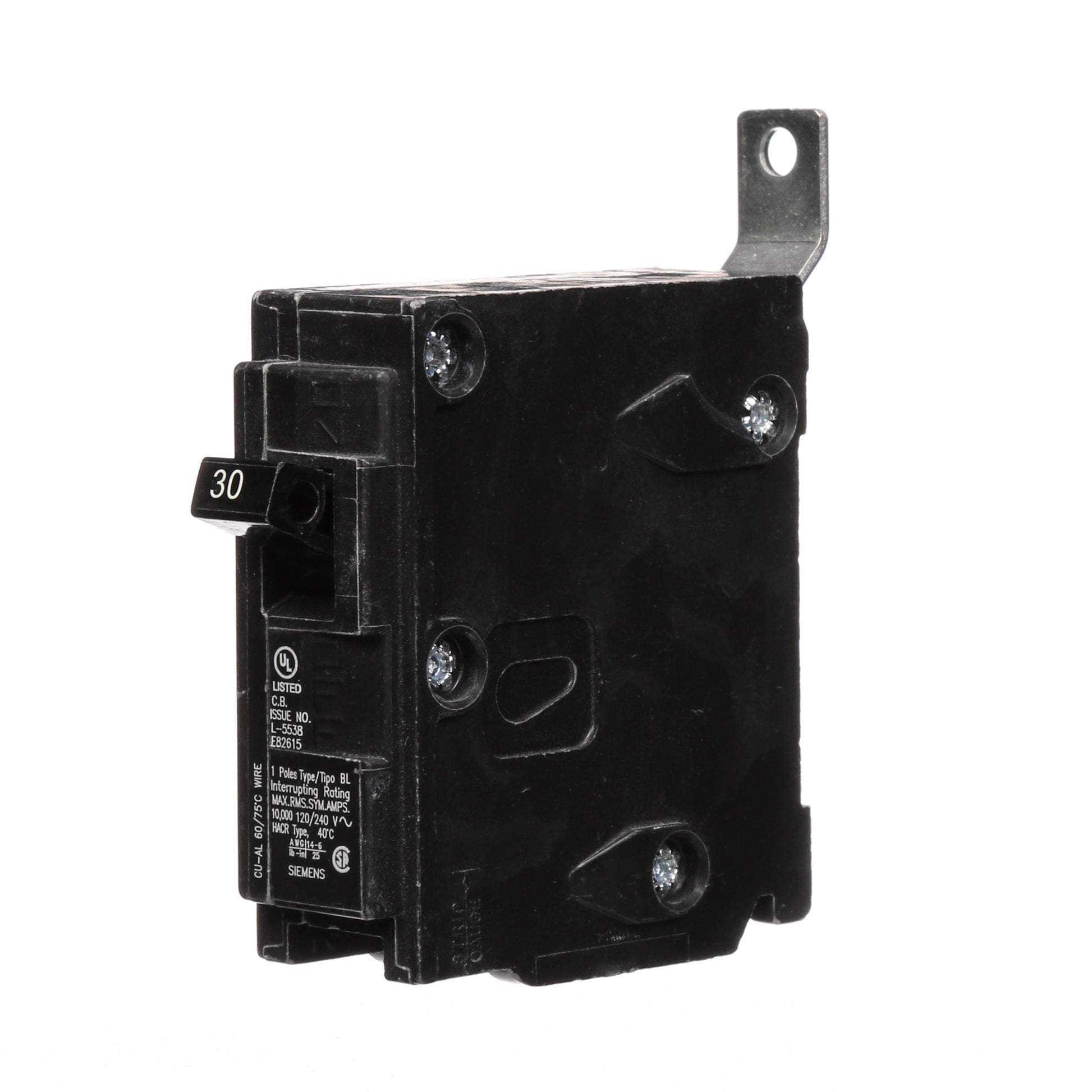

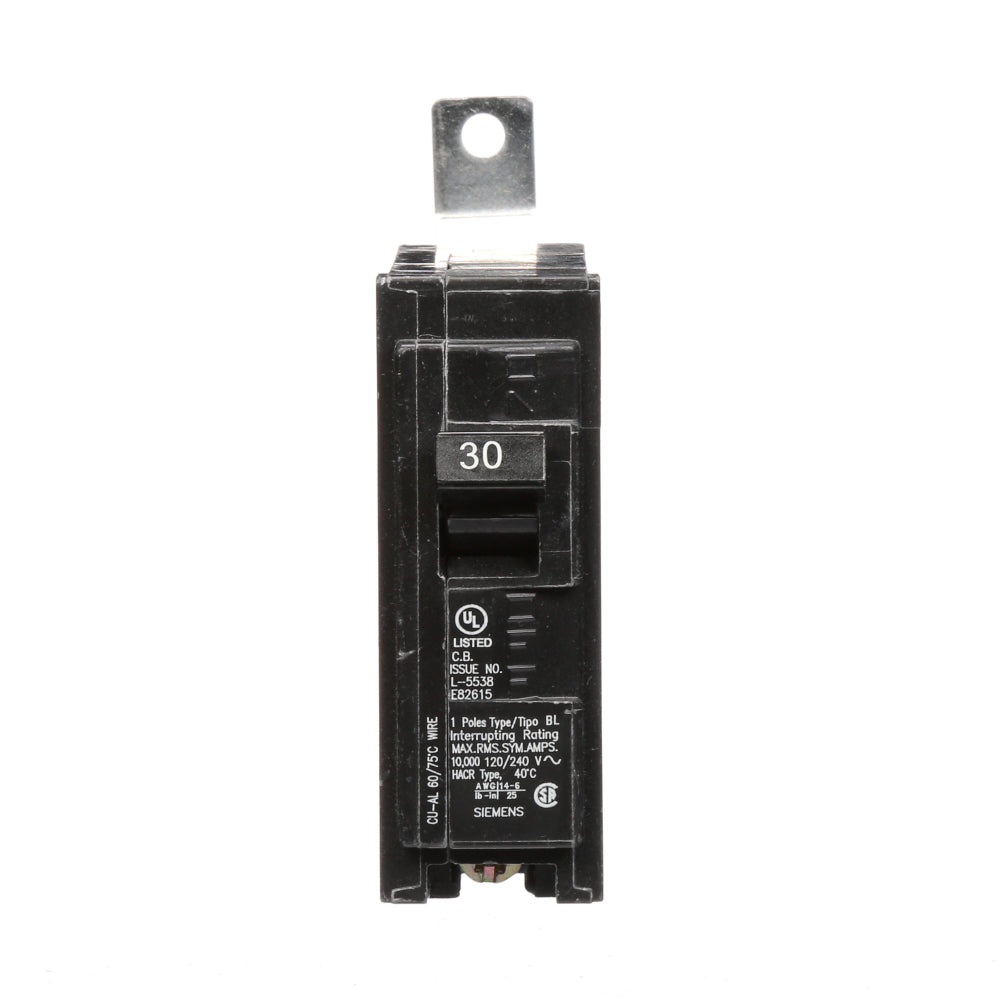

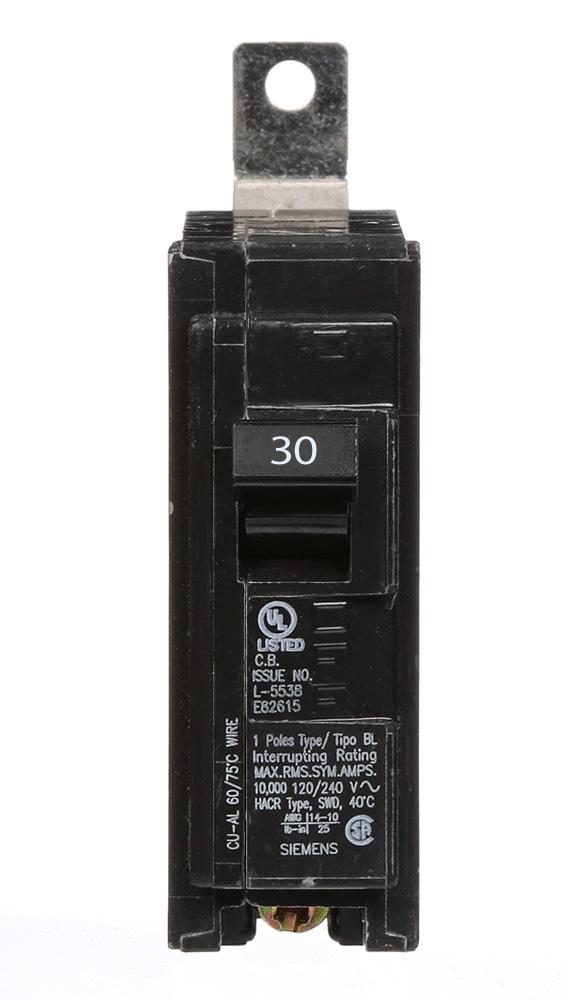

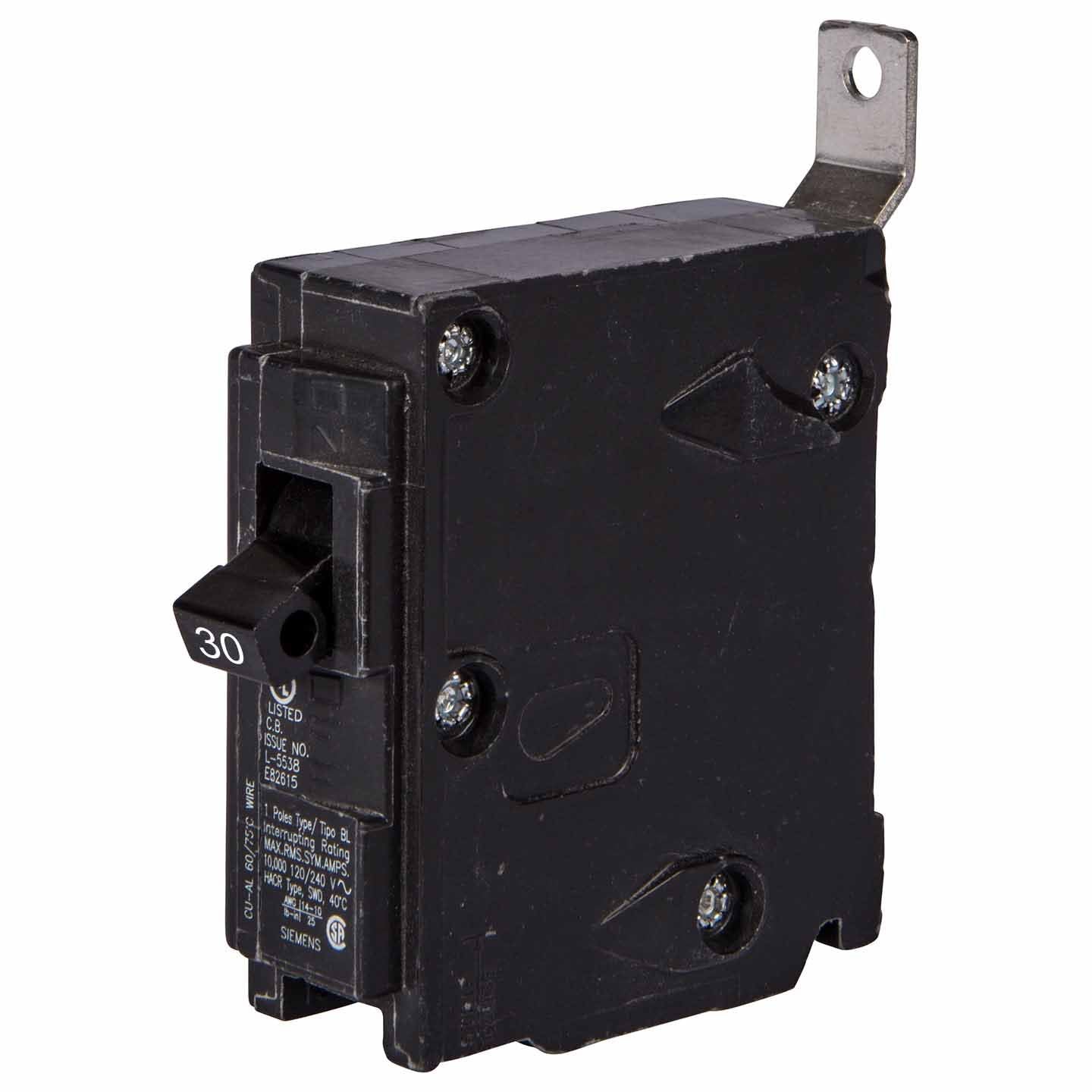

Siemens B130 Circuit Breaker | 120V 30A 1 Pole 10kA@120V Bolt-on BL Series

Product Description:
The Siemens B130 is a Molded Case Circuit Breaker from the BL Series family. It is a 1-pole, 30 amp breaker rated for 120V with a 10kA@120V AIC rating. This thermal magnetic circuit breaker uses a bolt-on connection and is designed for use in Siemens P1 Panelboards.

Key Features:
✔ Part Number: B130
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 120
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263444
✔ GTIN: 00783643263444
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 3.57 in x 1 in
✔ Weight: 0.31 lb
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL Listed
✔ Certification: UL Listed
