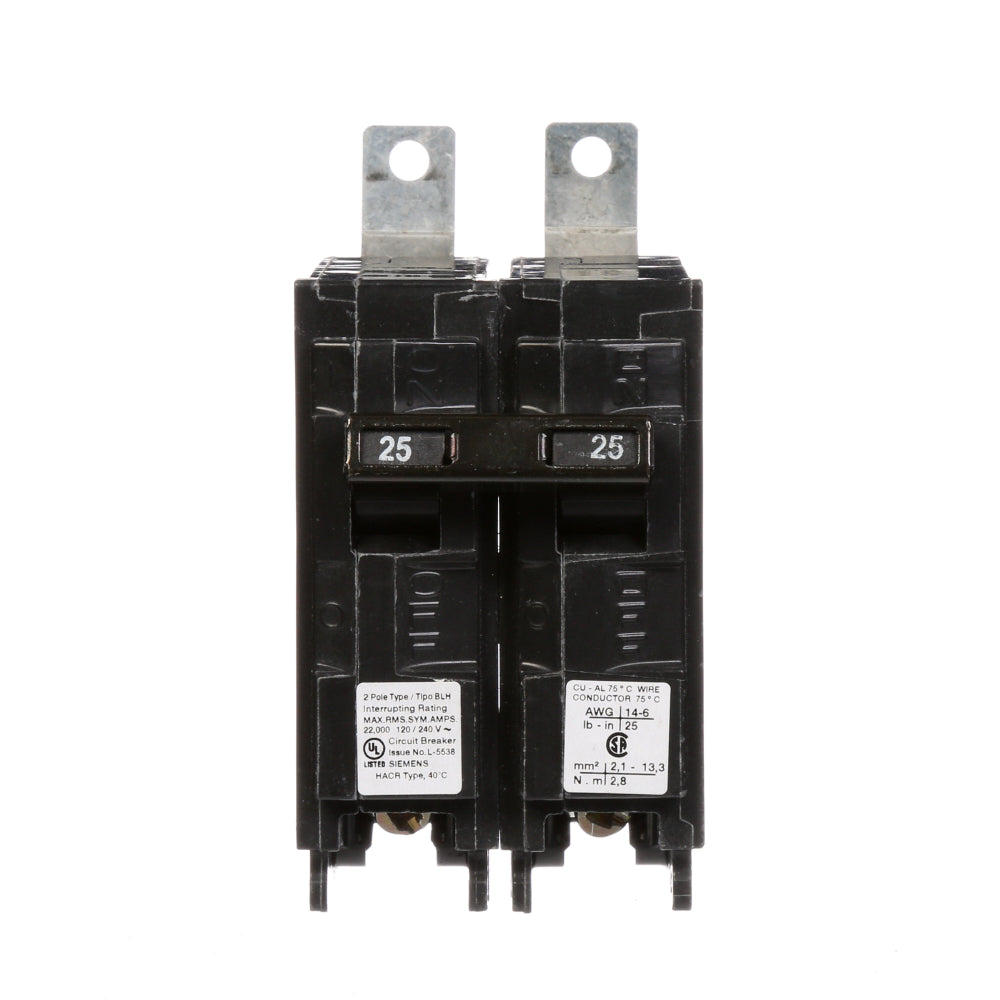

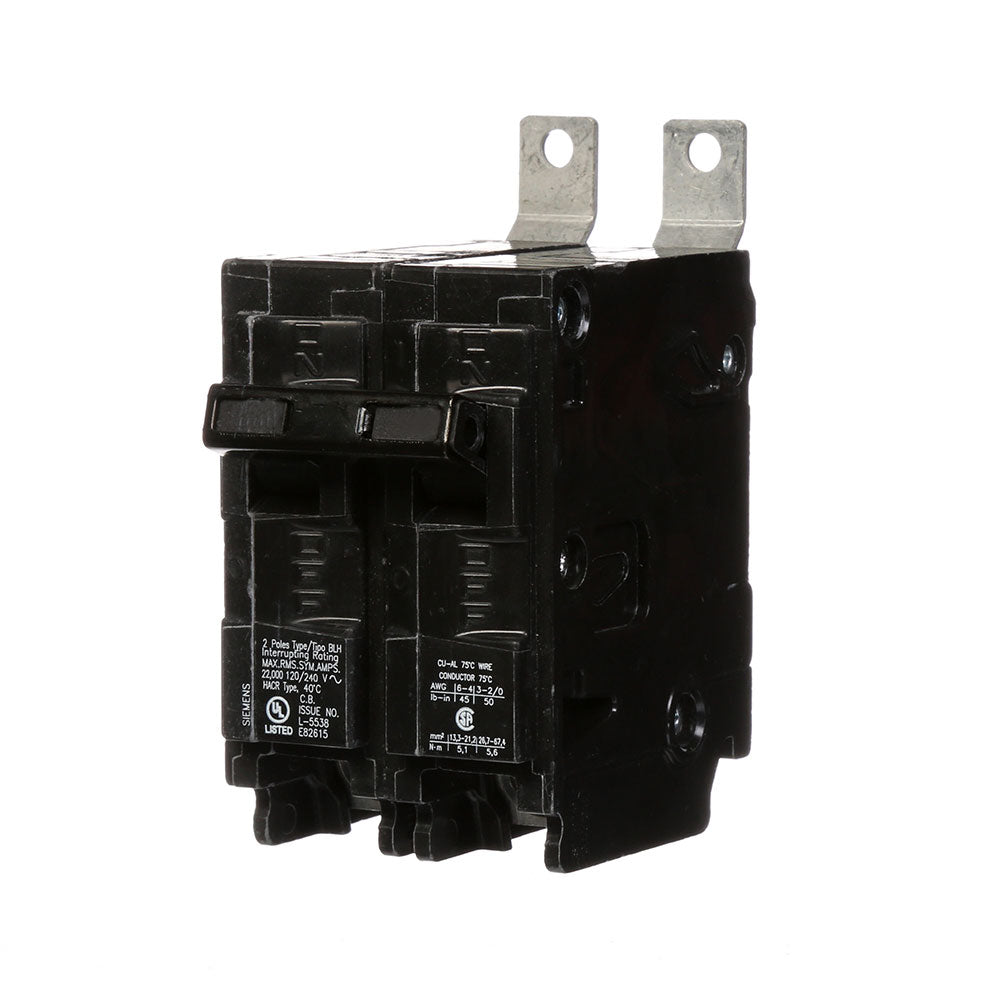

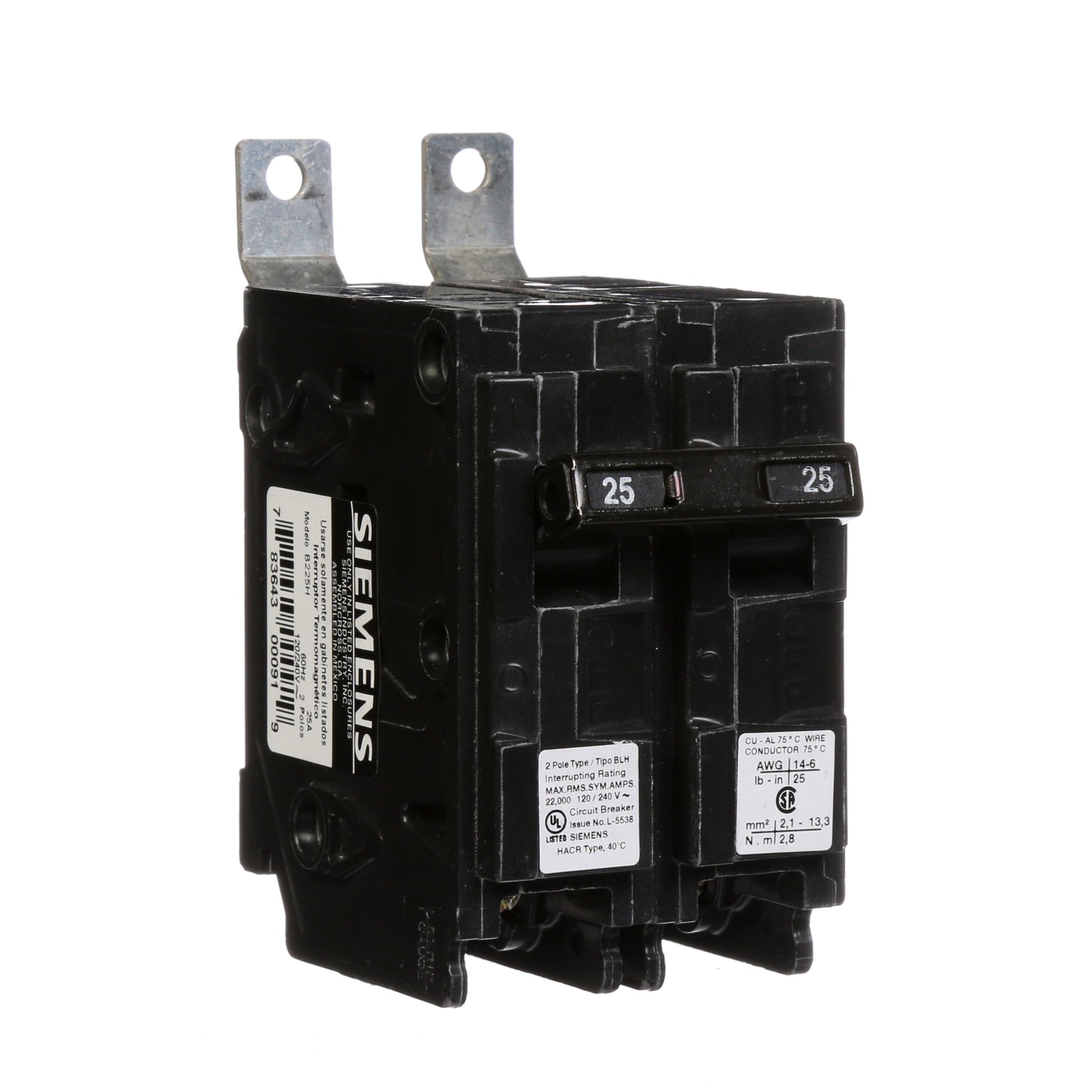

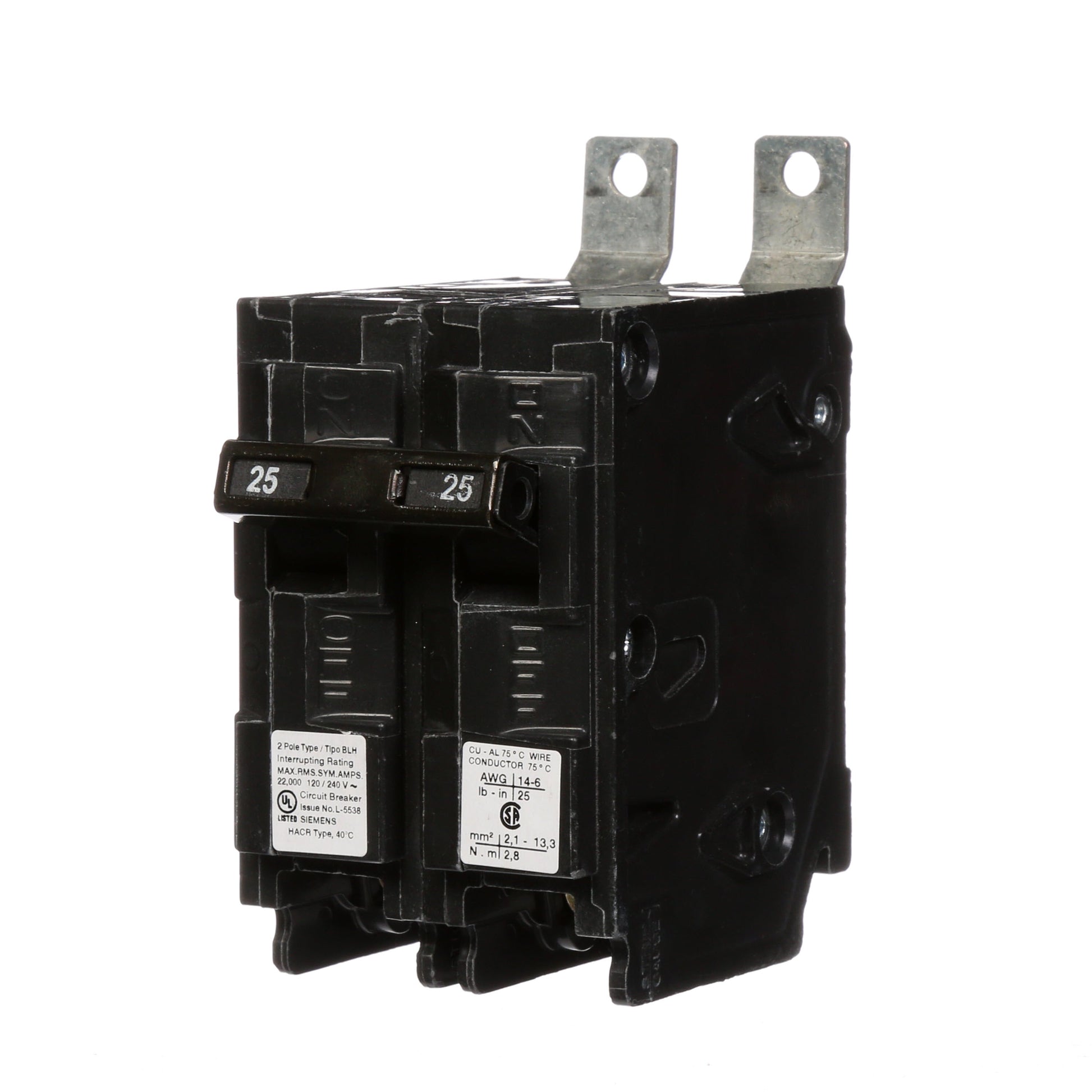

Siemens B225H Circuit Breaker | 120/240V 25A 2P 22kA@240V Bolt-on BL Series

Product Description:
The Siemens B225H is a molded case circuit breaker designed for reliable electrical protection. It operates at 120/240 volts with a 25 amp rating and offers thermal magnetic protection. This 2-pole breaker features a bolt-on connection and is suitable for use in Siemens P1 panelboards.

Key Features:
✔ Part Number: B225H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 120/240
✔ Amperage: 25
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643000919
✔ GTIN: 00783643000919
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 2 in x 2 in
✔ Weight: 0.71
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
