Product Description:

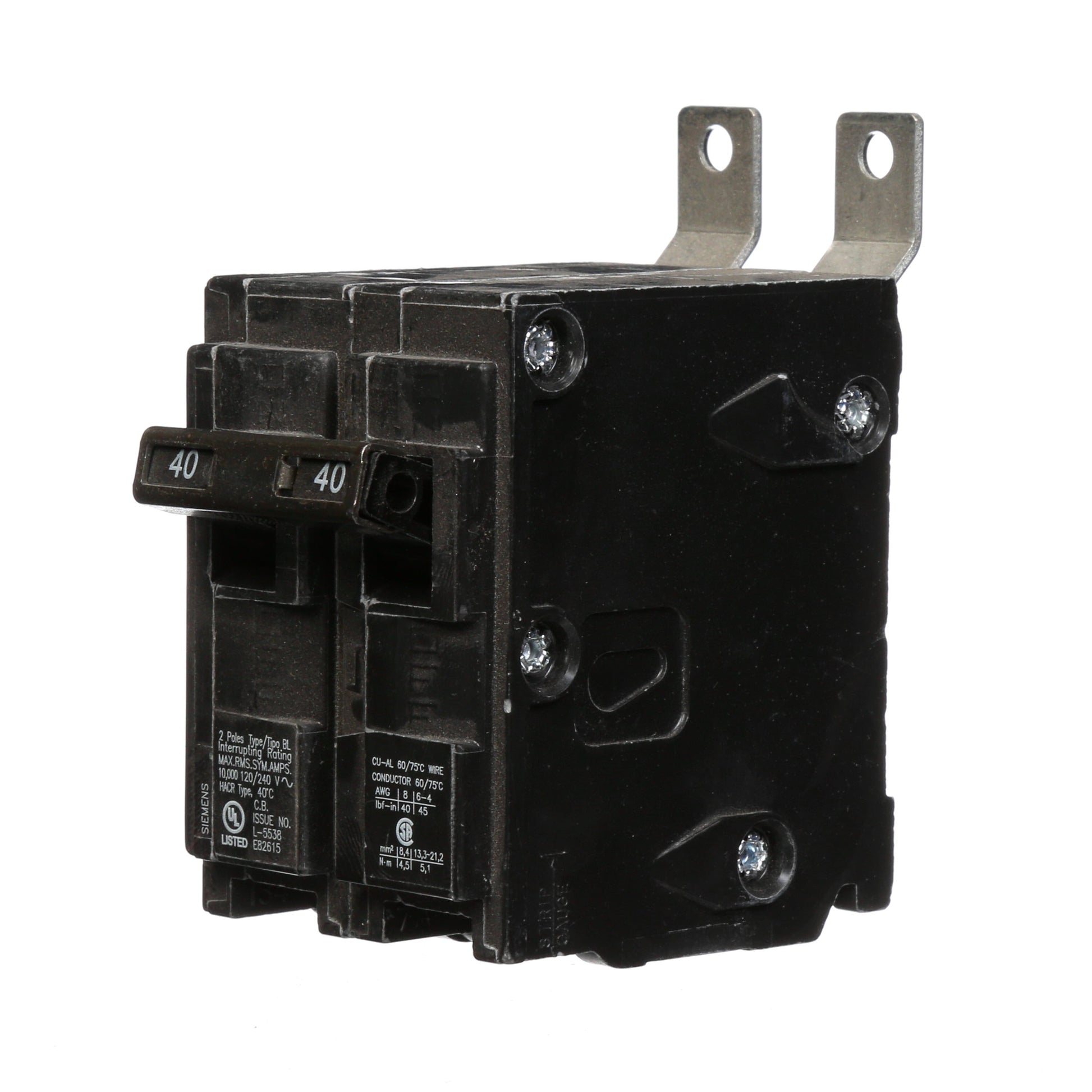

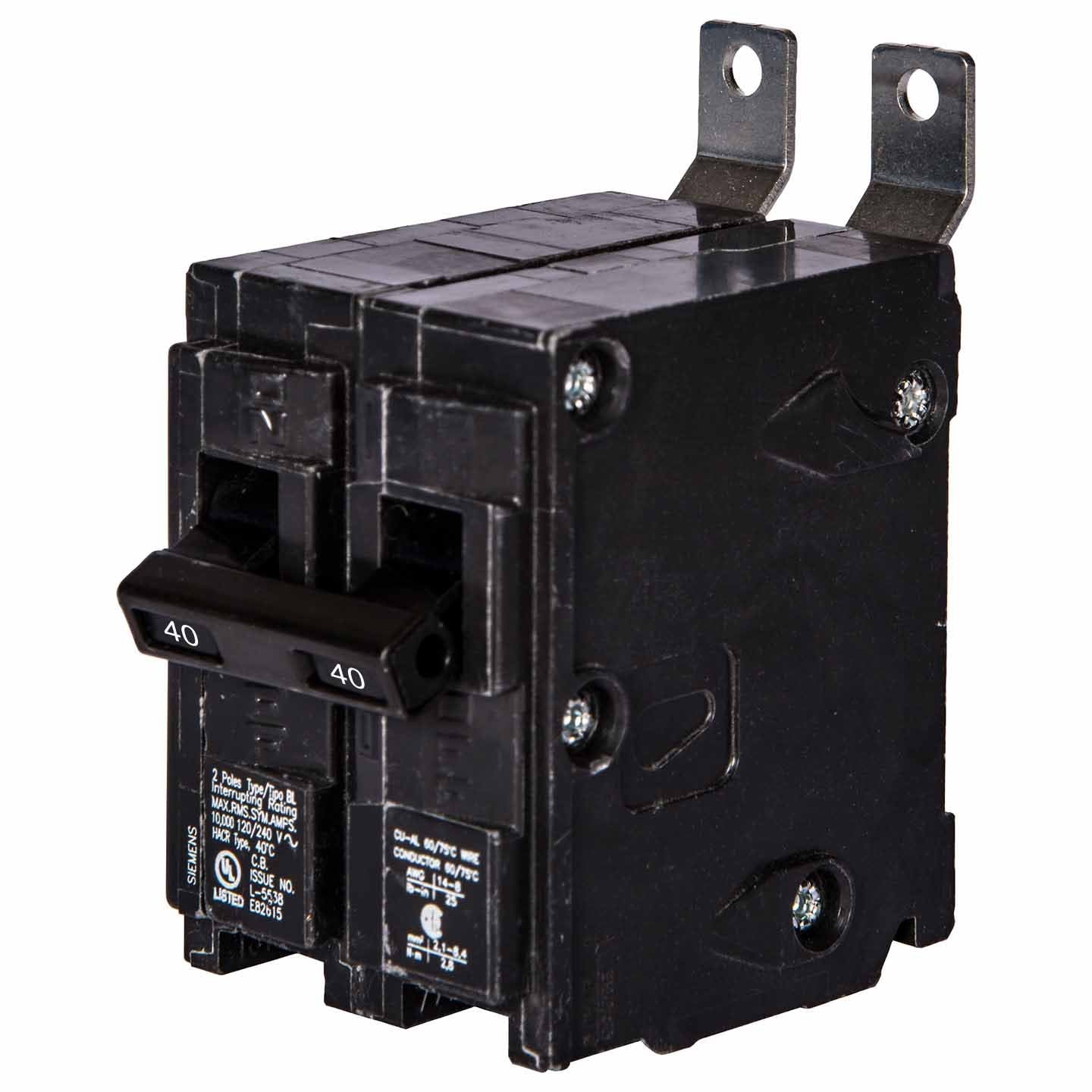

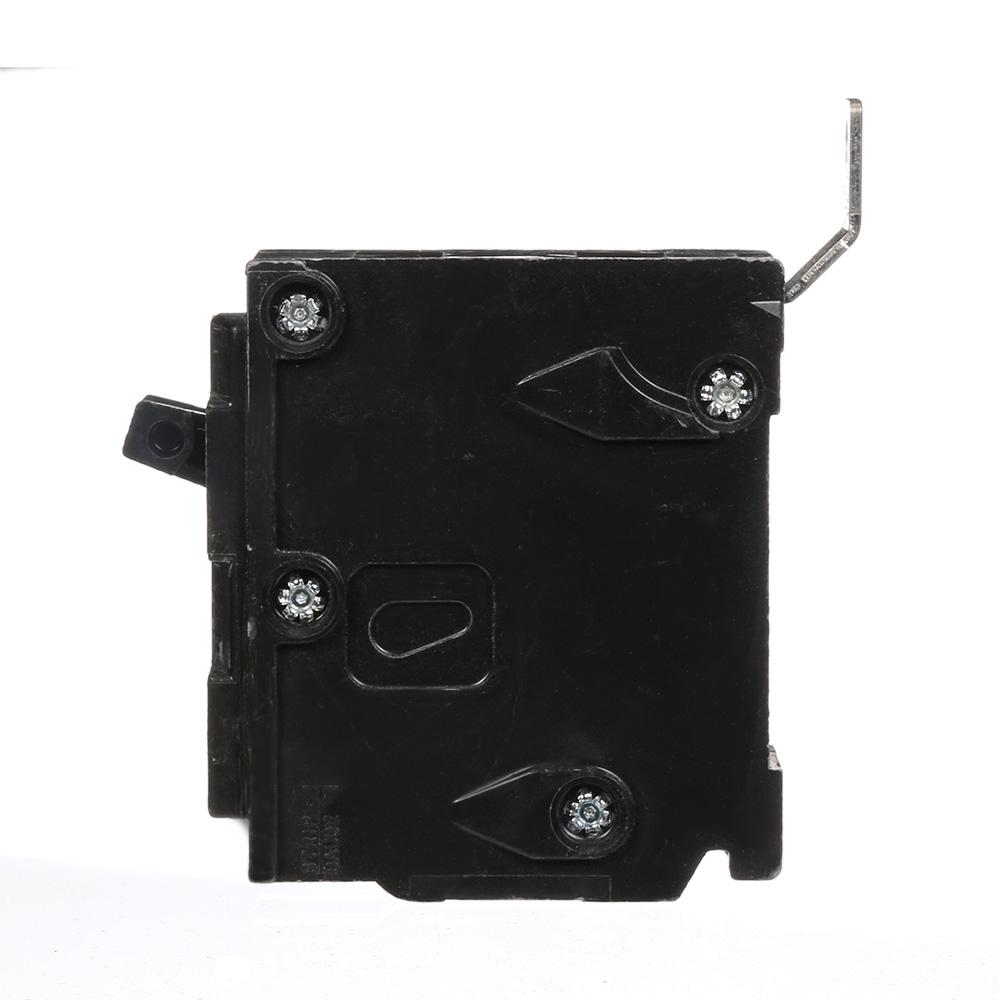

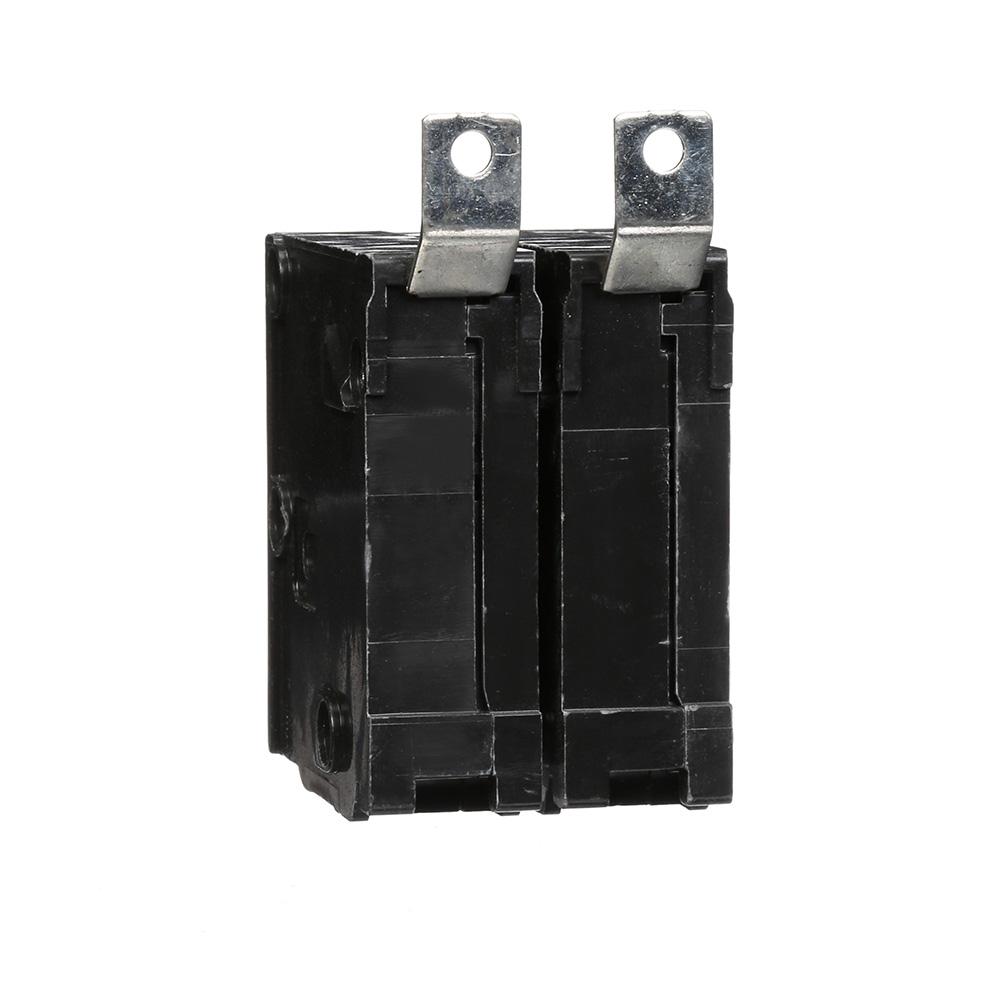

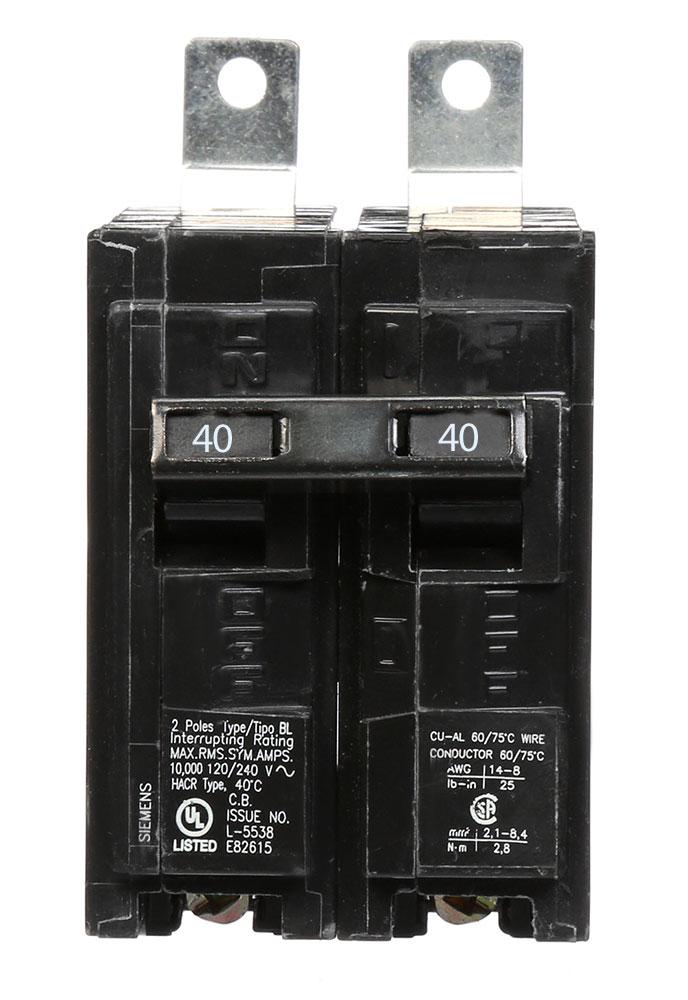

The Siemens B240 is a Molded Case Circuit Breaker from the BL Series family. It features 2 poles, 120/240 VAC voltage, and a 40 amp rating with a 10kA@240V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. It is compatible with Siemens P1 Panelboards and meets CSA, HACR, and UL standards.
Key Features:
✔ Part Number: B240
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 120/240 VAC
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263574
✔ GTIN: 00783643263574
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 0.65
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
