Siemens B245H Circuit Breaker | 120/240V 45A 2P 22kA@240V Bolt-on BL Series

Product Description:

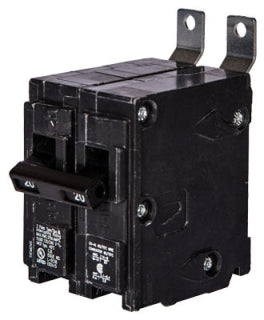

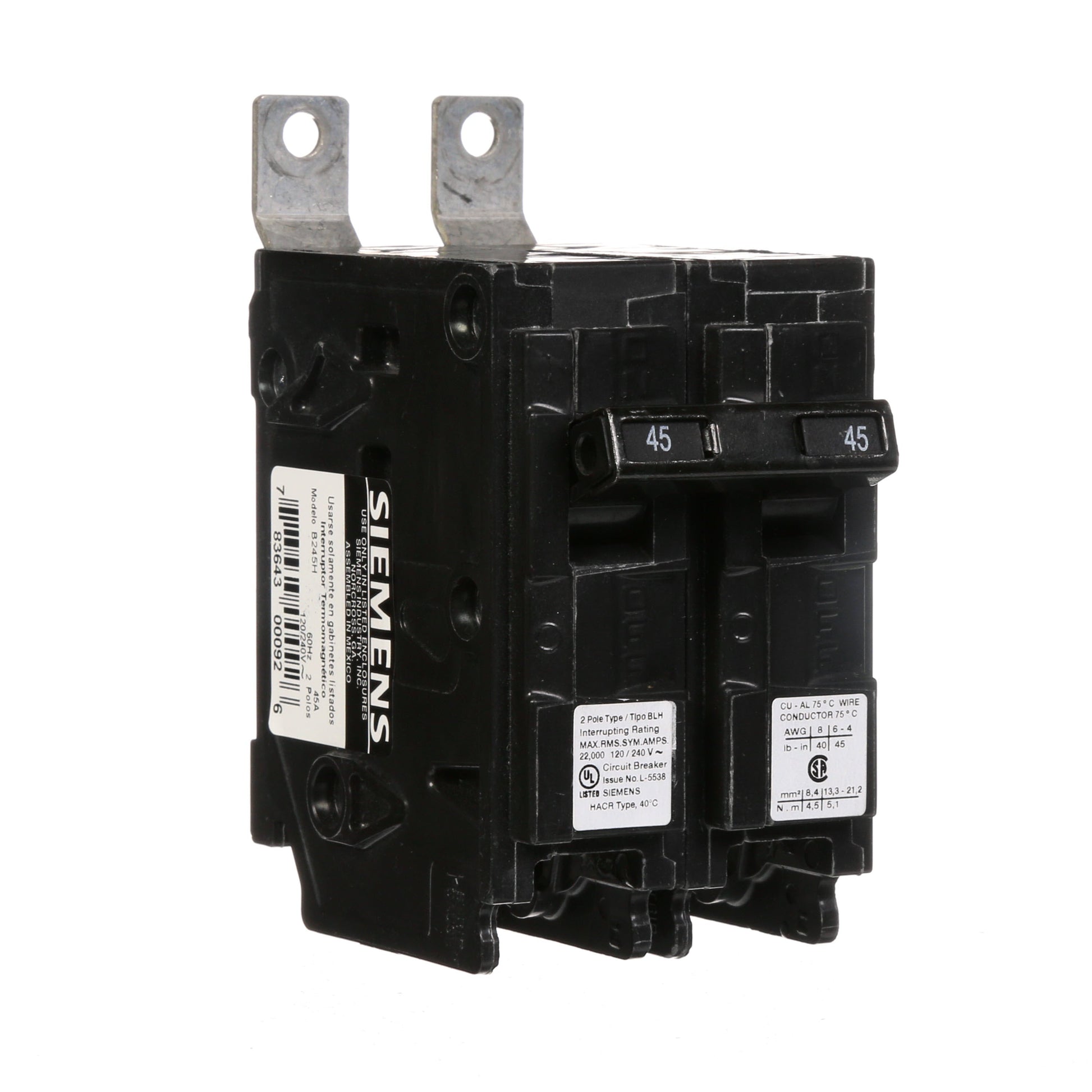

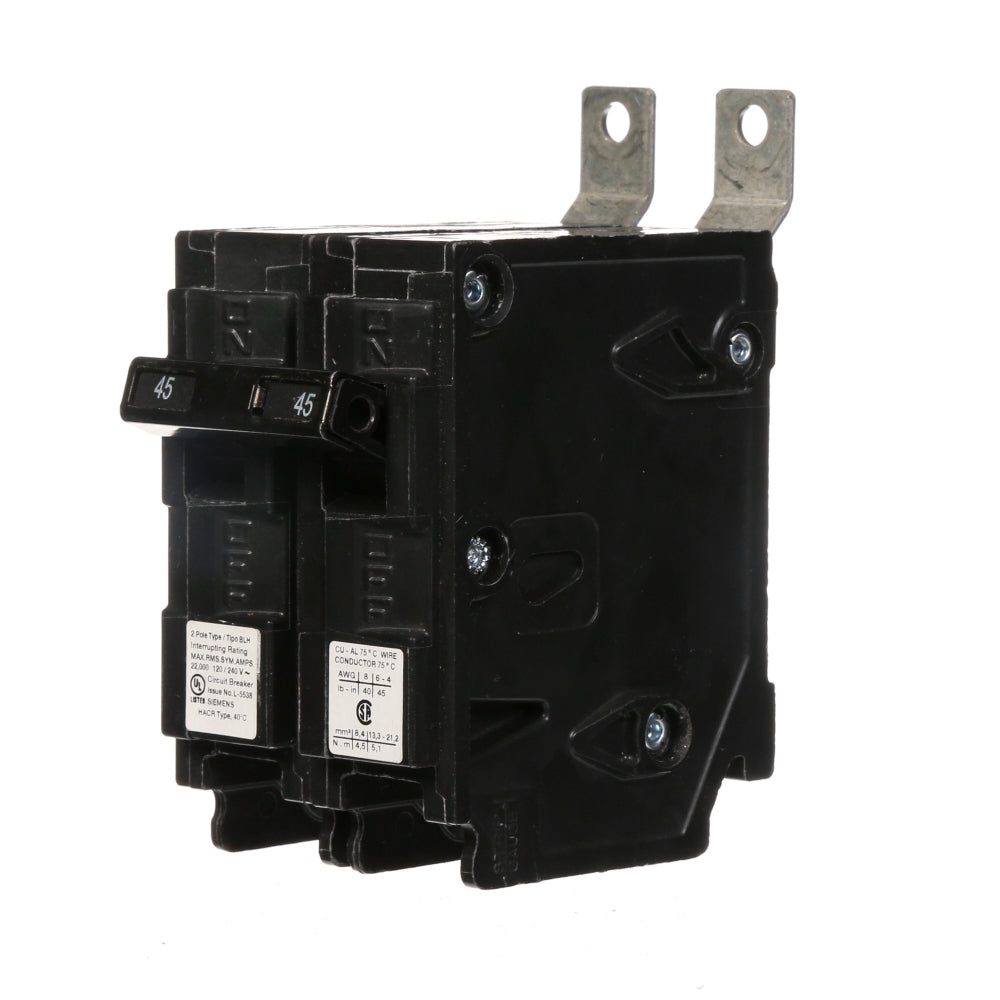

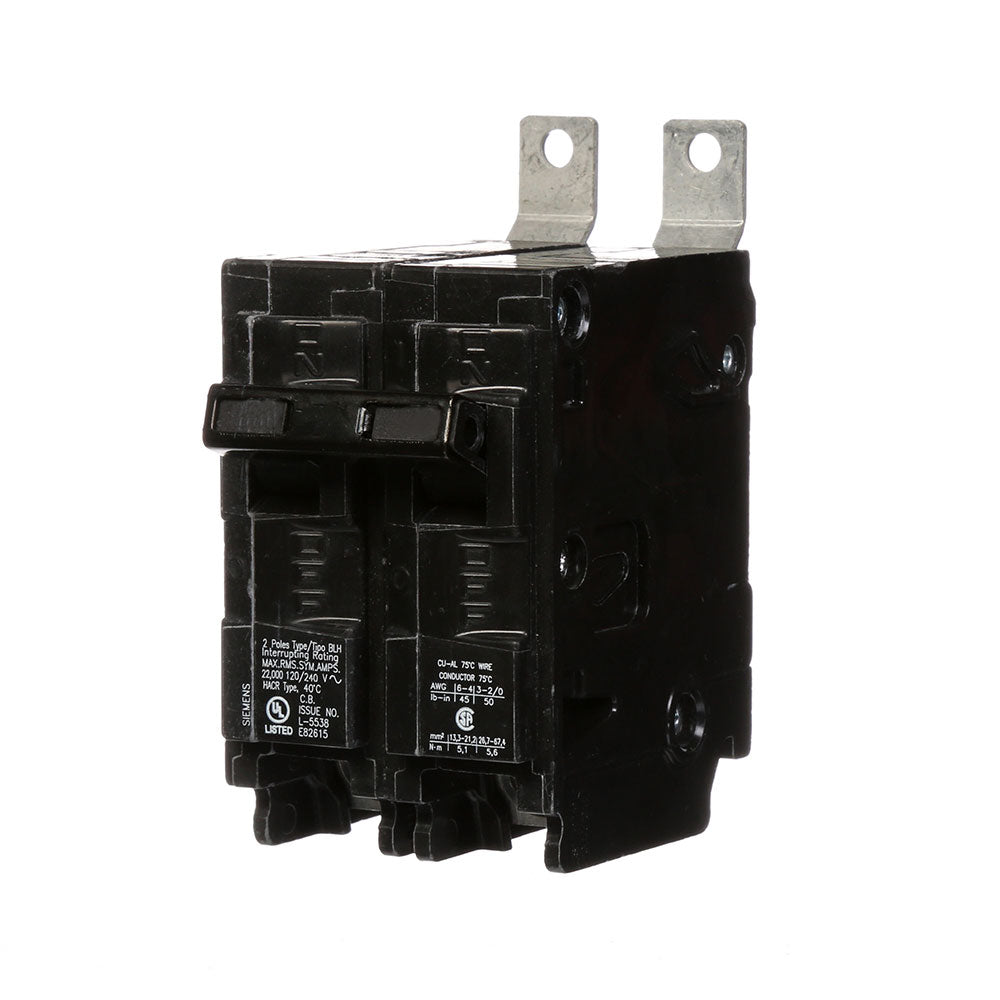

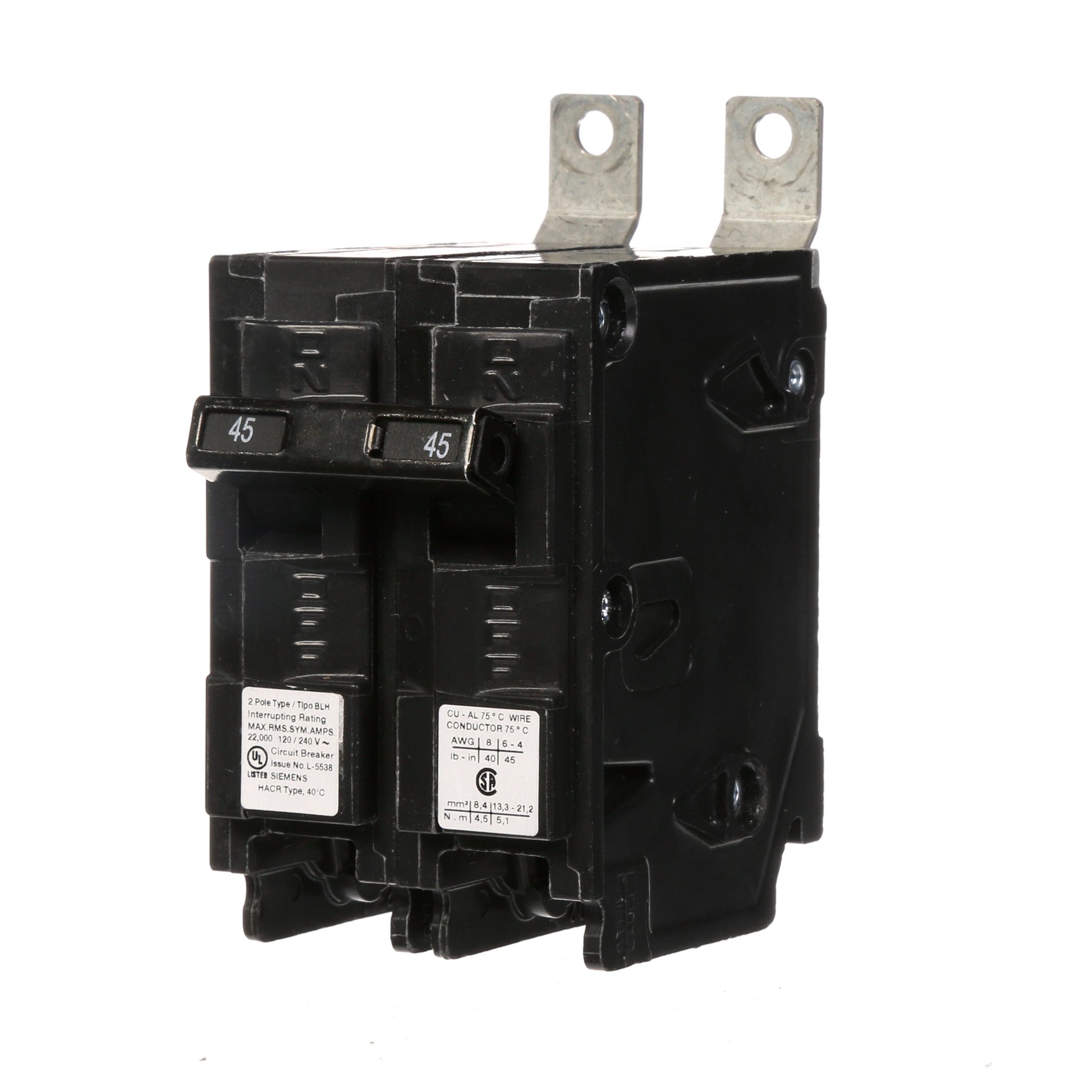

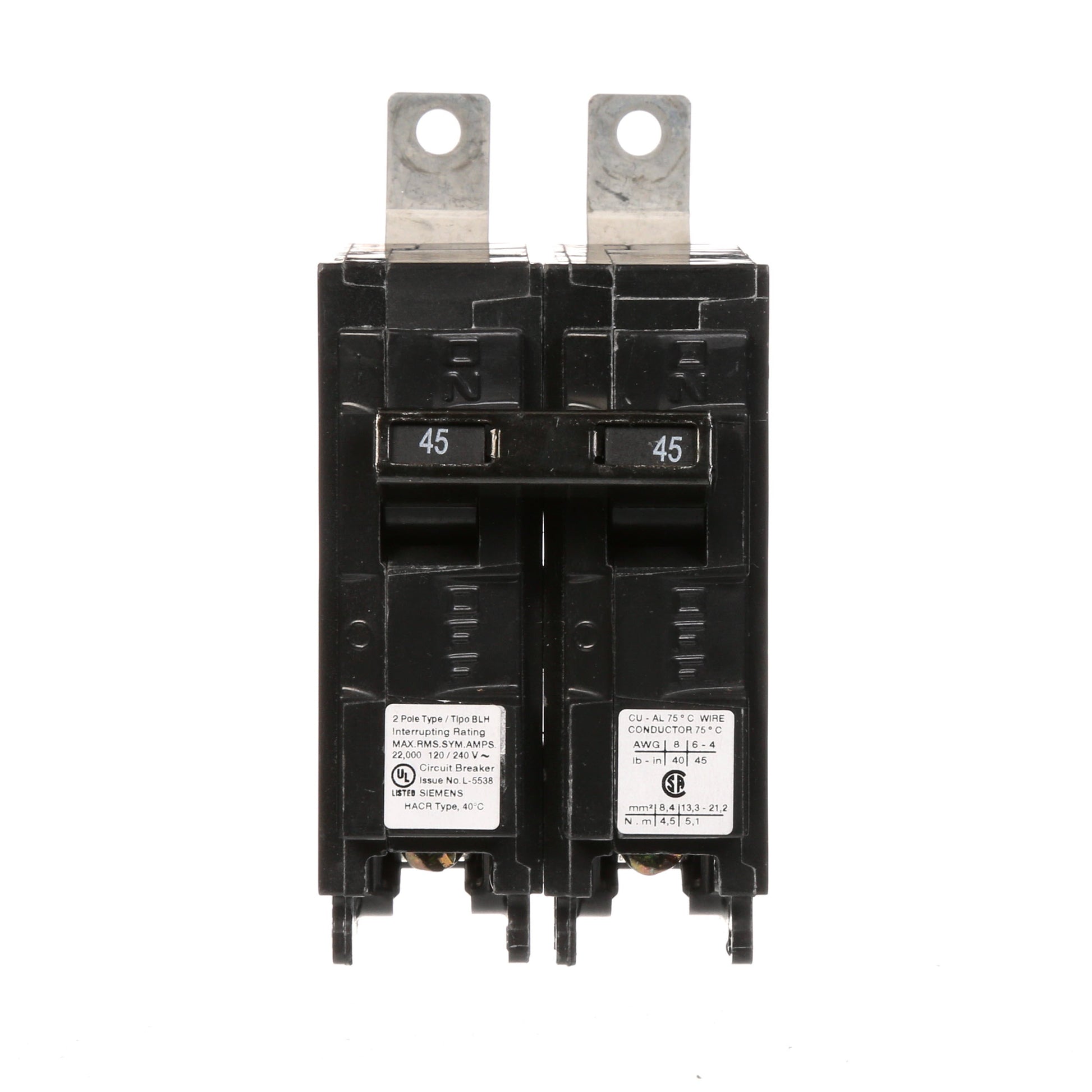

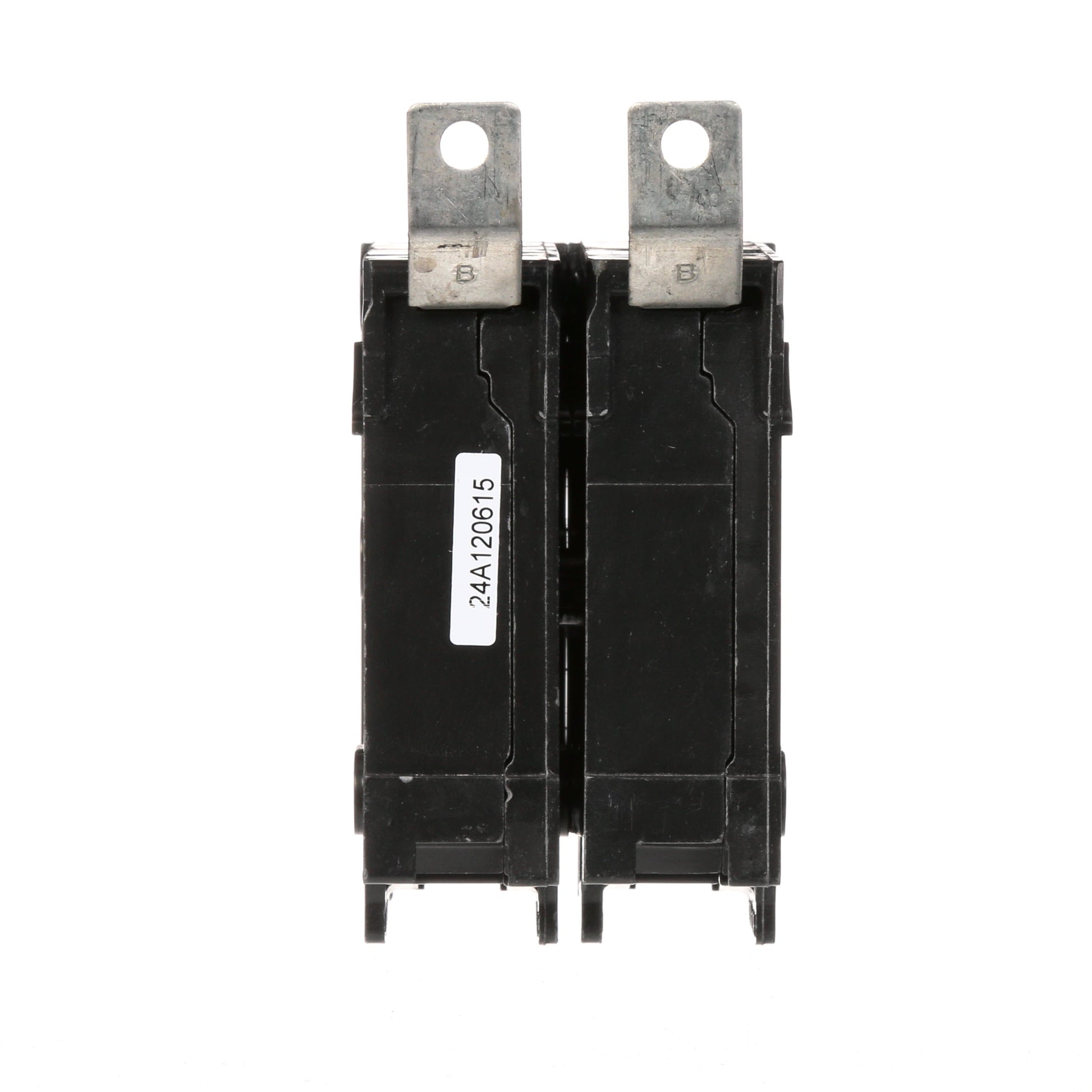

The Siemens B245H is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 45 amp breaker rated for 120/240V with an interrupting capacity of 22kA at 240V. This model features bolt-on connections and thermal magnetic protection for reliable performance. It is designed for use in Siemens P1 panelboards and meets CSA, HACR, and UL standards.

Key Features:
✔ Part Number: B245H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 120/240
✔ Amperage: 45
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643000926
✔ GTIN: 00783643000926
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 0.51
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
