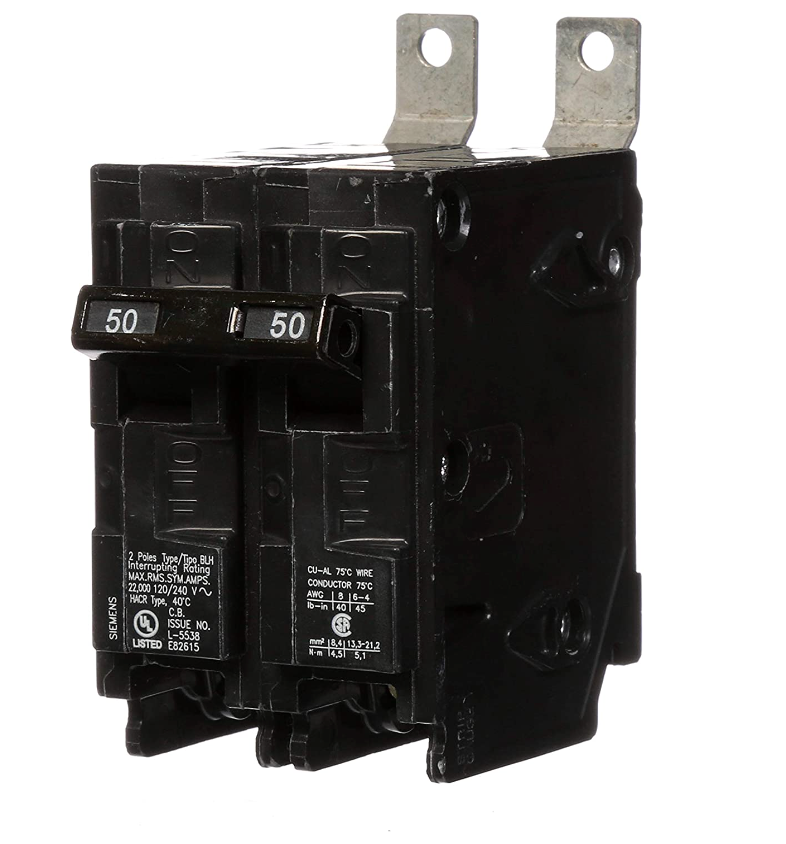

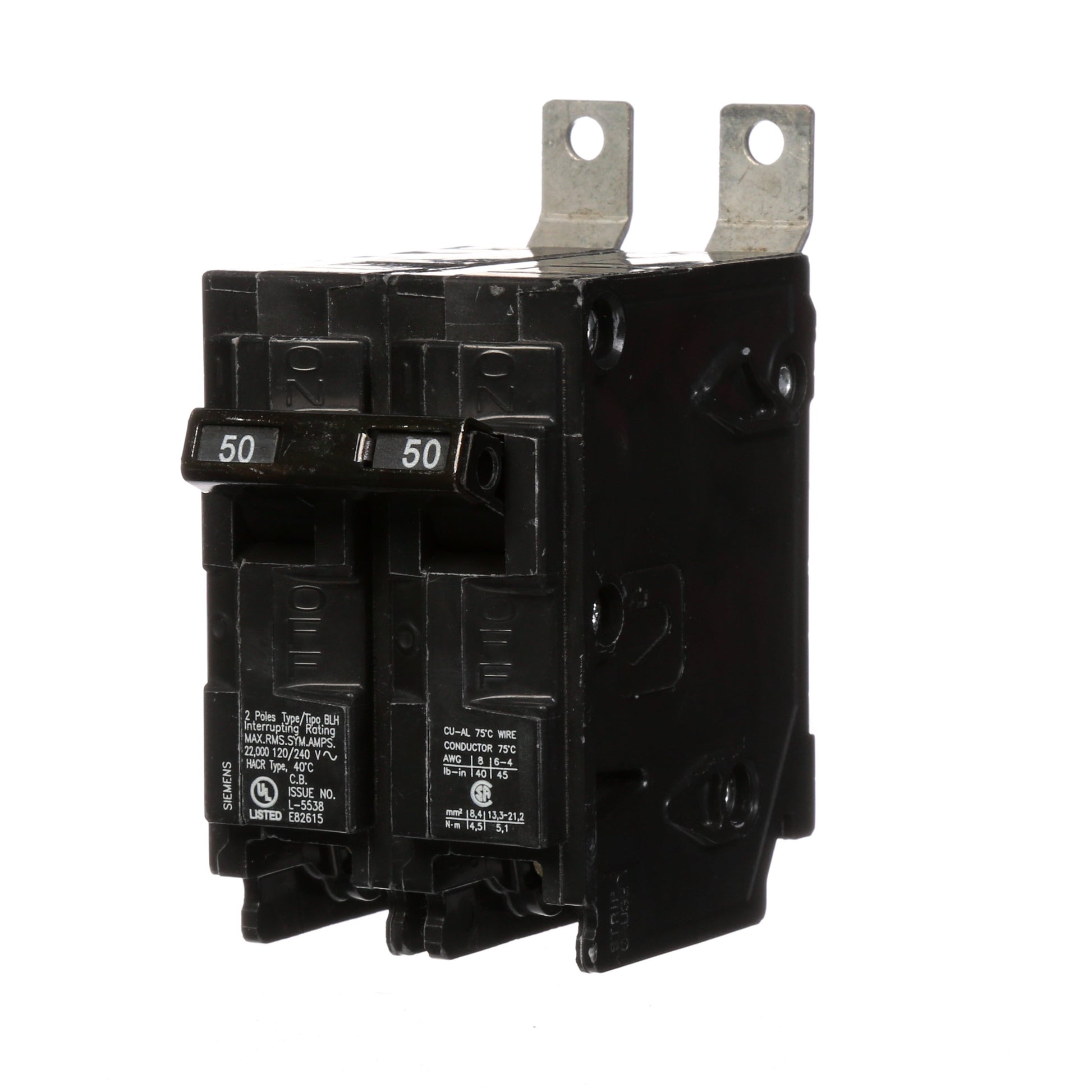

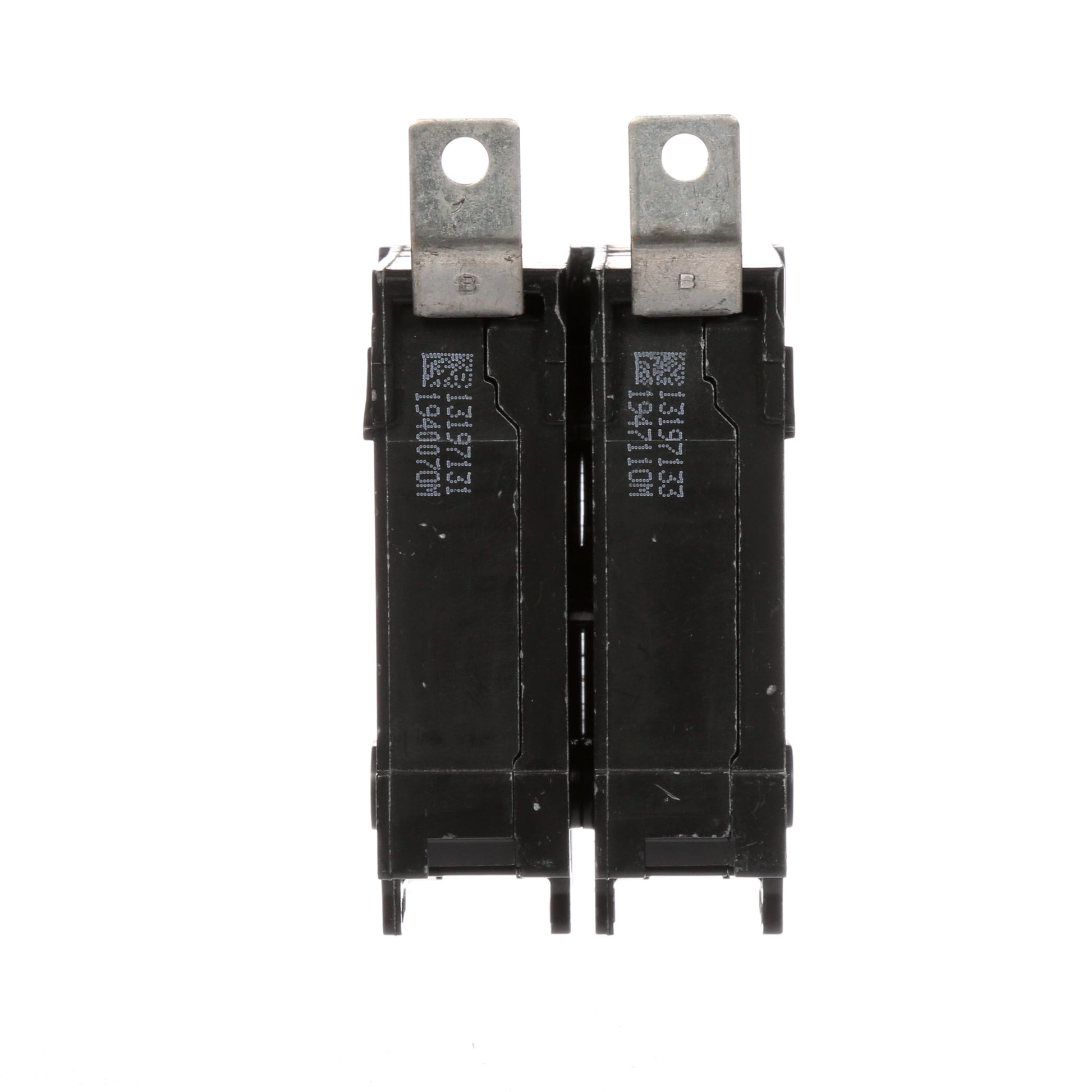

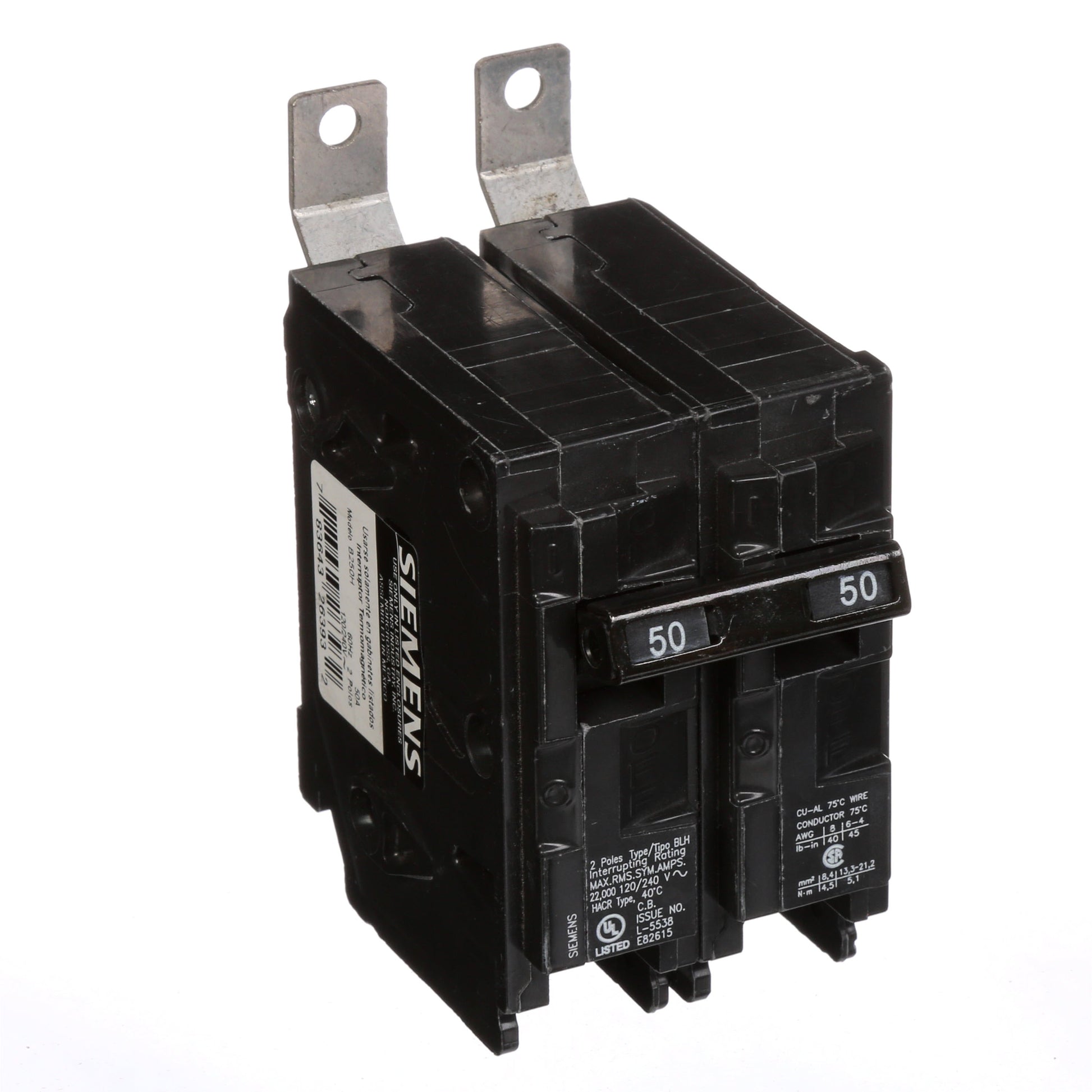

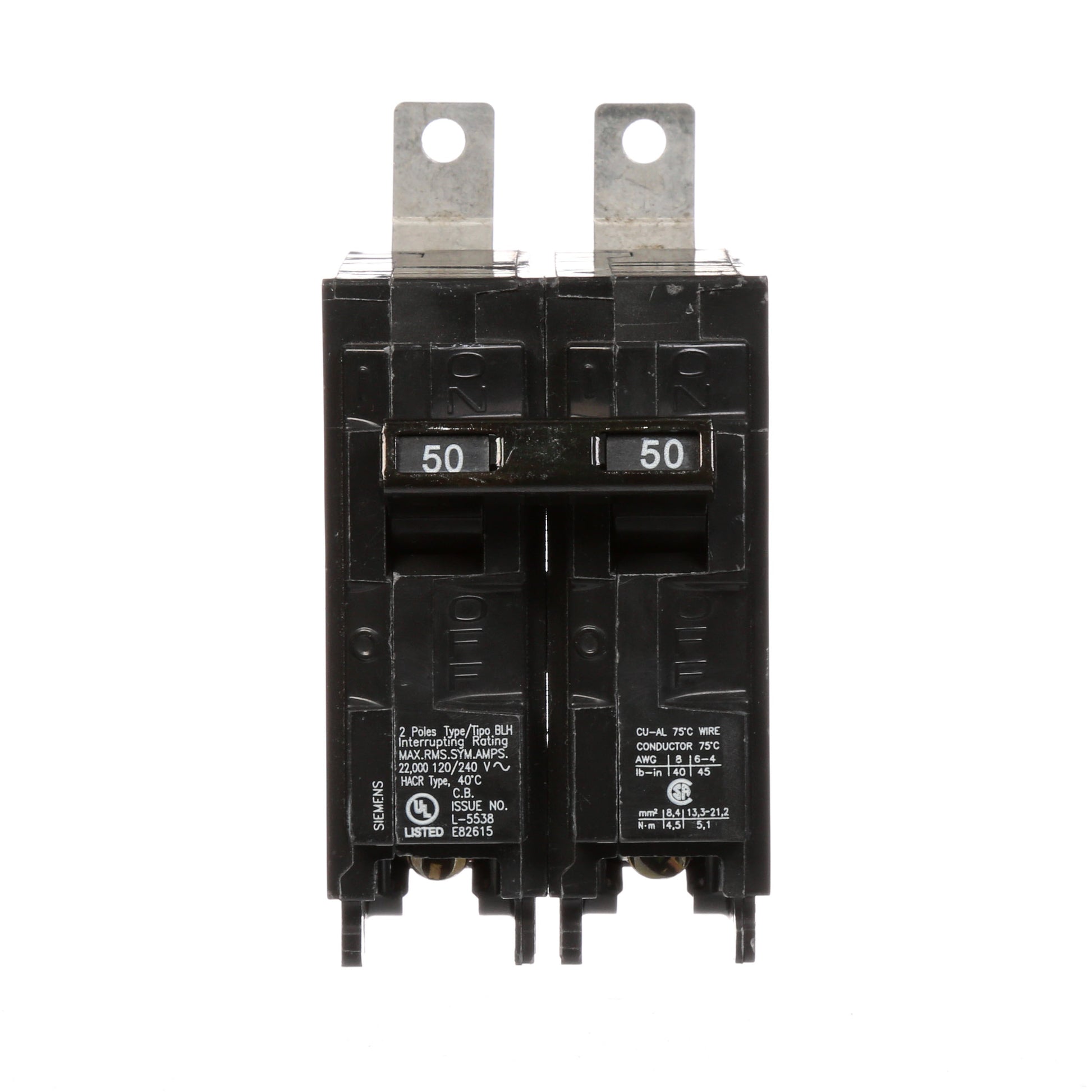

Siemens B250H Circuit Breaker | 120/240V 50A 2 Pole 22kA@240V Bolt-on BL Series
Siemens B250H Circuit Breaker | 120/240V 50A 2 Pole 22kA@240V Bolt-on BL Series
Price:
Sale
Sold out
Regular price
$52.84 USD
Regular price
$437.00 USD
Sale price
$52.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Siemens B250H is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 50 amp breaker rated for 120/240V applications with an interrupting capacity of 22kA at 240V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is designed for use in Siemens P1 panelboards and meets CSA, HACR, and UL standards.
Key Features:
✔ Part Number: B250H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 120/240
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263932
✔ GTIN: 00783643263932
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 0.65
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
