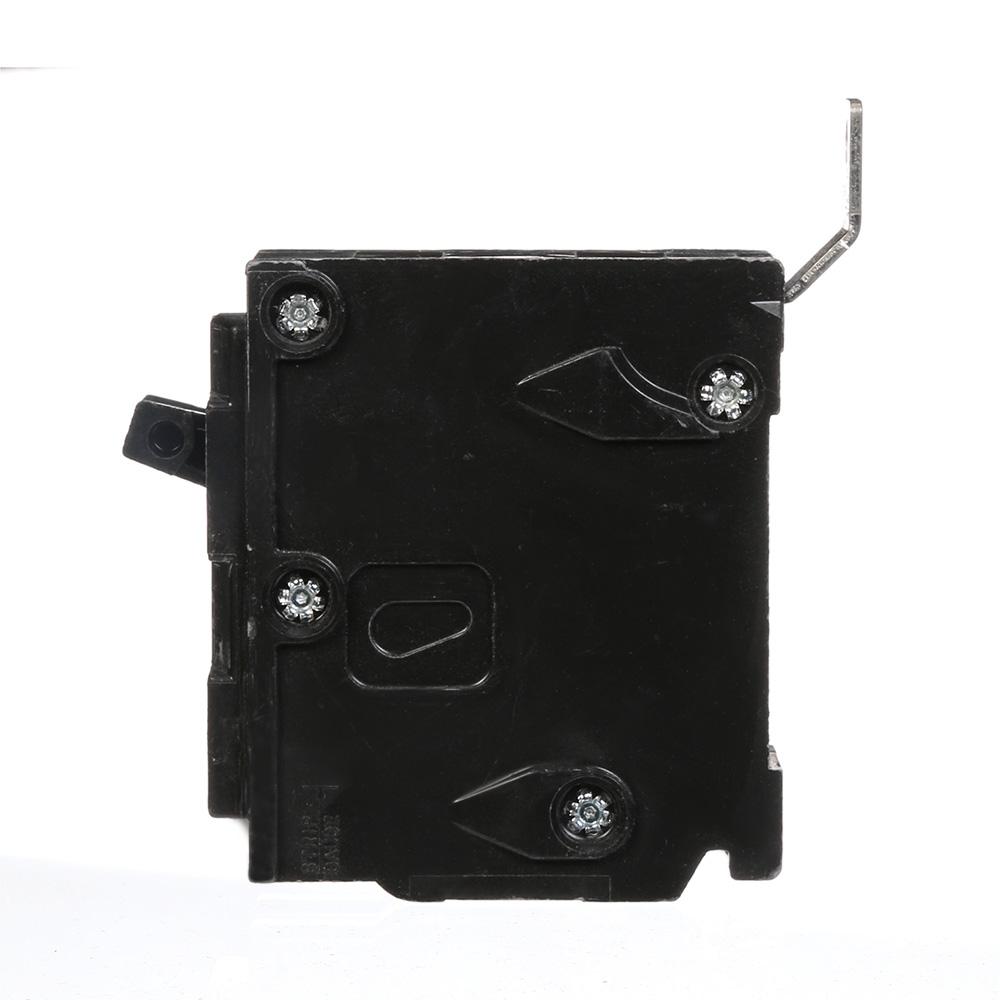

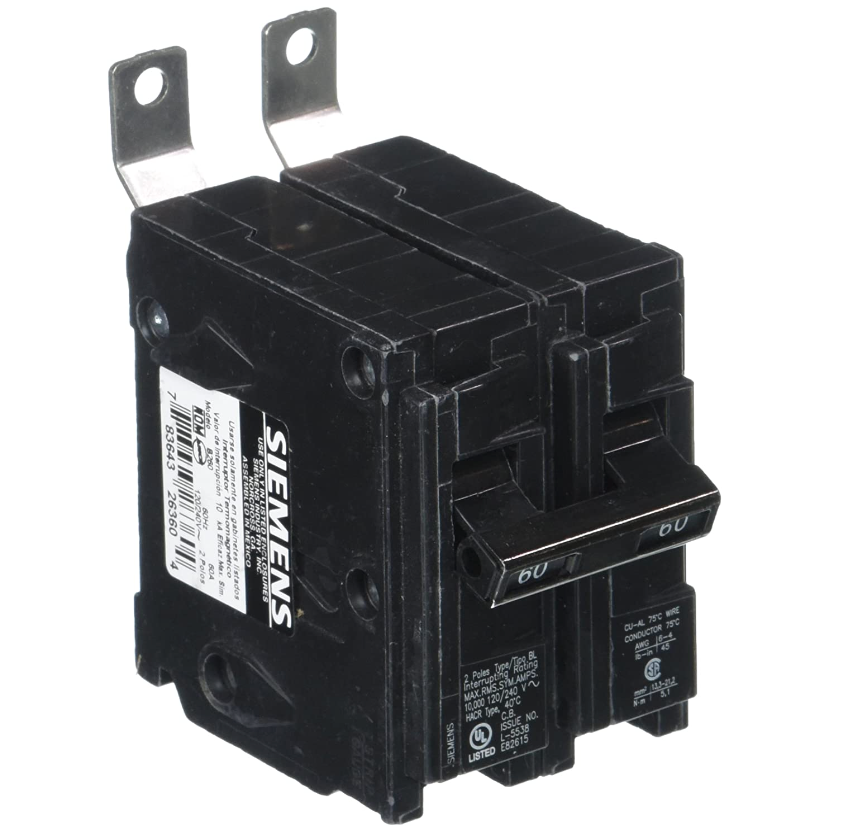

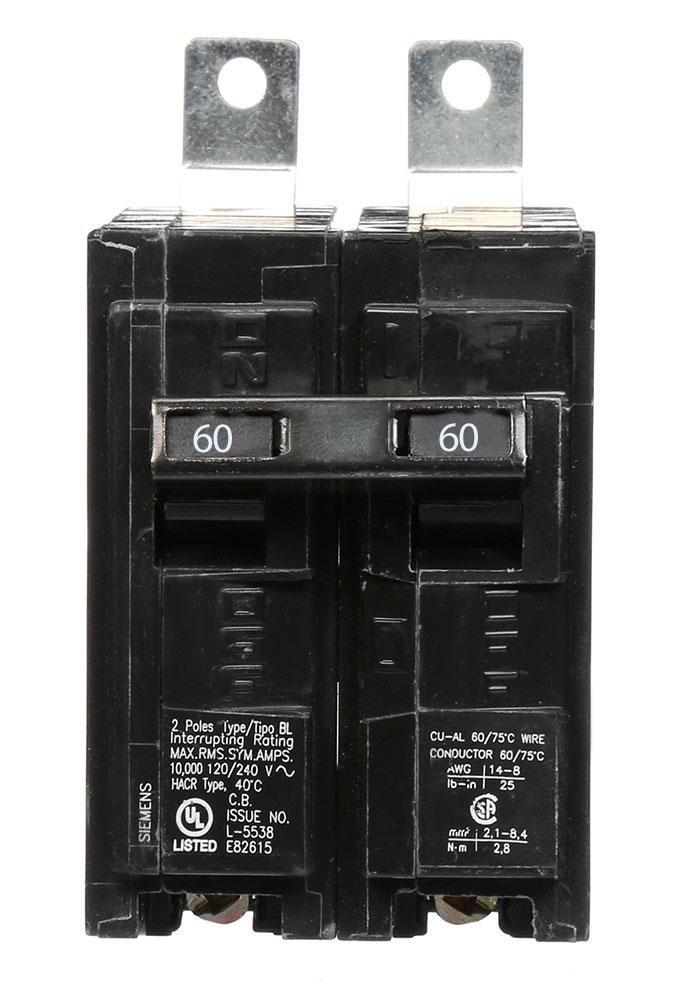

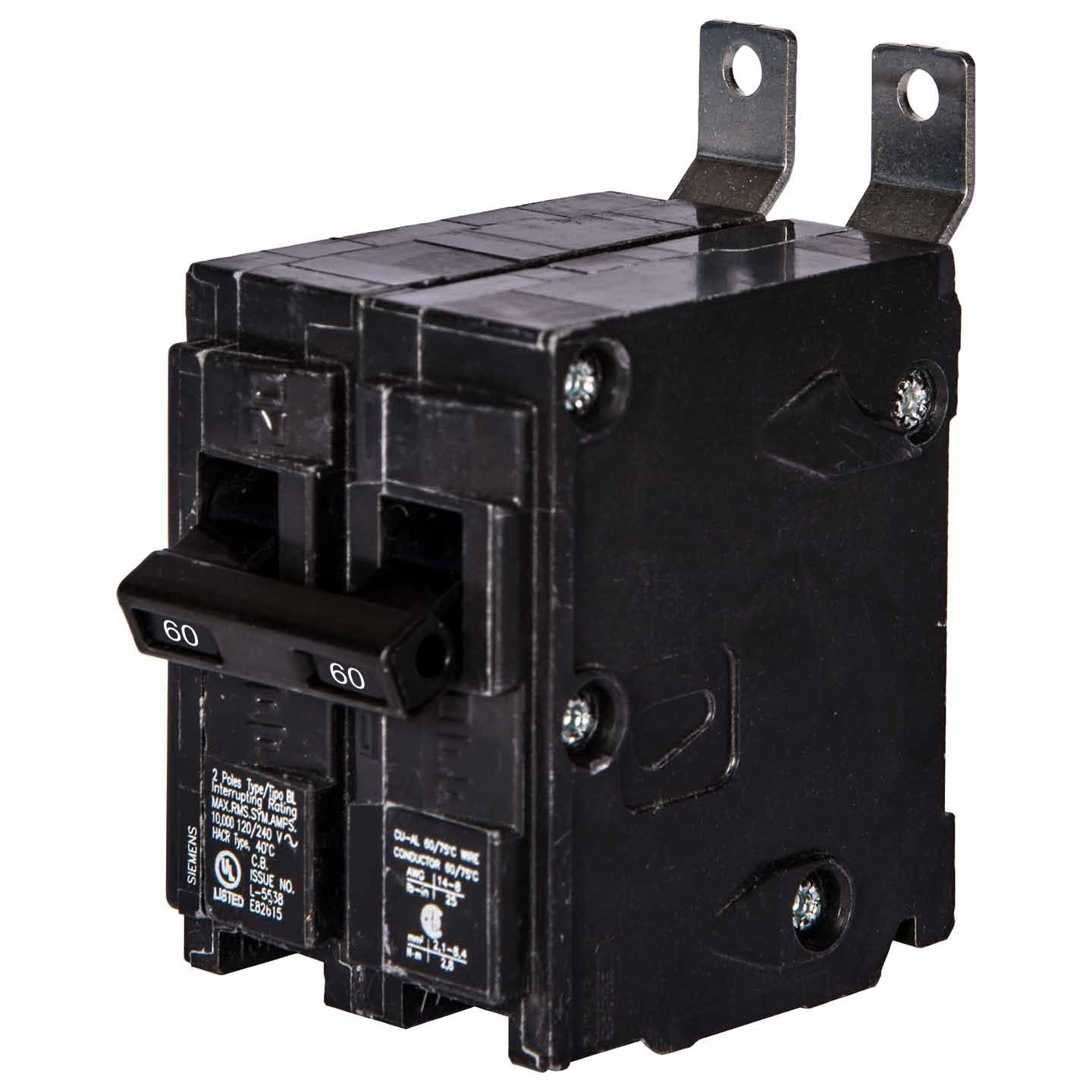

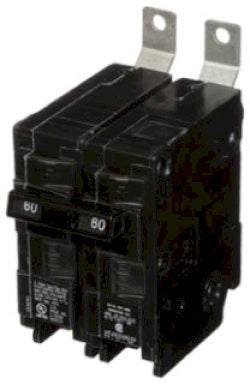

Siemens B260 Circuit Breaker | 120/240V 60A 2P 10kA@240V BL Series

Product Description:

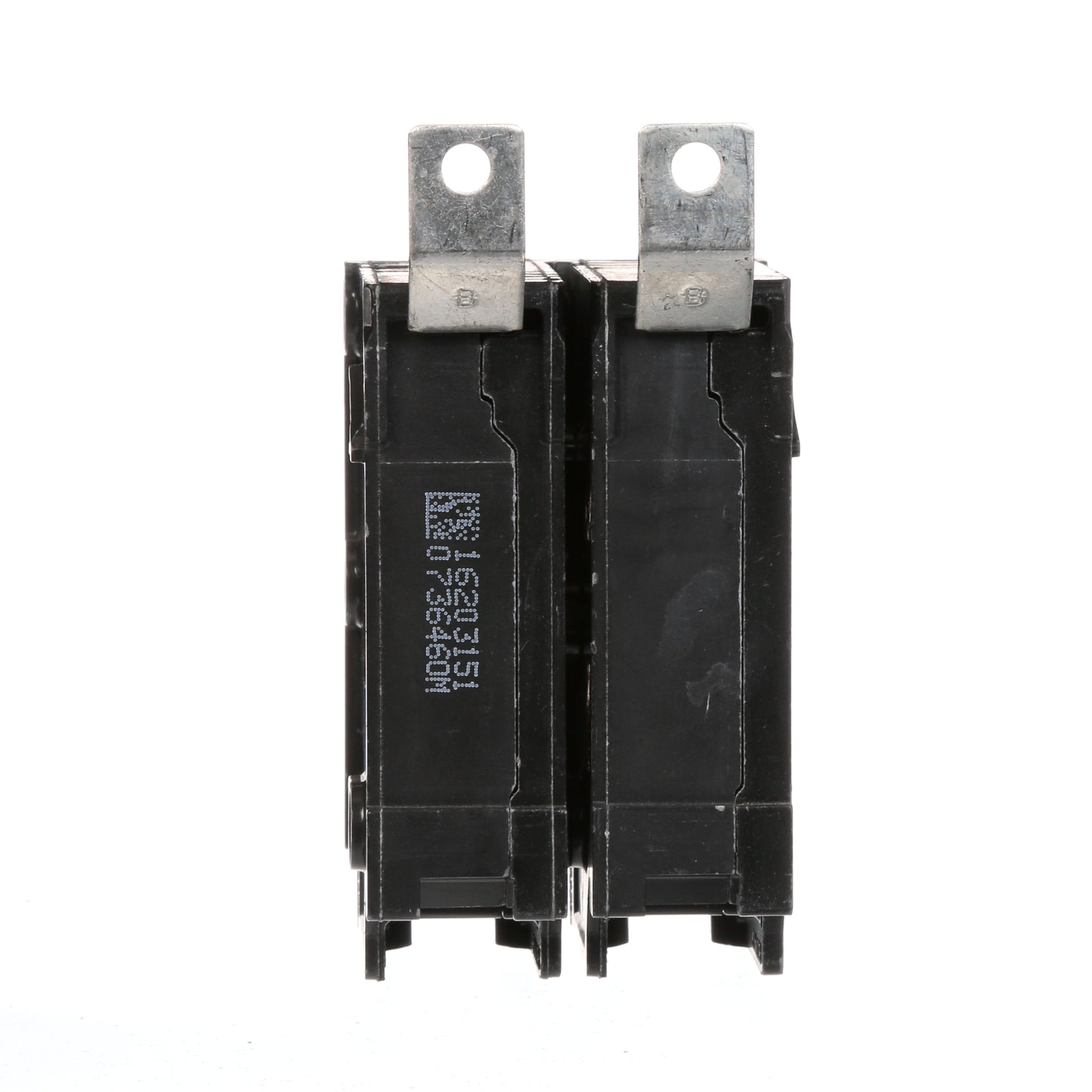

The Siemens B260 is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 60 amp breaker rated for 120/240V with a 10kA@240V AIC rating. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is designed for use in Siemens P1 Panelboards and complies with CSA, HACR, and UL standards.

Key Features:
✔ Part Number: B260
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 120/240
✔ Amperage: 60
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 783643263604
✔ GTIN: 00783643263604
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 2 in x 2 in
✔ Weight: 0.81 lb
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
