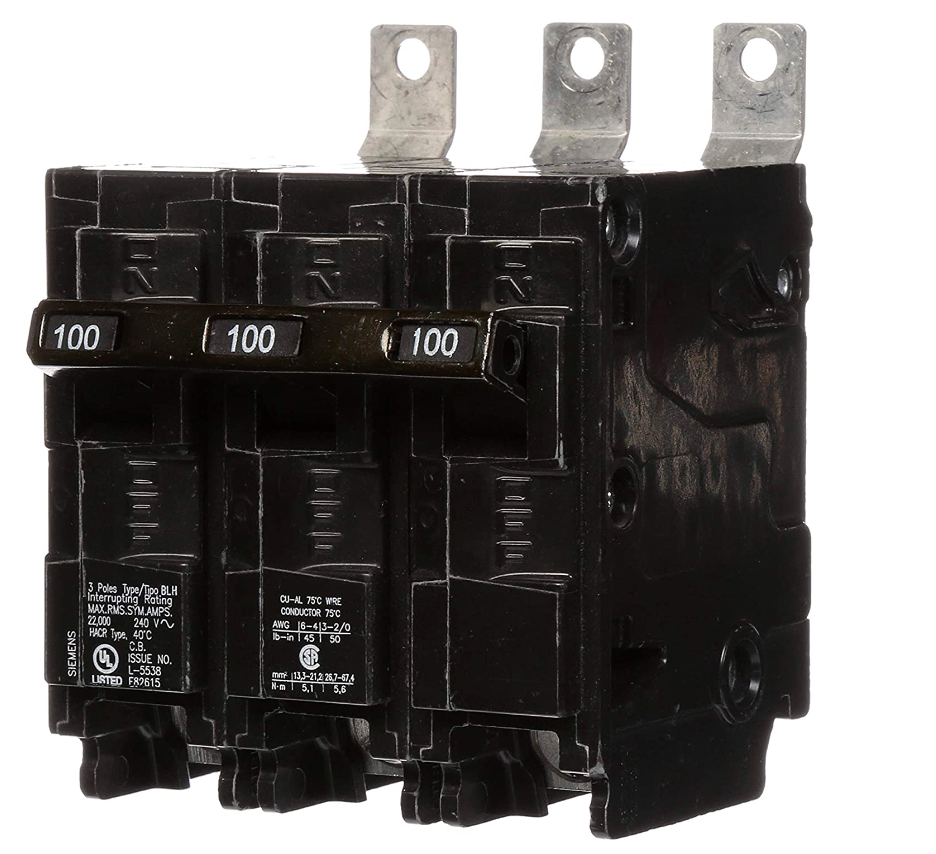

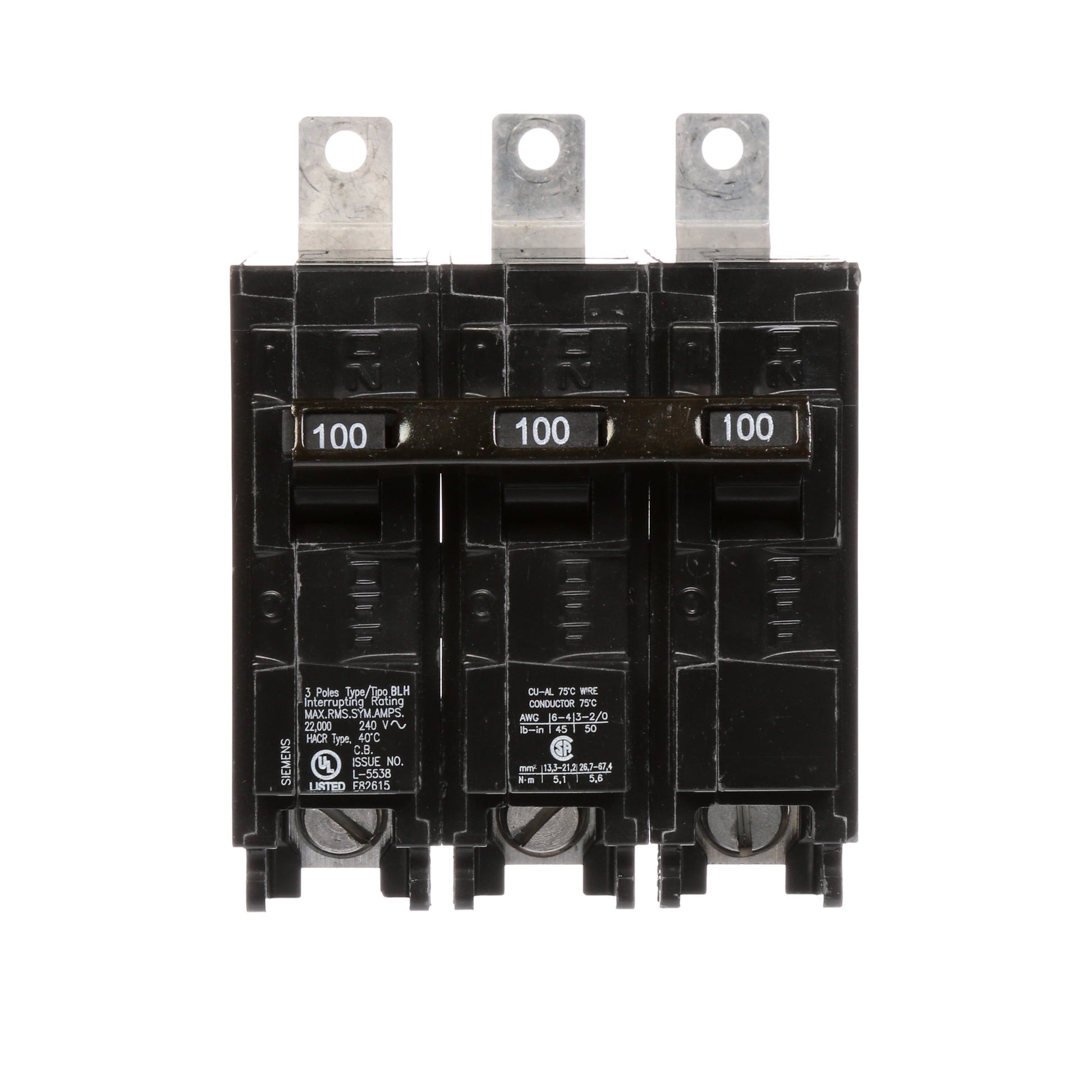

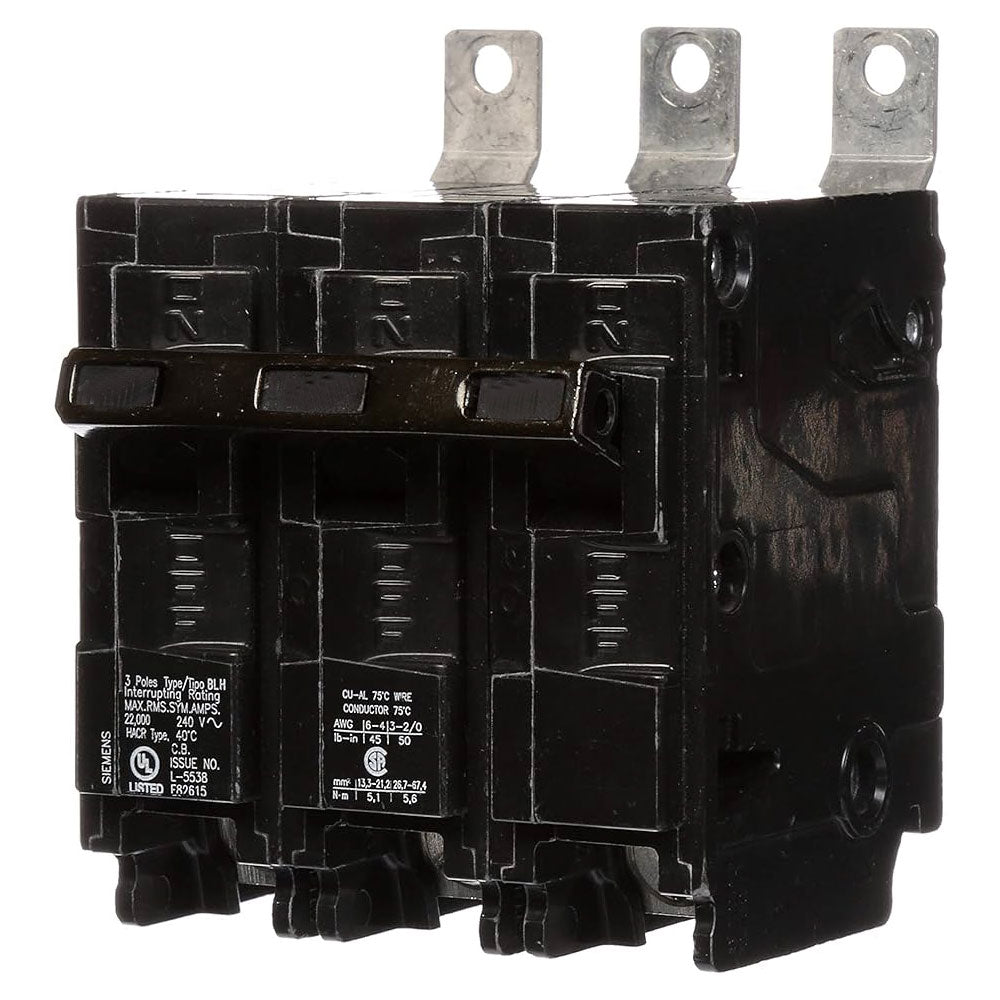

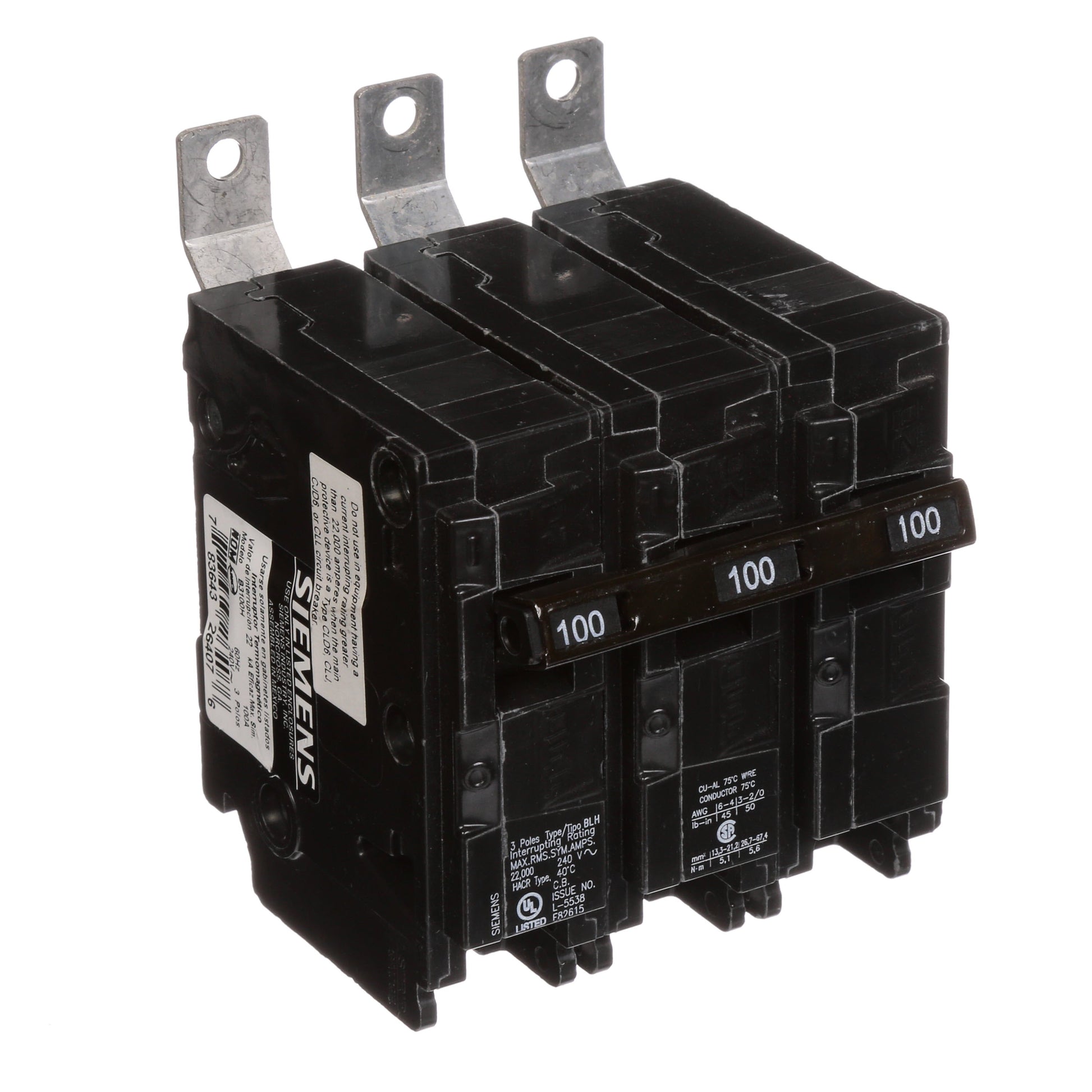

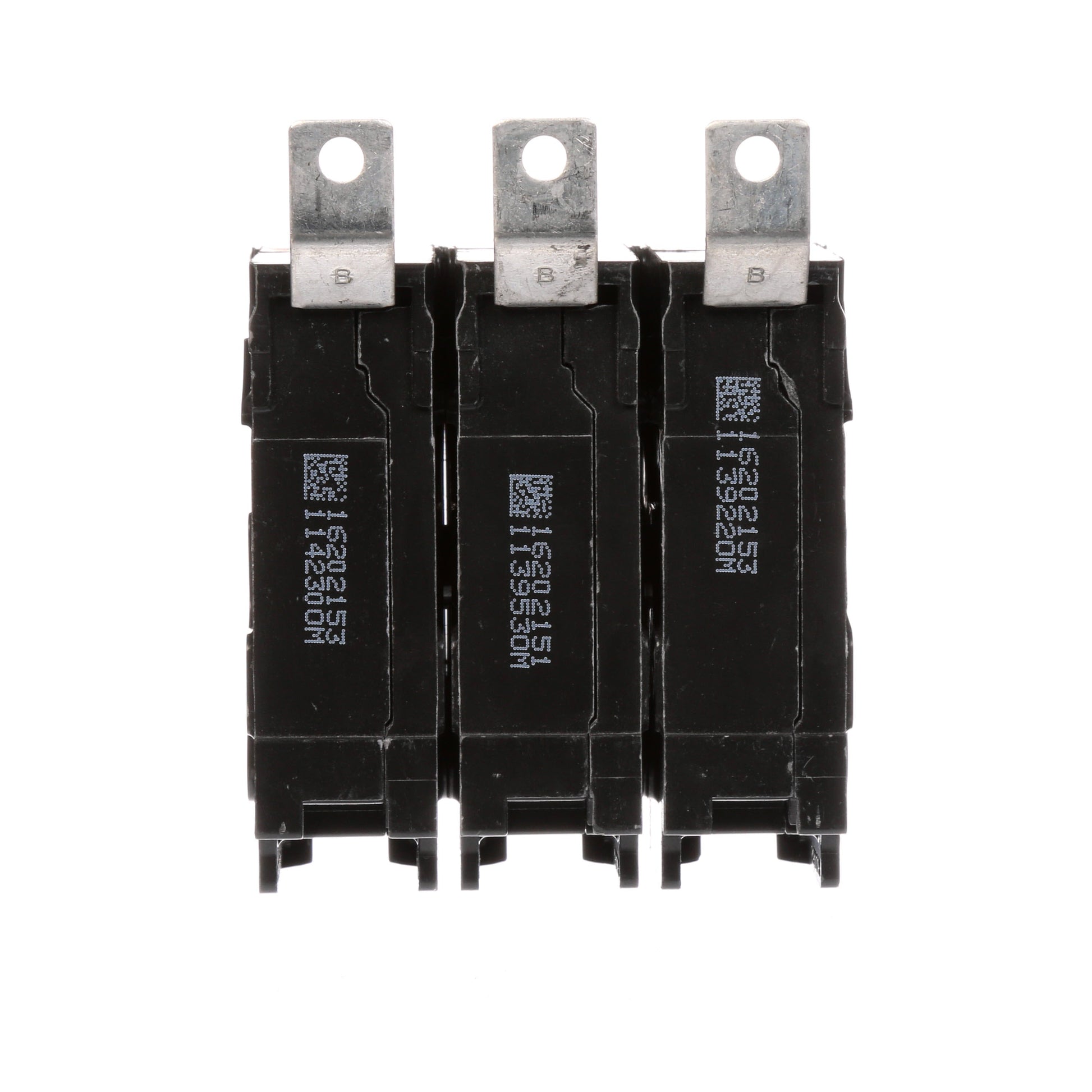

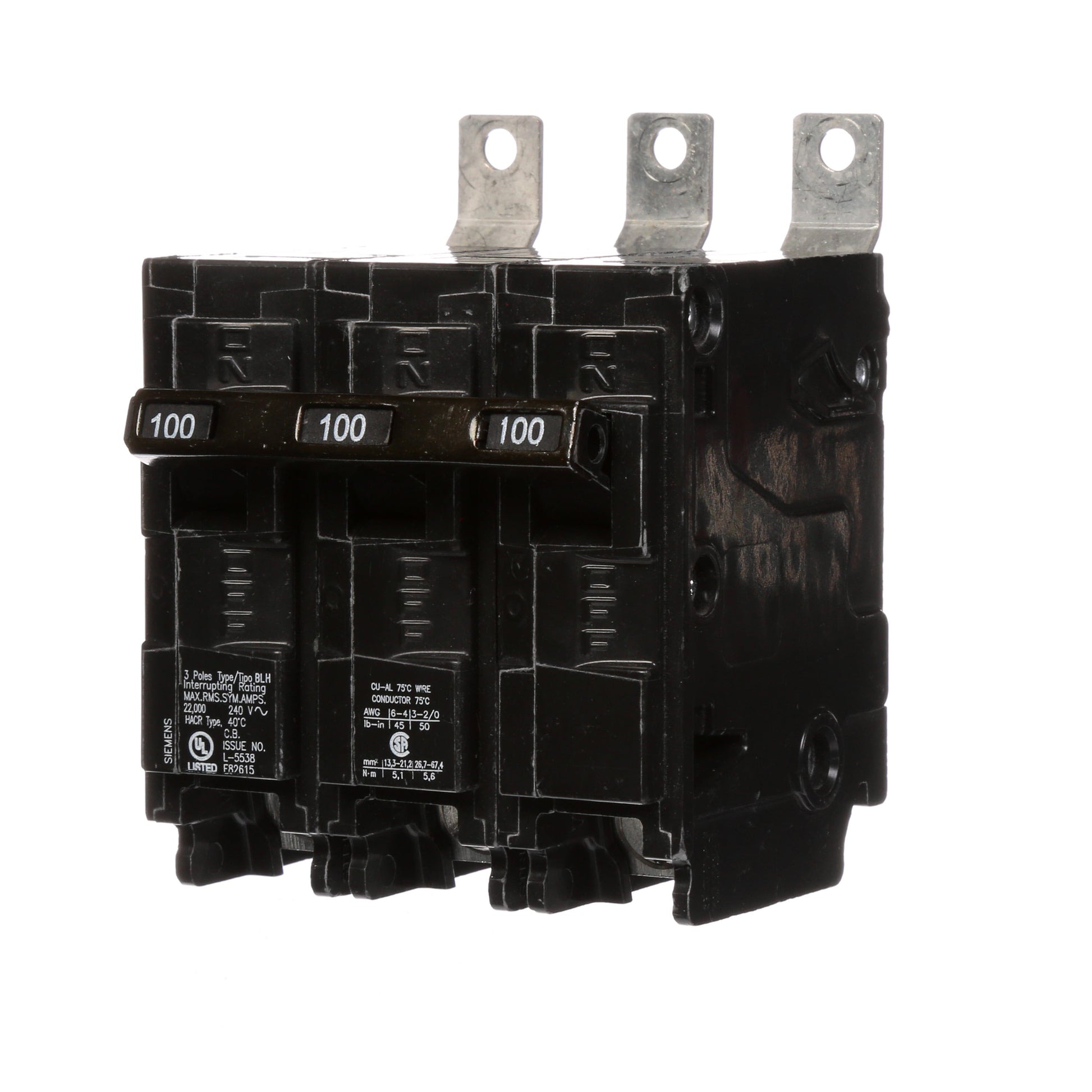

Siemens B3100H Circuit Breaker | 240V 100A 3P 22kA@240V Bolt-on BL Series

Product Description:
The Siemens B3100H is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 100 amp breaker rated for 240 volts with an interrupting capacity of 22kA. This model features bolt-on connections and thermal magnetic protection for reliable circuit management. It is designed for use in Siemens P1 panelboards and meets industry standards including UL listing and CSA certification.

Key Features:
✔ Part Number: B3100H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643264076
✔ GTIN: 00783643264076
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 2.3 in x 2.3 in
✔ Weight: 0.99
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
