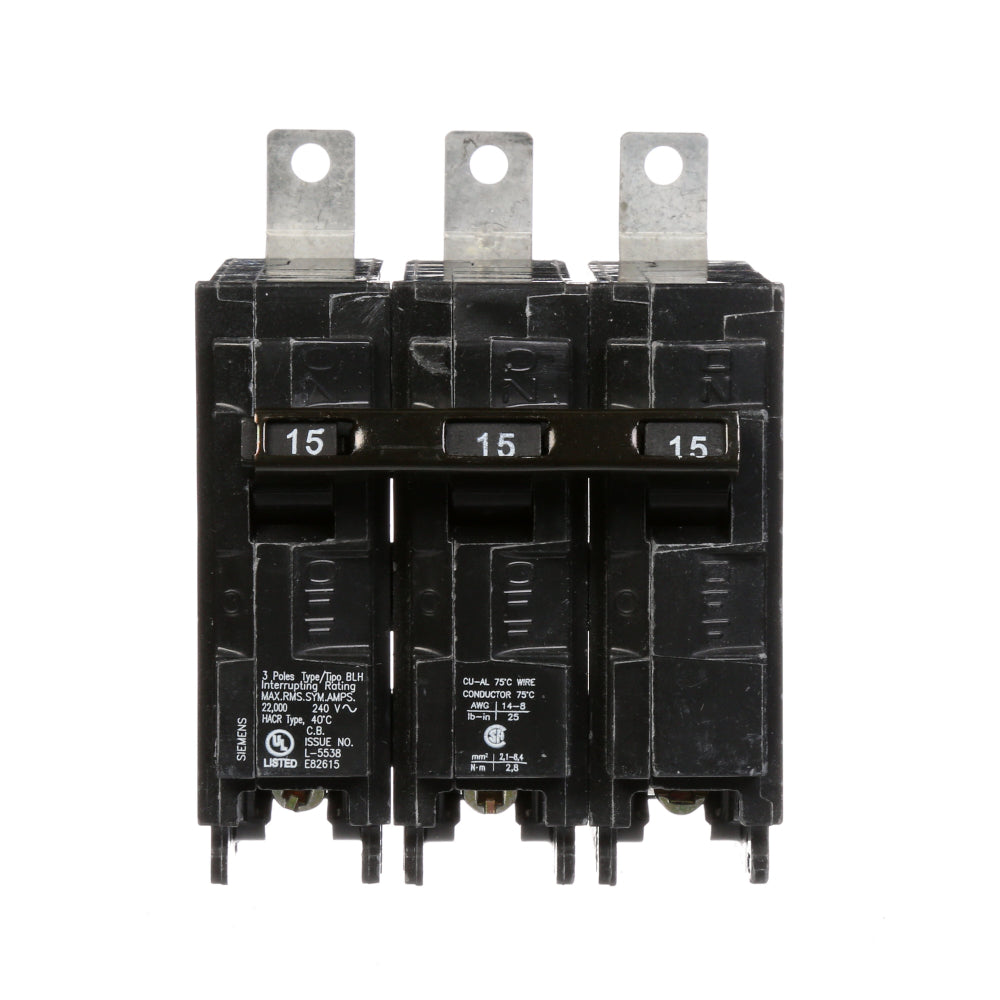

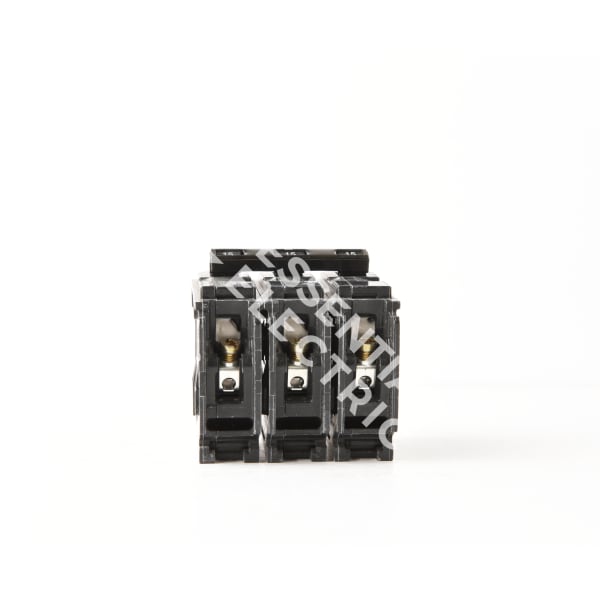

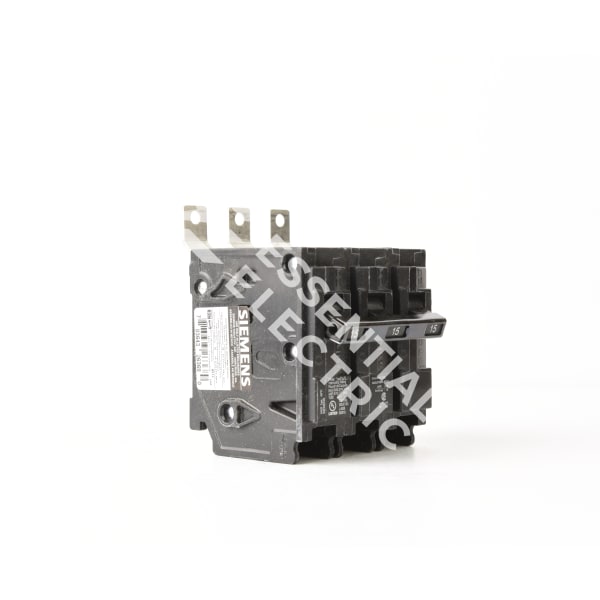

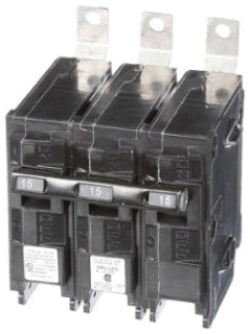

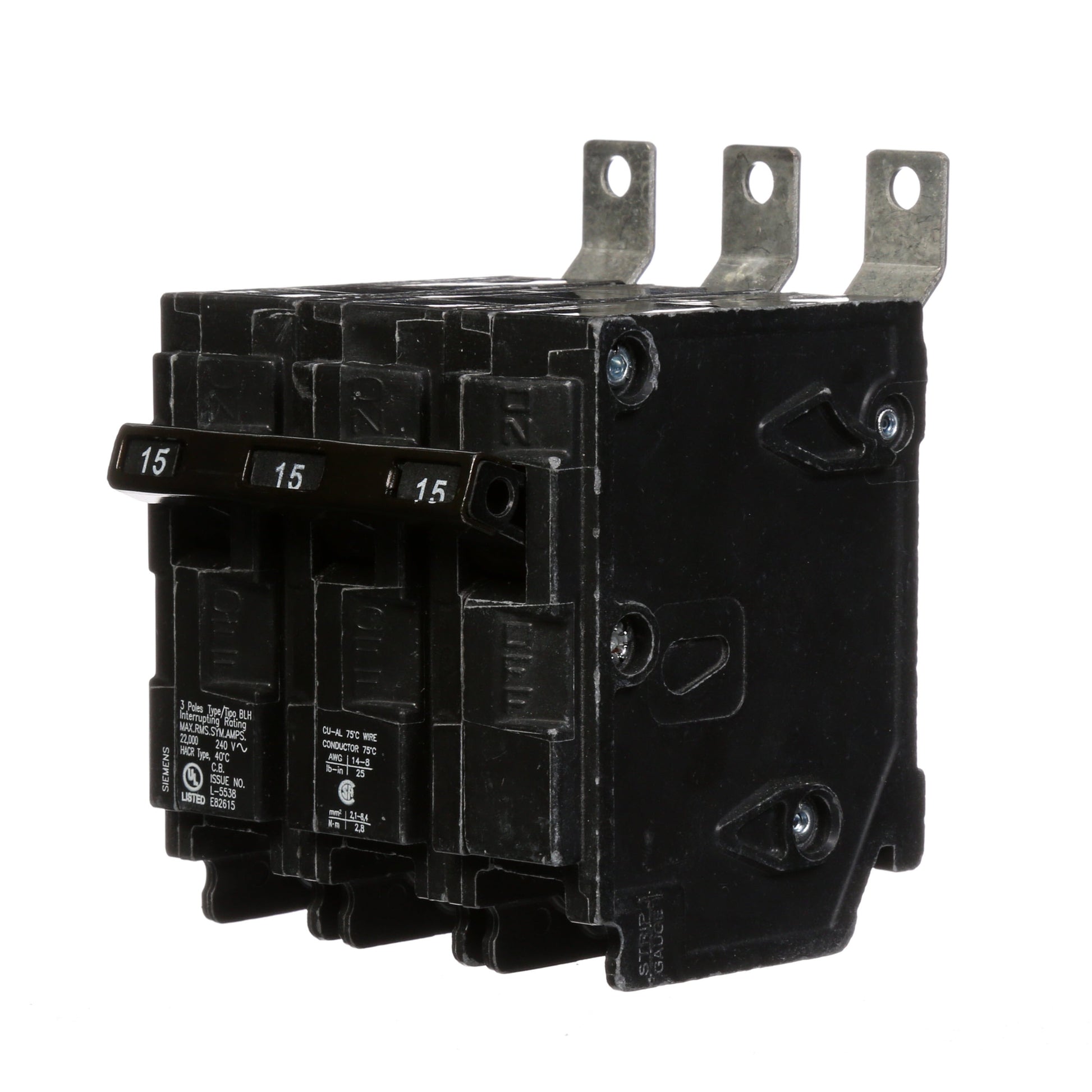

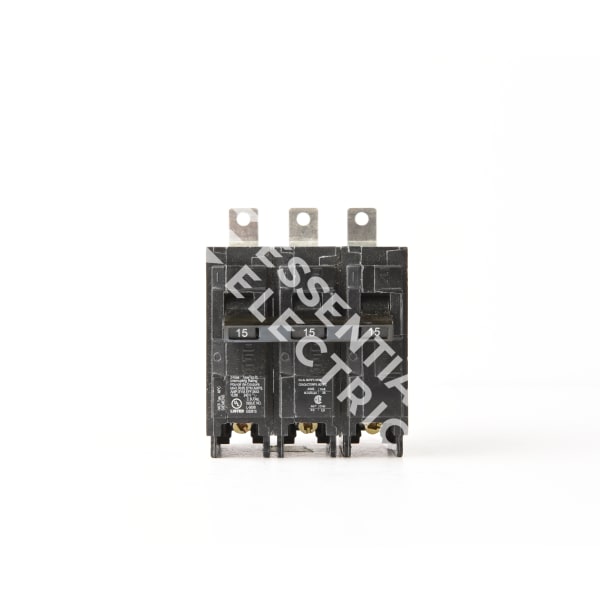

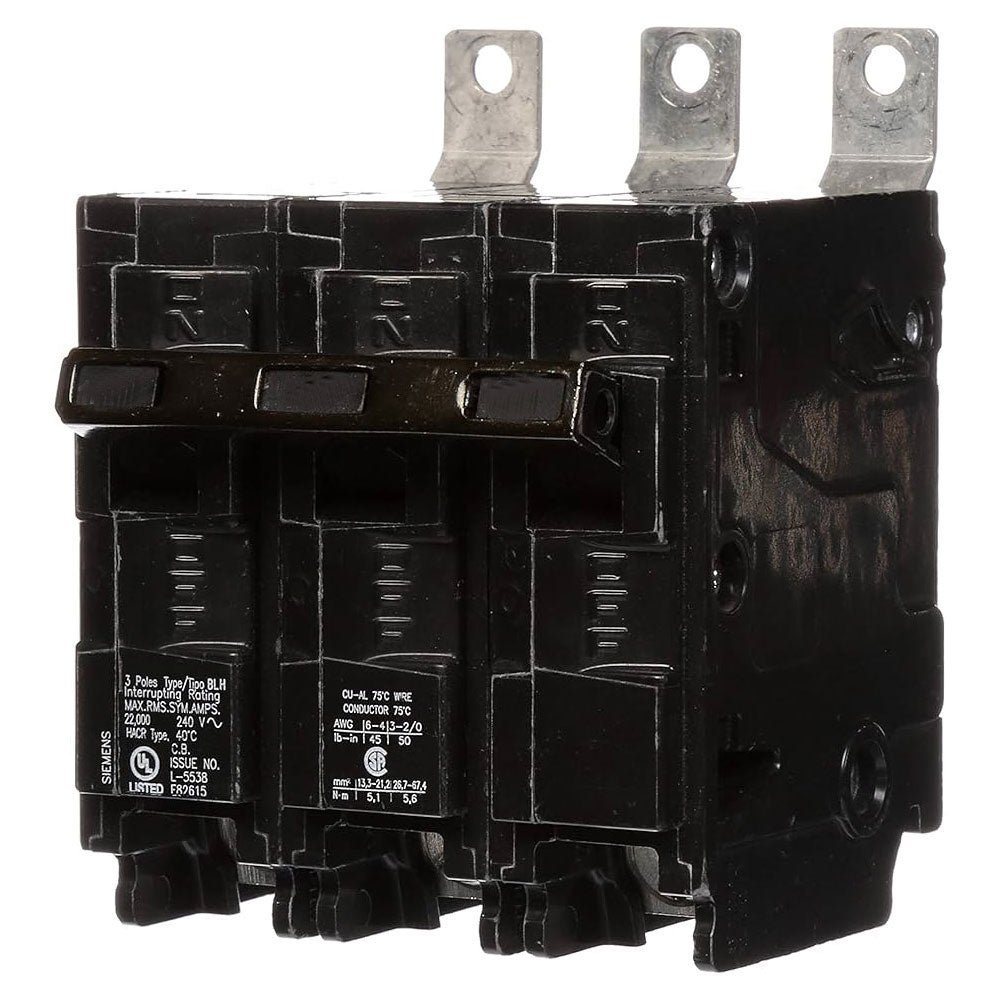

Siemens B315H Molded Case Circuit Breaker | 240V 15A 3P 22kA@240V BL Series

Product Description:
The Siemens B315H is a Molded Case Circuit Breaker designed for reliable electrical protection. It is part of the BL Series family and features a 3-pole configuration with a 240V, 15A rating. This breaker offers thermal magnetic protection and has an AIC rating of 22kA@240V. It uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: B315H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263987
✔ GTIN: 00783643263987
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 3 in x 3 in
✔ Weight: 1
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
