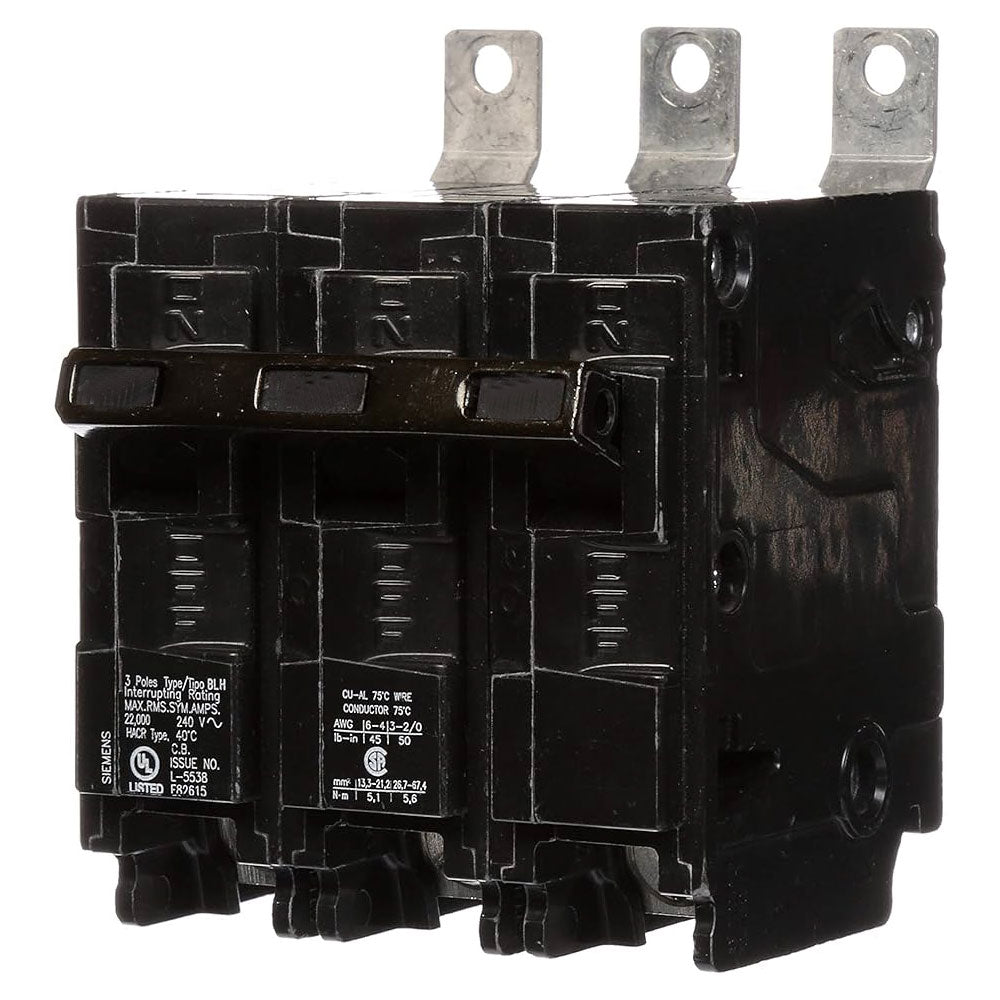

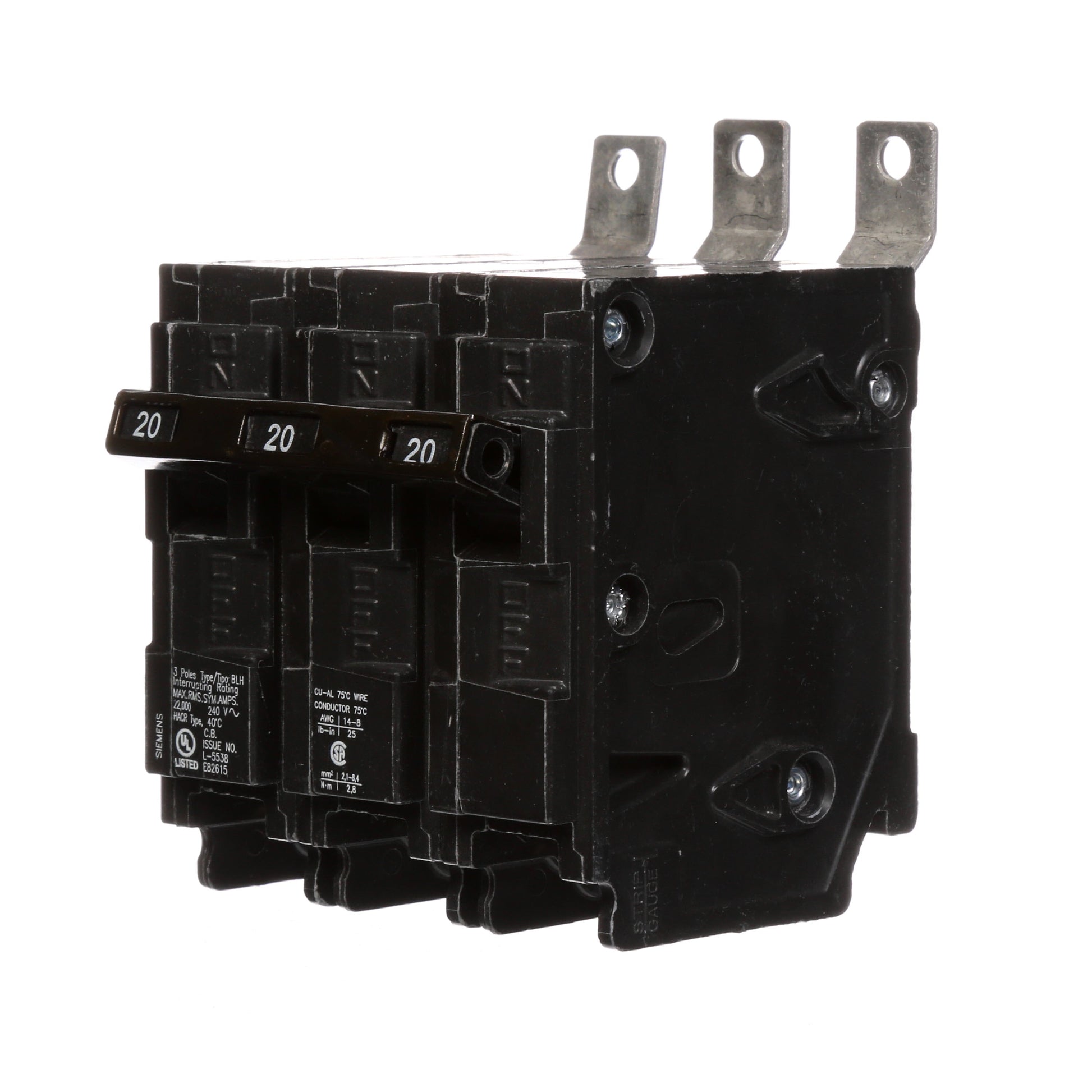

Siemens B320H Circuit Breaker | 240V 20A 3P 22kA@240V Bolt-on BL Series

Product Description:
The Siemens B320H is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 20 amp breaker rated for 240 volts with an interrupting capacity of 22kA. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: B320H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263994
✔ GTIN: 00783643263994
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 3 in x 3 in
✔ Weight: 1 lb
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
