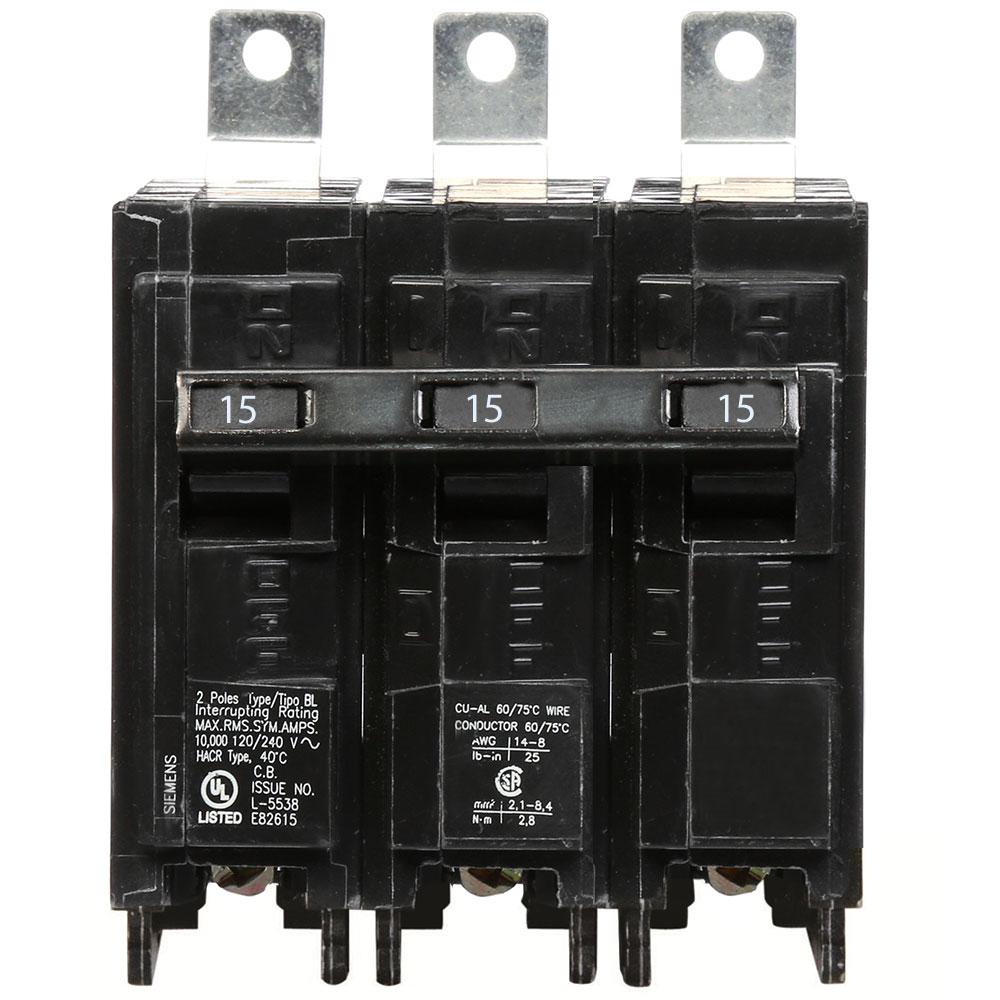

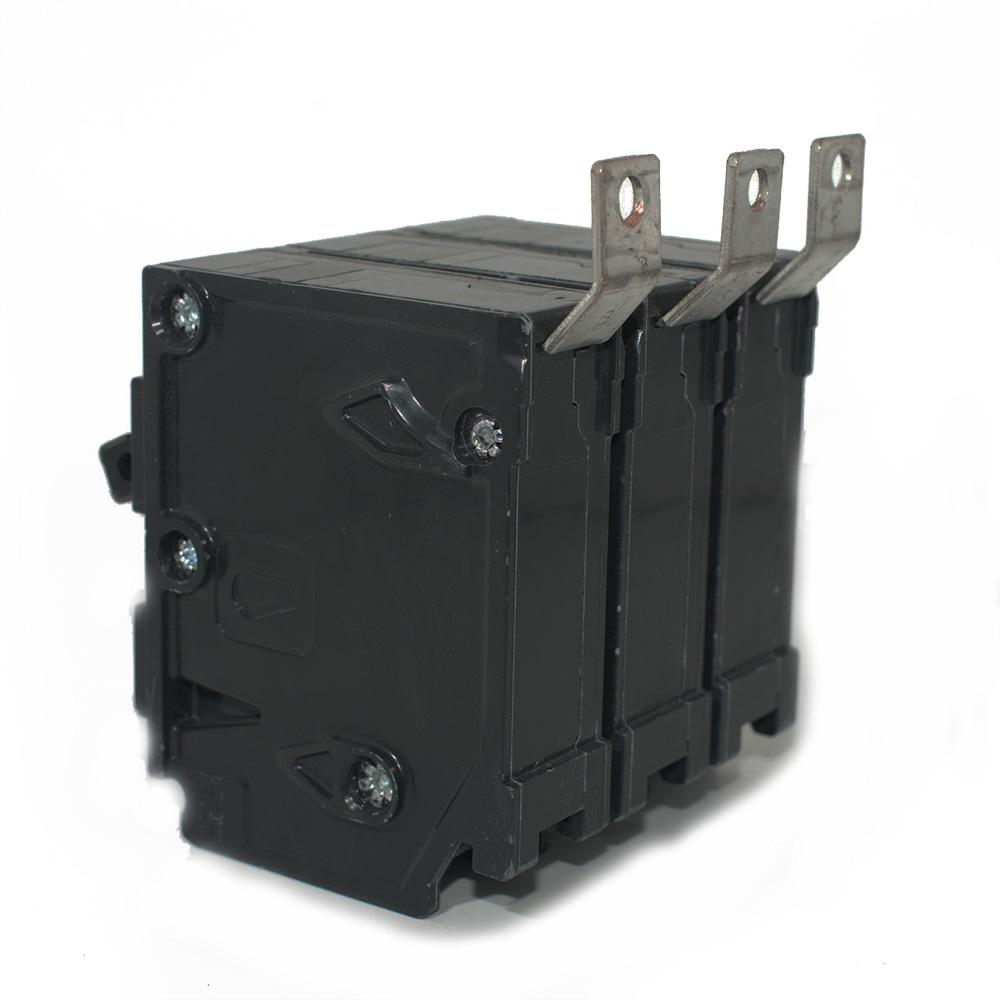

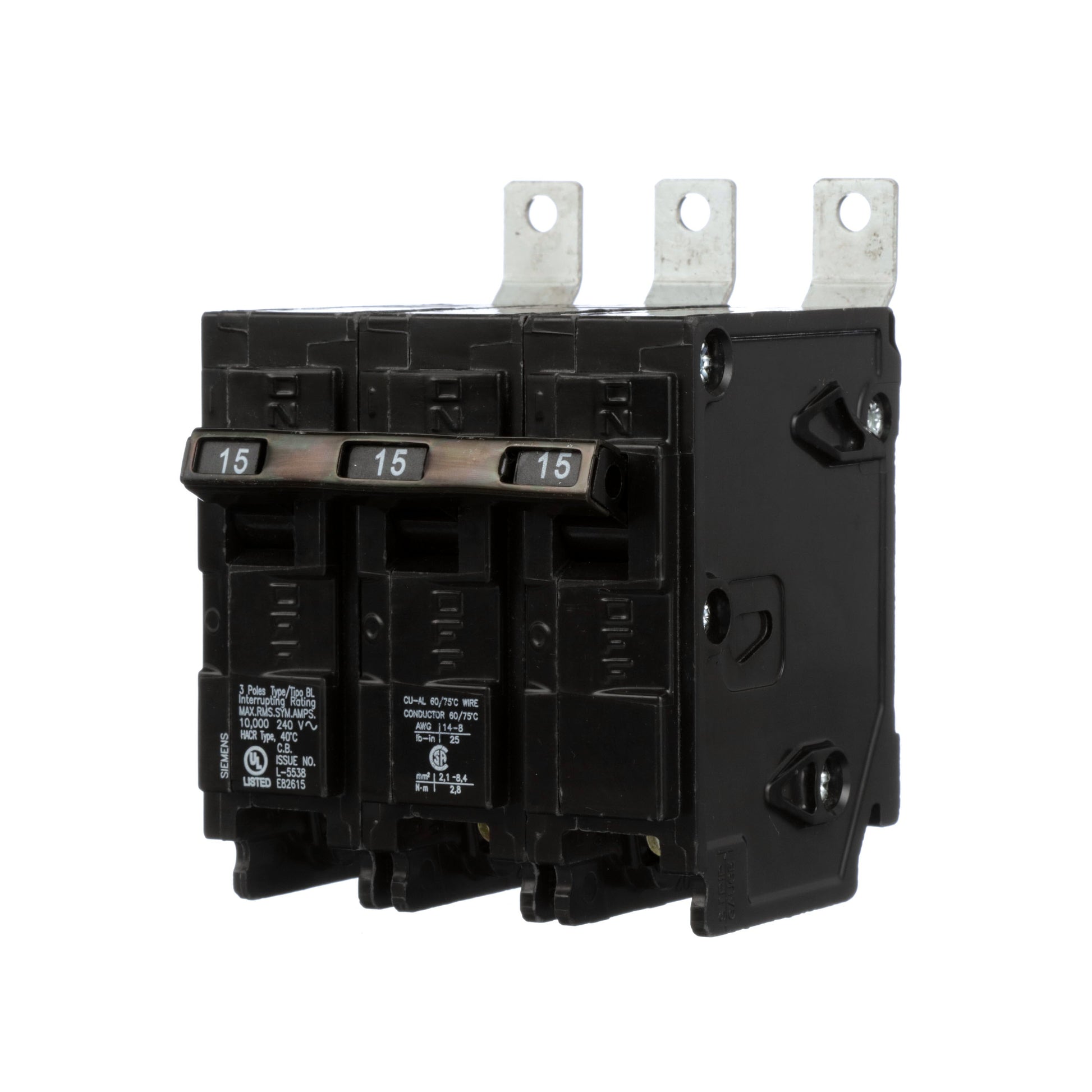

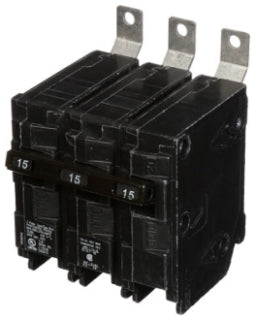

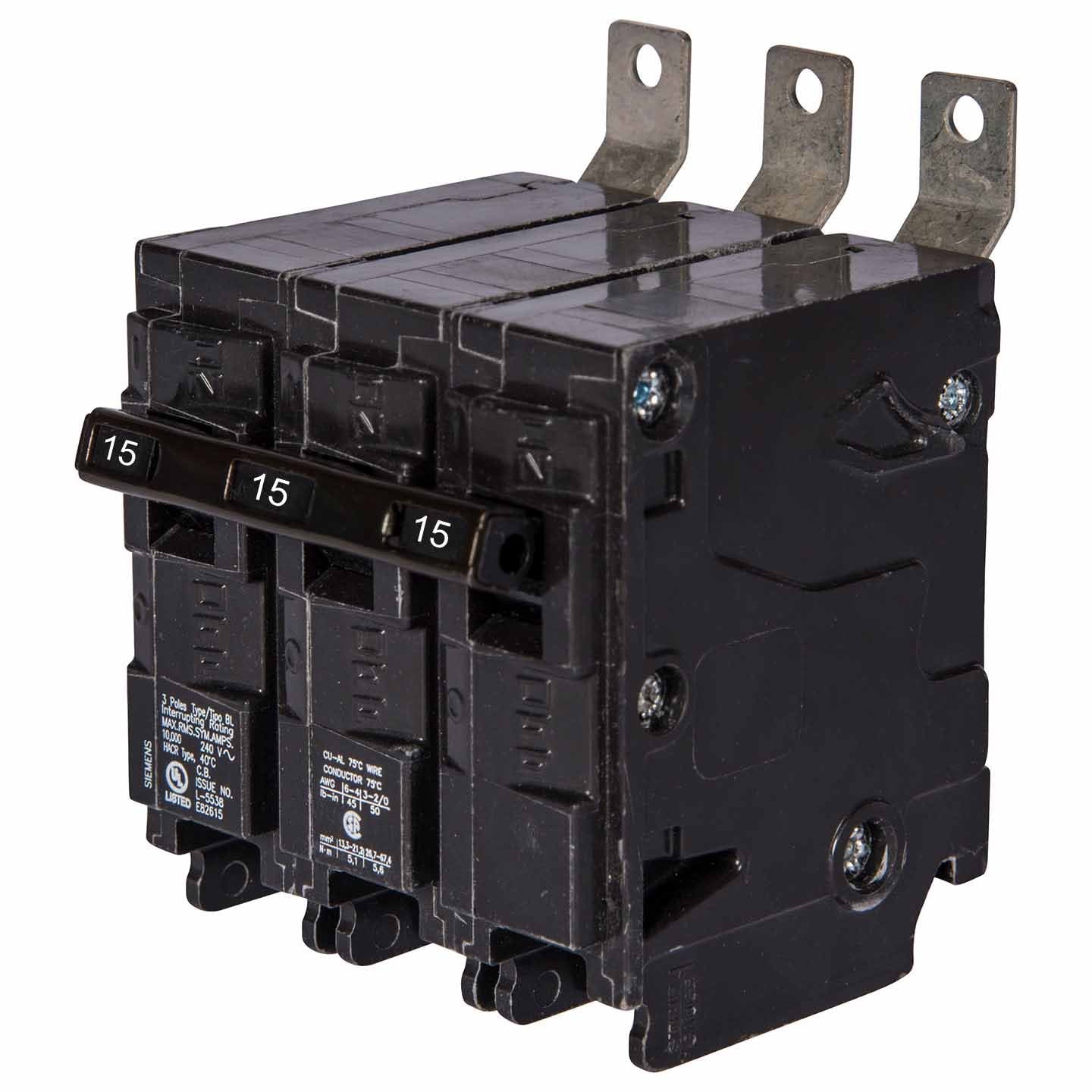

Siemens B315 Molded Case Circuit Breaker | 240V 15A 3P 10kA@240V BL Series

Product Description:
The Siemens B315 is a 3-pole molded case circuit breaker designed for 240V applications with a 15A rating. It features thermal magnetic protection and a bolt-on connection for secure installation. This circuit breaker is part of the BL Series and is suitable for use in Siemens P1 panelboards.

Key Features:
✔ Part Number: B315
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263680
✔ GTIN: 00783643263680
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 3 in x 3 in
✔ Weight: 1 lb
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
