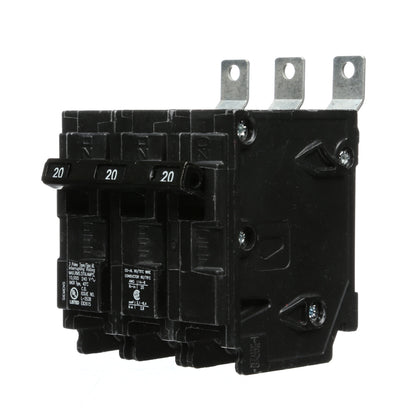

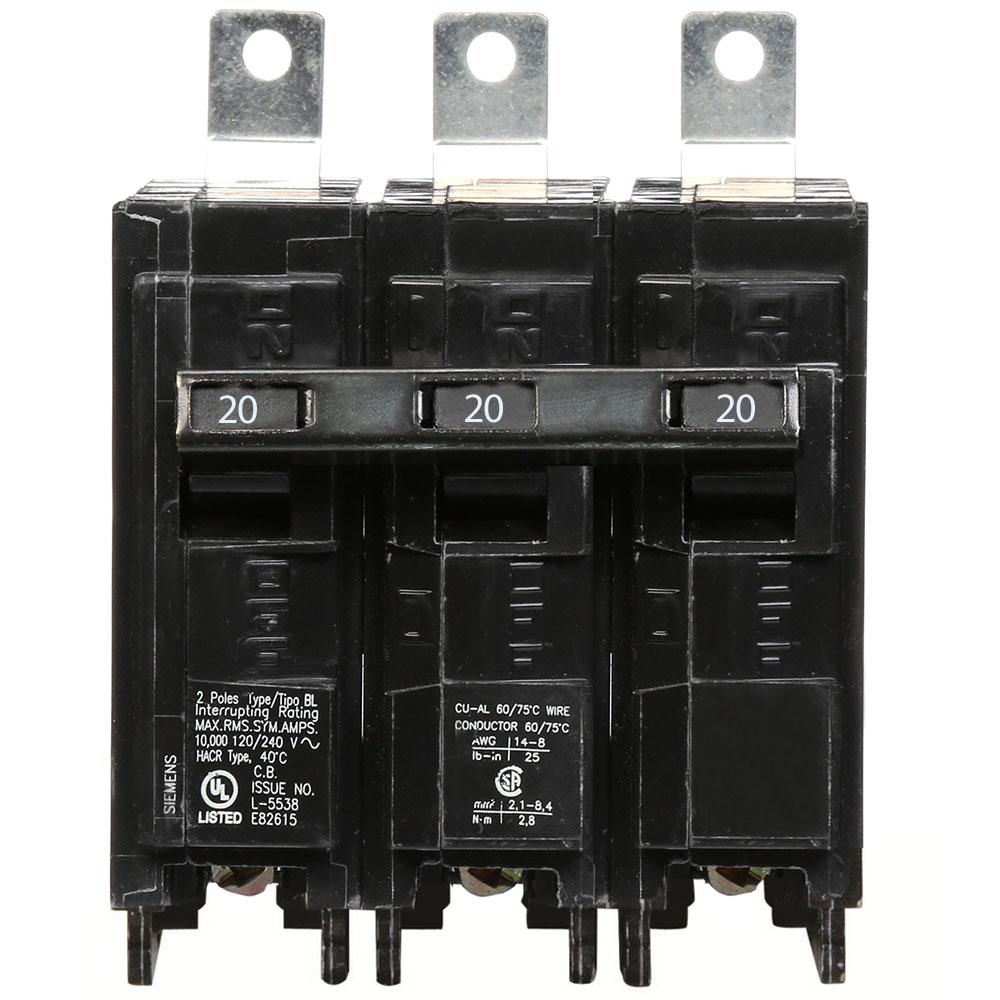

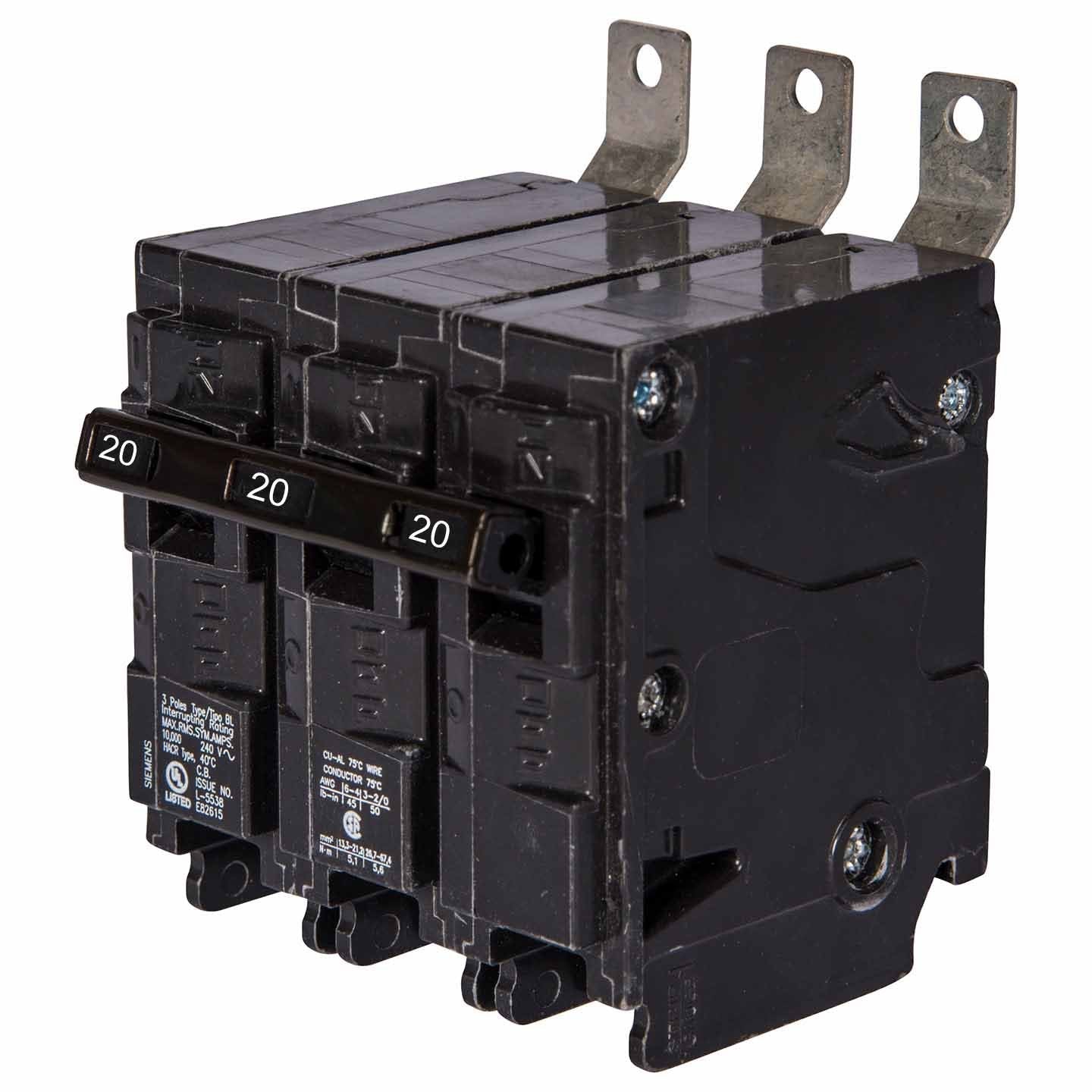

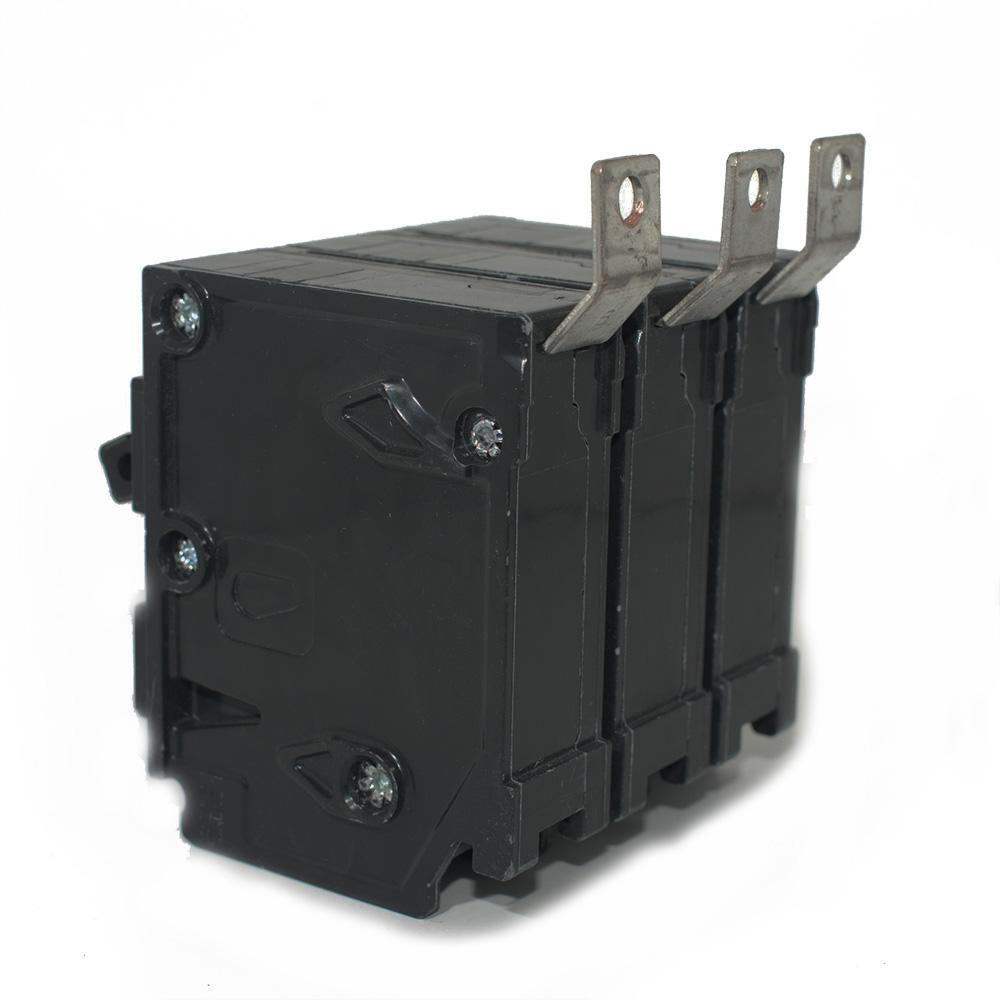

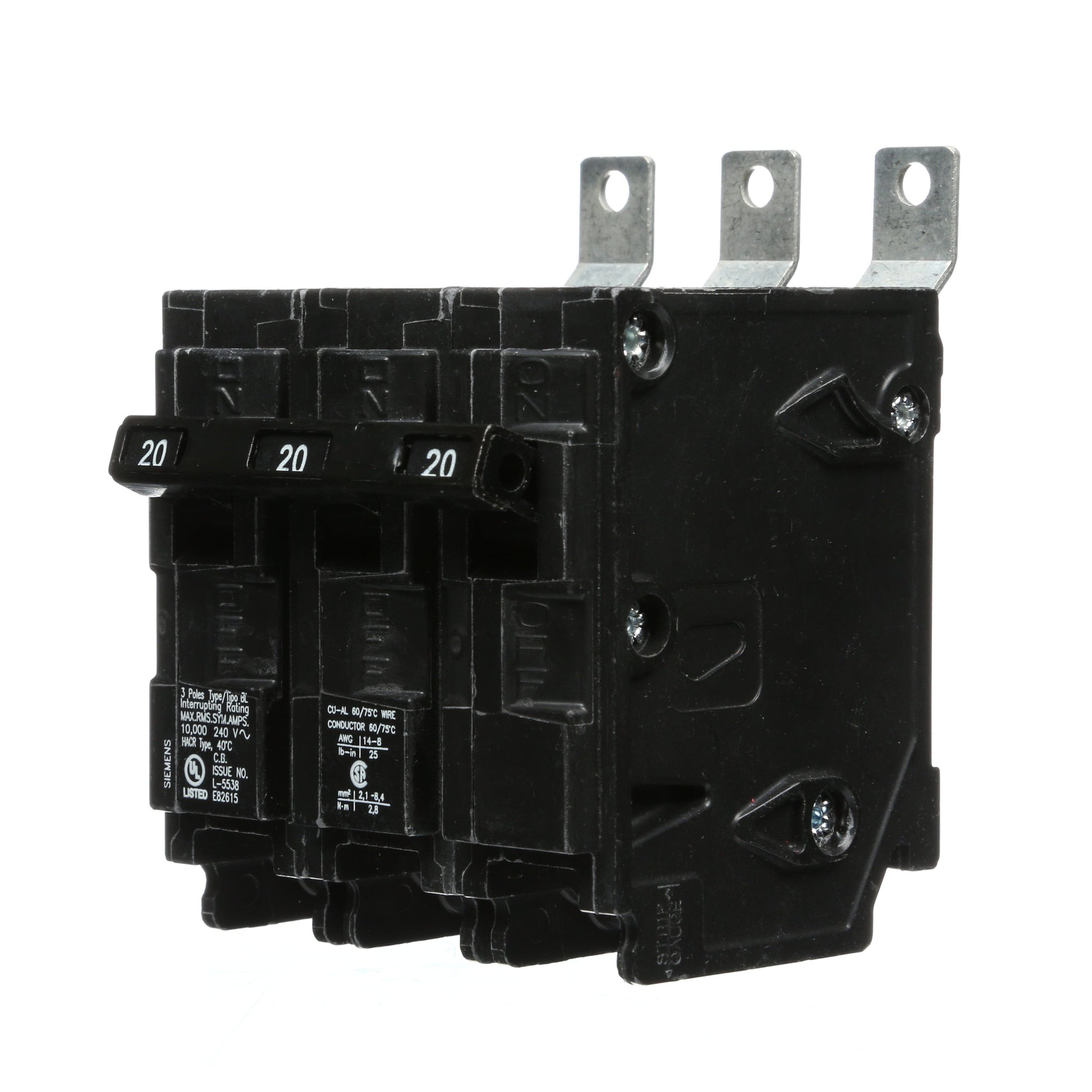

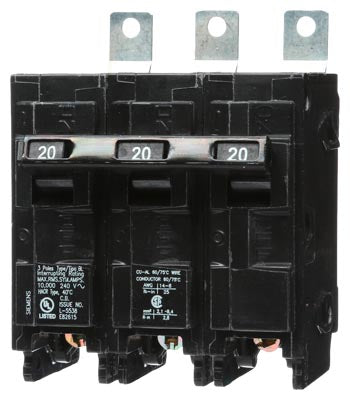

Siemens B320 Molded Case Circuit Breaker | 240V 20A 3P 10kA@240V Bolt-on BL Series
Siemens B320 Molded Case Circuit Breaker | 240V 20A 3P 10kA@240V Bolt-on BL Series
Price:
Sale
Sold out
Regular price
$68.24 USD
Regular price
$719.00 USD
Sale price
$68.24 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Siemens B320 is a Molded Case Circuit Breaker designed for reliable electrical protection. It features a 3-pole configuration with a 240V voltage rating and 20A amperage capacity. This circuit breaker offers thermal magnetic protection and is suitable for use in Siemens P1 panelboards. It meets industry standards including UL listing and HACR rating.
Key Features:
✔ Part Number: B320
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263697
✔ GTIN: 00783643263697
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 3 in x 3 in
✔ Weight: 1 lb
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
