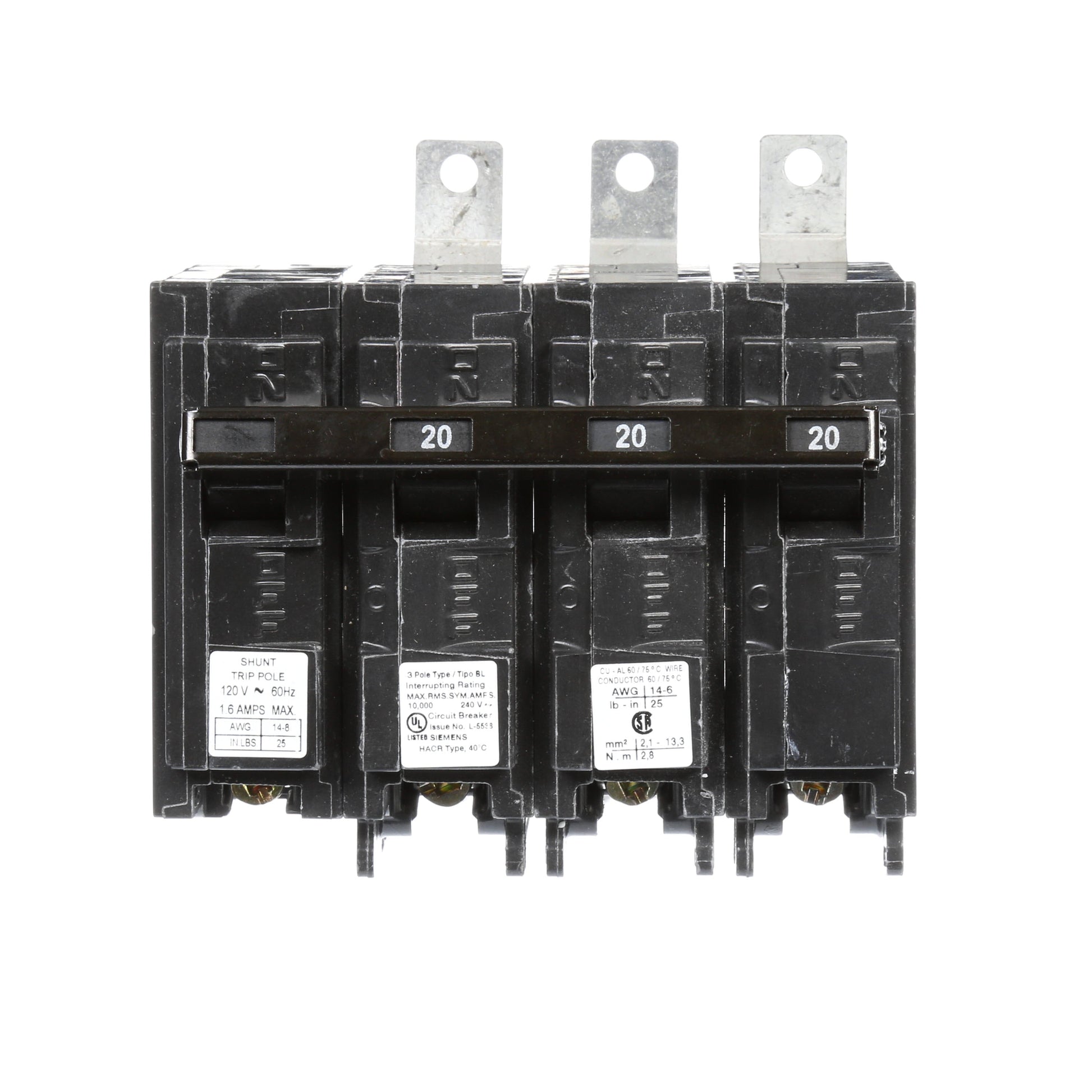

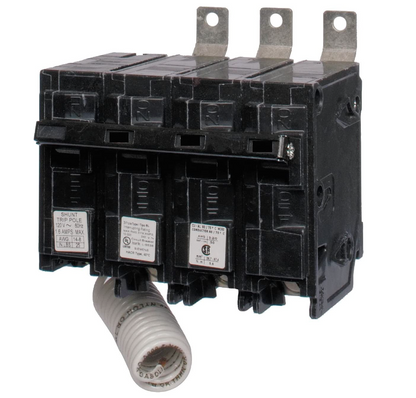

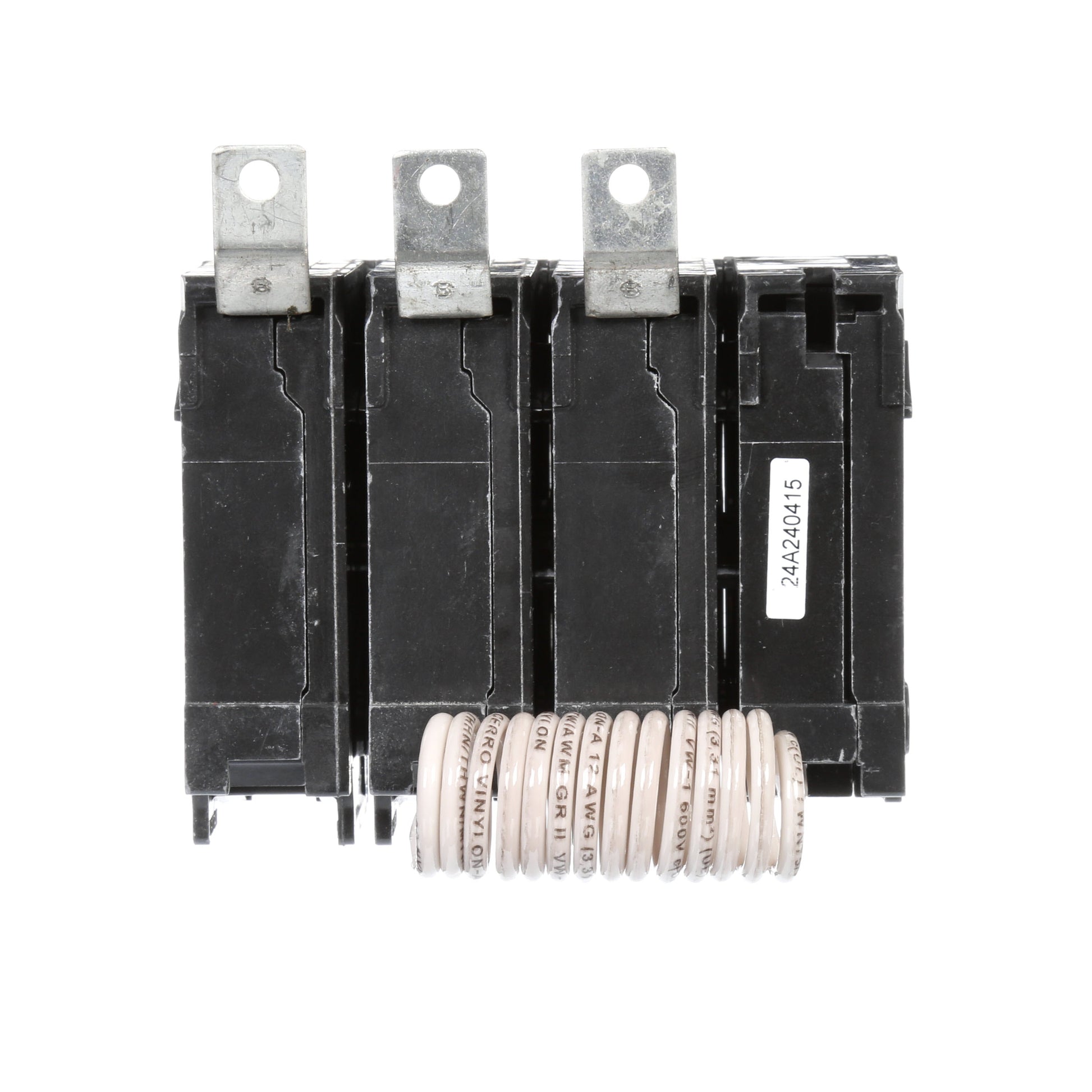

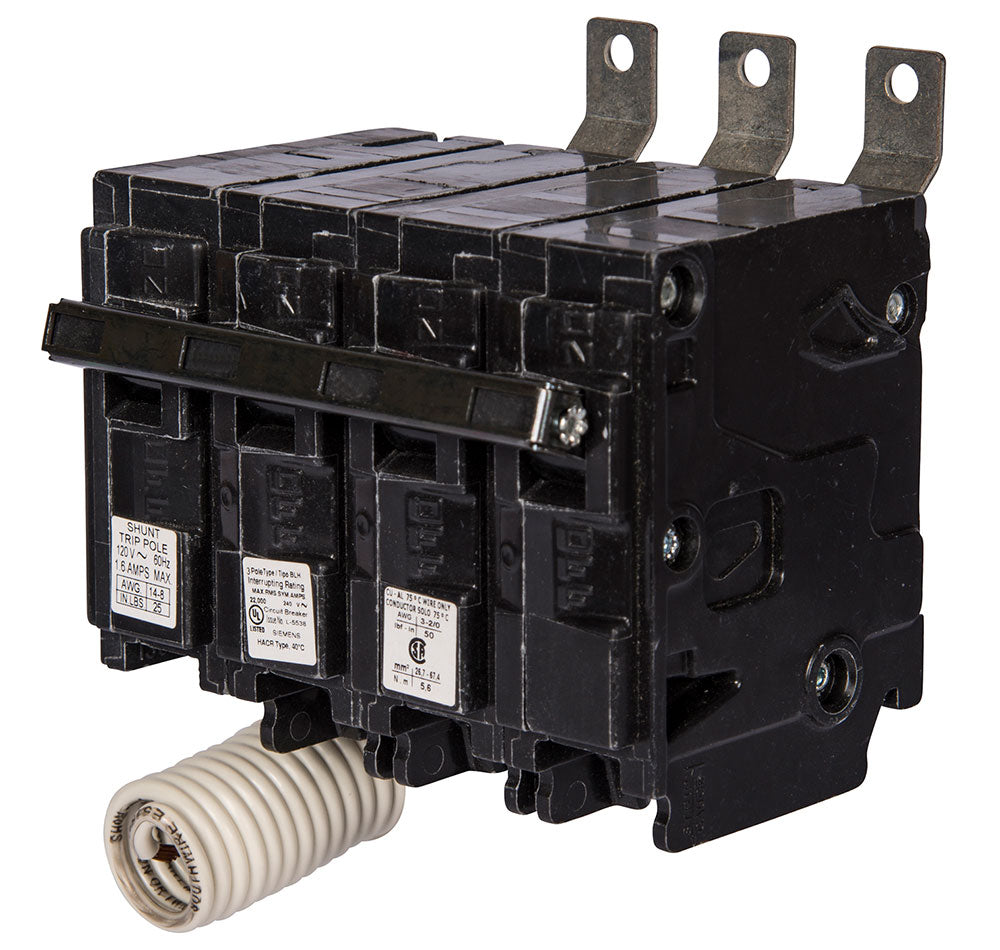

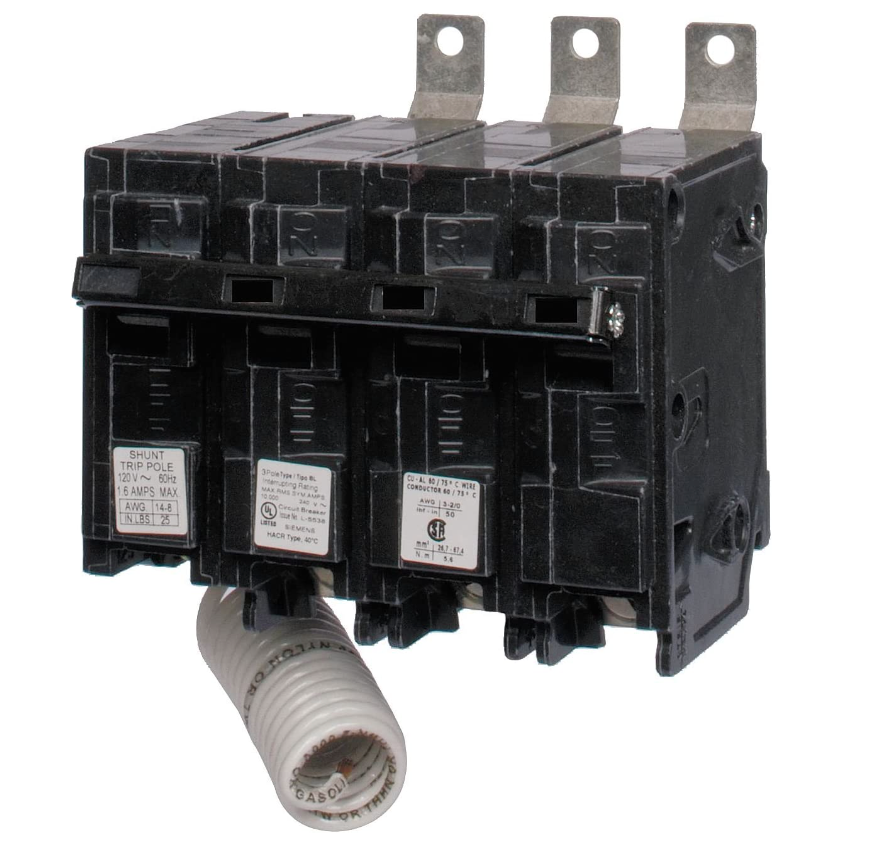

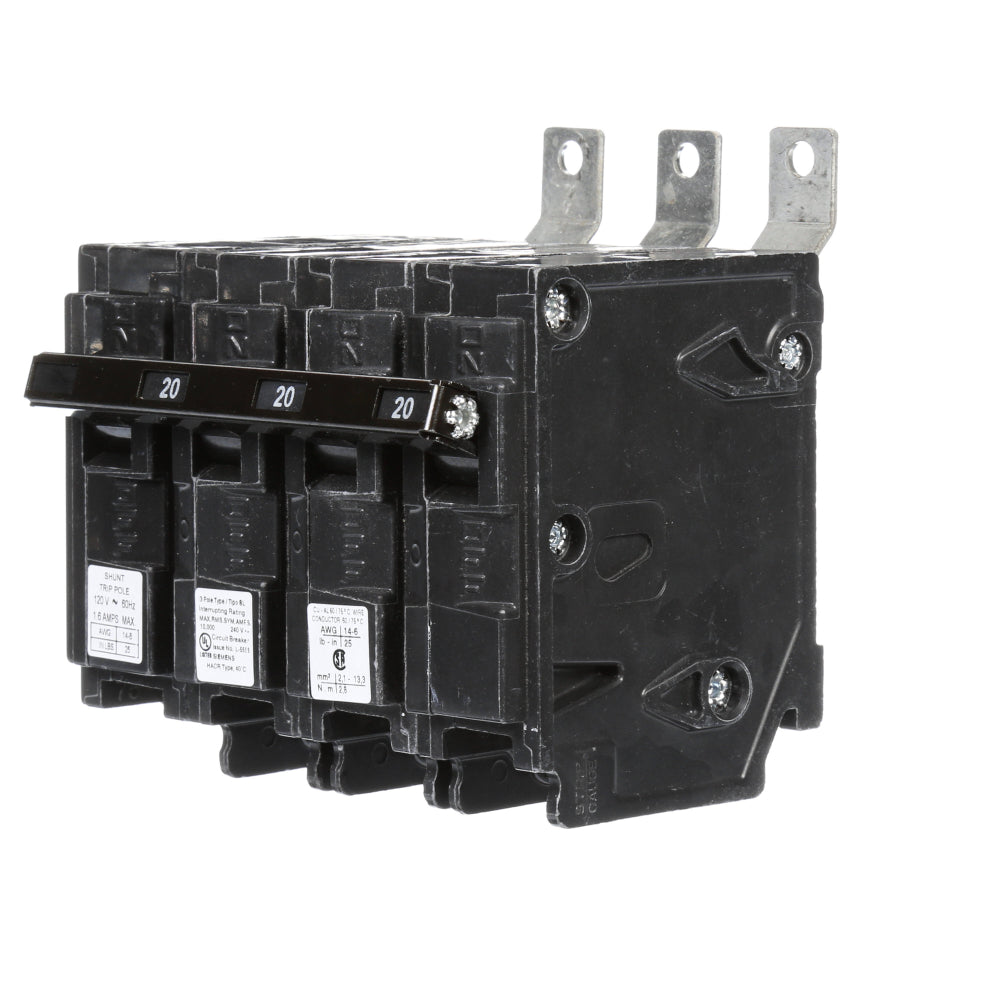

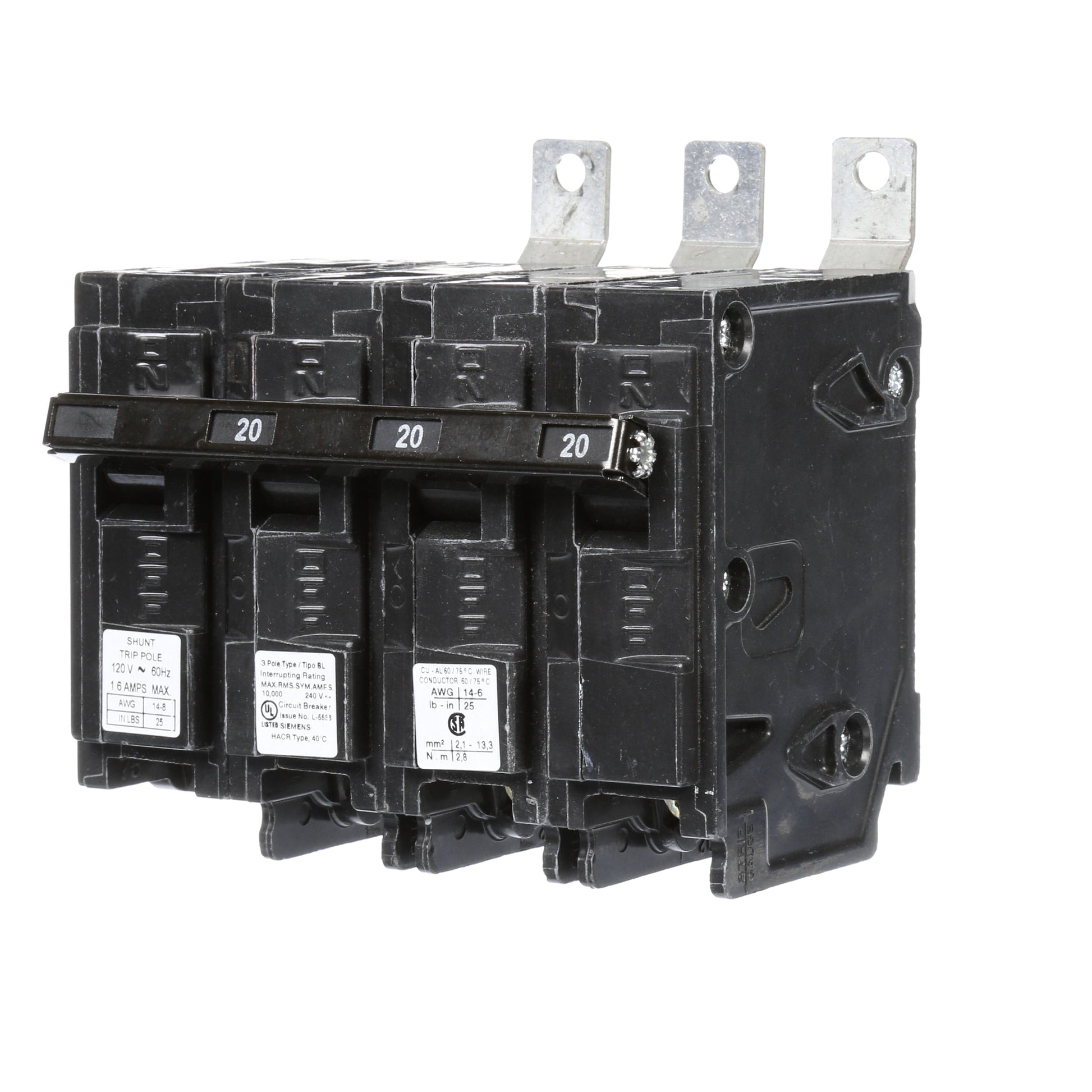

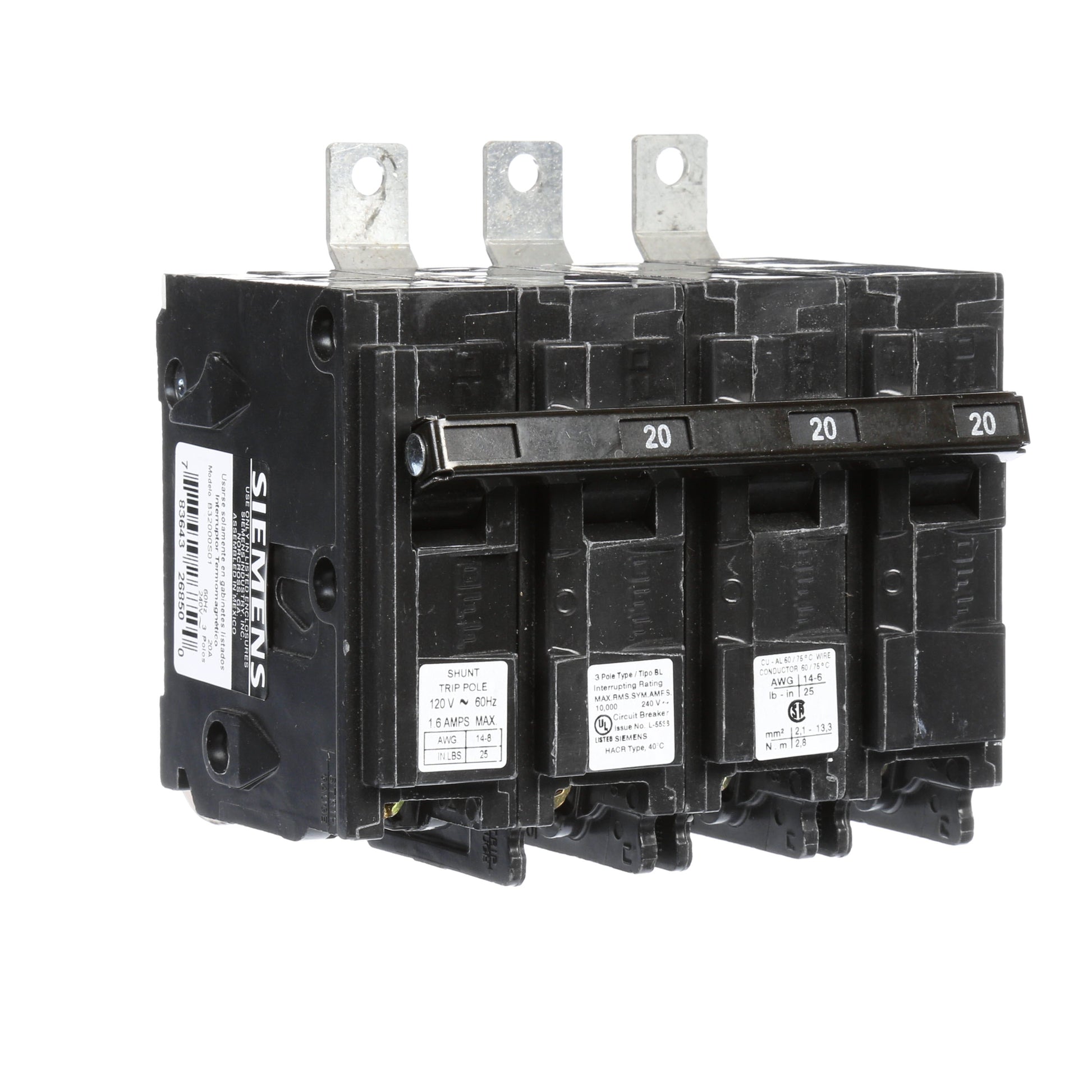

Siemens B32000S01 Molded Case Circuit Breaker | 240V 20A 3P 10kA@240V Bolt-on BL Series

Product Description:
The Siemens B32000S01 is a molded case circuit breaker designed for reliable electrical protection in industrial and commercial settings. It features thermal magnetic protection and is rated for 240V and 20 amps with a 10kA interrupting capacity. This 3-pole breaker uses a bolt-on connection for secure installation and is part of the trusted BL Series family.

Key Features:
✔ Part Number: B32000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268500
✔ GTIN: 00783643268500
✔ Country of Origin: Mexico
✔ Dimensions: 4.4 in x 3.8 in x 3.8 in
✔ Weight: 1.5
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
