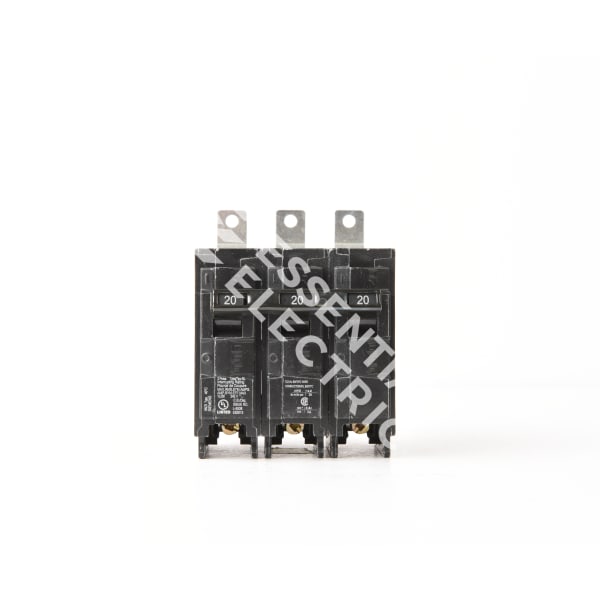

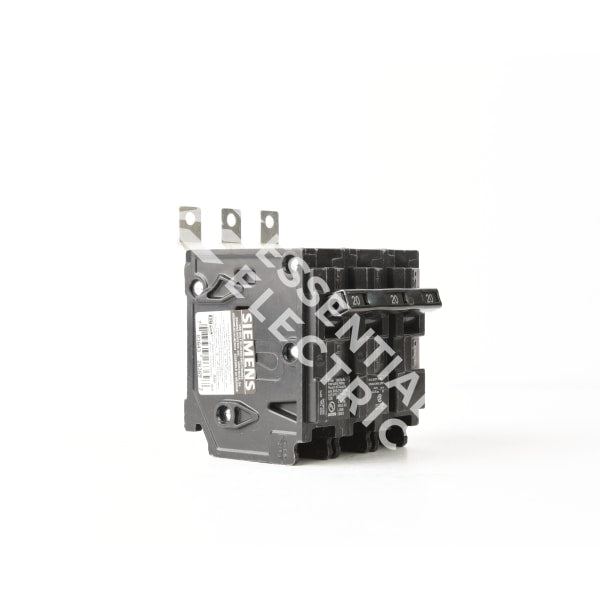

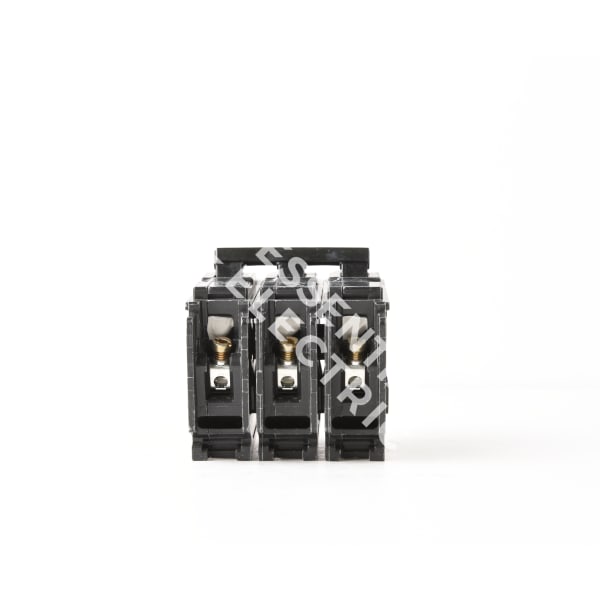

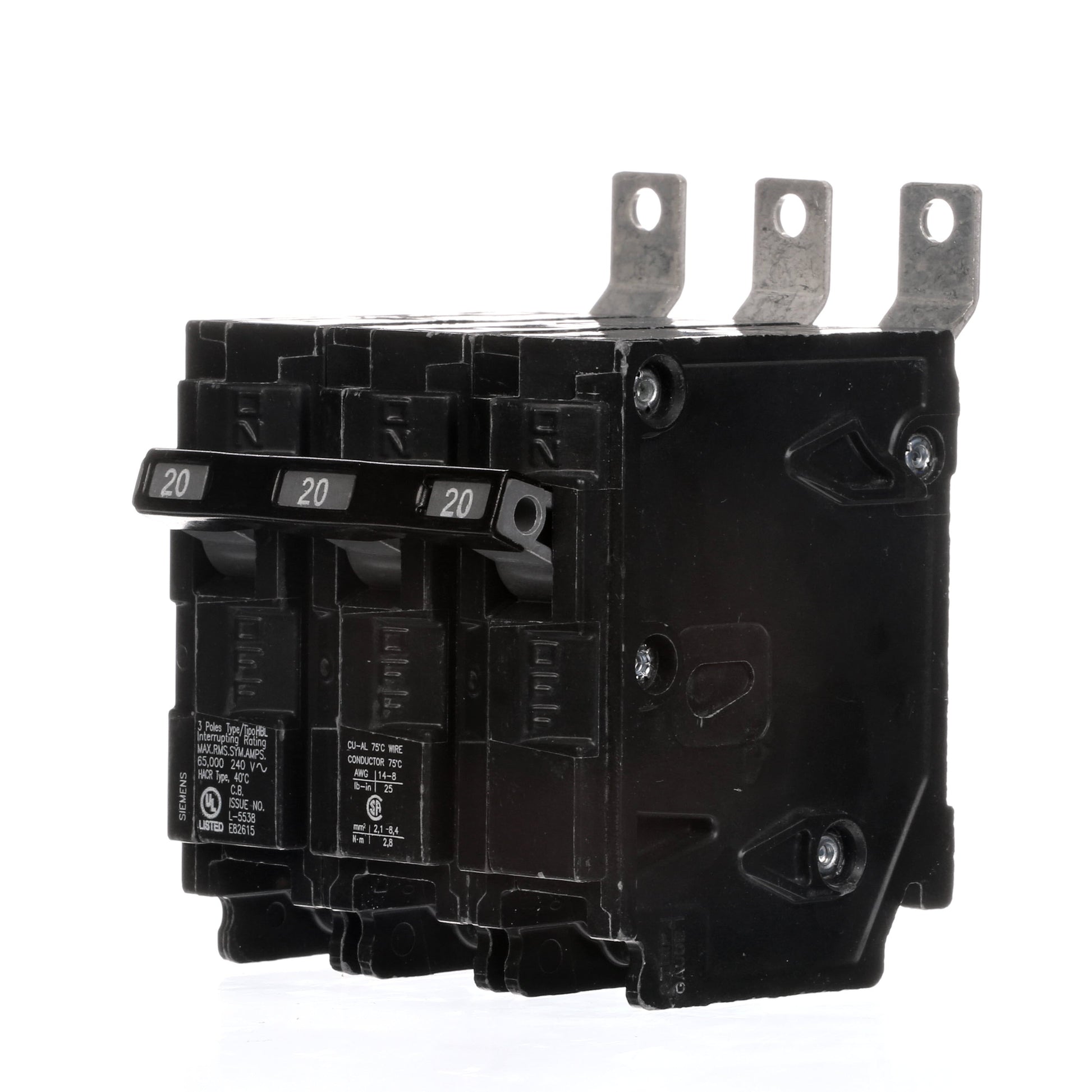

Siemens B320HH Molded Case Circuit Breaker | 240V 20A 3P 65kA@240V Bolt-on BL Series

Product Description:
The Siemens B320HH is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 20 amp breaker rated for 240 volts with an AIC rating of 65kA@240V. This model features thermal magnetic protection and a bolt-on connection type for secure installation.

Key Features:
✔ Part Number: B320HH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643264212
✔ GTIN: 00783643264212
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 2 in x 2 in
✔ Weight: 1.06
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
