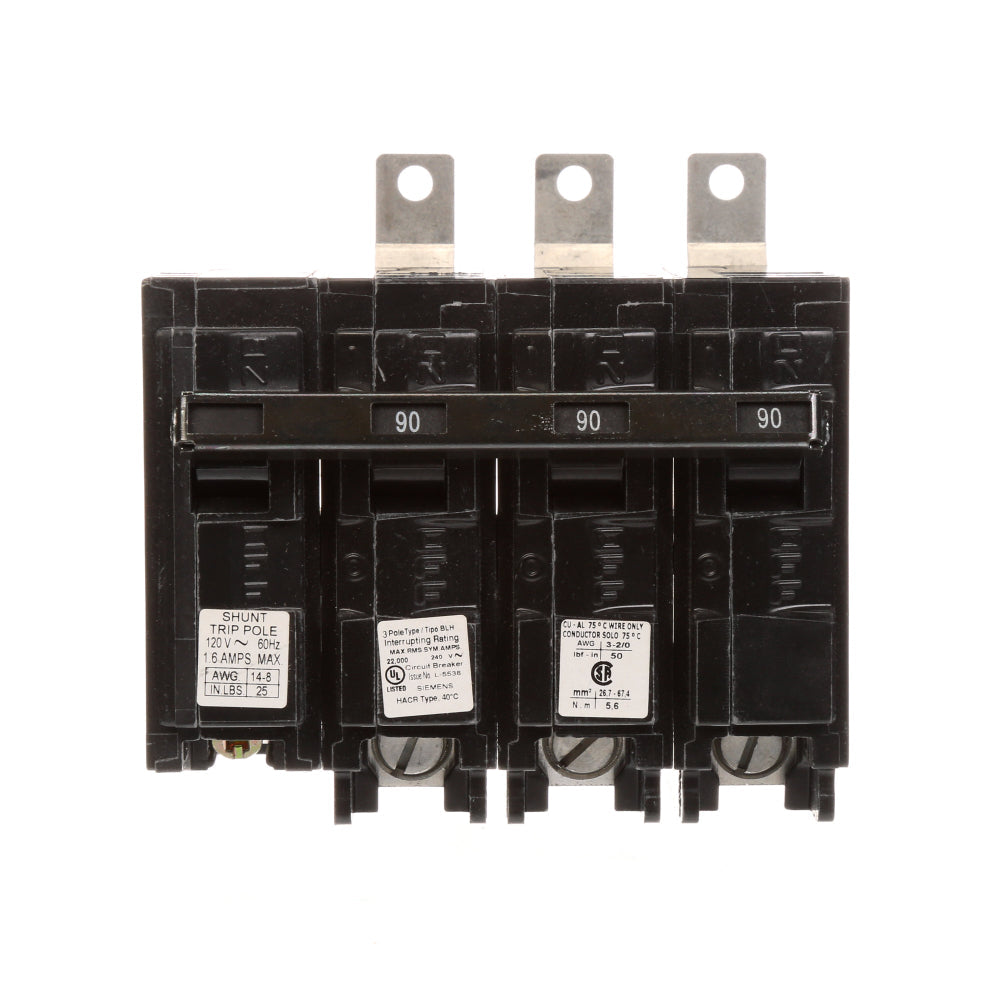

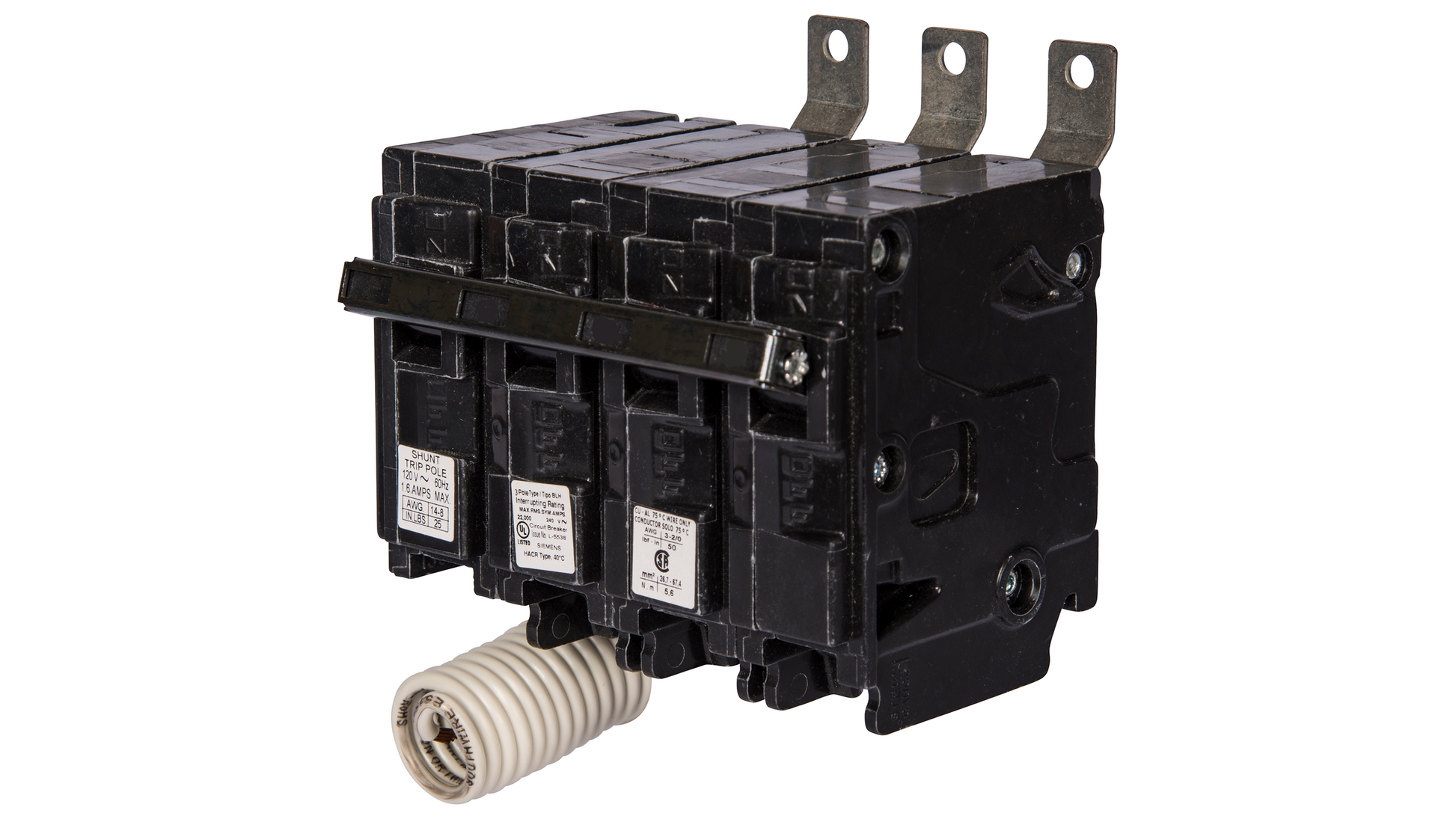

Siemens B390H00S01 Molded Case Circuit Breaker 240V 90A 3P 22kA@240V Bolt-on BL Series

Product Description:
The Siemens B390H00S01 is a molded case circuit breaker designed for reliable electrical protection in industrial and commercial applications. It features a 3-pole configuration with a 240V voltage rating and 90A amperage capacity. This circuit breaker includes thermal magnetic protection and a bolt-on connection for secure installation. It is complete with a 120V shunt trip function for enhanced control.

Key Features:
✔ Part Number: B390H00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643269026
✔ GTIN: 00783643269026
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 4 in x 4 in
✔ Weight: 1.61
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
