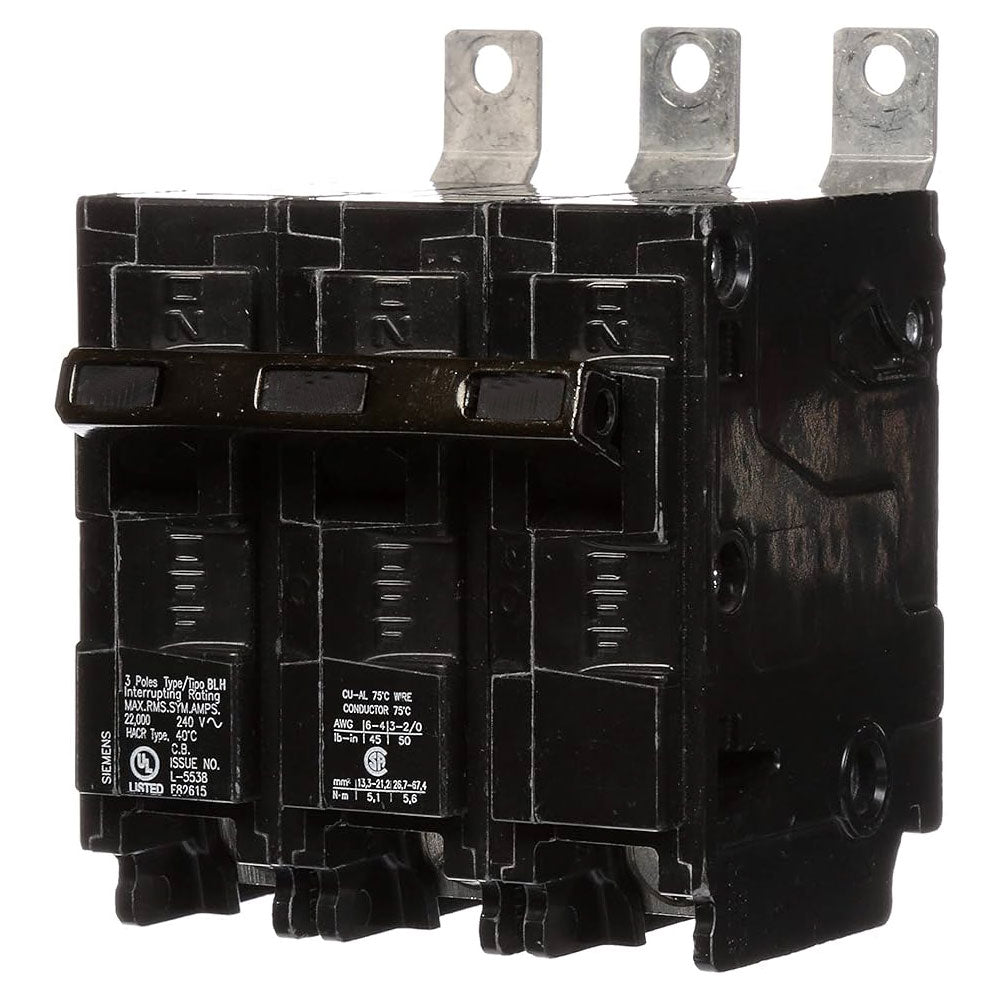

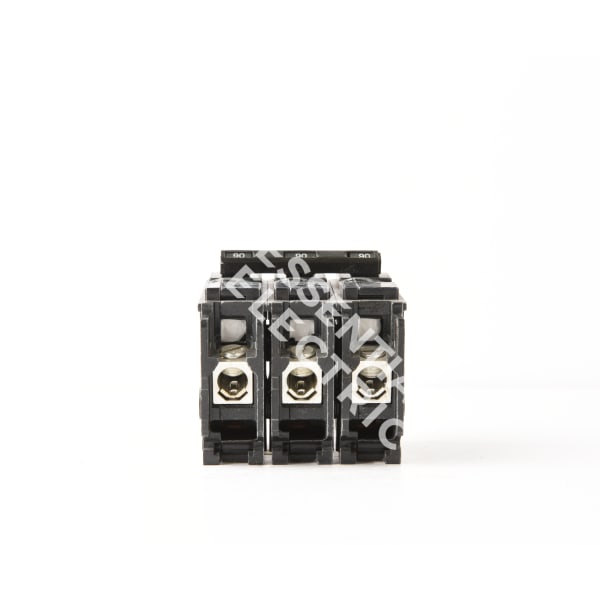

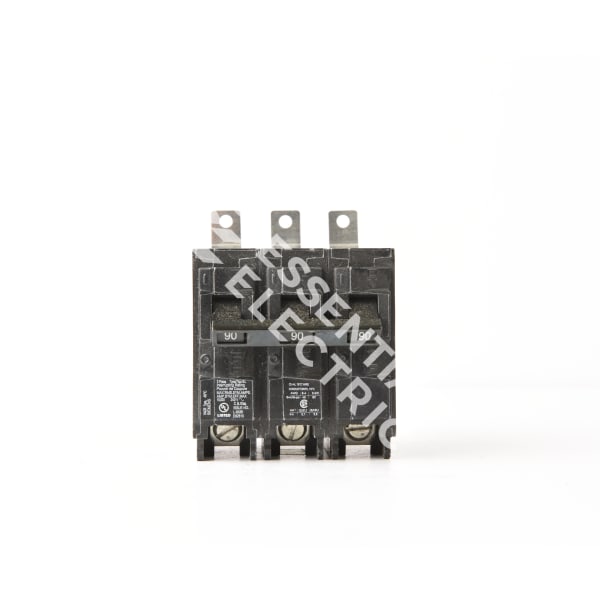

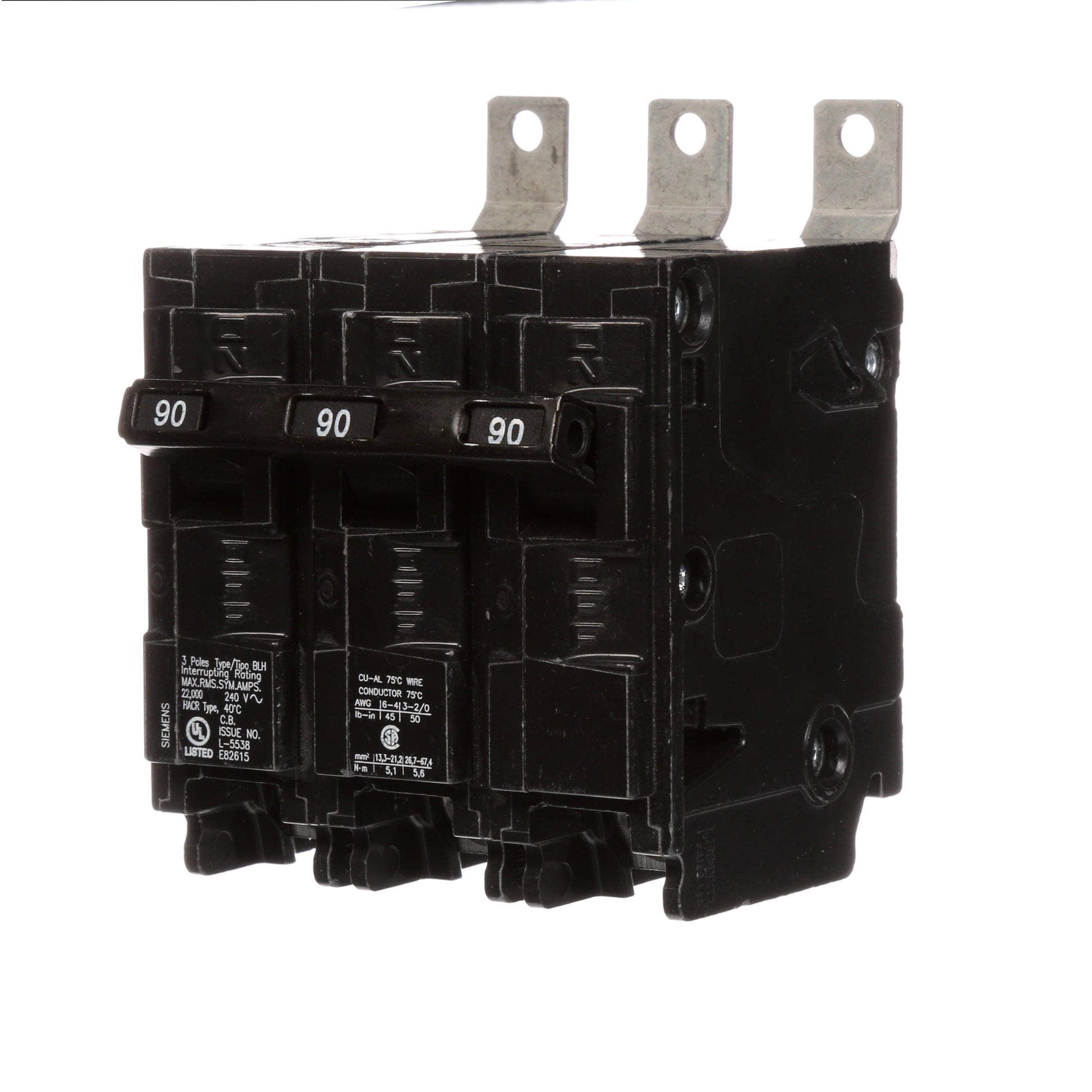

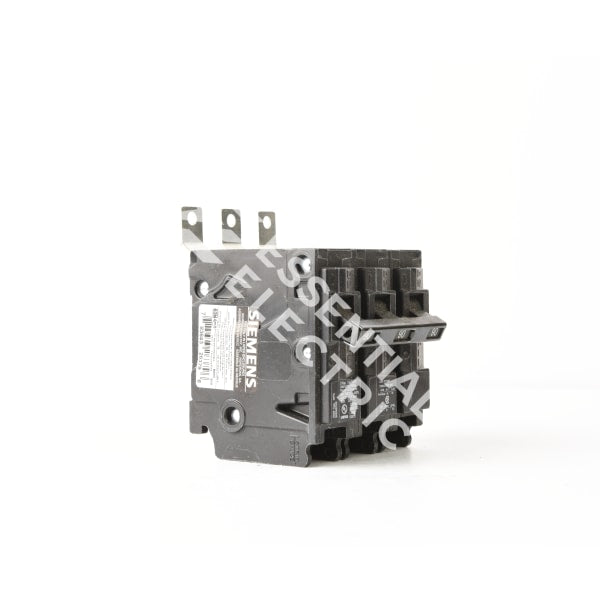

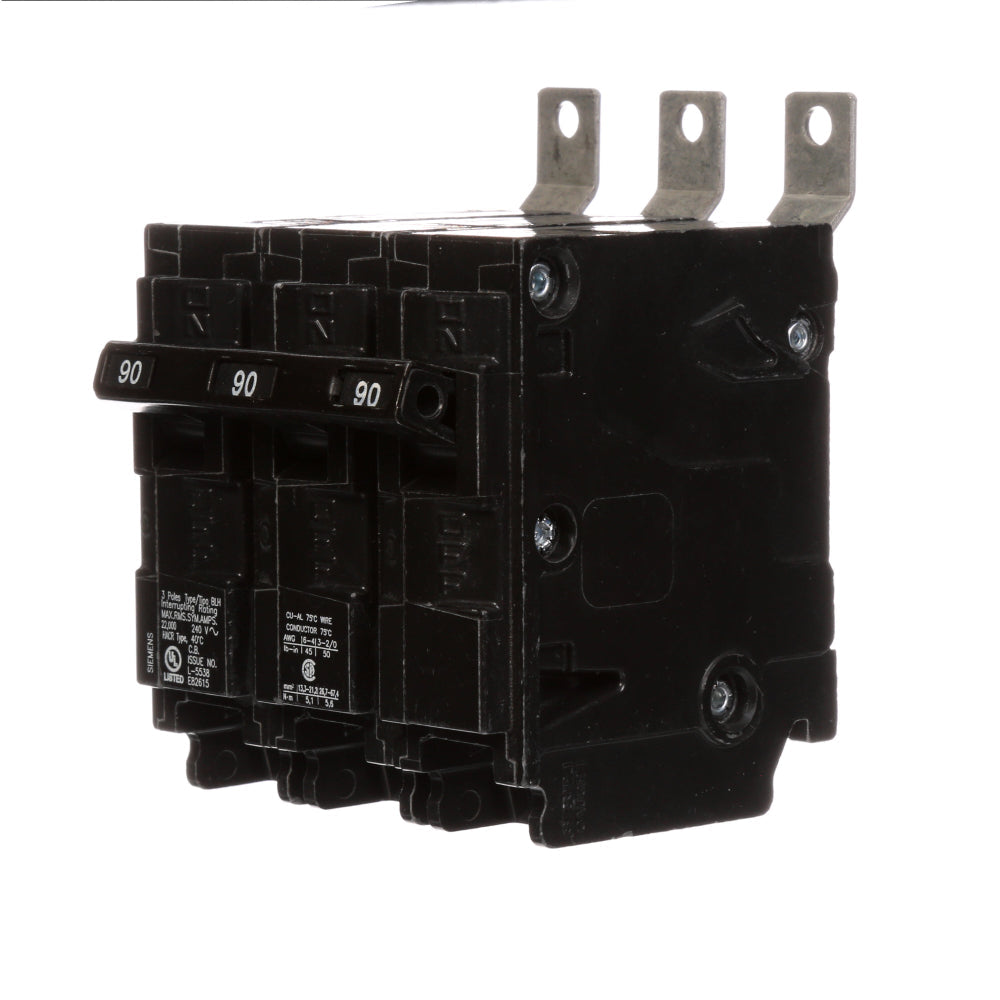

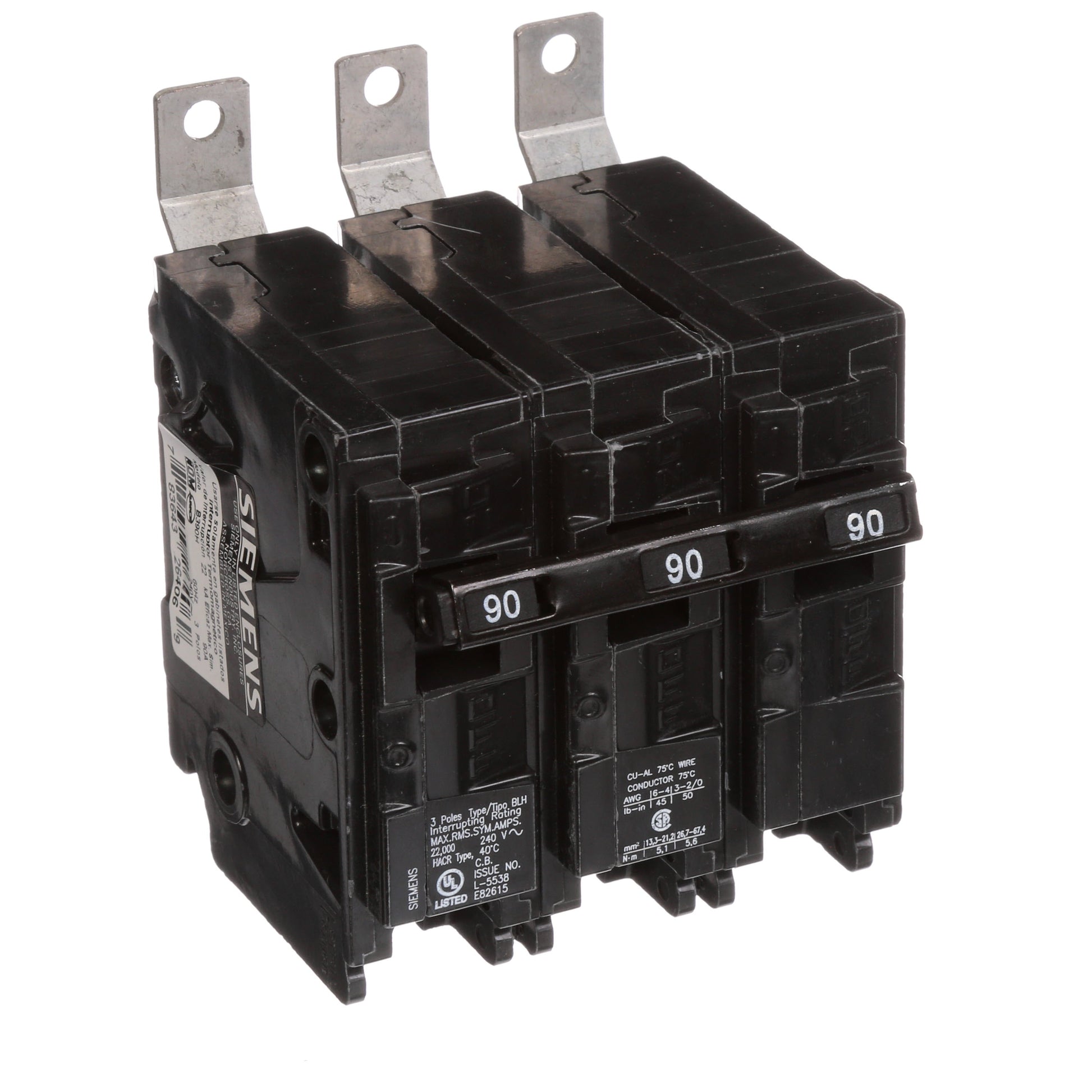

Siemens B390H Circuit Breaker | 240V 90A 3P 22kA@240V Bolt-on BL Series

Product Description:
The Siemens B390H is a Molded Case Circuit Breaker from the BL Series family, designed as a Type BLH model. It is a 3-pole breaker rated for 240 volts and 90 amps, with an interrupting capacity of 22kA at 240V. This circuit breaker features bolt-on connections and provides thermal magnetic protection for reliable operation.

Key Features:
✔ Part Number: B390H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643264069
✔ GTIN: 00783643264069
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 4 in x 4 in
✔ Weight: 1.08
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
