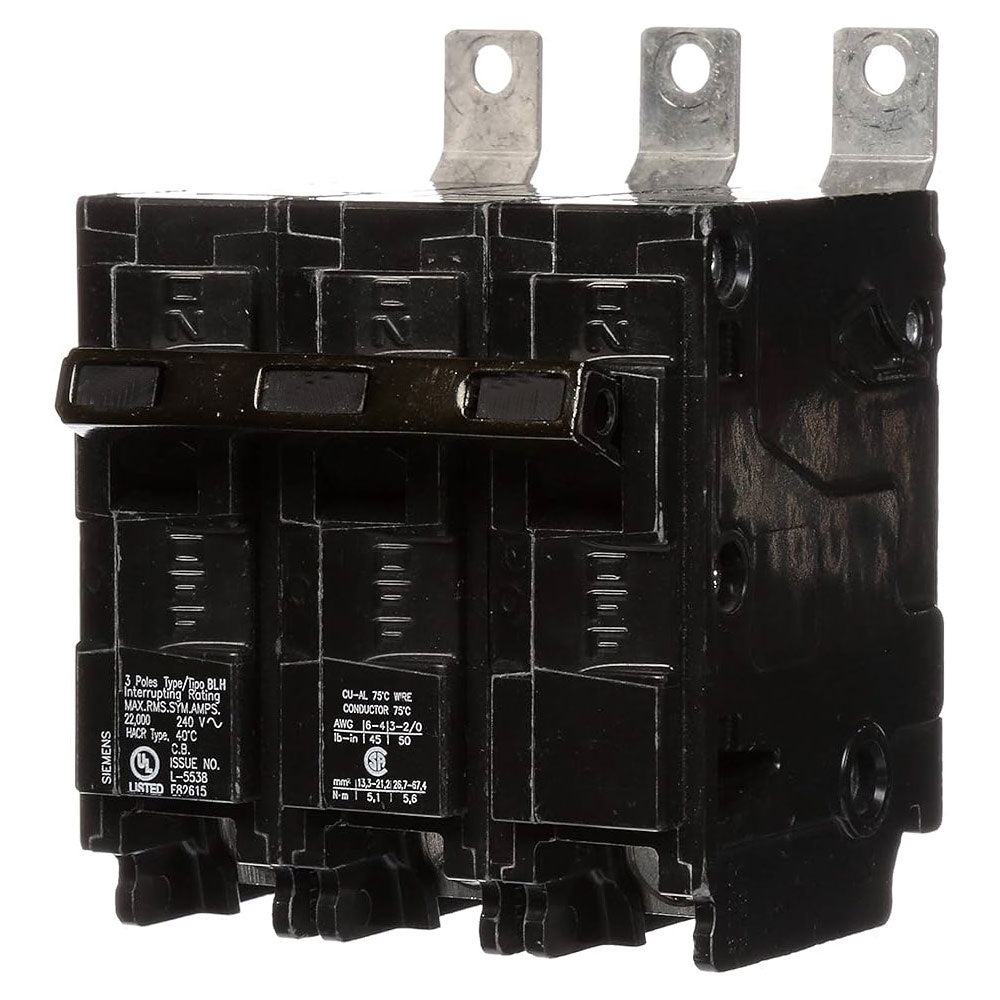

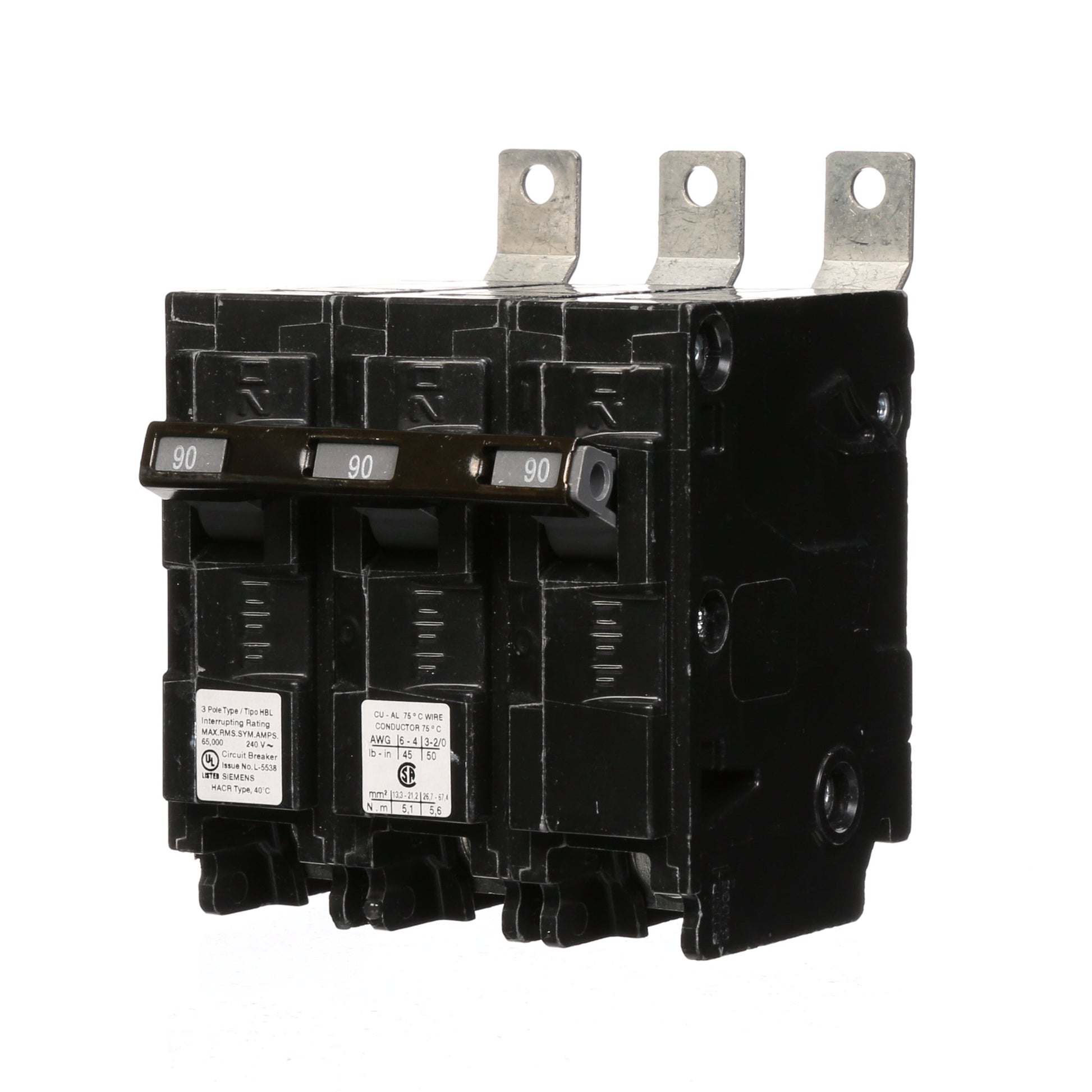

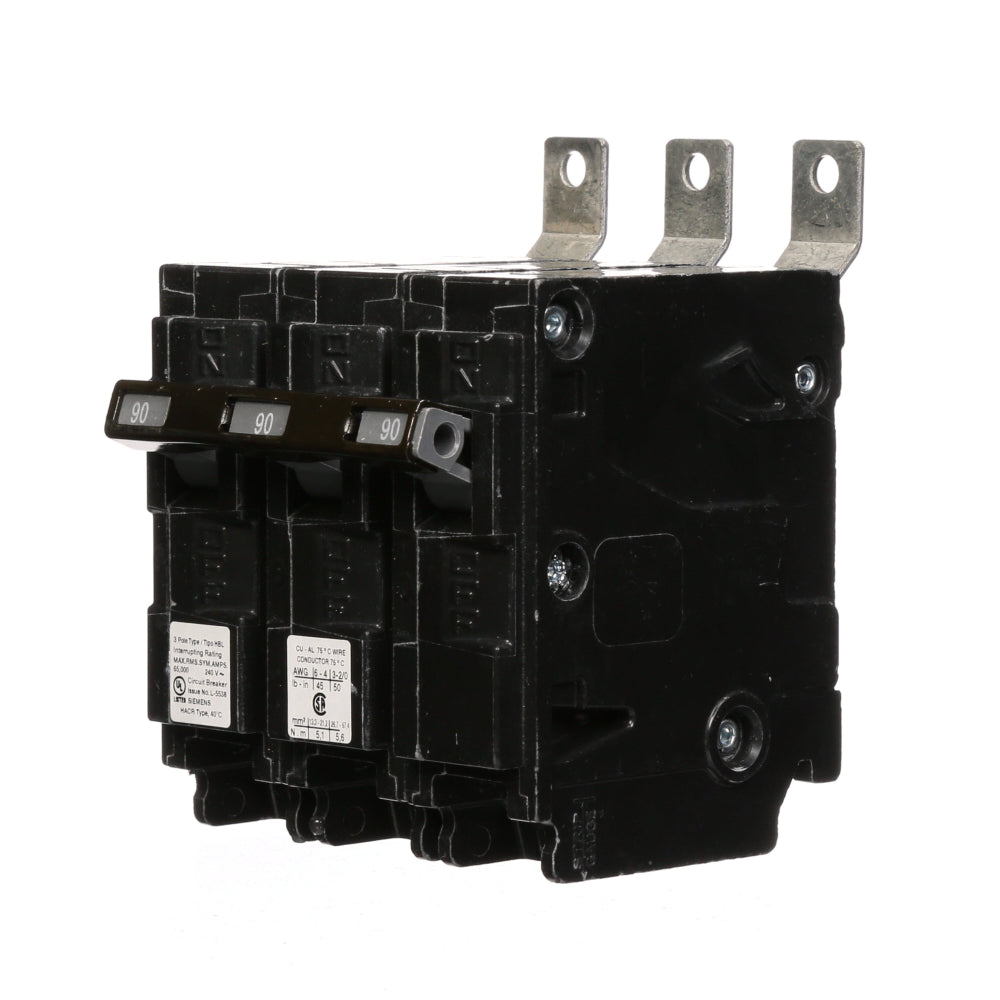

Siemens B390HH Circuit Breaker | 240V 90A 3P 65kA@240V BL Series

Product Description:
The Siemens B390HH is a molded case circuit breaker designed for reliable electrical protection. It features a 3-pole configuration with a 240V voltage rating and 90A amperage capacity. This HBL type breaker offers thermal magnetic protection and is part of the BL Series family. It is suitable for use in various industrial and commercial applications.

Key Features:
✔ Part Number: B390HH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/HBL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643264281
✔ GTIN: 00783643264281
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 3 in x 3 in
✔ Weight: 1.08
✔ Panel Type: P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
