Siemens B390HH00S01 Circuit Breaker | BL Series HBL 240V 90A

Product Description:

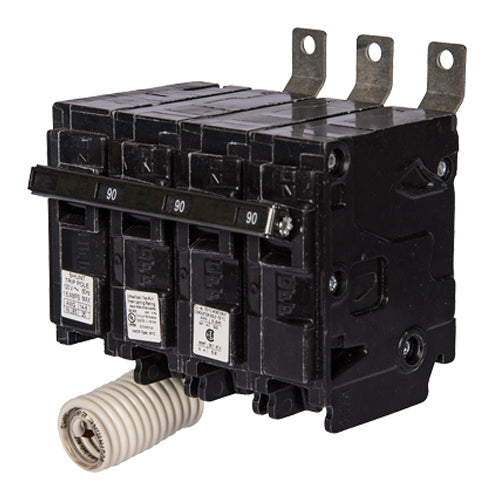

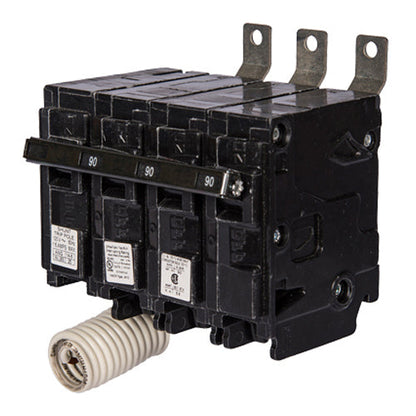

The Siemens B390HH00S01 is a Molded Case Circuit Breaker from the BL Series. It features a 3-pole design with a 240V, 90A rating and a 65kA@240V AIC rating. This breaker includes thermal magnetic protection and a bolt-on connection. It also comes with a 120V shunt trip for added functionality.

Key Features:
✔ Part Number: B390HH00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 240V
✔ Amperage: 90A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/HBL
✔ MCM Size: Min. Wire Size 8 AWG, Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643269439
✔ GTIN: 00783643269439
✔ Country of Origin: Mexico
✔ Dimensions: 4.724 x 5.906 x 3.937
✔ Weight: 3
✔ Panel Type: P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
