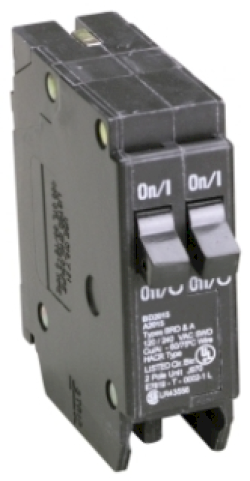

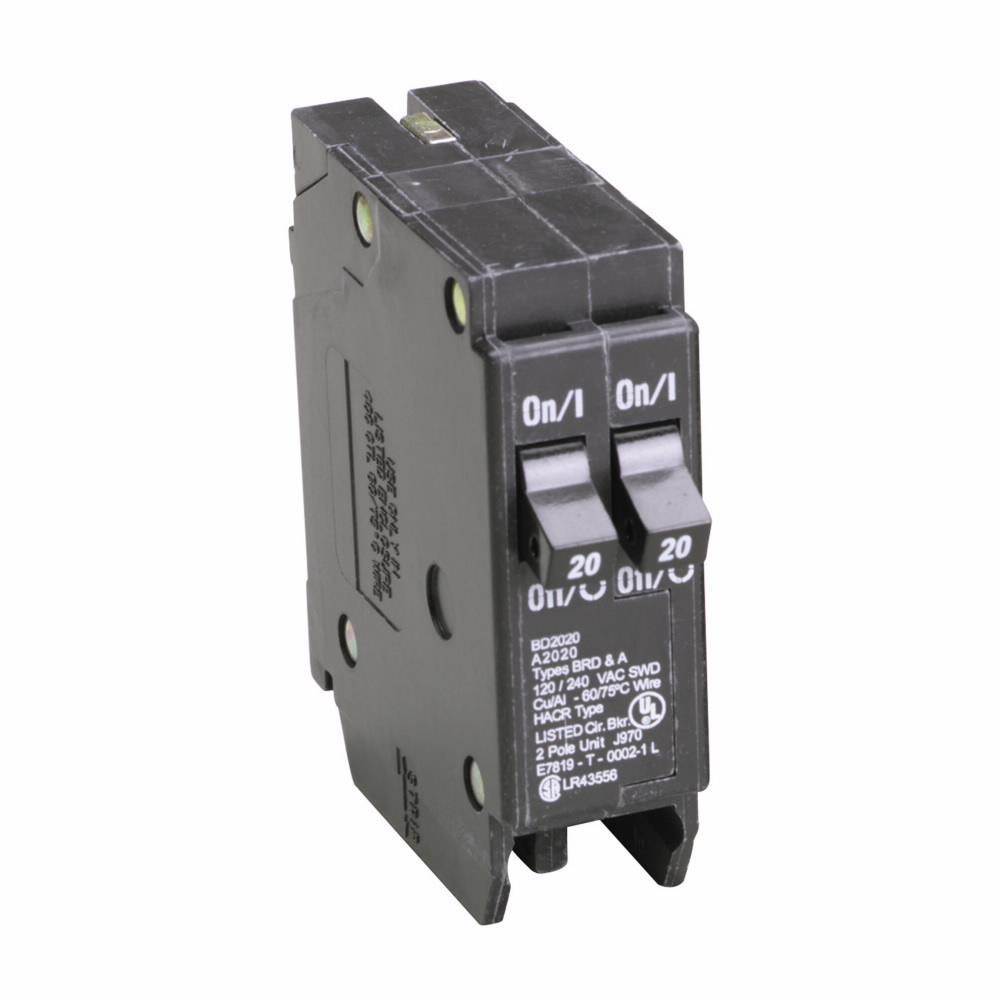

Eaton BD2020 Circuit Breaker | 120V 20A 2P 10kA@120V Feed-Thru BD Series

Product Description:
The Eaton BD2020 is a Molded Case Circuit Breaker from the BD Series family. It is a 2-pole, 20 amp breaker rated for 120V with a 10kA AIC rating. This model features thermal magnetic protection and a feed-thru connection design. It is compatible with Type BR loadcenters and meets UL 489 standards.

Key Features:
✔ Part Number: BD2020
✔ Manufacturer: Eaton, Cutler Hammer, Westinghouse
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BD Series
✔ Type: BD
✔ Voltage: 120
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 4 AWG (Cu/Al)
✔ Breaker Type: BR
✔ Protection: Thermal Magnetic
✔ UPC: 786676369251
✔ GTIN: 00786676369251
✔ Country of Origin: United States
✔ Dimensions: 1.6 in x 1 in
✔ Weight: 1.37
✔ Panel Type: Type BR Loadcenters
✔ Standards: UL 489
✔ Certification: UL 489
✔ Wire Size: 14 To 4 AWG (Aluminum/Copper)
