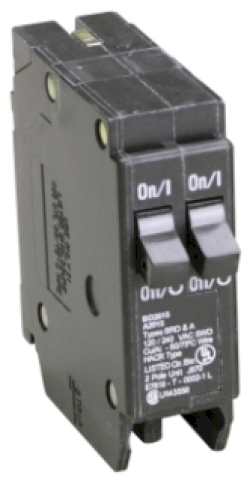

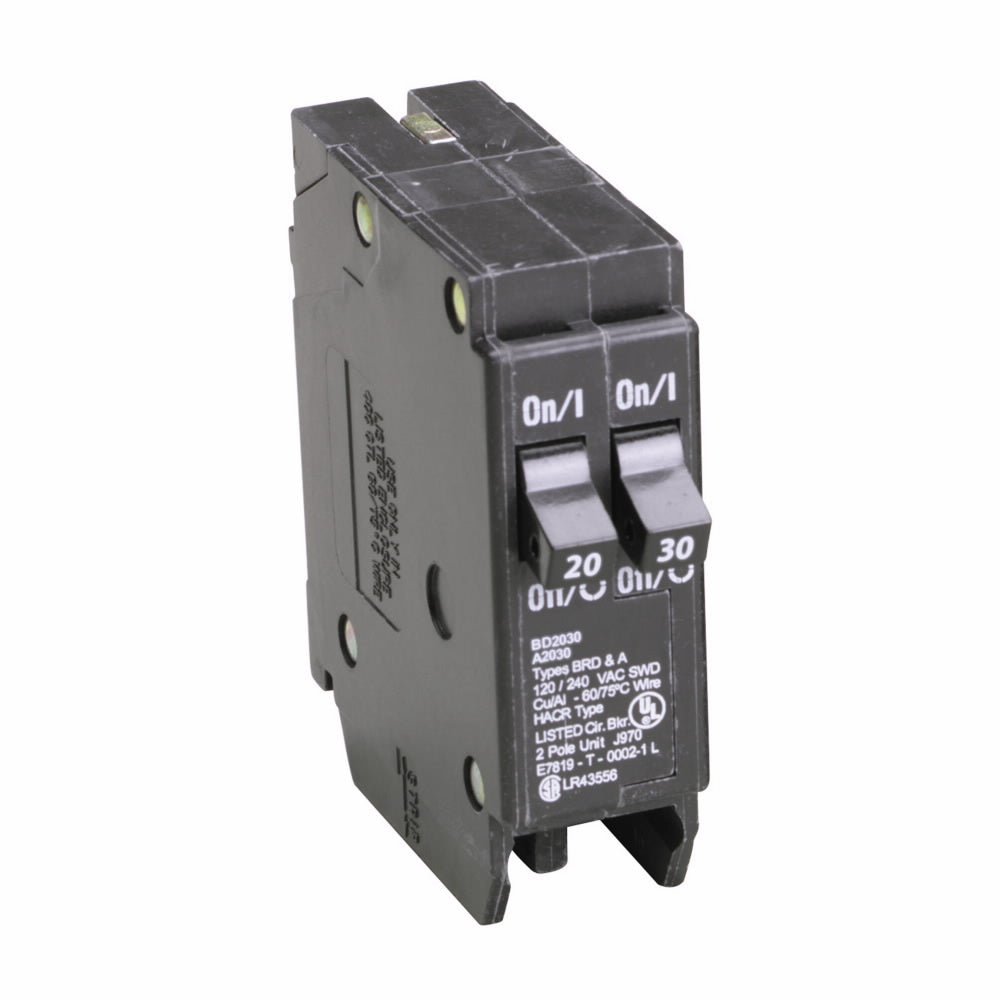

Eaton BD2030 Circuit Breaker | 120V 30A 2P 10kA@120V Feed-Thru BD Series

Product Description:
The Eaton BD2030 is a Molded Case Circuit Breaker from the BD Series. It features 2 poles, 120V voltage, and 30A amperage with a 10kA@120V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection. It is compatible with Type BR Loadcenters and meets UL 489 standards.

Key Features:
✔ Part Number: BD2030
✔ Manufacturer: Eaton, Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BD Series
✔ Type: BD
✔ Voltage: 120
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 4 AWG (Cu/Al)
✔ Breaker Type: BD
✔ Protection: Thermal Magnetic
✔ UPC: 786676369305
✔ GTIN: 00786676369305
✔ Country of Origin: Dominican Republic
✔ Dimensions: 1 in x 3 in
✔ Weight: 0.37
✔ Panel Type: Type BR Loadcenters
✔ Standards: UL 489
✔ Certification: UL 489
✔ Wire Size: 14 To 4 AWG (Aluminum/Copper)
